Description
TP-Link Archer AX55 Pro AX3000 Multi-Gigabit Wi-Fi 6 Router with 2.5G Port
The TP-Link Archer AX55 Pro is an AX3000 dual-band Wi-Fi 6 router that breaks through the 1Gbps wired bottleneck with a 2.5G multi-gigabit WAN/LAN port — making it the ideal upgrade for Australian homes and small offices on high-speed NBN or fibre plans. With 160MHz channel support on 5GHz, OFDMA for dense device environments, built-in VPN client and server, TP-Link HomeShield security, and OneMesh whole-home Wi-Fi support, it delivers premium performance and flexibility in a single device.
Key Features
-
AX3000 Wi-Fi 6 (802.11ax) — Up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz for combined wireless throughput of 3000Mbps — fast enough for 8K streaming, gaming, and large file transfers simultaneously.
-
2.5G Multi-Gigabit WAN/LAN Port — Breaks the 1Gbps wired bottleneck; ideal for high-speed NBN 1000 plans, NAS devices, and 2.5G-capable switches or access points.
-
160MHz Channel Width on 5GHz — Doubles the bandwidth compared to standard 80MHz routers for maximum throughput on compatible Wi-Fi 6 devices.
-
OFDMA Technology — Increases network capacity by up to 4×, allowing multiple devices to share a channel simultaneously — reducing latency and congestion in busy households.
-
4 × High-Gain Antennas with Beamforming — Concentrates Wi-Fi signals towards connected devices for stronger, more reliable coverage throughout the home.
-
VPN Client & Server — Run VPN connections at the router level so all devices on your network benefit without installing VPN software on each one. Supports simultaneous VPN and standard internet connections.
-
TP-Link HomeShield — Real-time network threat detection, IoT device protection, robust parental controls, and QoS bandwidth prioritisation.
-
OneMesh Support — Add a compatible TP-Link range extender to create seamless whole-home Wi-Fi with a single network name and automatic roaming.
-
USB 3.0 Port — Connect an external drive for shared network storage or personal cloud access from anywhere.
-
Improved Thermal Design — Larger heatsink and refined case design prevent throttling under sustained load for consistent peak performance.
-
Qualcomm Chipset — Advanced processor and high-speed memory deliver fast, reliable connections with minimal latency even under heavy network load.
-
Tether App & OTA Updates — Manage your network, parental controls, and firmware updates from the TP-Link Tether app (iOS & Android) with automatic update scheduling.
Use Cases
- Australian homes on NBN 1000 or high-speed fibre plans needing a router that can handle multi-gigabit WAN speeds
- Home offices with NAS devices, 2.5G switches, or high-bandwidth workstations requiring wired multi-gigabit throughput
- Households with 20+ connected devices needing OFDMA efficiency to reduce congestion and latency
- Remote workers and small businesses requiring router-level VPN without per-device software installation
- Families needing robust parental controls and content filtering via HomeShield
- Homes with Wi-Fi dead zones looking to extend coverage via OneMesh without replacing the router
Technical Specifications
| Specification |
Detail |
| Model |
Archer AX55 Pro |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax/ac/n/a on 5GHz; 802.11ax/n/b/g on 2.4GHz) |
| Combined Speed |
AX3000 — 2402Mbps (5GHz) + 574Mbps (2.4GHz) |
| 5GHz Channel Width |
Up to 160MHz |
| Ports |

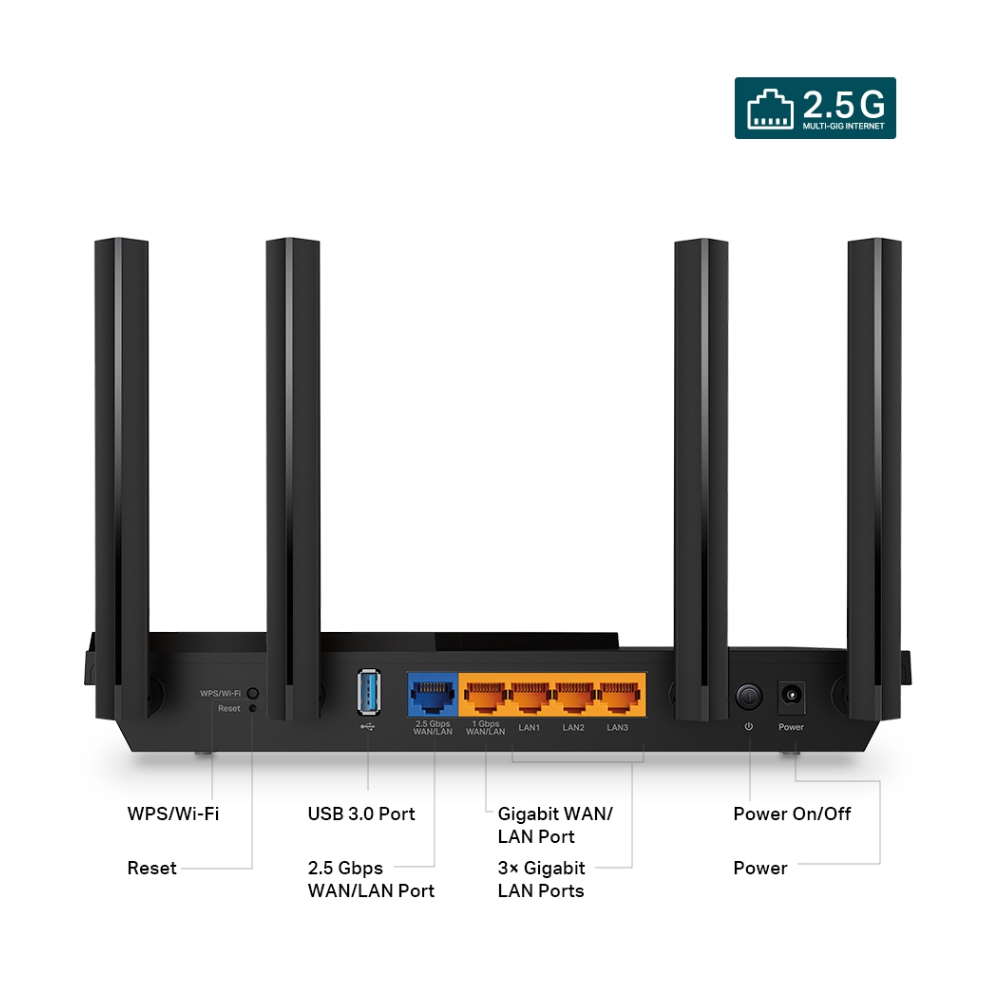

1 × 2.5G WAN/LAN + 1 × 1G WAN/LAN + 3 × Gigabit LAN + 1 × USB 3.0 |
| Antennas |
4 × High-Gain External with Beamforming |
| OFDMA |
Yes (Uplink & Downlink) — 4× capacity increase |
| MU-MIMO |
Yes |
| Chipset |
Qualcomm |
| VPN |
VPN Client & Server (simultaneous VPN + standard internet) |
| Security |
WPA3, TP-Link HomeShield (threat detection, parental controls, QoS, IoT protection) |
| Mesh |
TP-Link OneMesh compatible |
| USB |
1 × USB 3.0 (network storage / personal cloud) |
| App |
TP-Link Tether (iOS & Android) |
| Voice Control |
Amazon Alexa |
| Firmware Updates |
OTA (automatic scheduling available) |
| Weight |
Approx. 840g |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link RE700X OneMesh Wi-Fi 6 Range Extender — Extend seamless Wi-Fi 6 coverage throughout your home via OneMesh without adding a separate network name.
-
TP-Link TL-WA3001 AX3000 Wi-Fi 6 Access Point — For wired backhaul mesh expansion, connect an AX3000 access point to the 2.5G port for maximum throughput.
-
TP-Link TL-POE260S 2.5G PoE+ Injector — Power a PoE access point or VIGI camera from the router’s 2.5G LAN port using a single Ethernet cable.
-
USB Hard Drive (USB 3.0) — Connect to the USB 3.0 port for shared network storage or personal cloud access across all devices on your network.
-
Cat6 Ethernet Cable — Required to fully utilise the 2.5G port; Cat5e is limited to 1Gbps at standard lengths.
Frequently Asked Questions
Do I need a 2.5G modem or NBN connection to use the 2.5G port?
No. The 2.5G port is a WAN/LAN port that can be used for either your internet connection or a wired device. If your NBN connection is limited to 1Gbps, you can still use the 2.5G port as a LAN port to connect a 2.5G-capable NAS, switch, or access point at full 2.5G speeds internally.
What is the benefit of 160MHz channel width?
160MHz doubles the channel width compared to the standard 80MHz used by most Wi-Fi 5 and entry-level Wi-Fi 6 routers. This allows compatible devices (such as the Archer TX55E PCIe adapter) to achieve significantly higher throughput — up to 2402Mbps on the 5GHz band — making it ideal for 8K streaming, large file transfers, and high-bandwidth gaming.
How does the VPN feature work at the router level?
The Archer AX55 Pro can act as both a VPN client (connecting your entire home network to a remote VPN server) and a VPN server (allowing you to securely access your home network remotely). This means all devices on your network benefit from VPN protection without needing individual VPN software installed on each device.
Is HomeShield free?
Basic HomeShield features including network scanning, simple parental controls, and new device notifications are available at no cost. Advanced features such as detailed content filtering, real-time threat intelligence, and comprehensive usage reports require a HomeShield Pro subscription, managed through the Tether app.
Can I use this router with my existing NBN modem?
Yes. The Archer AX55 Pro connects to your existing NBN modem or modem-router via the WAN port (1G or 2.5G). If your current device is a modem-router combo, you may need to enable bridge mode or DMZ on the existing device to avoid double NAT. The Tether app setup guide walks you through this process.
What Cat cable do I need for the 2.5G port?
Cat6 or Cat6A is recommended for reliable 2.5Gbps operation, particularly at cable runs over 50 metres. Cat5e can support 2.5Gbps at shorter distances (under 50m) but Cat6 is the safer choice for new installations.
