Made in Europe · Industrial DIN Rail Switch

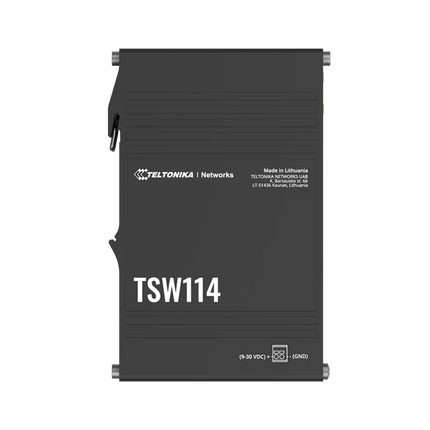

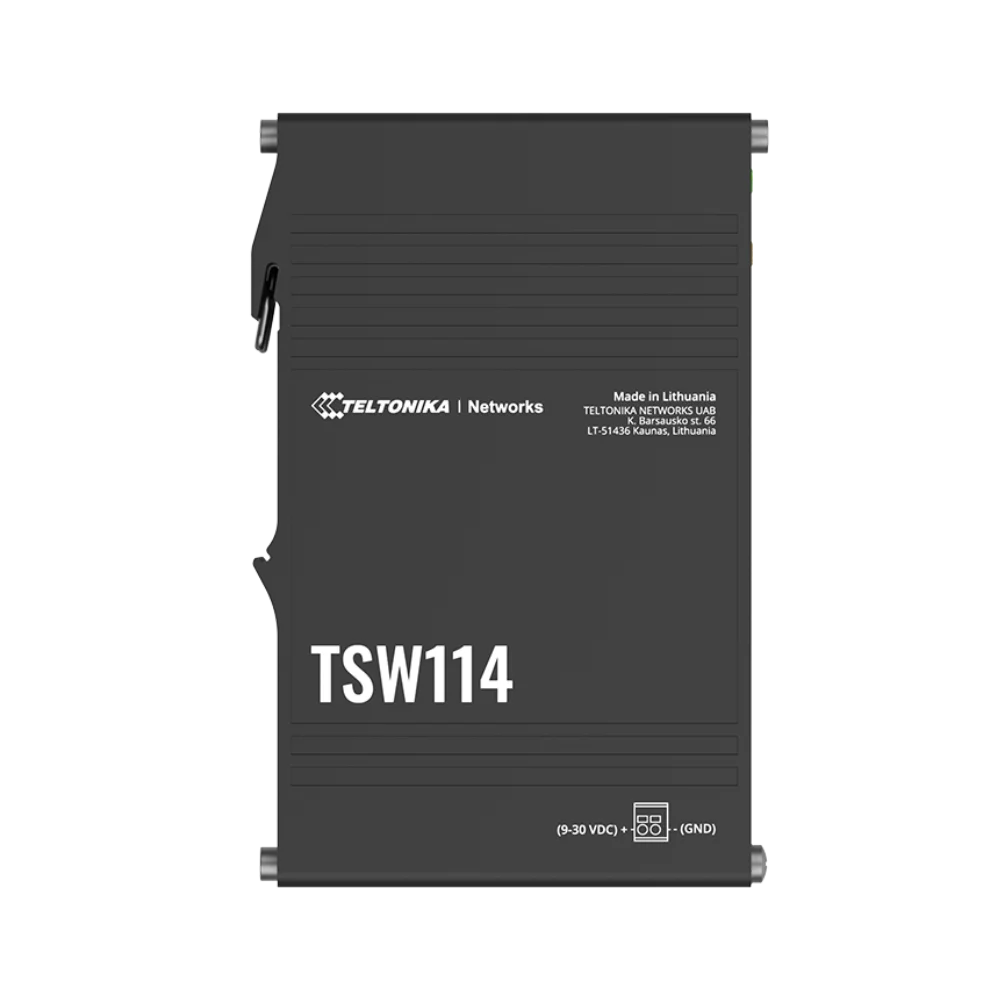

Teltonika TSW114 Gigabit DIN Rail Switch
Five Gigabit Ethernet ports in a compact, rugged anodised aluminium enclosure — engineered for industrial cabinets, CCTV installations and IIoT edge deployments where space, reliability and heat resistance matter.
The Teltonika TSW114 is a compact 5-port unmanaged Gigabit Ethernet switch built for industrial and commercial environments. Housed in a rugged anodised aluminium enclosure with DIN rail mounting, it slots directly into electrical cabinets, control panels and network enclosures — exactly where a standard plastic desktop switch has no place being.
With five full-duplex Gigabit ports and a non-blocking switching architecture, the TSW114 delivers wire-speed performance for IP cameras, industrial controllers, access control systems and edge computing devices. No configuration required — plug in, mount up and it works.
Designed and manufactured in Lithuania, the TSW114 is part of Teltonika’s proven industrial networking range, trusted by installers and system integrators across Australia and globally.

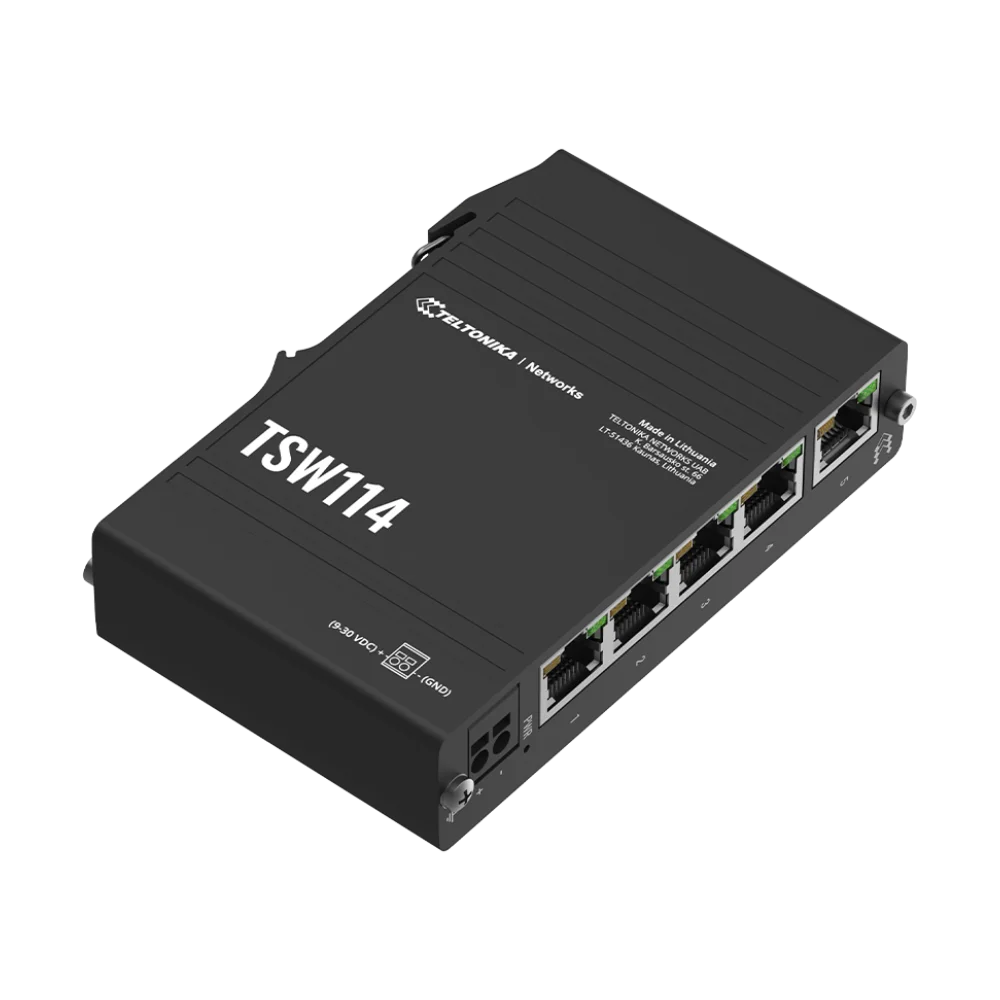

5 × Gigabit Ethernet Ports
Full-duplex 10/100/1000 Mbps on all five ports. Non-blocking switching architecture ensures wire-speed throughput with no bottlenecks — even under sustained load.
DIN Rail Mounting
Snaps directly onto standard 35 mm DIN rail — the same rail used in electrical switchboards and industrial control cabinets. No drilling, no brackets, no wasted space.
Rugged Aluminium Housing
Anodised aluminium construction dissipates heat passively — no fan, no moving parts, no noise. Built to handle the temperature extremes and vibration of real industrial environments.
Plug-and-Play Operation
Unmanaged design means zero configuration. Power it on, connect your devices and you’re done. Ideal for installers who need a reliable switch deployed fast.
Compact Form Factor
Minimal footprint makes the TSW114 ideal for tight enclosures where every millimetre counts. Fits neatly alongside routers, PLCs and other DIN rail equipment.
Made in Europe
Designed and manufactured in Lithuania to Teltonika’s exacting quality standards. Backed by Teltonika’s global support network and CCTV Guru’s local Australian expertise.
Common TSW114 deployment applications
CCTV & IP Camera Installations
Connect IP cameras, NVRs and PoE injectors inside a compact enclosure. The TSW114 keeps your surveillance network tidy, reliable and contained within the cabinet.
Industrial Control Panels
Integrate seamlessly alongside PLCs, HMIs and industrial controllers on standard DIN rail. Gigabit speeds handle real-time data without latency.
Access Control & Intercom Systems
Provide reliable Gigabit connectivity for access control panels, intercoms and door controllers — all within a single neat enclosure.
Remote & Edge Network Nodes
Deploy in remote cabinets, kiosks and outdoor enclosures alongside a Teltonika 4G router for a complete, self-contained edge networking solution.
Teltonika TSW114 technical specifications
| Model |
Teltonika TSW114 (NHT-TSW114) |
| Ethernet Ports |
5 × 10/100/1000 Mbps (Gigabit) RJ45 |
| Switching Mode |
Full-duplex, non-blocking |
| Switch Type |
Unmanaged |
| Mounting |
DIN rail (35 mm standard) |
| Housing |
Anodised aluminium |
| Cooling |
Passive (fanless) |
| Power Input |
12–57 VDC |
| Power Connector |
2-pin terminal block |
| Weight |
~220 g |
| Operating Temperature |
-40°C to +75°C |
| Origin |
Made in Europe (Lithuania) |
TSW114 setup & overview video
Official Teltonika quick start guide — covering unboxing, DIN rail mounting, wiring and first connection.
Quick Start Guide
Step-by-step setup for mounting, wiring and getting your TSW114 online in minutes.
Downloads & setup resources
Everything you need to get the RUT241 up and running. These official Teltonika resources cover first-time setup, configuration, specifications and remote management.
Teltonika TSW114 FAQ
Is the TSW114 a managed or unmanaged switch?
Unmanaged. There is no configuration interface — it operates plug-and-play out of the box. If you need VLAN, QoS or remote management, consider the Teltonika TSW212 or TSW202 managed switch range.
Does the TSW114 support PoE?
No. The TSW114 is a standard Gigabit switch without PoE output. If you need to power IP cameras or access points directly from the switch, you’ll need a PoE switch such as the Teltonika TSW110 or TSW212.
What DIN rail size does it fit?
Standard 35 mm (TS-35) DIN rail, which is the most common type used in electrical switchboards and industrial control cabinets across Australia.
What voltage does the TSW114 require?
The TSW114 accepts 12–57 VDC via a 2-pin terminal block connector — compatible with common 12 V and 24 V DC power supplies used in industrial and security installations.
Can I use it in outdoor or harsh environments?
The TSW114 is rated for -40°C to +75°C operating temperature and features a fanless aluminium housing, making it suitable for harsh indoor environments and sealed outdoor enclosures.
Will it work with Hikvision, Dahua or Uniview cameras?
Yes. The TSW114 is a standard Gigabit Ethernet switch and is fully compatible with IP cameras from Hikvision, Dahua, Uniview, Tiandy and all other major surveillance brands.
Does it pair well with Teltonika routers?
Yes. The TSW114 is commonly deployed alongside Teltonika RUT241, RUT956 or RUTX11 routers on the same DIN rail to create a compact, self-contained industrial networking node.
Is Australian stock available?
Yes. CCTV Guru stocks the TSW114 locally in Australia for fast dispatch. No waiting on international freight.
Why buy Teltonika from CCTV Guru?
CCTV Guru supplies genuine Teltonika products with Australian stock, local technical support and fast nationwide delivery. Our team has hands-on experience deploying Teltonika switches and routers across CCTV, industrial and enterprise networks — so when you need advice, you’re talking to someone who actually knows the product.
