Industrial 5G Router · Dual SIM · M.2 Modem Slot · RMS Ready
Teltonika RUTM52 — Industrial 5G Router with M.2 Modem
The Teltonika RUTM52 is a next-generation industrial 5G router engineered for Australian deployments where maximum throughput, hardware flexibility, and mission-critical uptime are non-negotiable. Featuring an M.2 modem slot for field-upgradeable cellular modules, dual SIM failover, 5× Gigabit Ethernet, and Teltonika’s enterprise-grade RutOS platform, the RUTM52 is purpose-built for CCTV backhaul, industrial IoT, SCADA, and enterprise WAN failover across Australia’s most demanding environments.
Unlike fixed-modem routers, the RUTM52’s M.2 Key B slot allows the cellular modem to be upgraded in the field as 5G networks evolve — protecting your infrastructure investment for years to come. Pair it with Teltonika RMS for centralised remote management of your entire fleet.
Cellular
5G SA/NSA · Cat 20 Fallback
Modem
M.2 Key B · Field Upgradeable
SIM
Dual SIM · Auto Failover
Ethernet
5× Gigabit · 1 WAN + 4 LAN
Security
RutOS · WireGuard · OpenVPN
Housing
−40°C to +75°C · Aluminium
Fast Australia-Wide Shipping
Why Choose the RUTM52 for Australian Deployments?
The RUTM52 stands apart from every fixed-modem 5G router on the Australian market because its M.2 Key B modem slot means you’re never locked to a single cellular generation. As Telstra, Optus, and Vodafone expand their 5G SA networks, your RUTM52 evolves with them — a single hardware platform that protects your capital investment across multiple technology cycles. Combined with dual SIM failover, enterprise VPN support, and Teltonika’s proven RutOS, it’s the most future-proof industrial router available in Australia today.
M.2 Field-Upgradeable Modem
The M.2 Key B slot accepts standard cellular modem cards, allowing in-field upgrades as 5G SA networks mature — no router replacement required. Unique in its class at this price point.
5G SA/NSA with 4G Fallback
Supports 5G Standalone and Non-Standalone modes with automatic fallback to 4G LTE Cat 20 (2 Gbps DL) and 3G — ensuring connectivity wherever your site is located across Australia.
Dual SIM Mission-Critical Failover
Two SIM slots with automatic carrier switching keep your site online when one network drops. Switch between Telstra, Optus, and Vodafone instantly — zero manual intervention required.

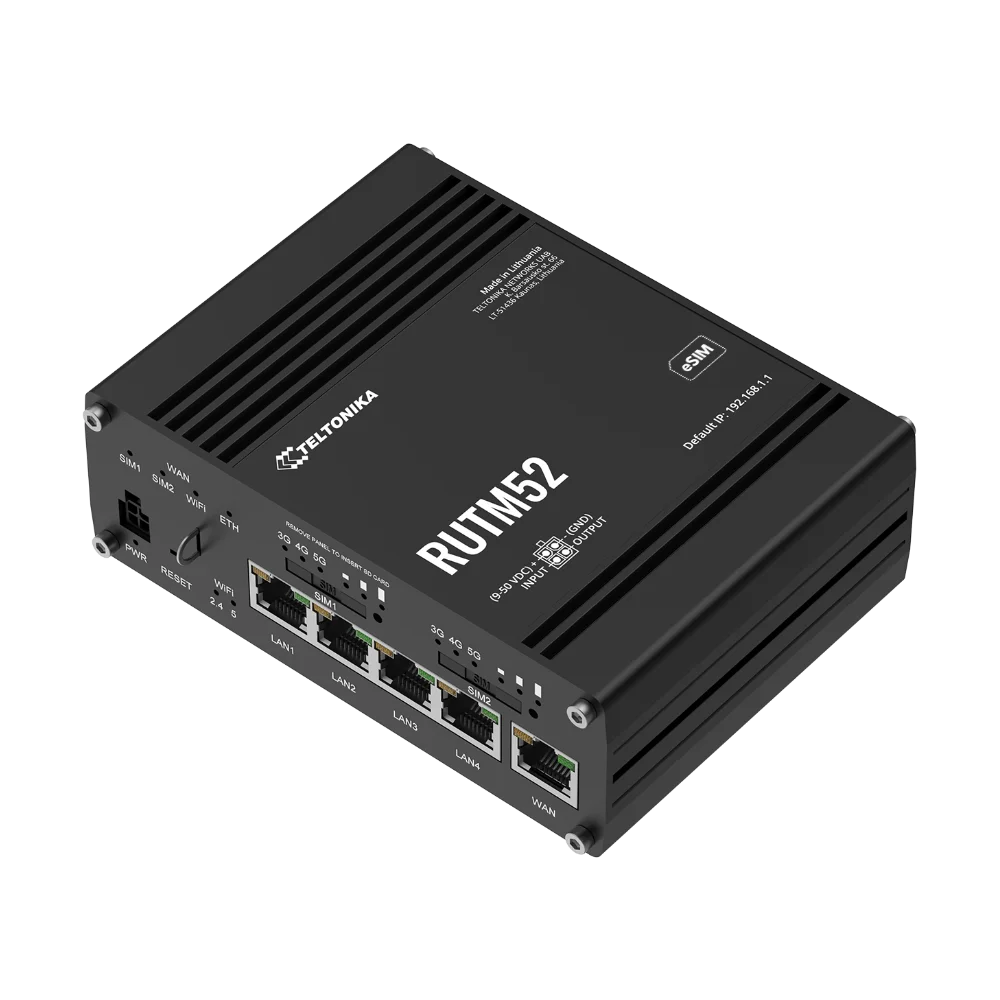

5× Gigabit Ethernet
One dedicated WAN port and four LAN ports — all Gigabit — provide the wired backbone to connect NVRs, managed switches, industrial computers, and IP devices without throughput compromise.
RutOS Enterprise Security
WireGuard, OpenVPN, IPsec, a full stateful firewall, and industrial protocols including Modbus, MQTT, and SNMP are all built into RutOS — no additional licensing required.
Rugged Aluminium — −40°C to +75°C
Full aluminium housing with DIN rail mounting support is rated for continuous operation from sub-zero alpine conditions to the peak of an Australian summer — built to run unattended for years.
RUTM52 in Action — Official Teltonika Overview
Teltonika RUTM52 — Industrial 5G Router with M.2 Modem Slot
Wi-Fi 6 Ready (Optional) The RUTM52 supports optional Wi-Fi 6 (802.11ax) via M.2 expansion — future-proofing wireless connectivity for high-density client environments.
Teltonika RMS Fleet Management Manage, monitor, and remotely access your entire RUTM52 fleet from Teltonika’s cloud-based Remote Management System — no on-site visits required.
Industrial Protocol Support Modbus TCP/RTU, DNP3, MQTT, and SNMP are natively supported — making the RUTM52 a natural fit for SCADA, energy, and utilities deployments.
Multi-WAN Load Balancing Distribute traffic across cellular and wired WAN simultaneously for maximum throughput and resilience on bandwidth-intensive sites.
USB 3.0 Expansion USB 3.0 port supports external storage, additional modem dongles, and peripheral expansion for custom IoT and edge computing deployments.
Digital I/O & Serial Interfaces Configurable digital inputs/outputs and RS232/RS485 serial ports enable direct integration with legacy industrial equipment and alarm systems.
Common RUTM52 Deployment Applications in Australia
The RUTM52 is the preferred choice for Australian system integrators who need a single router platform that can handle today’s 4G sites and tomorrow’s 5G SA rollouts without a forklift upgrade.
CCTV & Security Backhaul
Deploy high-speed 5G backhaul for remote CCTV towers, NVRs, and IP camera networks where fixed-line NBN is unavailable or unreliable. Dual SIM redundancy keeps footage flowing 24/7.
Enterprise WAN Failover
Protect offices, retail stores, and commercial sites against NBN outages. Keep EFTPOS, VoIP, cloud POS, and remote desktop sessions running automatically — without staff intervention.
Industrial IoT & SCADA
Connect PLCs, SCADA systems, and remote telemetry devices in mining, utilities, and manufacturing. RutOS industrial protocol support and the rugged housing make it ideal for 24/7 unattended operation.
Temporary & Construction Sites
Rapidly deploy enterprise-grade 5G connectivity at construction sites, events, or pop-up offices. DIN rail mounting and wide voltage input mean you’re operational in minutes.
Full Technical Specifications
Teltonika RUTM52 — Industrial 5G Router
| Model |
Teltonika RUTM52 |
| SKU |
RUTM52000000 |
| Modem Interface |
M.2 Key B slot (field-upgradeable cellular modem) |
| Mobile Technology |
5G SA/NSA; 4G LTE Cat 20 (2 Gbps DL / 200 Mbps UL); 3G; 2G |
| SIM Slots |
2 × Nano SIM (4FF) with automatic failover |
| Ethernet Ports |
5 × RJ45 Gigabit (10/100/1000 Mbps) — 1 × WAN, 4 × LAN |
| Wi-Fi |
Optional via M.2 expansion (Wi-Fi 6 capable) |
| USB |
1 × USB 3.0 |
| Serial Interfaces |
RS232, RS485 |
| Digital I/O |
4 × Digital Input / 4 × Digital Output |
| Operating System |
RutOS (OpenWrt-based Linux) |
| VPN Support |
WireGuard, OpenVPN, IPsec, GRE, L2TP, PPTP, SSTP, ZeroTier |
| Industrial Protocols |
Modbus TCP/RTU, DNP3, MQTT, SNMP, NTRIP |
| Remote Management |
Teltonika RMS compatible |
| Power Input |
9–50 V DC (4-pin power connector) |
| Operating Temperature |
−40°C to +75°C |
| Housing |
Full aluminium; DIN rail & wall mount compatible |
| Certifications |
CE, RCM (Australian Compliance) |
| Warranty |
2 Years — CCTV Guru / Teltonika Australia |
Frequently Asked Questions
What makes the RUTM52 different from the RUTX50?
The RUTM52 features an M.2 Key B modem slot, allowing the cellular module to be upgraded in the field as 5G networks evolve. The RUTX50 has a fixed integrated modem. If future-proofing and hardware flexibility are priorities, the RUTM52 is the stronger choice.
Will the RUTM52 work on Australian 5G networks?
Yes. With the appropriate M.2 modem installed, the RUTM52 supports the primary 5G Sub-6 GHz and 4G LTE bands used by Telstra, Optus, and Vodafone, including Band 28 (700 MHz) for regional and rural coverage.
Does the RUTM52 come with a modem installed?
The RUTM52 is available with or without a pre-installed M.2 modem depending on the SKU variant. Please confirm with CCTV Guru at time of order to ensure the correct modem module is included for your deployment.
How many CCTV cameras can the RUTM52 support?
On a strong 5G connection, the RUTM52 can comfortably handle 16+ HD or 4K cameras depending on bitrate and compression. Its 5× Gigabit ports allow direct NVR and switch connections for larger camera arrays.
Does the RUTM52 support remote management?
Yes. It is fully compatible with Teltonika RMS, enabling secure remote configuration, diagnostics, and firmware updates across your entire device fleet from a central cloud dashboard.
What VPN protocols does the RUTM52 support?
The RUTM52 supports WireGuard, OpenVPN, IPsec, GRE, L2TP, PPTP, SSTP, and ZeroTier via RutOS — making it straightforward to establish secure tunnels to NVRs, head offices, or cloud infrastructure.
Is the RUTM52 suitable for harsh outdoor environments?
Yes. The full aluminium housing and −40°C to +75°C operating range make it suitable for enclosures, cabinets, and field installations exposed to extreme Australian temperatures and vibration.
Does CCTV Guru offer Australian warranty and support?
Yes. All Teltonika products sold by CCTV Guru include the manufacturer’s 2-year warranty plus local Australian-based technical support and pre-sales advice.
Downloads & Resources
Order the Teltonika RUTM52 from CCTV Guru
CCTV Guru is an authorised Australian distributor of Teltonika industrial networking equipment. Order the RUTM52 today for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts, and full local warranty support. For large multi-site rollouts, government tenders, or SCADA/IoT projects, contact our Australian team for a tailored quote and stock availability.
