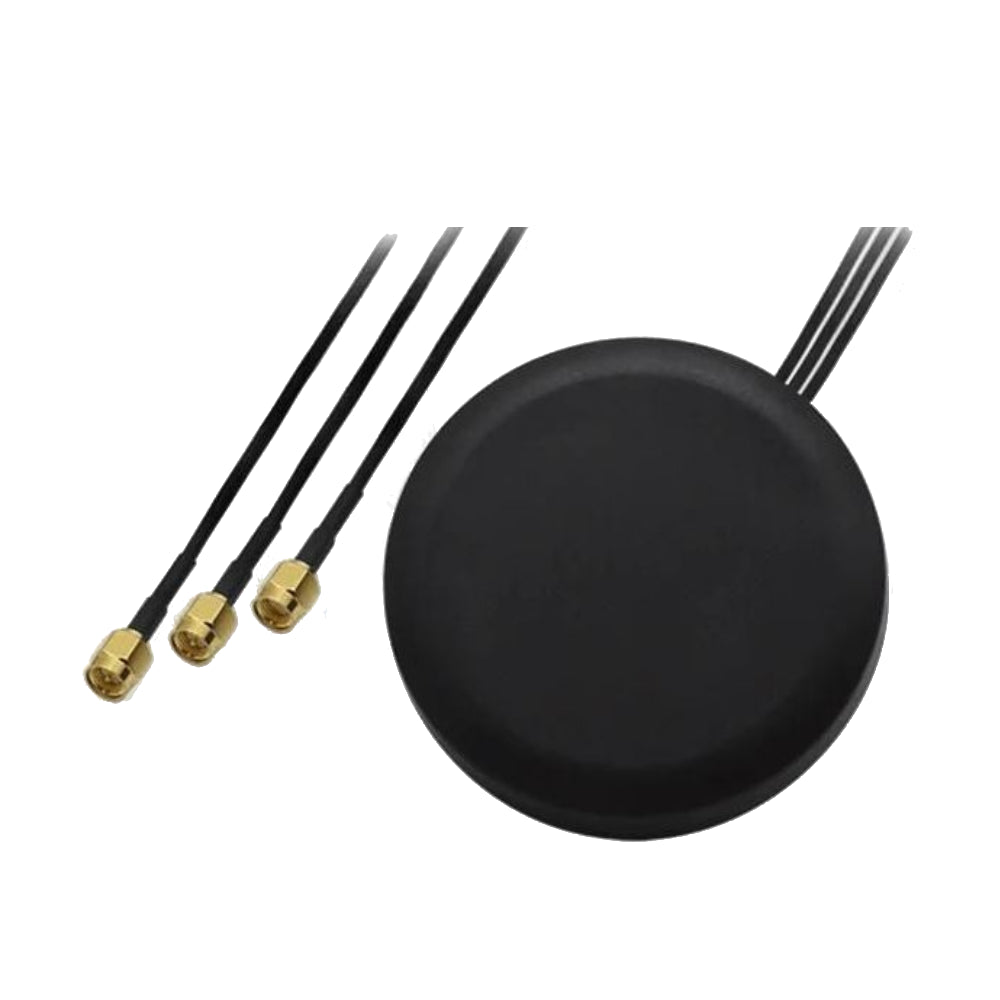

Teltonika Combo SISO Mobile/GNSS/WIFI Flush Mount Mobile Antenna for Vehicle/Cabinet - For use with RUT950 - Formerly 003R-00254

Description

COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA

Teltonika Combo SISO Mobile/GNSS/WIFI Roof SMA Antenna

GNSS Antenna

  • Frequency Range: 1575.42-1610 MHz
  • Polarization RHCP
  • Impedance 50 Ω
  • LNA Gain 28 dB
  • LNA Noise Figure < 1.5 dB
  • Supply Voltage 2.7-5 ±0.5 VDC
  • Current Consumption < 15 mA
  • LNA V.S.W.R <1.65
  • Connector SMA Male

LTE Antenna

  • Frequency Range: 850/900/1800/1900/2170 MHz
  • Bandwidth ±90/280 MHz
  • Polarization Vertical
  • Gain 3.5 dBi
  • V.S.W.R: <1.5:1
  • Impedance: 50 Ω
  • Connector: SMA Male
  • WiFi Antenna
  • Frequency Range: 2350-2500 MHz
  • Bandwidth ±100 MHz
  • Polarization Vertical
  • Gain 2.5 dBi
  • V.S.W.R: <1.5:1
  • Impedance: 50 Ω
  • Connector: RP SMA Male

Mechanical/Environmental

  • Mounting Method: Screw
  • Radome Ingress Protection rating: IP67
  • Radome Material: ABS
  • Weight: <250g
  • Housing Dimensions: Ø 80x15 mm
  • Cable: 3x RG174, 3000 mm
  • RoHS Compliant: ✔
Downloads
DATASHEET

Teltonika Combo SISO Mobile/GNSS/WIFI Flush Mount Mobile Antenna for Vehicle/Cabinet - For use with RUT950 - Formerly 003R-00254

Product form

SKU: PR1KCS28

COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA Teltonika Combo SISO Mobile/GNSS/WIFI Roof SMA AntennaGNSS Antenna Frequency Range: 1575.42-1610 MHz Polarization RHCP... Read more

$52.27 Incl. GST
