Universal Dual Voltage Input
Accepts 110–240V AC input, making it compatible with any Australian power point and suitable for international deployments without an adapter.
Adjustable 12V DC Output
User-adjustable output voltage lets you fine-tune power delivery to match the exact requirements of your cameras and peripherals.
4 Independent Channels
Power up to 4 CCTV cameras from a single unit. Each channel is independently fused, so a fault on one camera won't affect the others.
Built-in Surge & PTC Protection
Input surge protection guards against voltage spikes, while the built-in PTC automatically limits total load to 5A — protecting your cameras and the supply itself.

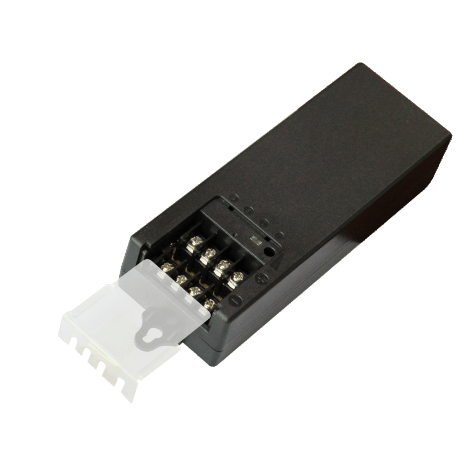

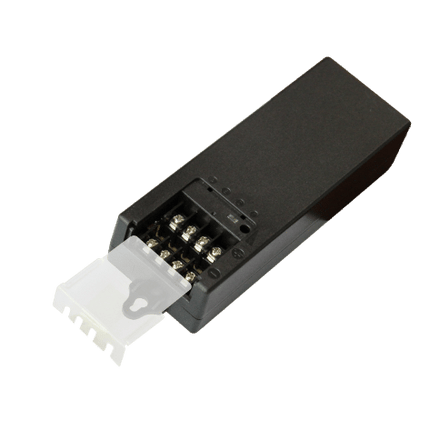

Terminal Cover Included
The included terminal cover keeps wiring safe, dust-free, and compliant with installation best practices — no extra accessories needed.

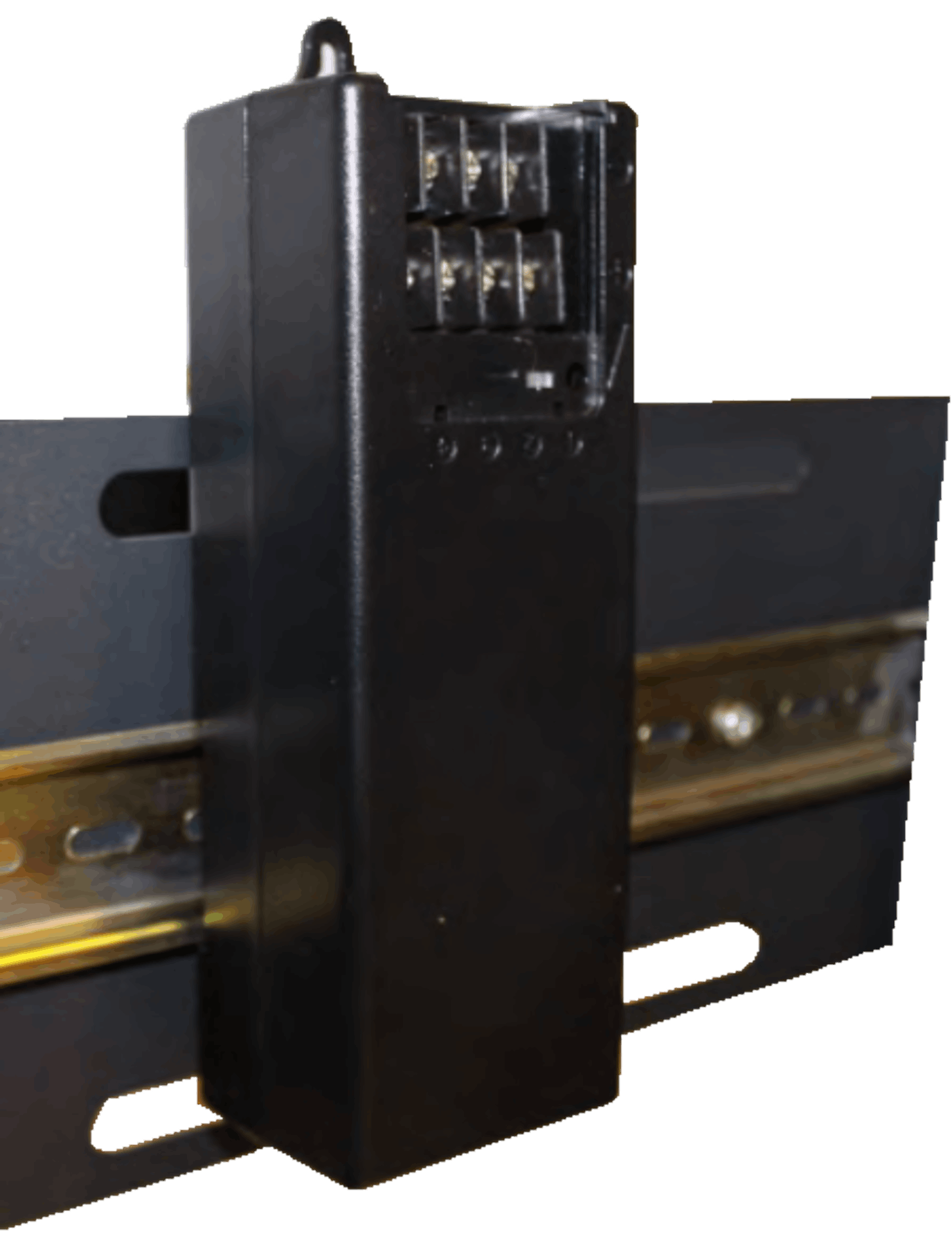

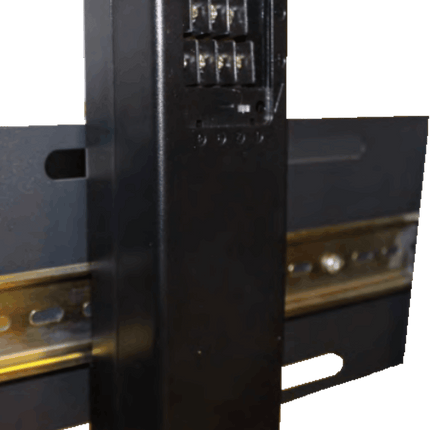

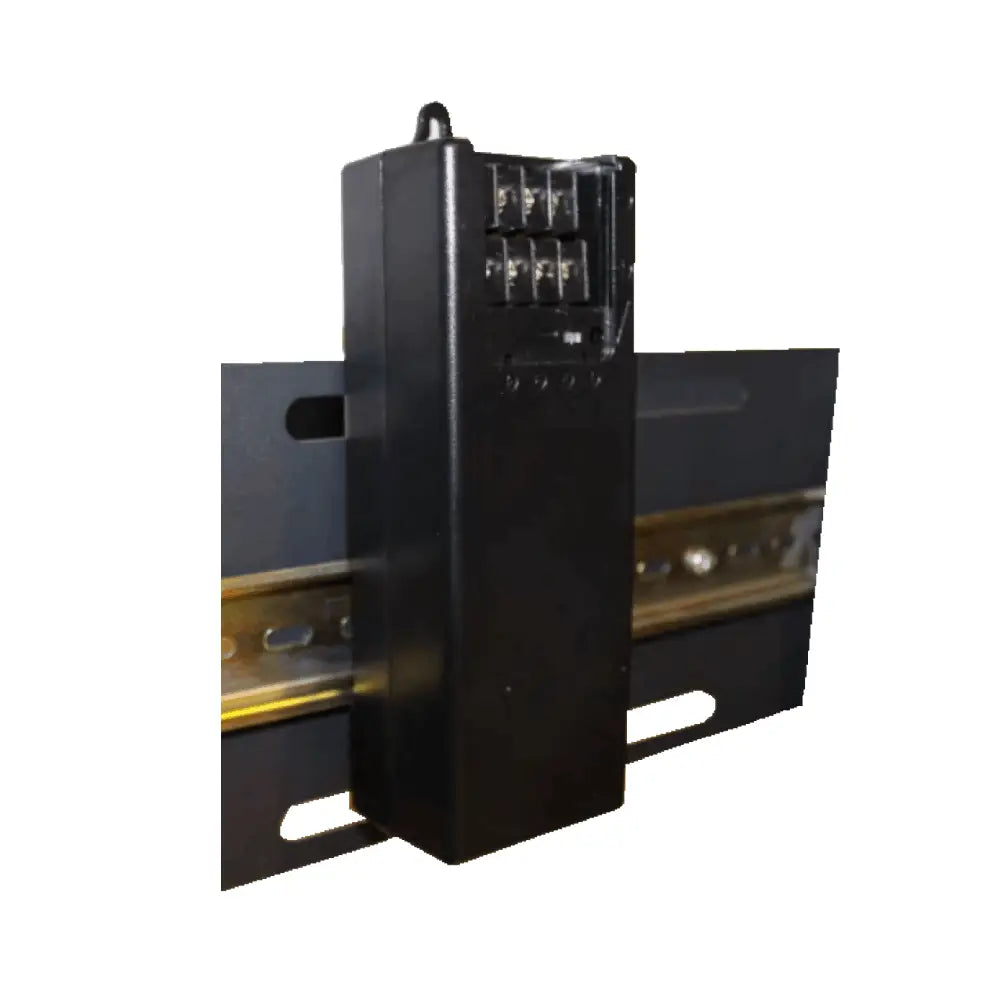

Wall or DIN Rail Mount
Flexible mounting options suit both cabinet-based and surface-mounted installations. Compact 151H × 35W × 55D mm footprint fits tight spaces.
How many cameras can this power supply run?
Up to 4 cameras via its 4 independent output channels, provided the total current draw does not exceed 5A. Most standard CCTV cameras draw 300–800mA each.
Is it compatible with Australian power points?
Yes. The 110–240V AC dual voltage input is fully compatible with Australian 240V power points and international voltages.
Can it be mounted inside a security cabinet?
Absolutely. The DIN rail mounting option makes it ideal for installation inside standard security enclosures and equipment cabinets.
What happens if one camera draws too much current?
The built-in PTC (Positive Temperature Coefficient) device automatically limits the total load to 5A, protecting both the supply and connected cameras from overcurrent damage.
