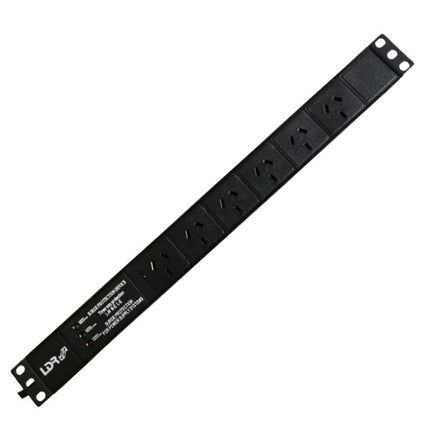

LDR 6-Port 10A Power Distribution Unit AU Approved - 6x 3-Pin AU/NZ Outlets/Slots - 1U Horizontal Mount
Organise your installation with the exact LDR model specified below. Check the mounting arrangement, usable dimensions and equipment requirements before ordering.
12-month supplier warranty
Australian supply
CCTV Guru support
Key features
Six AU/NZ outlets
Six 3-pin outlets distribute power to compatible equipment.
10A rating
Plan the combined equipment load within the PDU’s stated total rating.
1U horizontal format
Designed for a compatible 19-inch rack mounting arrangement.
Indoor installation
IP20 classification; keep it in a suitable dry indoor environment.
Power distribution for an organised rack
Use this PDU to bring compatible rack equipment to a single distribution point. Add the current drawn by all connected equipment and allow for the complete supply arrangement. The number of outlets does not multiply the PDU’s total current rating.
Before installation
Confirm mounting clearance, plug access and the ratings of the upstream supply and each connected device. This is a power-distribution unit; battery backup, surge filtering and managed power switching are not claimed for this model. Keep cables supported and vents unobstructed.
Technical specifications
| Model |
WB-PDU-0306 |
| Outlets |
6 × AU/NZ 3-pin |
| Rated current |
10A total |
| Mounting |
1U horizontal rack format |
| Dimensions |
482.5 × 44.5 × 44.5 mm |
| Internal mounting depth |
46mm |
| Protection |
IP20 |
Resources and configuration help
Frequently asked questions
Does it provide battery backup?
No battery-backup function is specified. Use a separately selected UPS where backup power is required.
Is 10A available at each outlet independently?
Treat 10A as the total PDU rating and design the combined connected load accordingly.
Will it fit any rack?
Confirm a suitable 19-inch horizontal mounting arrangement and clearance for the body and connected plugs.
