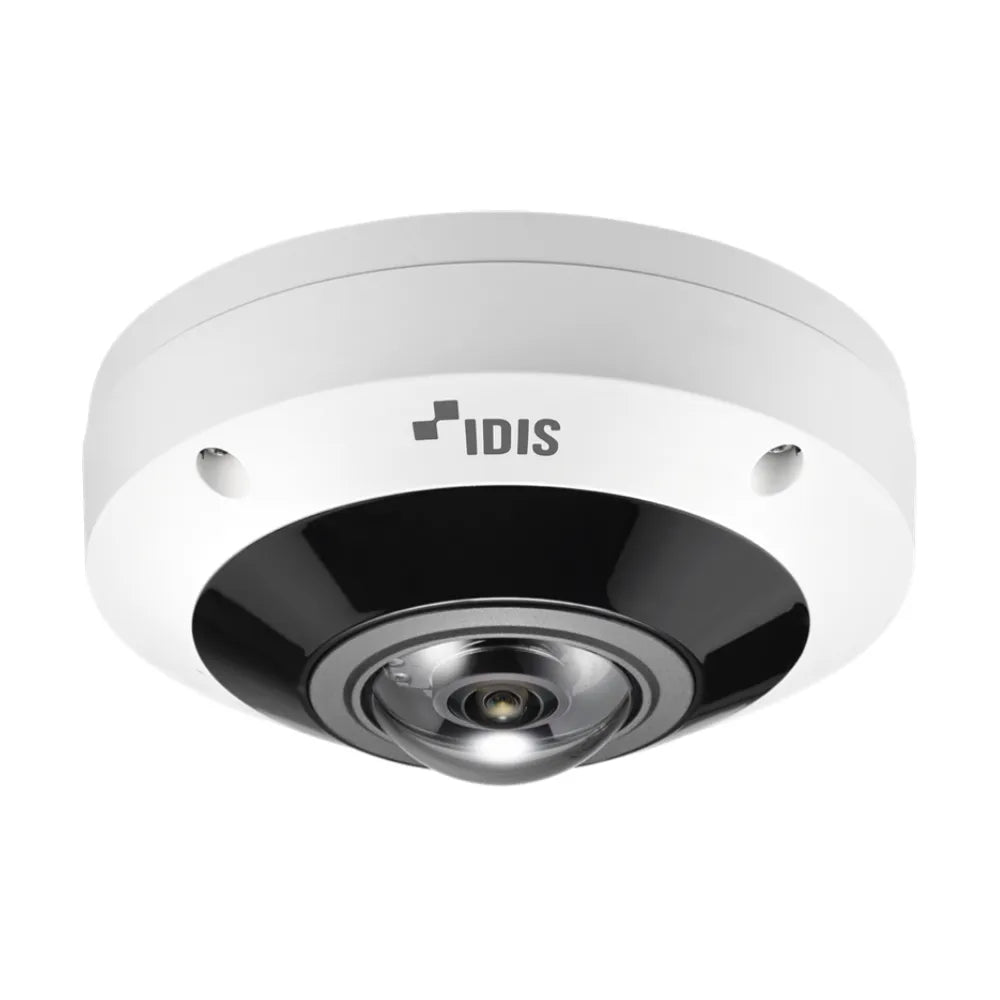

IDIS DC-Y8D11WRA 12.5MP AI IR Fisheye Camera

Description

IDIS PANORAMIC FISHEYE SERIES · NDAA & TAA COMPLIANT

Comprehensive 360-Degree Spatial Intelligence with 12.5MP Ultra-High Resolution

The DC-Y8D11WRA establishes a premium standard for wide-area panoramic surveillance, combining a specialized panomorph optic layout with a dense 12.5-Megapixel sensor to provide flawless 360-degree monitoring. Purpose-built to eliminate operational blind spots within large architectural spaces, this high-performance network camera seamlessly replaces multi-sensor arrays or multiple fixed nodes in open atriums, expansive warehouse floors, corporate lobbies, and prominent retail concourses. By establishing absolute coverage from a single hardware deployment point, it significantly slashes infrastructure engineering overhead while maximizing capture accuracy.

Resolution
12.5MP (3520 x 3520)
Optics
1.7mm Panoramic Lens
Night Vision
Zone Adaptive 20m IR
Protection
IP67 Weather / IK10 Vandal

Dynamic SmartUX Control Interface and Native On-Edge Deep Learning Analytics

The processing architecture of this advanced hardware incorporates patented IDIS SmartUX Controls, empowering operators with a fluid, multi-directional virtual PTZ tracking experience across both live and historic recorded timelines. Featuring 6 distinct on-board dewarping configurations, users can seamlessly split the single hemispheric overview stream into multi-directional quad, panorama, or regional layouts without performance lag. Armed with an embedded IDIS Deep Learning Analytics (IDLA) engine, it automatically tracks active loitering vectors, counts human traffic, detects perimeter breaches, and records accurate heatmaps directly on-edge. Review deep-tier software integration features at the dedicated IDIS DC-Y8D11WRA Hub.

Intelligent Zone-Adaptive Infrared Array

Eliminate overexposure and localized white-out issues during night-shift security operations. The integrated 4-zone adaptive IR illumination matrix modifies LED output dynamically across separate quadrants, delivering highly accurate target clarity up to 20 meters away, even in zero-lux atmospheric conditions.

Smart Failover Architecture & Cyber Hardening

Secure the continuity of data records against physical link losses. Utilizing a 60MB internal session record buffer combined with dual micro SDXC Smart Failover support up to 512GB, the system guarantees uninterrupted operation under network strains while applying zero-trust FIPS 140-3 level 3 cryptographic safeguards.

Technical Specification Matrix
Camera Model DC-Y8D11WRA
Image Sensor 1/1.6" Progressive Scan CMOS Sensor
Max Resolution 3520 x 3520 (12.5 Megapixel Total Resolution)
Optical Lens 1.7mm Fixed-focal (F2.0 Lens Aperture)
Angular Field of View 180° Horizontal / 180° Vertical / 180° Diagonal
Dynamic Range 120dB True WDR (Wide Dynamic Range)
Embedded AI Engine IDIS Deep-Learning Analytics (Object/Attribute Metadata, Intrusion, Loitering, Heatmaps)
Night Illumination 4x Zone Adaptive IR LEDs with 20m (65.6ft) Active Range
Data Encryption Chained Fingerprint, HTTPS Encryption, FIPS 140-3 Level 3 Compliance
Ingress / Vandal Impact IP67 Weather Proof / IK10 Vandal-Resistant Shielding
Power Allocation 12VDC / PoE (IEEE 802.3at Class 4), Max 24W
Is the IDIS DC-Y8D11WRA fully approved under federal defense guidelines?

Yes. This panoramic platform is entirely NDAA and TAA compliant, built intentionally without components or sub-assembly microchips manufactured by restricted defense trade entities. It is explicitly authorized for integration into secure corporate assets, defense offices, airports, and military frameworks.

What is the benefit of the SmartUX control framework during an investigation?

Traditional fisheye feeds distort reality, making tracking difficult. IDIS SmartUX control lets administrators naturally click and drag across the 360-degree interactive field to virtually pan, tilt, and zoom smoothly through historic data archives or active incidents, maintaining correct proportions across 6 dewarped mode configurations.

How do on-board AI heatmaps benefit commercial business applications?

Beyond security alerts, the embedded IDLA algorithms record foot-traffic distribution trends within the coverage footprint. This lets commercial operators map peak human interaction areas, evaluate customer pathways in retail spaces, and optimize floor layouts using direct historical data metrics.

Can this panoramic camera withstand severe outdoor environments?

Absolutely. The engineering layout features an IP67 completely weatherproof structure alongside an industrial-grade IK10 vandal-proof dome. Operating across extreme temperature scales from -40°C to 55°C (-40°F to 131°F), it remains perfectly stable against intentional vandalism and rough physical impacts.

Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
