IDIS 6000 SERIES · NDAA & TAA COMPLIANT

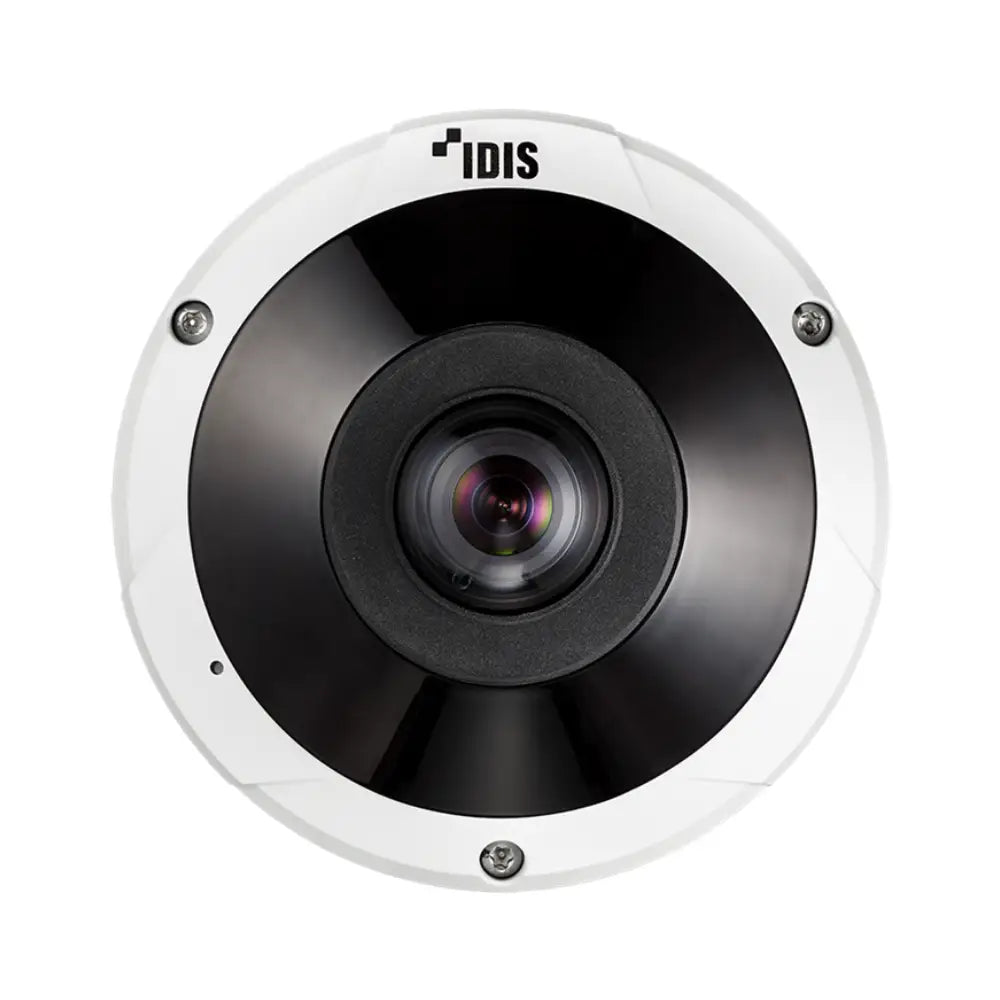

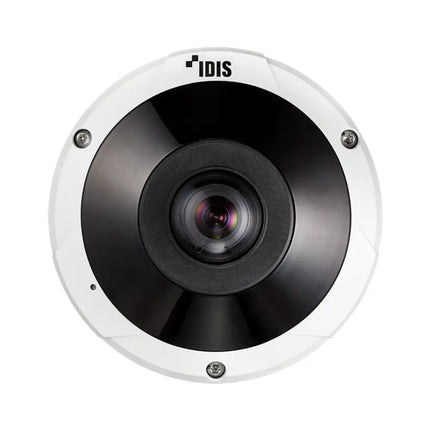

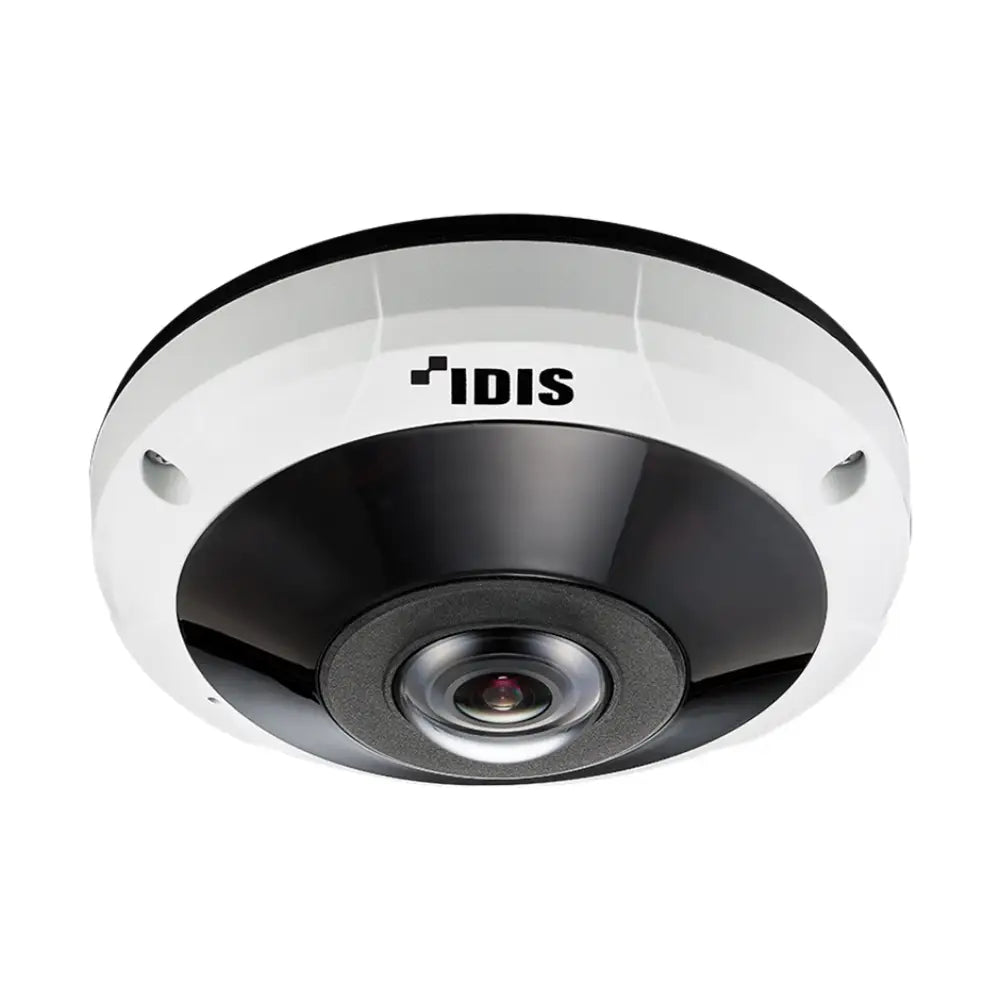

IDIS 5MP Vandal-Resistant IR Fisheye Camera (1.5mm) 360° Situational Awareness
The IDIS DC-Y6516WRX is an enterprise-grade panoramic surveillance solution engineered to deliver full 360-degree situational coverage from a single structural mounting point. Equipped with a high-density 5MP progressive scan sensor and a 1.5mm ultra-wide fisheye lens, this network camera replaces multi-sensor clusters by providing wall-to-wall peripheral monitoring with zero blind spots. Fully NDAA and TAA certified, it offers secure plug-and-play installation for demanding Australian commercial fit-outs, high-exposure retail spaces, and corporate environments.
Field of View
360° Panoramic
Night Vision
20m Smart IR
Elite Surveillance Dynamics & Dewarping Precision
Powered by advanced dual-side dewarping technology, the DC-Y6516WRX seamlessly splits its panoramic field into 6 distinct structural viewing compositions—including panorama, double panorama, and independent rectangular regional tracking (1O, 1P, 4R configurations). True 120dB Wide Dynamic Range (WDR) prevents blinding from harsh entry door backlighting, while smart infrared arrays project balanced, uniform illumination up to 20 meters in total darkness. Seamlessly matching DirectIP 2.0 protocols, it secures localized edge video directly via Smart Failover storage configurations.
True 120dB WDR Engine
Maintains dynamic image composure under aggressive Australian backlighting, preventing high-contrast silhouettes near glass storefronts or wide office windows.
Intelligent Heatmap Analytics
Features on-board business intelligence, gathering localized movement metrics to map customer traffic densities and behavior pathways across floor layouts.
Technical Specification Matrix
| Camera Model |
DC-Y6516WRX |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max Resolution |
2560 x 2048 (5 Megapixel Ultra-HD) |
| Lens Configuration |
1.5mm Fixed-Focal Fisheye |
| Field of View |
180° Horizontal / Vertical / Diagonal |
| Wide Dynamic Range |
True WDR (120dB) |
| Infrared Performance |
Smart IR LEDs up to 20 Meters |
| Environmental Rating |
IK10 Vandal-Resistant / IP67 Weatherproof |
| Audio Integration |
Built-in Microphone + 1 In / 1 Out (Two-Way Audio) |
| Power Input |
PoE (IEEE 802.3af Class 3) / 12VDC |
Frequently Asked Questions
How does dewarping function on the DC-Y6516WRX camera?
The camera supports dual-side dewarping layouts. This allows the raw 360-degree curved stream to be cleanly split into familiar pan-tilt-zoom rectangular blocks (1O, 1P, 4R) either directly on the camera side or at the NVR management level.
Is this fisheye camera safe for extreme outdoor installations?
Yes. The unit features an heavy-duty IK10 vandal-proof dome shell matched with an IP67 weatherproof structural enclosure, allowing reliable operations across open perimeters and corridors down to -30°C.
Does the built-in microphone require separate cabling?
No. The onboard microphone encodes audio signals directly into the primary digital data stream, channeling premium two-way audio metrics back through your standard PoE Ethernet network drop.
What happens if the main network link drops?
The system utilizes IDIS Smart Failover technology. It instantly triggers high-capacity edge recording to an internal MicroSD slot (up to 512GB) and automatically syncs missing files to the NVR once structural connections stabilize.
