IDIS LIGHTMASTER SERIES · NDAA & TAA COMPLIANT

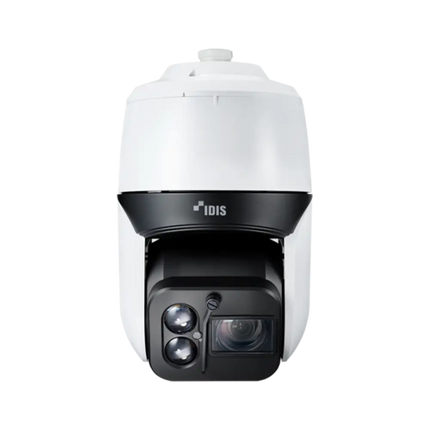

IDIS 2MP 36x Lightmaster IR PTZ Speed Dome Camera Long-Range Enterprise Surveillance
The IDIS DC-S6286HRXL is an ultra-premium network PTZ speed dome engineered for long-distance perimeter protection and aggressive low-light environments. Combining IDIS Lightmaster sensor technology with a powerful 36x optical zoom lens ($f=6 - 216\text{mm}$), it delivers color video under faint ambient light and resolves crisp details at exceptional distances. Fully NDAA and TAA compliant, this high-performance PTZ system is built for infrastructure surveillance, industrial yards, transit hubs, and large-scale commercial perimeters.
Night Vision
350m Smart IR
Climate Ready
IP66 & Heater
Uncompromising PTZ Control & Extreme Night Operations
The DC-S6286HRXL offers seamless 360-degree endless panning and an extended tilt mechanism ranging from -10° to 190° to monitor high-angle perimeters. Standard illumination tracking is managed by structural, adaptive long-range IR LEDs extending up to 350 meters in total darkness. Using standard DirectIP 2.0 protocols, it sets up with plug-and-play ease while integrating advanced Electronic Image Stabilization (EIS) and a robust internal heating element for flawless multi-season performance.
Lightmaster Low-Light Technology
Utilizes a premium large-aperture sensor matrix to keep tracking targets in rich color long after standard optics shift into black-and-white mode.
Electronic Image Stabilization (EIS)
Counters physical vibrations caused by heavy winds or industrial machinery to maintain a perfectly stable, un-blurred image at high zoom factors.
Technical Specification Matrix
| Camera Model |
DC-S6286HRXL |
| Image Sensor |
1/2" Progressive Scan CMOS |
| Max Resolution |
1920 x 1080 (2 Megapixel Full HD) |
| Lens Configuration |
6.0mm - 216mm (36x Optical Zoom) |
| Pan / Tilt Range |
360° Endless Pan / 200° (-10° ~ 190°) Tilt |
| Wide Dynamic Range |
True WDR (120dB) |
| Infrared Performance |
Adaptive Smart IR up to 350 Meters |
| Environmental Rating |
IK10 Vandal-Proof / IP66 Weatherproof Casing |
| Climate Control |
Built-in Active Internal Heater |
| Power Delivery |
24VAC / High-PoE (75W Injector Support) |
Frequently Asked Questions
How far does the night vision reach on this PTZ?
The DC-S6286HRXL uses dynamic high-power IR elements that synchronize their focus beam with the optical lens zoom, providing clean exposure up to 350 meters away.
Is this model suited for extreme cold environments?
Yes. The speed dome features a built-in heavy-duty internal heater that handles operational startup and continuous running cycles in temperatures as low as -40°C.
What is the benefit of IDIS Lightmaster optics?
Lightmaster cameras utilize optimized sensors and large apertures to collect max ambient light, preventing grainy images and maintaining full-color details in near-dark conditions.
How does Smart Failover safeguard edge recordings?
If network connection to the central NVR breaks, the camera records directly to an onboard MicroSD slot (up to 512GB) and automatically transfers back the video files once the primary link restores.
