IDIS AI EDGE SERIES · NDAA & TAA COMPLIANT
Deep Learning Edge Intelligence Encased in Heavy-Duty Vandal Armor

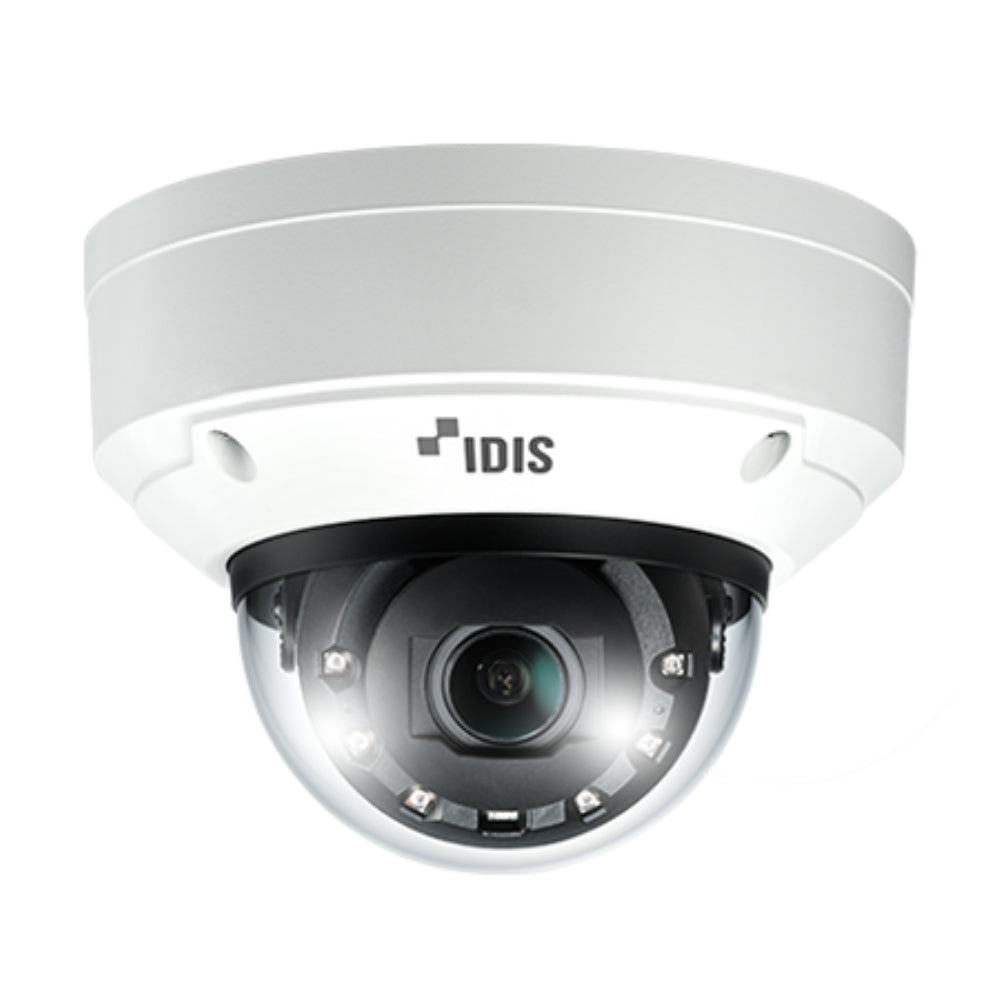

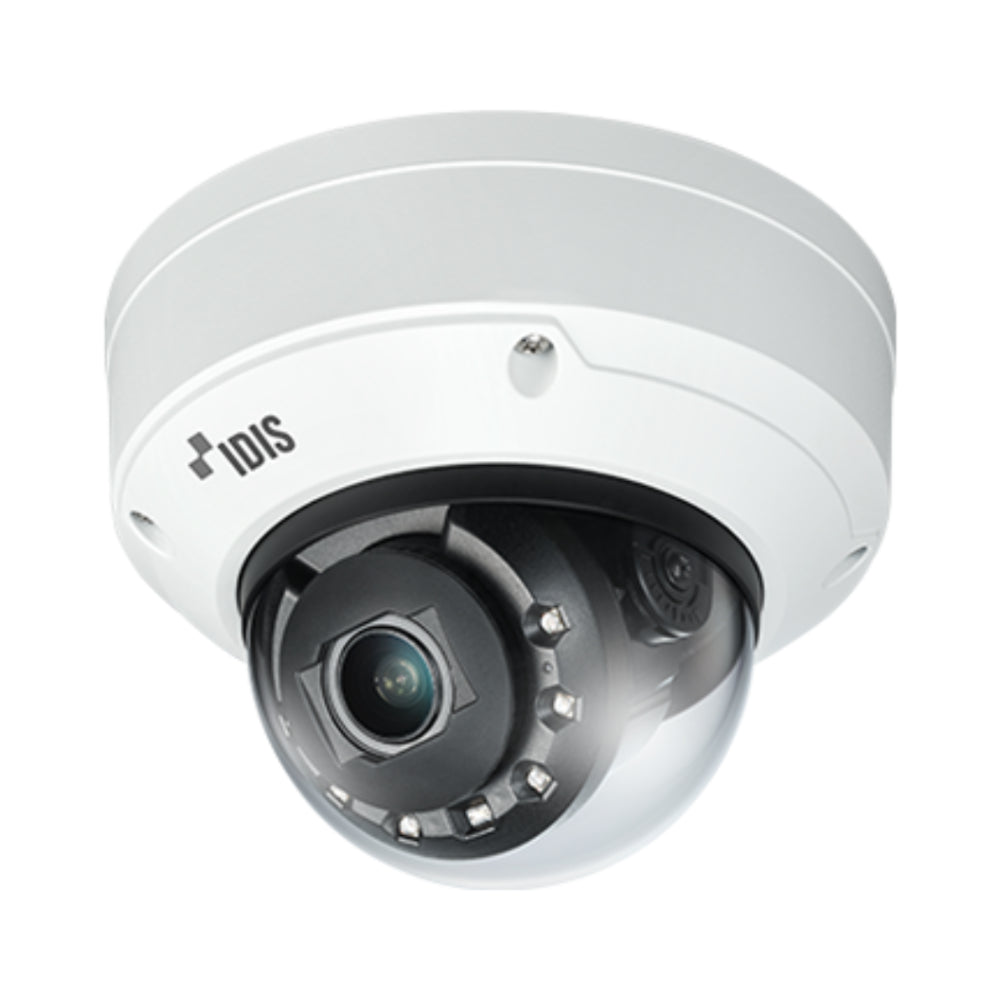

The IDIS DC-D6631WRA introduces highly accurate, serverless artificial intelligence directly to the network edge, providing a sophisticated 2MP surveillance shield for high-risk spaces. Powered by onboard IDIS Deep Learning Analytics (IDLA), this professional network dome instantly isolates, classifies, and alerts operators to objects of interest without requiring costly centralized server upgrades. Engineered to withstand physical hostility and volatile seasonal storms, its deployment-ready frame is fully certified to meet international defense procurement filters—ensuring an untainted, cyber-hardened supply chain for corporate yards, infrastructure intersections, and public transit nodes.
Intelligence
Onboard AI Edge
Lens Type
Motorized Varifocal
Night Vision
30m Smart Adaptive IR
Protection
IP67 & IK10 Rated
Remote Optical Adaptability & High-Efficiency Stream Management
Outfitted with a precision motorized varifocal lens assembly, the DC-D6631WRA grants installers the flexibility to establish panoramic sightlines or focus deeply into precise choking points directly from the control desk interface. Its internal 120dB True Wide Dynamic Range (WDR) processing engine smoothly balances harsh highlights and dark shadows, ensuring optimal forensic capture at entry thresholds and glass storefront transitions. By employing advanced H.265 compression alongside IDIS Intelligent Codec metadata mapping, network data allocation is slashed by up to 90%, freeing up vital server bandwidth while maintaining razor-sharp pixel integrity. To construct an optimized, enterprise-level perimeter network, pair this unit with our compliant IDIS systems catalog.
True DirectIP Plug-and-Play Setup
Operating natively over the proprietary IDIS DirectIP framework, this AI-driven endpoint bypasses tedious manual IP configuration protocols. Interconnected management ecosystems instantly isolate, identify, and seal the device upon connection, systematically removing corporate security blind spots while reducing physical technician hours on site.
Onboard Smart Failover Redundancy
Secure vital forensic video timelines from transmission disruptions and unforeseen network link breaks. If an upstream disconnection occurs, the camera diverts local recording straight onto its integrated MicroSD card expansion slot. Once core communication pathways recover, the buffered database auto-reconciles without losing a single clip.
Technical Specification Matrix
| Camera Model |
DC-D6631WRA |
| Analytics Framework |
Embedded IDIS Deep Learning Analytics (IDLA) Engine |
| Image Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Max. Resolution |
1920 x 1080 (2MP @ 30ips with WDR Engaged) |
| Lens Configuration |
Motorized Varifocal (f=3.0mm to 10.5mm) / F1.4 to F2.8 |
| Smart IR Range |
Up to 30 Meters (98.4 Feet) with Adaptive Intensity LEDs |
| Wide Dynamic Range |
True WDR Processing Core (120dB) |
| Environmental Armor |
IP67 Weatherproof Seal / IK10 Vandal-Resistant Housing / Internal Heater |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Architecture |
Power over Ethernet (PoE) IEEE 802.3af (Class 3) |
What specific advantages do onboard IDIS Deep Learning Analytics bring?
Standard pixel-motion detection often forces systems to generate massive volumes of false notifications due to environmental factors like blowing tree branches, sudden rain, or shifting shadows. The integrated IDLA engine classifies human and vehicular metadata flags directly on the hardware edge, accurately triggering alarms only for genuine security breaches.
Can the DC-D6631WRA operate reliably during freezing sub-zero weather conditions?
Absolutely. This ruggedized model is equipped with a heavily sealed IP67-rated enclosure alongside a dedicated hardwired internal climate control heater. This prevents dome ice buildup and allows the internal mechanics to perform reliably in extreme temperature fluctuations from -40°C up to +60°C.
Is this AI edge camera approved for restricted state or federal facility use?
Yes. The DC-D6631WRA is fully NDAA and TAA compliant. It completely avoids microchips, software frameworks, or microprocessors manufactured by restricted security entities, making it fully approved for high-security defense and financial applications.
How does the remote motorized varifocal lens streamline setup parameters?
Instead of requiring technicians to scale a ladder to manually balance internal focus or zoom gears inside the transparent bubble, the motorized optics allow for complete remote initialization. Focal adjustment parameters and lens magnification are modified effortlessly through the VMS software or NVR dashboard.
