IDIS D4536 SERIES · NDAA & TAA COMPLIANT
High-Definition 5MP Indoor Surveillance with Remote Focus Precision

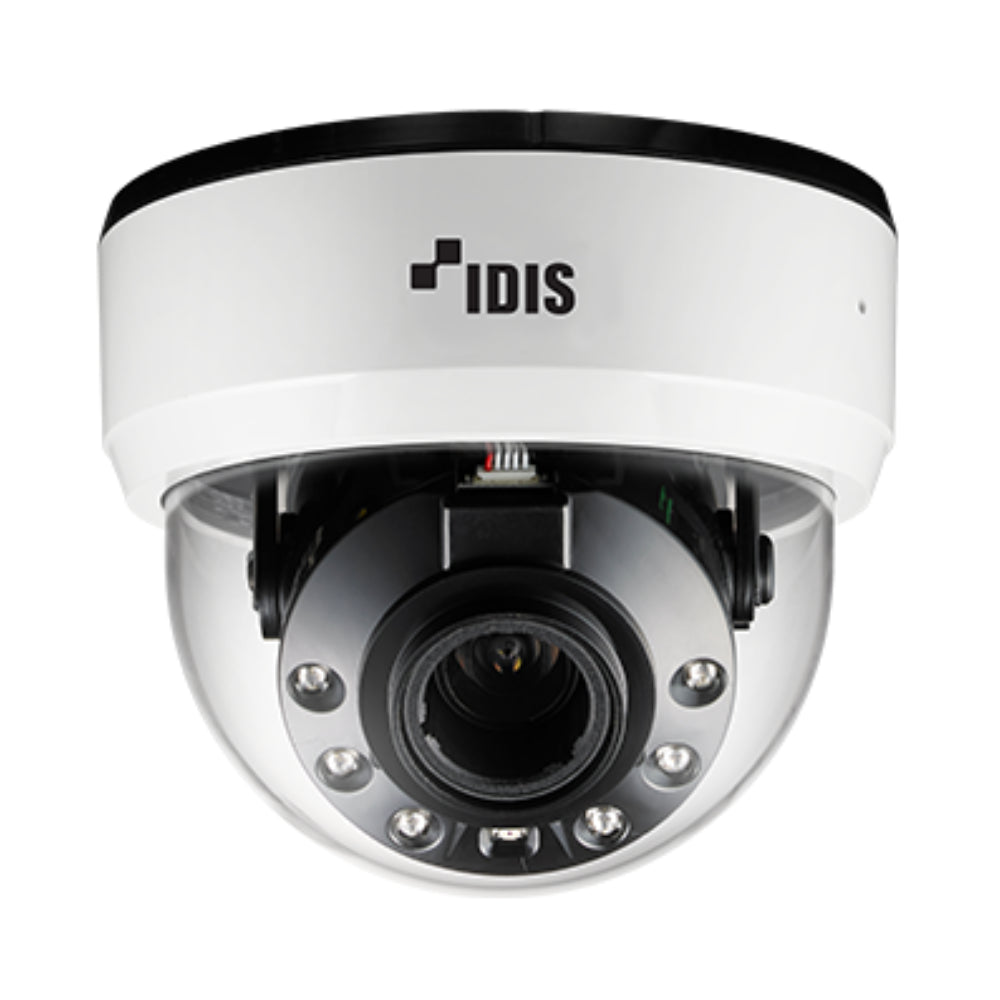

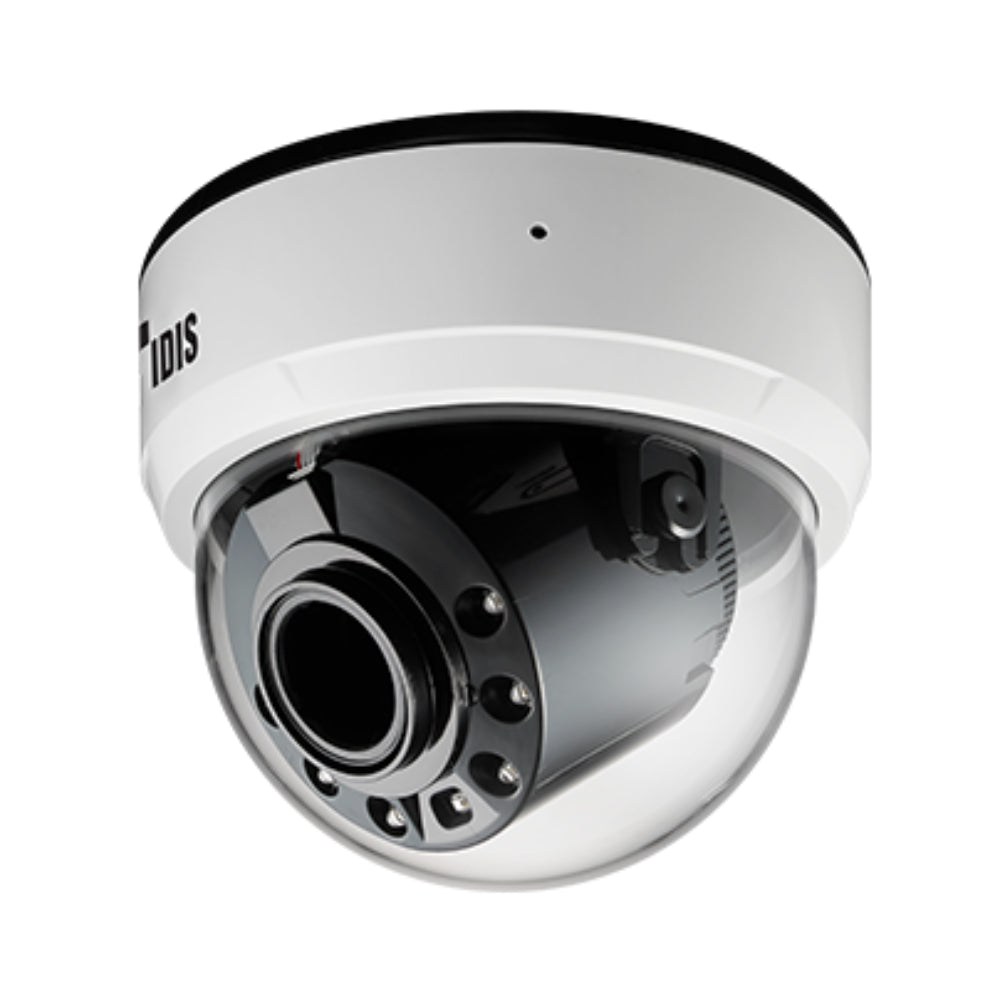

The IDIS DC-D4536RX delivers exceptionally sharp 5MP high-density video capture in a versatile, surface-mount indoor dome format. Engineered to provide premium optical clarity across critical indoor areas like retail floors, corporate lobbies, and bank branches, this professional network camera eliminates the complications of manual hardware adjustments. Developed to adhere strictly to international defense and commerce procurement standards, it features full NDAA and TAA certification—guaranteeing an ironclad, cyber-secure supply chain free from blacklisted hardware components.
Resolution
5MP High-Density
Optics
Motorized Varifocal
Night Vision
Adaptive Smart IR
Dynamic Range
120dB True WDR
Dynamic Optical Versatility & Intelligent Bandwidth Control
Equipped with an advanced motorized varifocal lens mechanism, the DC-D4536RX allows operators to effortlessly calibrate wide-angle overview captures or narrow, telephoto forensic angles right from the control room interface. Integrated True Wide Dynamic Range (WDR) processing neutralizes difficult backlight conditions, cleanly rendering high-contrast spaces like sunlit entryways and glass facades. Utilizing H.265 compression coupled with IDIS Intelligent Codec algorithms, streaming data allocation is reduced by up to 90%, preserving system storage arrays without stripping down crucial pixel clarity. To build out an optimized, secure interior network, deploy this unit alongside our extensive ecosystem of compliant IDIS surveillance systems.
Zero-Configuration DirectIP Tech
Running natively on the proprietary IDIS DirectIP architecture, this endpoint eliminates arduous manual IP configuration routines. Systems instantly recognize, register, and secure the device the moment it is plugged in, closing up potential cybersecurity backdoors and significantly lowering field installation costs.
Onboard Smart Failover Backup
Shield your digital evidence base from network drops and communication disruptions. If a physical connection drop occurs, the camera immediately triggers local recording via its integrated MicroSD card expansion socket. Once server communication re-establishes, the data automatically synchronizes back to your central storage.
Technical Specification Matrix
| Camera Model |
DC-D4536RX |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
2592 x 1944 (5MP @ 30ips) |
| Lens Configuration |
Motorized Varifocal (f=3.0mm to 13.5mm) / F1.4 to F3.2 |
| Angular Field of View |
Horizontal: 93.3° (Wide) to 28.5° (Tele) / Vertical: 68.6° to 21.4° |
| Smart IR Night Vision |
High-Performance Adaptive LEDs / Up to 20 Meters (65.6 Feet) |
| Wide Dynamic Range |
True WDR Processing Core (120dB) |
| Form Factor Housing |
Surface-Mount / Indoor Design Profile |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Input |
Power over Ethernet (PoE) IEEE 802.3af (Class 3) |
What distinguishes the surface-mount DC-D4536RX from the flush-mount variant?
The DC-D4536RX is a standard surface-mount model, meaning it mounts directly onto solid concrete walls, ceilings, or junction boxes without needing deep recessed cavities. This makes it much easier to deploy across a broader range of indoor structural materials compared to a recessed ceiling camera.
How does the motorized lens mechanism reduce maintenance overhead?
Instead of requiring technicians to manually climb ladders or adjust fine mechanical zoom and focus wheels inside the plastic dome housing, this camera features remote motorized focal adjustments. Optical zoom modifications and sharp autofocus tuning can be managed entirely via the NVR software or VMS platform.
Is this model certified for government, military, or airport installations?
Yes. This camera is fully NDAA and TAA compliant. It contains absolutely no chipsets, firmware components, or technology frameworks manufactured by blacklisted or restricted security entities, fully satisfying strict federal network procurement filters.
Does this camera support a single-cable deployment architecture?
Yes. It runs entirely using Power over Ethernet (PoE Class 3) technology. Both network data paths and operational power are delivered safely over a single standard Category 5e or Category 6 Ethernet drop line, minimizing labor and wiring costs.
