IDIS DOME SERIES · NDAA & TAA COMPLIANT
High-Density 5MP Clarity with Wide-Angle Precision for Sophisticated Interior Security

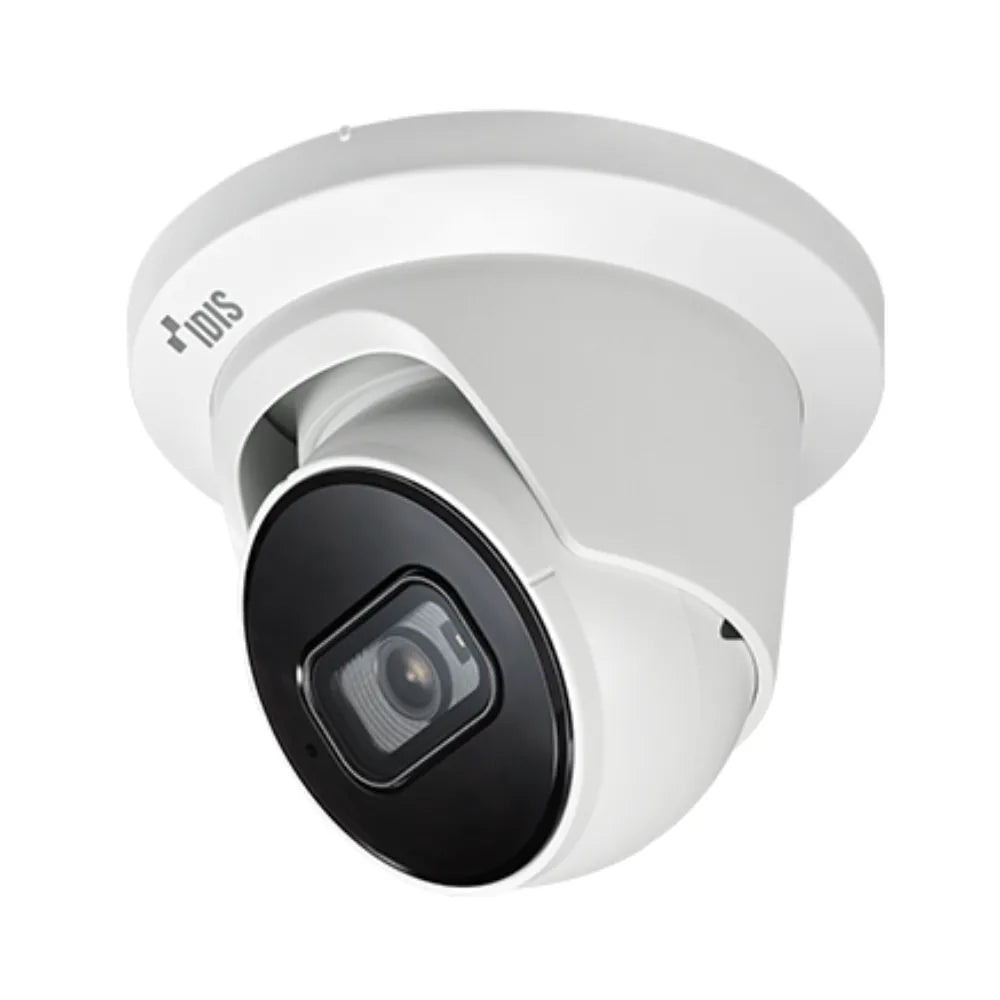

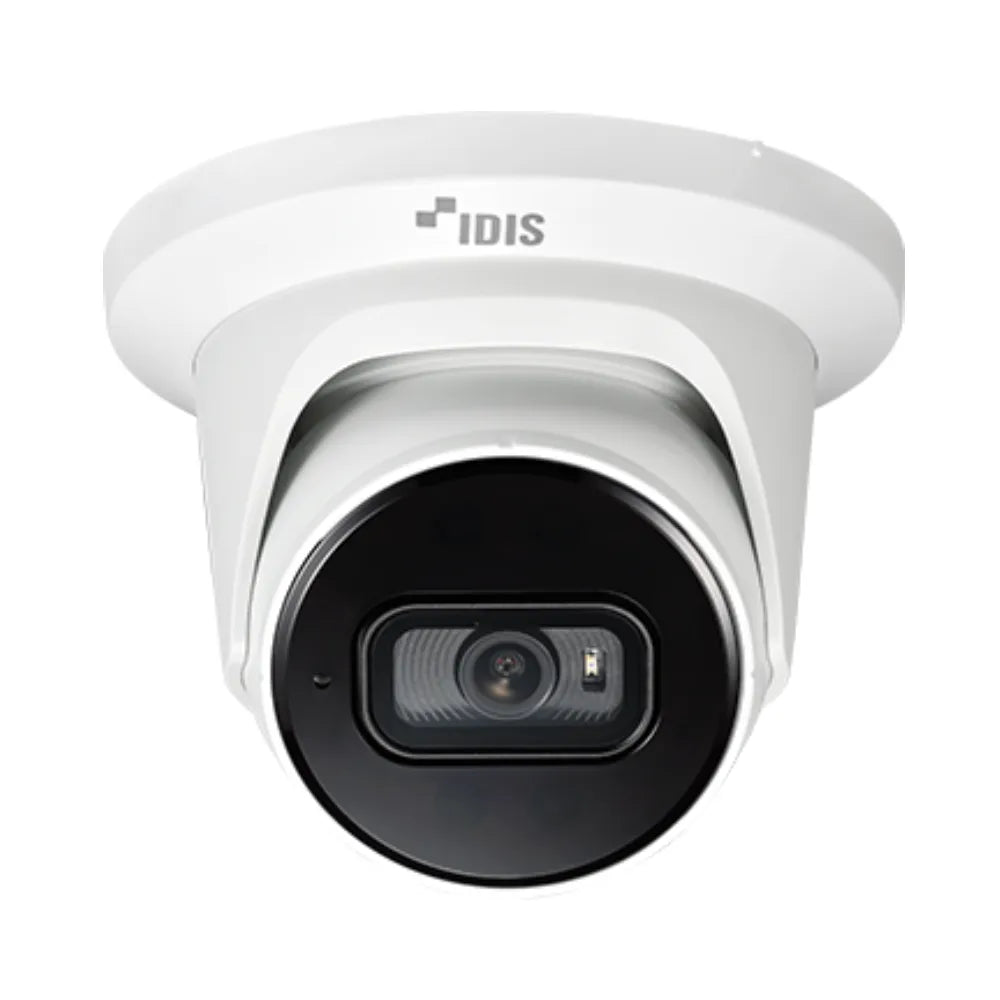

The DC-D4512WERA sets an elite operational standard for indoor corporate surveillance, presenting an ultra-crisp 5-Megapixel resolution array synchronized with an expansive 2.8mm fixed wide-angle lens. Designed to maximize room coverage from single corner or ceiling anchor points, this premium network dome is perfectly optimized for corporate offices, high-value retail registers, bank lobbies, and academic pathways. By providing crisp, low-latency video feedback, it ensures security infrastructure managers can capture precise human facial identification and structural activity logs required for robust auditing and compliance frameworks.
Resolution
5MP Ultra HD Clarity
Night Vision
Smart IR up to 20m
Protection
Cyber Secure Shield
Automated Bandwidth Management with True Hardware Wide Dynamic Range
The core computational system inside this network dome incorporates an advanced True Wide Dynamic Range (WDR) sensor processing platform, ensuring the camera balances high-contrast transitions where intense sunlight meets indoor glass building entrance points. Built with native H.265 compression alongside IDIS Intelligent Codec parameters, network storage usage drops by up to 90% without losing raw image data. Integrating via zero-config DirectIP 2.0 protocols simplifies site deployment parameters by removing traditional IP mapping complications. Review complete networking configuration possibilities on the main IDIS DC-D4512WERA Hub .
Smart Failover Storage Framework
Protect system recording metrics against unexpected structural server or line drops. Featuring a built-in session buffer memory ecosystem, this dome camera preserves ongoing surveillance recordings locally until the physical network switch reconnects, uploading files to the NVR safely.
On-Edge Proactive Event Triggers
Enhance control center tracking speed with immediate alarm automation. The embedded event processing rules engine captures real-time physical lens tampering, perimeter motion violations, and line crossing threats to signal security staff immediately when a violation occurs.
Technical Specification Matrix
Camera Model
DC-D4512WERA
Image Sensor
1/2.8" Progressive Scan CMOS Sensor
Maximum Resolution
2592 x 1944 (5 Megapixel Resolution)
Lens Configuration
2.8mm Fixed-focal Optical Setup
Dynamic Range Process
True WDR (Wide Dynamic Range Processing)
Video Compression
H.265 / H.264 / M-JPEG / Intelligent Codec
Night Vision System
High-Output Matrix IR LEDs with 20m Active Range
Networking Protocol
DirectIP 2.0 / ONVIF Profile S Compliance
Power Integration
PoE (IEEE 802.3af Class 2 Power Delivery)
Is the IDIS DC-D4512WERA compliant with national defense procurement acts?
Yes. This hardware platform is completely NDAA and TAA compliant, omitting core processors and parts from blacklisted international electronics suppliers, certifying its use safely in government, municipal, aviation, and financial facilities.
What physical monitoring benefits does the 2.8mm lens provide?
The 2.8mm fixed lens provides an expansive wide-angle view. This allows a single indoor dome camera to monitor wall-to-wall space inside standard rooms, eliminating blind spots near the base of walls where narrower lenses fall short.
How does DirectIP 2.0 benefit corporate IT network infrastructure installations?
DirectIP removes the manual labor of assigning individual IP nodes, port forwarding protocols, and complicated security passwords. Plugging the camera straight into an IDIS NVR handles onboarding, saving labor hours during system rollouts.
How does the built-in Smart IR handle close-up target tracking?
The integrated Smart IR system dynamically scales infrared light intensity based on target distance. This blocks intense illumination wash-outs when a person walks up close to the camera lens array at night, keeping facial characteristics recognizable.
