IDIS DOME SERIES · NDAA & TAA COMPLIANT
Discreet 1080p Full HD Core Surveillance with Seamless Ultra-Wide Coverage

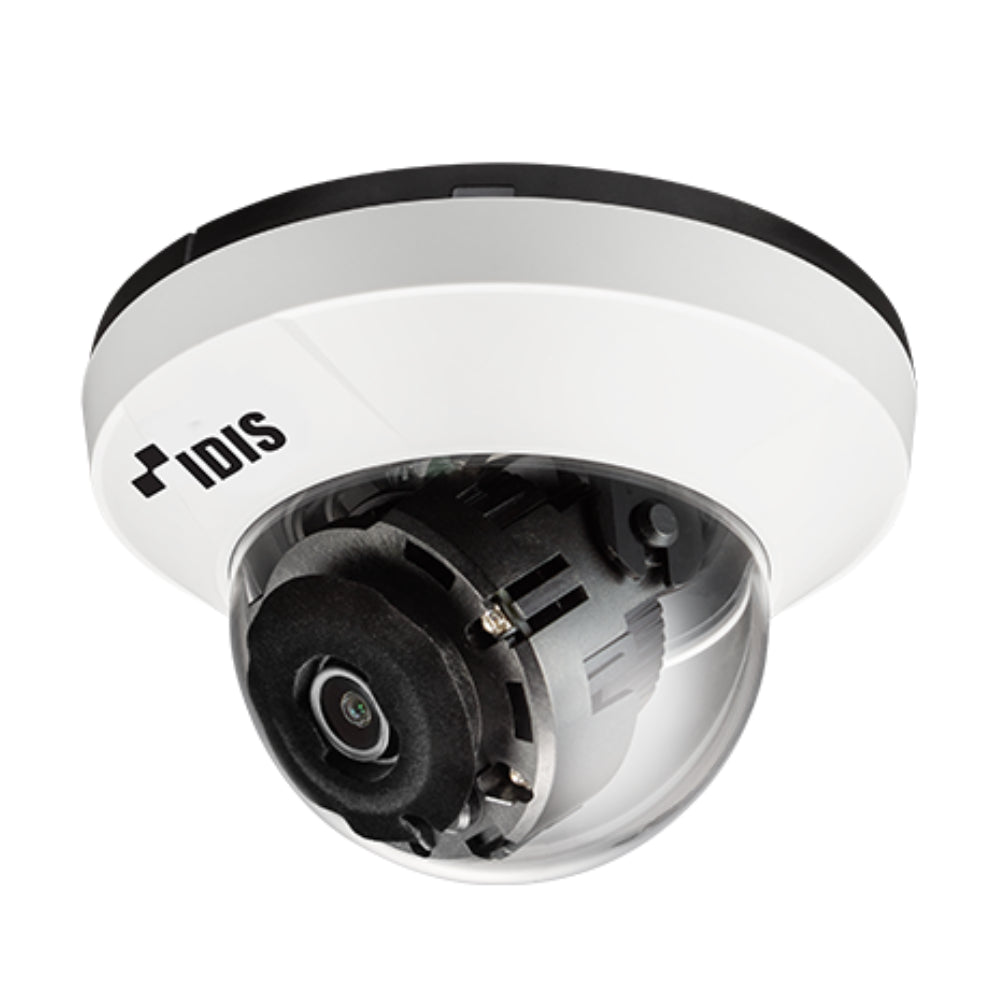

The DC-D4217RX (2.8mm) offers premium operational reliability for interior corporate premises by pairing a high-fidelity 2-Megapixel Full HD resolution sensor with an expansive 2.8mm fixed wide-angle lens array. Meticulously optimized to capture extensive, wall-to-wall situational awareness from a single ceiling or structural anchor, this compact dome camera eliminates blind spots across high-priority indoor assets. It serves as an exceptional surveillance framework for retail store registers, bank lobby queues, office common spaces, and educational hallways, delivering low-latency streams necessary for audit validation and facility monitoring.
Resolution
2MP Full HD Clarity
Night Vision
Smart IR up to 20m
Protection
Cyber Secure Core
True Hardware Wide Dynamic Range with Cost-Effective H.265 Architecture
To eliminate harsh shadowing and silhouette distortions caused by strong sunlight bursting through indoor window banks or retail front entrances, this dome utilizes an integrated True Wide Dynamic Range (WDR) processing engine. Backed by native H.265 file handling and IDIS Intelligent Codec optimizations, the system manages system bandwidth allocation intelligently, compressing data footprints by up to 90% without sacrificing evidentiary stream details. Outfitting infrastructure environments is quick and hassle-free via zero-config DirectIP 2.0 protocols, which completely bypass complex manual IP management structures. Evaluate further technical layout possibilities via the core IDIS DC-D4217RX Hub.
Failover Recording Continuity Shield
Secure vital visual logs against unforeseen network dropouts, cable failures, or switch resets. This network camera utilizes a local cache recording buffer mechanism that preserves operational telemetry straight on an edge interface if link connectivity fails, safely pushing missing timelines to the NVR upon recovery.
Proactive Edge Event Triggers
Enhance immediate response speeds across control room environments. The built-in video analytics framework monitors and addresses real-time lens cover tampering, sudden motion line violations, and structural perimeter breaches to deliver direct automated notifications to emergency operators instantly.
Technical Specification Matrix
| Camera Model |
DC-D4217RX (2.8mm) |
| Image Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Maximum Resolution |
1920 x 1080 (2 Megapixel Full HD) |
| Lens Configuration |
2.8mm Fixed-focal Wide-Angle Lens Module |
| Dynamic Range Option |
True WDR (Wide Dynamic Range Processing) |
| Video Compression |
H.265 / H.264 / M-JPEG / IDIS Intelligent Codec |
| Night Vision System |
Matrix IR LEDs with 20m (65.6ft) Active Range |
| Networking Framework |
DirectIP 2.0 / ONVIF Profile S Compliance |
| Power Integration |
PoE (IEEE 802.3af Class 2 Power Allocations) |
Is the IDIS DC-D4217RX qualified for secure government installations?
Yes. This dome camera is fully NDAA and TAA compliant. It features zero component pipelines or master processing chips engineered by blacklisted technology suppliers, making it fully certified for military, municipal, aviation, and financial facility deployments.
What spatial coverage advantages does a 2.8mm lens configuration bring?
A 2.8mm lens delivers a highly broad, wide-angle viewpoint. This allows a single camera to track wall-to-wall space efficiently across small-to-medium offices or retail spaces, removing the blind spots commonly found underneath narrow-angle lens housings.
How does DirectIP plug-and-play simplify multi-camera integration scales?
DirectIP eliminates complex IT routines like establishing manual IP routing numbers, managing port forwards, and overriding individual device passwords. Connecting the device straight to an IDIS NVR enables rapid automated onboarding inside seconds.
How does Smart IR light technology preserve evidentiary detail at close range?
Traditional infrared lighting can overexpose moving targets when they pass near the lens array, resulting in washed-out white silhouettes. Integrated Smart IR dynamically regulates light output relative to proximity, ensuring crisp facial traits remain clear and identifiable.
