IDIS DOME SERIES · NDAA & TAA COMPLIANT
Dependable 1080p Full HD Interior Surveillance with Wide-Angle Spatial Capture

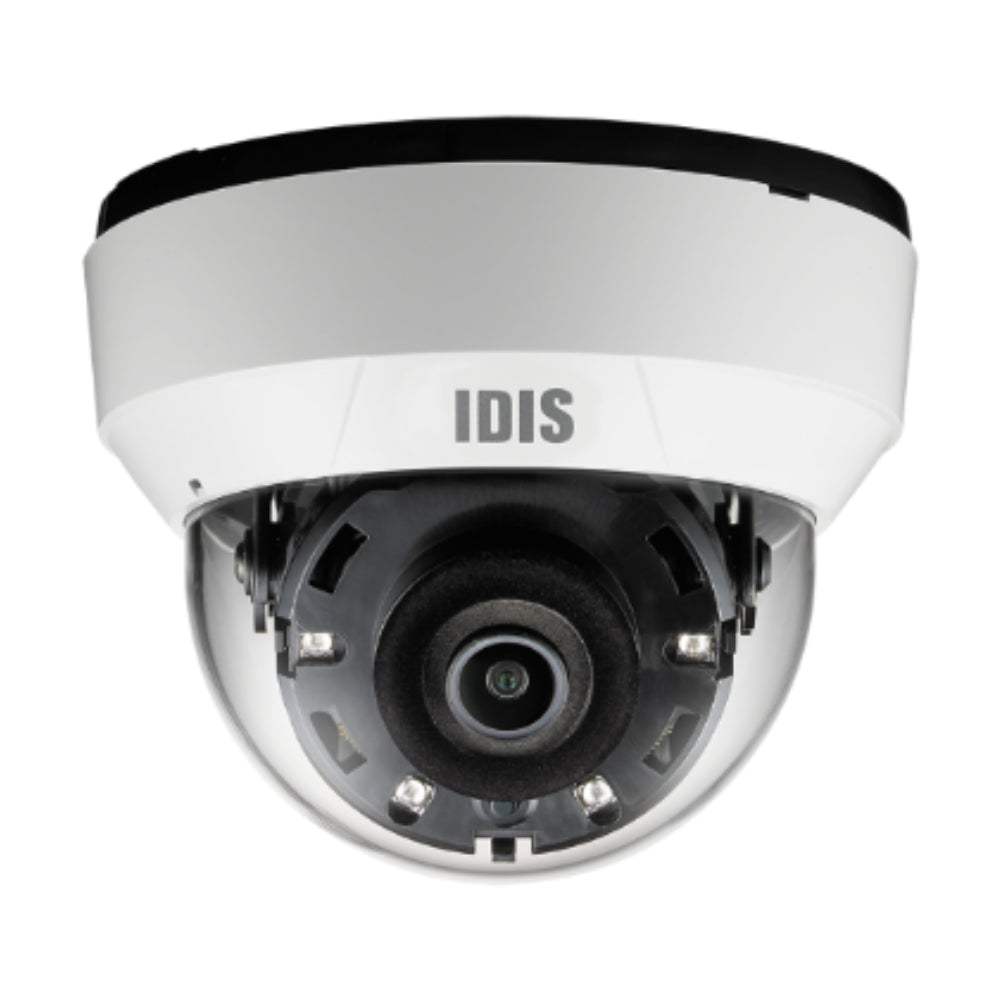

The DC-D4216RX (2.8mm) represents a highly dependable and efficient asset for interior corporate security deployment, pairing an ultra-sharp 2-Megapixel Full HD optical sensor with an expansive 2.8mm fixed wide-angle lens. Designed to blend seamlessly into clean corporate offices, high-stakes retail environments, hotel lobbies, and academic pathways, this low-profile dome camera delivers wall-to-wall situational overview from a single ceiling mount position. By minimizing localized blind spots and capturing crystal-clear human telemetry, it ensures security managers maintain actionable visual logs required for modern audit records and regulatory compliance.
Resolution
2MP Full HD Clarity
Night Vision
Smart IR up to 15m
Protection
Cyber Secure Guard
True Hardware Wide Dynamic Range with Intelligent Compression Balancing
To eliminate intense background blowout and deep shadowing caused by sunlight piercing through perimeter windows or glass storefront entrance thresholds, this interior network dome incorporates a powerful True Wide Dynamic Range (WDR) processing engine. Leveraging advanced H.265 compression protocols alongside IDIS Intelligent Codec parameters, system storage metrics and bandwidth allocation demands decrease by up to 90% without compromising essential evidentiary detail. Physical network architecture onboarding is fully streamlined via zero-config DirectIP 2.0 parameters, completely removing manual port-mapping and address assignments. Investigate complete software structural parameters by visiting the primary IDIS DC-D4216RX Hub.
Failover Timeline Edge Storage Buffer
Mitigate critical recording gaps caused by system switch updates or localized network Drops. Equipped with an onboard failover data allocation framework, this camera records real-time surveillance events locally if communication fails, offloading data securely back to the main NVR once connection locks stabilize.
Proactive Analytics Event Triggers
Improve overall command center efficiency through instantaneous edge alert delivery. The system features a built-in event rules engine that tracks physical lens tampering, localized motion zone violations, and user-defined perimeter line crossings to instantly notify security monitoring staff when an issue occurs.
Technical Specification Matrix
| Camera Model |
DC-D4216RX (2.8mm) |
| Image Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Maximum Resolution |
1920 x 1080 (2 Megapixel Full HD) |
| Lens Configuration |
2.8mm Fixed-focal Wide-Angle Lens Module |
| Dynamic Range Process |
True WDR (Wide Dynamic Range Processing) |
| Video Compression |
H.265 / H.264 / M-JPEG / IDIS Intelligent Codec |
| Night Vision System |
High-Efficiency Matrix IR LEDs with 15m Range |
| Networking Protocol |
DirectIP 2.0 / ONVIF Profile S Compliance |
| Power Integration |
PoE (IEEE 802.3af Class 2 Power Delivery) |
Is the IDIS DC-D4216RX compliant with enterprise national defense procurement standards?
Yes. This indoor camera platform is fully NDAA and TAA compliant, omitting core microchips or sub-components manufactured by restricted international tech suppliers. It is fully certified for use in commercial banks, transport centers, healthcare zones, and municipal offices.

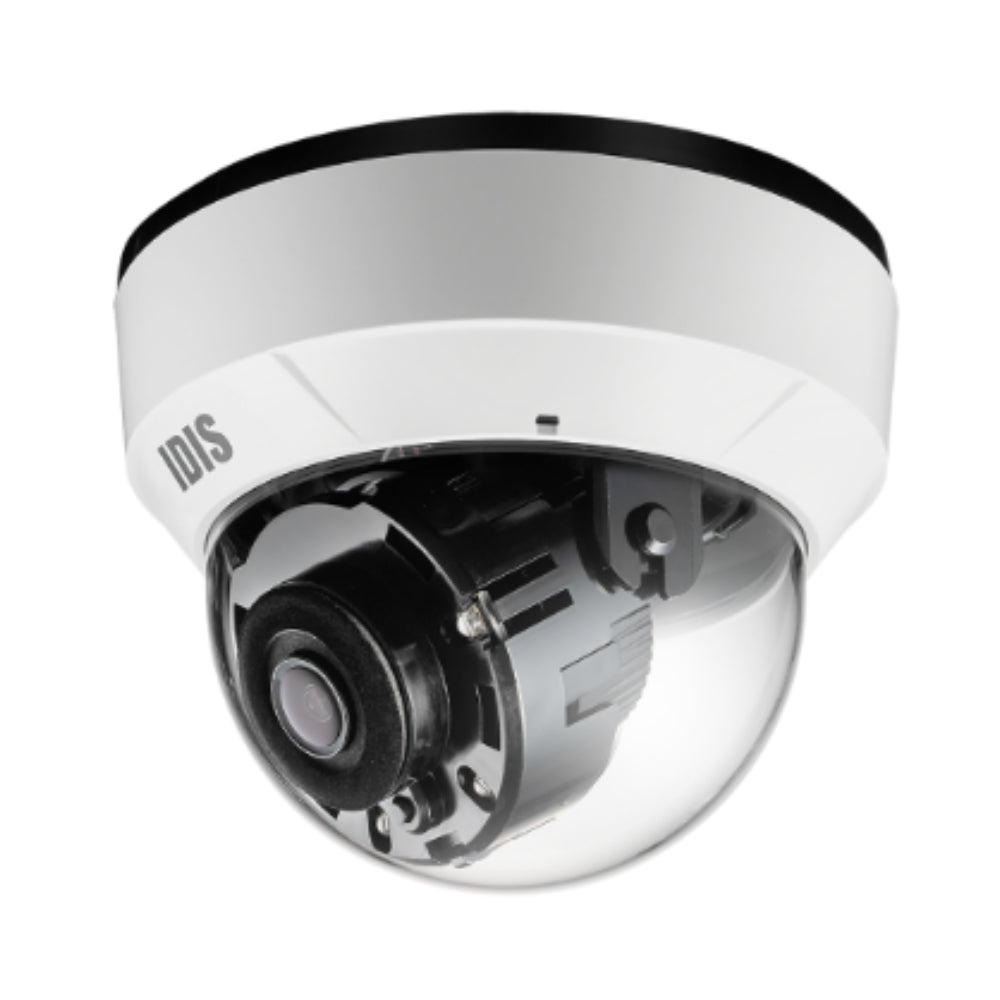

What specific installation benefits does a 2.8mm wide-angle lens configuration provide?
A 2.8mm lens option provides an exceptionally wide field of view. This enables a single indoor camera positioned in a room corner or ceiling tile center to record wall-to-wall data efficiently, eliminating the blind spots underneath traditional narrow lens modules.
How does DirectIP 2.0 optimize system configuration costs and site timeline layouts?
DirectIP removes the time-consuming labor of creating individual subnets, manual IP address lists, and port configurations. Connecting the dome directly to an IDIS network recorder executes rapid plug-and-play onboarding inside seconds.
How does Smart IR light technology prevent close-range face washouts?
Standard infrared illuminators frequently overexpose moving targets when they pass directly under the dome, washing out facial characteristics into an unidentifiable white frame. Smart IR automatically balances light output dynamically relative to proximity, preserving clear facial traits.
