IDIS Lite Series · NDAA & TAA Compliant

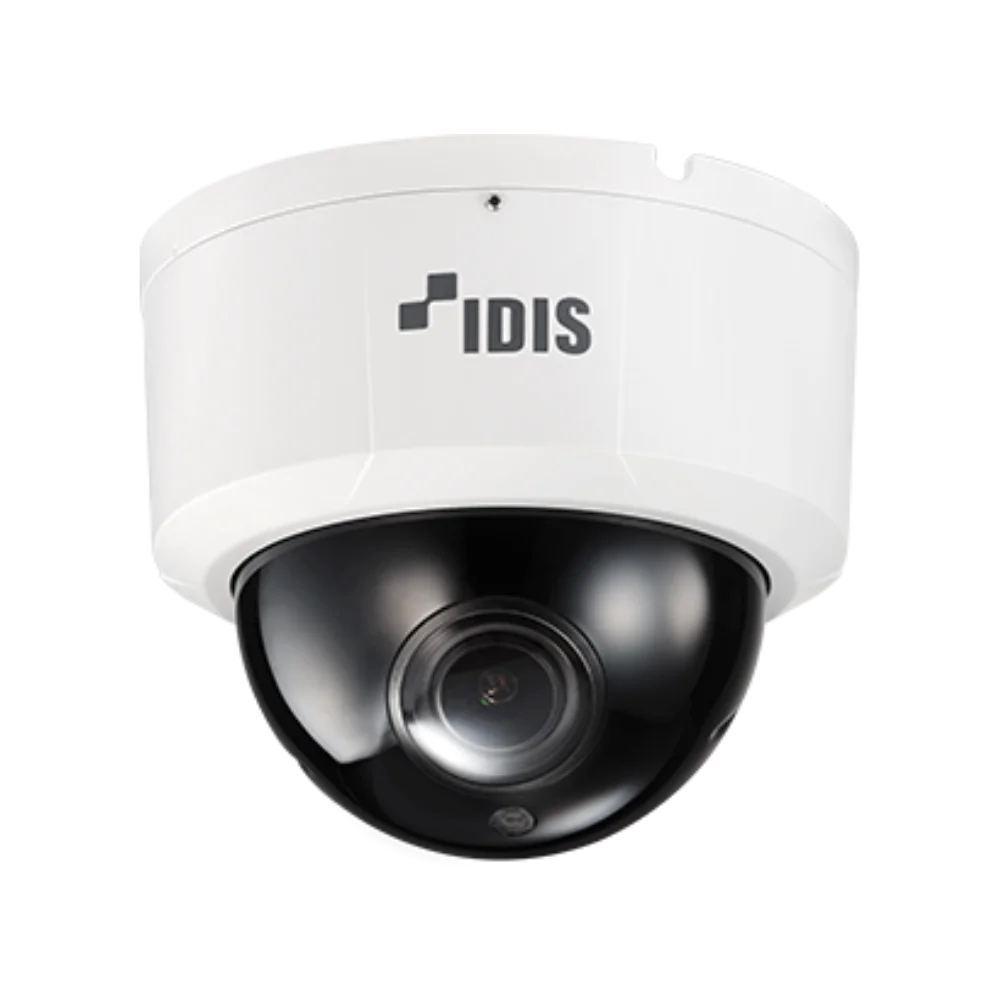

IDIS DC-D2531WR-V2 — 5MP Motorised Varifocal IR Vandal Dome Camera
The IDIS DC-D2531WR-V2 is the vandal-dome flagship of the IDIS Lite Series — a 5MP IR network dome camera with a smoked IR-pass bubble and a 2.7 – 13.5 mm motorised vari-focal lens. Built around a 1/2.8" SONY IMX 335 Starvis CMOS sensor, it gives Australian integrators the best of both worlds: install-time framing flexibility you can dial in remotely, plus a discreet smoked dome that hides exactly where the camera is pointing — perfect for retail floors, banking lobbies, school corridors and hospital wards.
Like its turret sibling (DC-D2531WER-V2), it ships NDAA & TAA compliant, with IP67 weather sealing, IK10 vandal resistance, 4 × high-power IR LEDs reaching 25 m, audio in/out, alarm in/out and an extended -10°C to +60°C operating range — engineered to perform across coastal, outback and CBD installs.
Resolution
5MP · 2592 × 1944
Lens
2.7 – 13.5 mm Motorised
Field of View
108.1° Wide · 30.3° Tele
Night Vision
25 m IR · 4 × LEDs
Compliance
NDAA & TAA · ONVIF S/T
Protection
IP67 · IK10 · -10° to +60°C

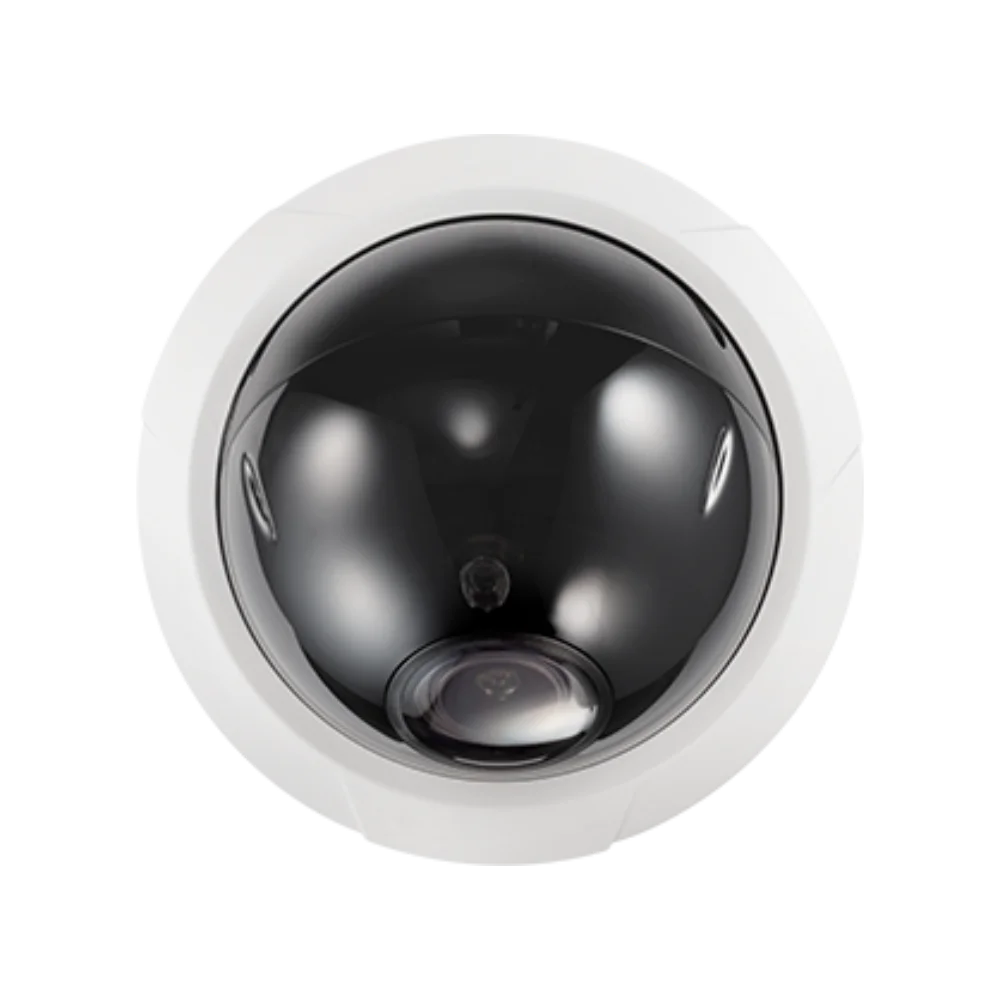

Smoked Vandal Dome — Discreet, Tough, IR-Pass
Unlike a turret camera (where the lens is exposed), the DC-D2531WR-V2's IR-pass black bubble conceals the lens orientation entirely. From the ground it's impossible to tell which way the camera is looking — a major operational advantage in retail loss-prevention, banking and gaming venues. The bubble is also a physical sacrificial barrier: any blunt impact hits the IK10 polycarbonate dome first, protecting the optics and IR module behind it.
5MP @ 30 ips — Forensic Clarity
2592 × 1944 resolution at full 30 ips captures faces, plates and POS transactions cleanly — exceeding AS/NZS pixel-density recommendations for identification.
Motorised Vari-focal Zoom
2.7 – 13.5 mm focal range with motorised focus means perfect framing for any site, configured remotely from the NVR — no ladder, no re-mounting.
SONY IMX 335 Starvis Sensor
Industry-leading low-light sensitivity (0.001 Lux colour) — keeps Australian dawn/dusk shifts in usable colour, not just black-and-white IR.
True WDR + De-fog
True WDR balances harsh sun against deep interior shadow; built-in de-fog clears coastal humidity and morning mist.
25 m Smart IR — 4 LEDs
Four high-power IR LEDs deliver clean, even illumination through the IR-pass bubble — no hot-spotting, no washed-out faces.
Built Tough for Australia
IP67 ingress + IK10 vandal dome rated to +60°C — confident across outback heat, coastal salt and high-traffic CBD installs.
Smart Features for Real-World Australian Sites
IDIS Smart Video Solutions — featuring the IDIS Lite Series
Audio In / Out (Line-Level) Connect external microphones and amplified speakers for full two-way audio — ideal for reception, intercom panels and customer-facing kiosks.
Alarm In / Out (1 / 1) Wire dry-contact sensors (door reeds, PIRs, beam-breaks) or trigger external sirens, strobes and access relays directly from the camera.
Motion & Tampering Analytics Edge-based motion detection and tampering alarms surface only meaningful events — fewer false alerts for monitoring teams.
Edge Recording (microSDXC) Slot a microSDHC/SDXC card for failover recording when your network drops — critical for remote rural or wireless-link sites.
8-Zone Privacy Masking Block out neighbouring properties or sensitive screens to comply with the Australian Privacy Act and OAIC guidelines.
Cyber-Hardened by Design HTTPS, IP filtering, multi-user authority and IDIS' end-to-end FEN security — aligned with ASD Essential Eight controls.
DC-D2531WR-V2 vs DC-D2531WER-V2 — Dome or Turret?
Both share the same Sony IMX 335 sensor, 2.7-13.5 mm motorised lens, audio & alarm I/O, and NDAA pedigree. The choice comes down to form factor and use case:
Choose DC-D2531WR-V2 (this Dome) When you need a discreet smoked bubble (lens direction concealed), maximum vandal protection, and a more retail/banking-friendly aesthetic. 4 × IR LEDs through IR-pass bubble.
Choose DC-D2531WER-V2 (Turret) When you want lower-profile mounting, easier lens cleaning, no bubble-flare risk, and the cleanest IR throw (2 × LEDs, no bubble in the optical path).
NDAA & TAA Compliance — Why It Matters in Australia
The DC-D2531WR-V2 is fully NDAA Section 889 compliant and TAA compliant, meaning it contains no components from prohibited Chinese state-owned manufacturers. For Australian government, defence, critical infrastructure and Five Eyes-aligned organisations this is procurement policy — not optional. Specifying the DC-D2531WR-V2 future-proofs your CCTV estate against the same restrictions already enforced by the US Federal Government, the UK Government and across Australian Defence sites.
Technical Specifications
| SKU |
DC-D2531WR-V2 |
| Camera Type |
5MP IR Network Vandal Dome Camera (Motorised Vari-focal) |
| Image Sensor |
1/2.8" SONY IMX 335 Starvis CMOS |
| Max Resolution |
2592 × 1944 @ 30 ips |
| Lens Type |
Motorised Vari-focal |
| Focal Length |
2.7 mm ~ 13.5 mm |
| Aperture |
F1.6 ~ F3.3 |
| Angular Field of View |
Wide: 108.1°(H) · 56.3°(V) · 130.9°(D)
Tele: 30.3°(H) · 17.1°(V) · 34.8°(D) |
| Min. Illumination |
Colour: 0.001 Lux @ F1.6 · B/W: 0 Lux (IR ON) |
| Dynamic Range |
True WDR |
| Day & Night |
Yes (Mechanical ICR) |
| IR Distance |
25 m / 82 ft (4 × High-Power LED) |
| Bubble Colour |
IR Pass Black (Smoked) |
| De-fog |
Yes |
| Privacy Masking |
8 Zones |
| Intelligent Video |
Motion Detection · Tampering Alarm |
| Video Compression |
H.265 (MP) · H.264 · MJPEG |
| Streaming |
Triple Streaming (H.265 + MJPEG or H.264 + MJPEG) |
| Audio Compression |
G.711 µ-Law · G.711 a-Law (Two-Way Audio) |
| Audio In / Out |
Line-In / Line-Out |
| Alarm In / Out |
1 / 1 |
| IP Camera Protocol |
API · ONVIF Profile S/T · IDIS Lite |
| Network Protocols |
TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security |
Multi-User Authority · IP Filtering · HTTPS |
| Ethernet |
RJ45 (10/100BASE-T) |
| Edge Storage |
microSDHC / microSDXC |
| Vandal Resistance |
IK10 |
| Weatherproof Rating |
IP67 |
| Operating Temperature |
-10°C ~ +60°C (14°F ~ 140°F) |
| Operating Humidity |
0% ~ 95% |
| Power Source |
12 V DC · PoE (IEEE 802.3af Class 2) |
| Power Consumption |
6.1 W |
| Approvals |
KC · CE · FCC · NDAA · TAA |
| Dimensions |
Ø130 × 110(H) mm (Ø5.11" × 4.33") |
| Weight |
0.742 kg (1.636 lb) |
| Warranty |
IDIS Ultimate Warranty (Australia) |
Compatible Mounts & Accessories
DA-WM2500 Wall Mount Purpose-designed wall mount bracket for clean, structural-grade installation on brick, render or weatherboard.
DA-JB2500 Junction Box Recessed junction box for hiding cabling and providing extra protection in exposed outdoor installs.
Frequently Asked Questions
What is an "IR-pass black bubble"?
A smoked/tinted polycarbonate dome that hides the lens direction from the outside (looks black from the ground) while still allowing infrared light from the LEDs to pass through cleanly for night vision.
Is the IDIS DC-D2531WR-V2 NDAA compliant?
Yes. NDAA Section 889 and TAA compliant, making it suitable for Australian government, defence and critical infrastructure projects.
What's a motorised vari-focal lens?
A lens whose zoom & focus can be adjusted remotely from the NVR or web client — so you can re-frame the camera from your desk instead of climbing a ladder.
Will it work with my existing third-party NVR?
Yes. ONVIF Profile S & Profile T means seamless integration with Milestone, Genetec, Hanwha WAVE, ExacqVision and most major VMS platforms.
Does it support PoE?
Yes — IEEE 802.3af Class 2 PoE, drawing up to 6.1 W. A single Cat6 cable handles both power and data.
Dome (DC-D2531WR-V2) or Turret (DC-D2531WER-V2)?
Dome for discreet retail/banking aesthetics and maximum vandal protection. Turret for cleanest IR throw, easy cleaning and lower-profile mounting.
Can I add an external microphone or speaker?
Yes — line-level audio in & out are provided, so external mics and amplified speakers connect directly.
What about alarm inputs / outputs?
1 alarm input and 1 alarm output for integrating door contacts, PIRs, sirens, strobes or access control relays.
Is it suitable for hot Australian outdoor sites?
Absolutely — IP67 rated and certified up to +60°C ambient. The heat-radiation housing keeps the sensor cool in direct sun.
Does CCTV Guru offer Australian warranty and support?
Yes. Every IDIS camera sold by CCTV Guru includes the IDIS Ultimate Warranty plus local Australian-based technical support.
Downloads & Resources
Order the IDIS DC-D2531WR-V2 from CCTV Guru
CCTV Guru is an authorised Australian distributor of IDIS network cameras. Order the DC-D2531WR-V2 today for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts, and full local warranty support. For NDAA-restricted projects, government tenders or multi-site rollouts, contact our Australian team for a tailored quote and stock availability.
