Genuine IDIS Accessory · Made in Korea

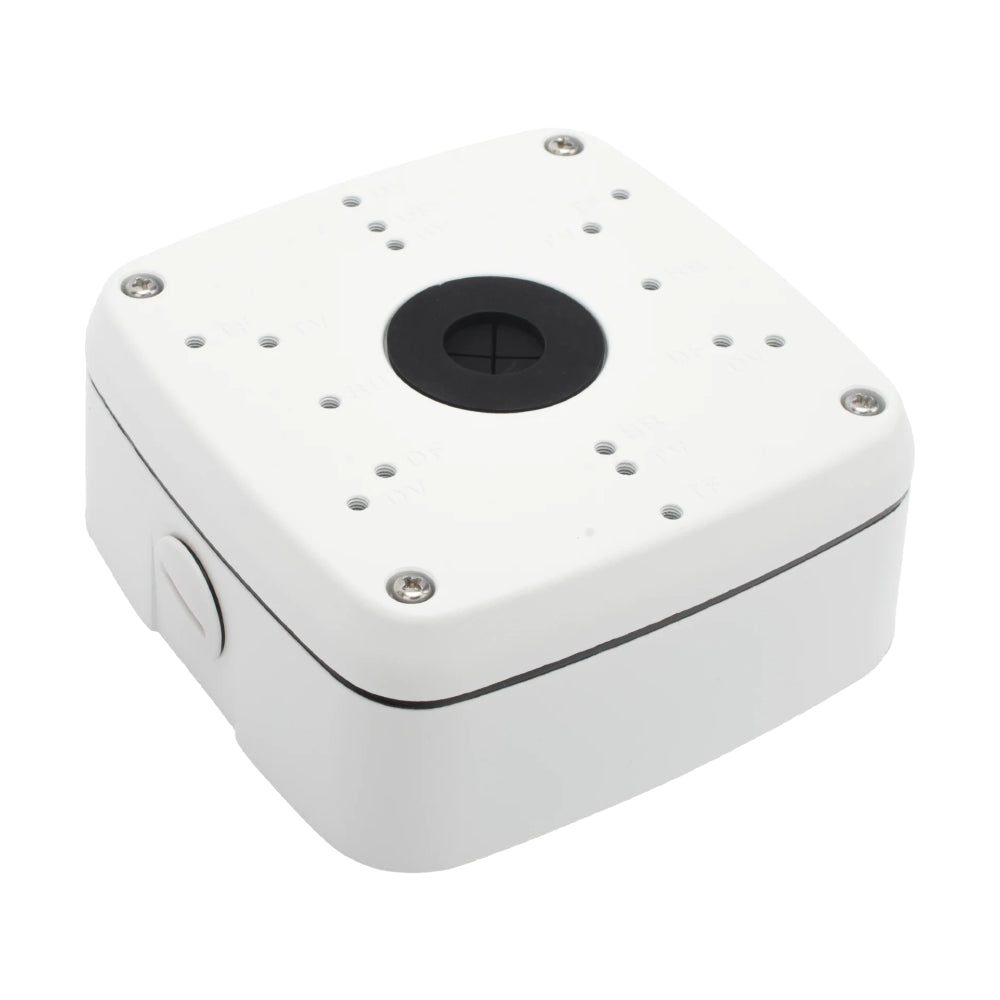

IDIS DA-JB2500 — Camera Junction Box
The IDIS DA-JB2500 is the official die-cast aluminium junction box designed to mount directly under IDIS Lite Series dome and turret cameras. It conceals the Cat6/PoE cable joint inside a fully sealed enclosure, provides extra physical protection at the wall or ceiling interface, and gives Australian installers the clean, professional finish expected on commercial, retail, education and government CCTV projects.
Manufactured in Korea from ADC12 die-cast aluminium with a white powder-coat finish to match the IDIS camera body, the DA-JB2500 stands up to UV, salt-spray, dust and temperature swings — making it the go-to junction box for exposed eaves, awnings, and concrete soffit installs.
Accessory
Camera Junction Box
Material
ADC12 Die-Cast · White
Dimensions
135 × 133 × 58 mm
Compatibility
6+ IDIS Cameras
Why Use the Genuine IDIS Junction Box
A junction box is small in price, but it's the part of the install your client sees up close — the seam between the wall and the camera. The DA-JB2500 is engineered to mate perfectly with the IDIS Lite Series housing diameter, the same screw pattern, the same gasket recess. No third-party adapter rings, no oversized footprint, no awkward cable bulges. It also keeps the IDIS Ultimate Warranty fully intact on the camera above it.
Hidden Cable Termination
The PoE / Cat6 joint is fully enclosed inside the junction box — no exposed RJ45, no UV-aged cable jacket, no tampering risk at the wall-to-camera interface.
ADC12 Die-Cast Aluminium
High-grade corrosion-resistant aluminium alloy stands up to coastal salt-spray, outback heat and CBD dust over a multi-year service life.
Perfect Camera Mating
Diameter, screw pattern and gasket recess are matched 1:1 to the supported IDIS cameras — clean seam, no light gaps, no rattles.
Powder-Coated White
Matches IDIS camera body colour for a discreet, professional install on rendered walls, painted soffits or concrete eaves.
Generous Internal Volume
58 mm internal depth provides plenty of room to coil excess Cat6 service loop and route audio/alarm tails without strain on the cable bend radius.
Warranty Preserved
Specifying a genuine IDIS junction box keeps your camera fully covered under the IDIS Ultimate Warranty — third-party boxes can void support.
Compatible IDIS Cameras
The DA-JB2500 is the official junction box for the following IDIS cameras:
DC-D2511WER & DC-D2511WER-V2
5MP IR Dome Camera · 2.8 mm fixed lens · IDIS Lite Series · NDAA & TAA compliant.
DC-D2531WER & DC-D2531WER-V2
5MP Motorised Varifocal IR Turret · 2.7-13.5 mm · audio & alarm I/O.
DC-D2531WR & DC-D2531WR-V2
5MP Motorised Varifocal IR Vandal Dome · IR-pass black bubble · 4 × IR LEDs.
DC-T2531WR & DC-T2531WR-V2
5MP Motorised Varifocal IR Bullet · long-range outdoor surveillance.
DC-D2234WR
2MP motorised varifocal IR dome — full DirectIP support.
TC-D4232WR
HD analog 2MP motorised varifocal IR dome (DirectCX® range).
Not sure if the DA-JB2500 fits your camera? Contact our Australian IDIS team and we'll confirm before you order — we stock the full IDIS mount and junction box range (DA-WM2500 wall mount, DA-JB2500 junction box, DA-BH1100 bracket, DA-FM2100 flush mount and more).
Technical Specifications
| SKU |
DA-JB2500 |
| Accessory Type |
Camera Junction Box |
| Material |
ADC12 Die-Cast Aluminium |
| Colour |
White (Powder-Coated) |
| Dimensions |
135.0(L) × 133.0(W) × 58.0(H) mm |
| Weight |
0.595 kg (1.31 lb) |
| Compatible Cameras |
DC-D2234WR · DC-D2511WER (+V2) · DC-D2531WER (+V2) · DC-D2531WR (+V2) · DC-T2531WR (+V2) · TC-D4232WR |
| Installation Surface |
Wall · ceiling · soffit · eave (suitable indoor & outdoor) |
| Function |
Cable joint enclosure · service loop housing · weather seal at camera base |
| Origin |
Made in Korea |
| Warranty |
IDIS Ultimate Warranty (Australia) |
Frequently Asked Questions
Do I really need a junction box?
Strongly recommended for any exposed outdoor install. The junction box hides the RJ45 termination, protects the cable joint from UV/water, gives a clean install finish and adds tamper resistance.
Will the DA-JB2500 fit my IDIS camera?
Yes for the IDIS Lite Series 2-Series domes, turrets and bullets — see the full compatibility list above.
What's it made of?
ADC12 die-cast aluminium with a powder-coated white finish — corrosion-resistant and rated for Australian coastal and inland environments.
Can I pair it with a wall mount?
Yes — the DA-JB2500 can be combined with the DA-WM2500 wall mount for a complete clean install, or used directly against the wall on its own.
Why not use a generic plastic junction box?
Generic boxes don't match the IDIS housing diameter or screw pattern, leave visible gaps, and can void the IDIS Ultimate Warranty. The DA-JB2500 keeps everything aligned and supported.
Do you ship Australia-wide?
Yes — fast dispatch from Australian stock. Project pricing available for multi-unit orders alongside camera and NVR bundles.
Order the IDIS DA-JB2500 from CCTV Guru
CCTV Guru is an authorised Australian distributor of IDIS surveillance products and accessories. Order the DA-JB2500 alongside your IDIS Lite Series cameras for a clean, warranty-preserving install. For multi-camera rollouts or government tenders, contact our Australian team for project pricing and bulk stock availability.
