Hikvision DeepinView G2 · 4MP · DarkFighter 2.0 · 150 dB AWDR · Face Capture

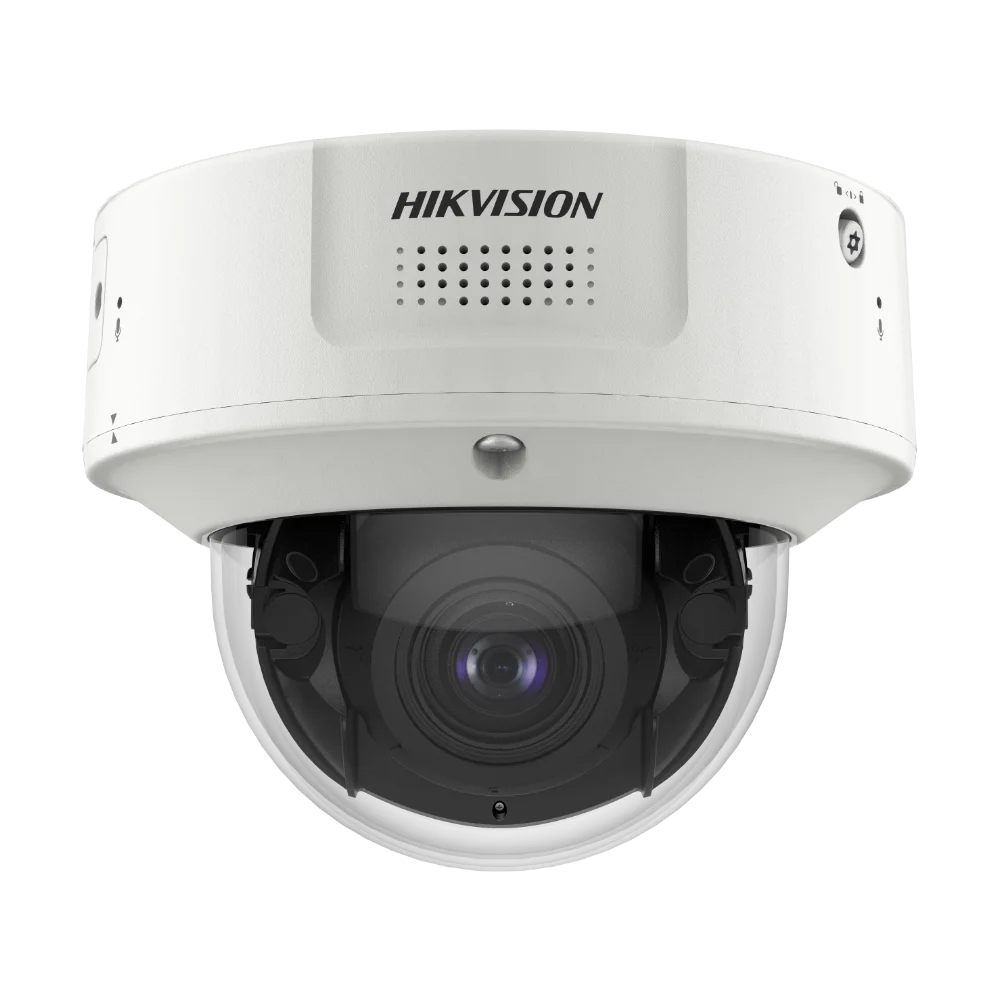

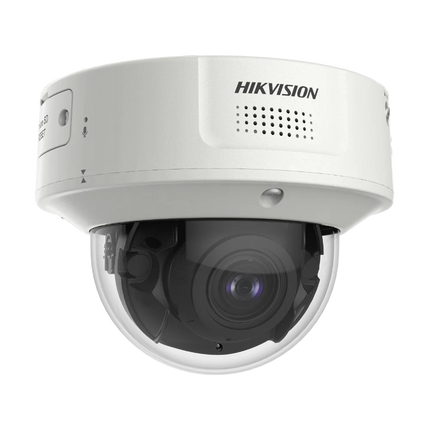

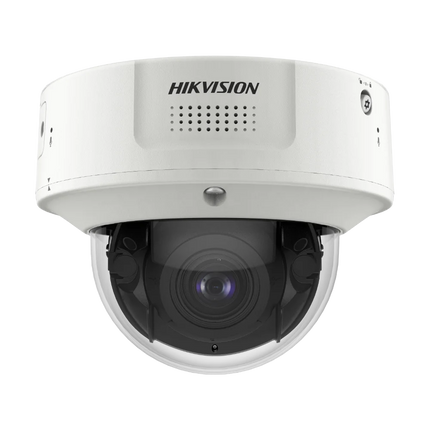

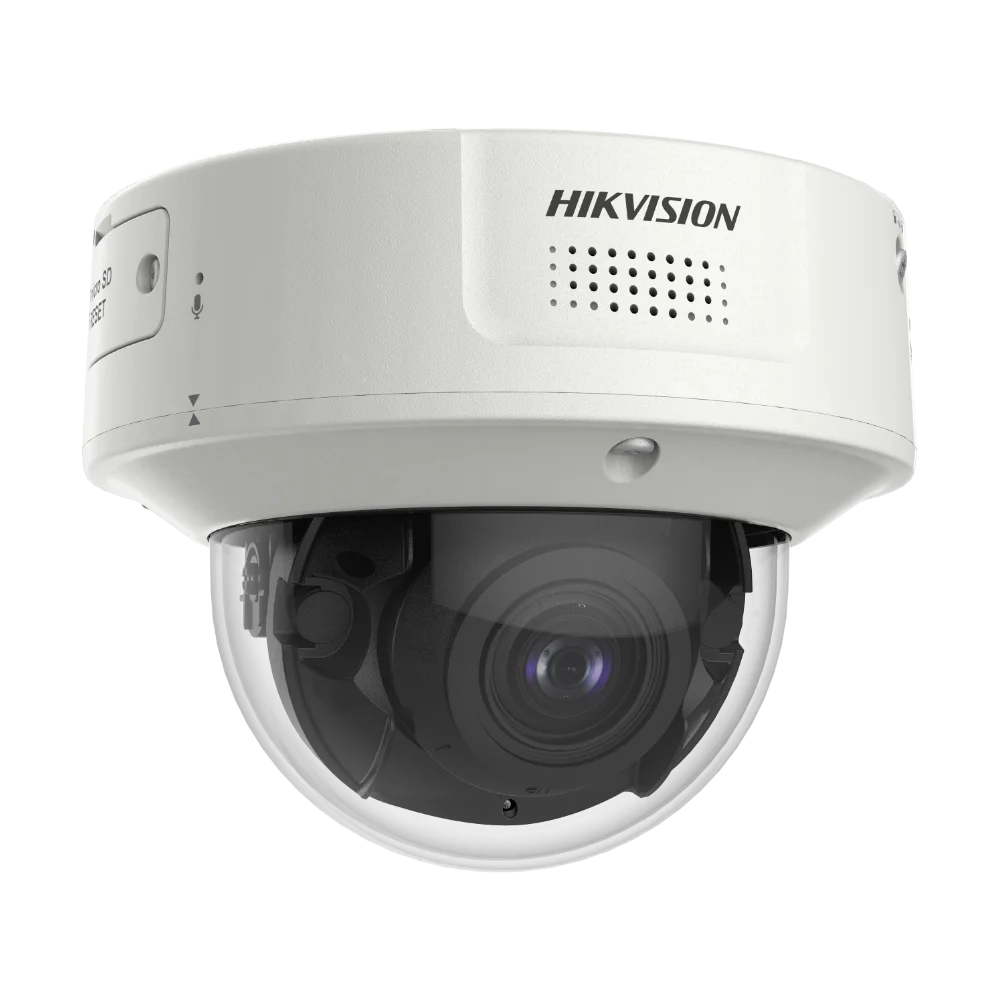

Hikvision iDS-2CD7146G2-IZS — 4MP DeepinView G2 Moto Varifocal Dome with DarkFighter 2.0, 150 dB AWDR, Face Capture & HEOP (2.8-12 mm)
The Hikvision iDS-2CD7146G2-IZS is a Generation-2 DeepinView Series dome — Hikvision's enterprise AI tier, sitting between the Pro Series turrets and the Ultra Series PTZs. 1/1.8" CMOS sensor + DarkFighter 2.0 imaging stack delivers 0.0005 lux colour at F1.2; 150 dB AWDR handles the worst backlit gateways, sun-on-glass foyers and dock aprons without losing shadow or highlight detail. The on-camera deep-learning engine adds Face Capture (120 simultaneous faces), Face Comparison (10 libraries × 30,000 faces = 150,000 total), AcuSense human + vehicle classification, and ShotN high-speed motion capture for vehicles and people at variable speeds. Up to 4 MP @ 60 fps or 2 MP @ 120 fps main-stream rates, 5 simultaneous streams, Gigabit Ethernet, TPM 2.0 (FIPS 140-2 Level 2) cyber security and HEOP open platform for third-party application deployment. Motorised 2.8-12 mm varifocal lens with remote zoom and focus, IP67 + IK10, three power options (PoE+, 12 VDC, 24 VAC). Australian stock, 3-year Australian warranty.
Resolution / FPS
4MP @ 60 fps · 2MP @ 120 fps
Low Light
DarkFighter 2.0 · 0.0005 lux
Motorised Lens
2.8-12 mm · F1.2 · Vari-focal
AI Engine
DeepinView · Face Capture 120
Cyber Security
TPM 2.0 · FIPS 140-2 L2
Power Options
PoE+ · 12 VDC · 24 VAC
See DarkFighter 2.0 — The Imaging Engine on This Camera
DarkFighter 2.0 is the headline imaging technology on the Gen-2 DeepinView Series. It combines AI Image Signal Processing (ISP), high-frame-rate capture, ShotN motion-tracking and Auto Wide Dynamic Range into a single sensor pipeline. Hikvision's official DarkFighter 2.0 introduction shows the imaging chain that powers this iDS-2CD7146G2-IZS.
What DeepinView G2 Brings Over Consumer / Pro Series Cameras
The DeepinView Series is built for sites that need on-camera face recognition, high-frame-rate evidence capture, and open-platform third-party AI. If your site only needs human / vehicle motion filtering, a Pro Series turret with AcuSense is enough. If your site needs to identify faces against a watchlist, capture fast-moving subjects (vehicles, sport, mining haul roads), or run a custom AI application directly on the camera, DeepinView is the tier you want.
Face Capture — 120 Simultaneous
The DeepinView engine detects up to 120 faces simultaneously in frame, captures up to 40 face pictures per frame, and uploads up to 10 best-frame face pics per second to your VMS or NVR. Useful for crowded entrances, transit stations, hotel lobbies, school gates and event venues.
Face Comparison — 150,000 Face DB
10 face libraries × 30,000 = 150,000 total faces with encrypted on-camera storage. Watchlist match runs at the camera — even if the VMS is offline. Enterprise-scale identity verification without a separate face server.
DarkFighter 2.0 + 150 dB AWDR
F1.2 lens · DarkFighter 2.0 sensor · HikAI-ISP noise reduction + 150 dB Auto WDR. Handles the worst Australian lighting transitions — sunset behind a doorway, dock aprons under floodlight, gold-coast sun-on-glass foyers — without overexposing highlights or losing shadow detail.
High Frame Rate — 60 fps @ 4MP / 120 fps @ 2MP
Capture fast-moving subjects without motion blur — vehicles entering carparks, sport, mining haul-truck traffic, courier deliveries, retail loss-prevention. ShotN technology captures vehicles and people at variable speeds in the same frame clearly.
HEOP — Hikvision Embedded Open Platform
Deploy third-party AI applications directly on the camera — Hikvision technology partners ship apps for niche use cases (queue analytics, dwell time, custom retail analytics, industry-specific safety monitoring) that run on-device without external infrastructure.
TPM 2.0 (FIPS 140-2 Level 2)
Hardware-backed cyber security with TPM 2.0 meeting FIPS 140-2 Level 2. Required language for government, council, school-campus, healthcare and corporate RFI compliance — a level Pro Series and EasyIP cameras don't claim.
Which Variant: Why We Stock the IZS (not IZHSY or /1T)
The iDS-2CD7146G2 family ships in several variants — IZ, IZS, IZHS, IZHSY, IZS/1T, IZHSY/1T — and the trailing suffix letters matter. We stock the IZS (2.8-12 mm) as our Australian default because it gives you the full DeepinView G2 imaging chain and AI feature set without paying for niche-case add-ons that most Australian sites don't need.
iDS-2CD7146G2 — Variant Suffix Decoder
If you need anti-corrosion (coastal site within 2 km of the shoreline) or onboard 1 TB SSD storage, contact our Australian team — we can special-order the IZHSY or IZHSY/1T variant. For the vast majority of Australian commercial, education, hospitality, council and body-corporate installs, the IZS we stock is the right call.
DeepinView AI — Face Capture, Face Comparison, Perimeter Protection
Perimeter Protection
Line crossing, region entrance, intrusion and region exiting — each filtered by target type (human, vehicle) using on-camera deep learning. Suppresses ~90% of nuisance alarms vs traditional motion-only cameras.
Multi-Target-Type Detection
Simultaneous detection across three target classes with rich feature extraction: face, human body and vehicle. Feeds searchable metadata into your NVR for fast post-incident review.
Face Capture & Quality Grading
Up to 120 simultaneous faces, 40 captures per frame, 10 best-frame uploads per second. On-camera quality grader picks the best angle and focus from the burst — only the usable face frame uploads to your VMS.
Face Comparison & Watchlists
10 encrypted face libraries × 30,000 faces = 150,000 total. Authorised-staff lists, watchlists, banned-customer lists, or contractor-of-record lists — match runs on the camera in real-time.
ShotN High-Speed Motion Capture
Captures fast-moving vehicles and people clearly in single frames — without the motion blur a 30 fps camera leaves on courier vans, security gate vehicles or mining haul trucks. 4 MP @ 60 fps or 2 MP @ 120 fps.
HEOP Third-Party Apps
The Hikvision Embedded Open Platform lets technology partners deploy custom AI applications on the camera — queue analytics, dwell time, retail conversion measurement, industrial safety monitoring — running on-device with no external compute.
Technical Specifications
iDS-2CD7146G2-IZS (2.8-12 mm) · Full Specifications
| SKU |
iDS-2CD7146G2-IZS (2.8-12 mm motorised varifocal — AU-stocked default) |
| Camera Type |
Hikvision DeepinView Series Gen 2 · 4 MP DarkFighter 2.0 Moto Varifocal Network Dome |
| Image Sensor |
1/1.8" Progressive Scan CMOS · DarkFighter 2.0 · HikAI-ISP |
| Max Resolution |
2688 × 1520 (4 MP) |
| Min. Illumination |
Colour 0.0005 lux @ F1.2 (AGC ON) · B/W 0.0001 lux @ F1.2 · 0 lux with IR |
| Shutter Speed |
1 s to 1/100,000 s |
| Lens |
Motorised varifocal · 2.8-12 mm · F1.2 (wide) – F2.53 (tele) · auto-focus |
| Field of View |
Horizontal 114.6° → 41.8° · varies through zoom |
| Day & Night |
ICR (IR cut filter, mechanical) |
| Wide Dynamic Range |
150 dB AWDR · BLC · HLC · 3D DNR · digital defog |
| SNR |
≥ 52 dB |
| IR Illumination |
Built-in EXIR · adaptive smart IR |
| Frame Rate (Main) |
50/60 Hz: up to 60 fps @ 4 MP · up to 120 fps @ 2 MP (high frame rate) |
| Streams |
5 simultaneous (vs Pro Series 3) |
| Video Compression |
H.265+ · H.265 · H.264+ · H.264 · MJPEG |
| Video Bit Rate |
32 Kbps – 16 Mbps · CBR / VBR · SVC · ROI |
| Deep-Learning AI |
DeepinView — perimeter protection (line crossing / intrusion / region entry & exit · human + vehicle filter) |
| Multi-Target Detection |
Simultaneous face · human · vehicle classification |
| Face Capture |
120 simultaneous faces · 40 captures per frame · 10 best-frame uploads per second |
| Face Comparison |
10 libraries × 30,000 faces = 150,000 total · encrypted on-camera DB |
| ShotN Motion Capture |
Yes — high-speed clear capture of vehicles + people at variable speeds |
| HEOP (Open Platform) |
Yes — Hikvision Embedded Open Platform for third-party AI apps |
| G-sensor |
Yes — vibration / tamper detection |
| Power Meter |
Yes — historical power consumption statistics on-camera |
| Basic Events |
Motion · video tampering · vibration · exception |
| Linkage |
FTP / NAS / microSD upload · centre notify · email · trigger recording · capture |
| Audio |
Built-in dual microphone + built-in speaker · 1 line-in · 1 line-out · G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC / MP3 |
| Alarm I/O |
1 input · 1 output |
| Ethernet |
1 × RJ-45 10/100/1000 Mbps Gigabit self-adaptive |
| On-Board Storage |
microSD / SDHC / SDXC slot (no built-in /1T SSD on our IZS variant) |
| API & Protocols |
ONVIF (Profile S / G / T) · ISAPI · SDK · ISUP · 32 users |
| Network |
TCP/IP · ICMP · HTTP · HTTPS · FTP · SFTP · DHCP · DNS · DDNS · SRTP · RTP/RTSP/RTCP · PPPoE · NTP · UPnP · SMTP · SNMP · IGMP · 802.1X · QoS · IPv4/IPv6 · UDP · Bonjour · SSL/TLS · ARP · WebSocket · WebSockets |
| Cyber Security |
TPM 2.0 (FIPS 140-2 Level 2) · TLS 1.2 + 1.3 · HTTPS · 802.1X (EAP-TLS / EAP-LEAP / EAP-MD5) · IP filter · watermark · MAC host authentication · audit log · password protection |
| Client Software |
iVMS-4200 · Hik-Connect · HikCentral Pro |
| Web Browser |
Chrome · Firefox · Safari · Edge · IE 10+ / IE 11 |
| Power Source |
12 VDC (15.3 W) · 24 VAC (13.7 W) · PoE 802.3at Class 4 (15.2 W) — three options |
| Dimensions / Weight |
Ø 144 mm × 114 mm · ≈ 970 g
|
| Operating Temperature |
−30 °C to +65 °C · humidity ≤ 95 % non-condensing (no -H heater on our variant)
|
| Weatherproof Rating |
IP67 (IEC 60529-2013) |
| Vandal Resistance |
IK10 |
| Anti-Corrosion |
Not on IZS variant — special-order the -Y / IZHSY for NEMA 4X coastal installs |
| Approvals |
CE-EMC · CE-LVD · RCM (AS/NZS CISPR 32:2015) · IC ICES-003 · KC · CB · RoHS |
| Warranty |
5-Year Australian Warranty (DeepinView tier · back-to-base) |
Recording NVRs — Pair with an AcuSeek or DeepinMind AI NVR
The iDS-2CD7146G2-IZS generates rich AI metadata — face capture frames, face comparison results, multi-target classification, perimeter events, ShotN high-frame-rate clips. To get the full value of that metadata, pair the camera with a VPro AcuSeek or DeepinMind AI NVR — these NVRs index the metadata and let you run natural-language search across the recording ("show me all faces matching this watchlist entry between 4 pm and 6 pm yesterday"). Standard M-Series NVRs will record the stream, but they don't surface the AI metadata in search.
DS-7608NXI-I2/8P/VPro — 8CH · AcuSeek AI
Eight-channel VPro AcuSeek AI NVR with 8 built-in PoE ports — sized for a single high-AI site with this camera as the centrepiece plus perimeter coverage. Indexes face capture + multi-target detection metadata for natural-language AcuSeek search. View DS-7608NXI-I2/8P/VPro →
DS-7616NXI-I2/16P/VPro — 16CH · AcuSeek AI
Sixteen channels at full PoE — body-corporate site, school campus, hotel front-of-house with multiple face-capture cameras plus general coverage. AcuSeek metadata indexing across the full fleet. View DS-7616NXI-I2/16P/VPro →
DS-7732NXI-I4/16P/VPro — 32CH · AcuSeek AI
Thirty-two channels with 16 PoE and 4 HDD bays — standard mid-tier VPro AcuSeek platform for council CBD, port, mining, hospital and multi-building campus rollouts with several DeepinView cameras. View DS-7732NXI-I4/16P/VPro →
iDS-7716NXI-M4/16P/X — 16CH · DeepinMind
Hikvision's most capable 16-channel AI NVR — DeepinMind X-Series for face-recognition workloads and AcuSearch natural-language search. The right pairing if face DB matching is the centre of your project. View iDS-7716NXI-M4/16P/X →
Browse the full Hikvision AI NVR range: Hikvision Network Video Recorders →. Not sure whether AcuSeek or DeepinMind is the right tier? Request a free system quote — we'll size the NVR, storage and switch correctly for the AI metadata workload.
Compatible Mounts & Accessories
The DeepinView G2 dome supports wall, pendant, pole, corner and in-ceiling mounting. Choose the geometry that fits your install — most Australian commercial installs use the standard wall or pendant mount, with pole and corner brackets for perimeter overwatch.
Wall Mount
Hikvision wall-mount bracket sized for the 970 g G2 DeepinView dome — for façade, column or building-wall installs looking outward across a perimeter or approach.
Pendant / Ceiling Mount
Pendant mount for hanging from horizontal surfaces — eave, ceiling, carport gantry, hotel-lobby soffit. Common for over-the-door face-capture installs where the camera looks down on entrants.
Pole & Corner Mounts
Pole-mount brackets for street poles, gate columns and fence posts. Corner-mount brackets for placing the camera at a building corner overlooking two perimeter zones at once.
microSD Card for Local Storage
Supports microSD / SDHC / SDXC for edge recording during network outages, with ANR (Auto Network Replenishment) back-filling the NVR automatically when the link returns. For larger guaranteed-onboard retention, special-order the /1T variant.
Frequently Asked Questions
How is DeepinView different from AcuSense?
AcuSense (on Pro Series and Value Series cameras) is the filtering AI — it classifies motion as human, vehicle or other and triggers only on the targets that matter. DeepinView is the recognition AI — adding face capture, face comparison against a watchlist, ShotN high-speed motion, HEOP open-platform third-party apps, and ANPR (on the dedicated ANPR-suffix variants). DeepinView includes AcuSense's filtering capabilities, plus much more.
Why the IZS and not the IZHSY or /1T?
The IZS gives you the full DeepinView G2 imaging chain and AI feature set without paying for niche add-ons. -H (heater) is only needed for alpine / sub-zero installs (rare in Australia). -Y (NEMA 4X anti-corrosion) is for coastal sites within ~2 km of the shoreline. /1T (built-in 1 TB SSD) is for sites needing guaranteed on-camera local recording independent of the network. If you need any of those, we can special-order — talk to our team.
Can I install this within 2 km of the coast?
Our stocked IZS variant does not have the NEMA 4X anti-corrosion housing. For genuinely coastal Australian installs (Sydney Harbour, Wollongong, Newcastle, Gold Coast, Perth waterfront, etc.), special-order the IZHSY variant which adds anti-corrosion. Or mount the IZS under deep cover (eave, carport, sheltered porch) so it doesn't see direct salt spray. Contact our team for guidance.
Does it support face recognition out of the box?
Yes — 120 simultaneous faces detected, 40 captures per frame, 10 best uploads per second, comparison against 10 libraries of 30,000 faces each (150,000 total) with encrypted on-camera storage. The face DB is configured directly on the camera via iVMS-4200 or HikCentral Pro — no separate face server required.
What is HEOP and do I need it?
HEOP — Hikvision Embedded Open Platform — lets Hikvision technology partners deploy custom AI applications directly on the camera. Most buyers don't deploy a HEOP app, but the platform availability matters if you're planning queue analytics, dwell-time measurement, custom retail conversion tracking, or industrial safety monitoring with a vendor's specific app. Useful future-proofing.
What power supply do I need?
Three options: PoE 802.3at Class 4 (15.2 W) from any Hikvision NVR PoE port, 12 VDC (15.3 W) from a dedicated power supply, or 24 VAC (13.7 W) from existing AC infrastructure. PoE+ is the cleanest install — single Cat 6 cable into the NVR.
How does ShotN motion capture work?
ShotN is Hikvision's high-frame-rate motion technology — it captures fast-moving vehicles, people, mining trucks, sport, etc. clearly in single frames at 4 MP @ 60 fps or 2 MP @ 120 fps, without the motion blur that 30 fps cameras leave. Useful for vehicle gate identification, courier delivery records, dock truck movements, and any site where targets routinely move faster than walking pace.
Will it work with my existing Hikvision NVR?
Yes — ONVIF Profile S / G / T plus Hikvision ISAPI means it streams to any modern Hikvision NVR. However, to surface face capture, face comparison and AI metadata in NVR search, you'll want an AcuSeek (VPro) or DeepinMind NVR. Standard M-Series NVRs record the stream but don't index the DeepinView AI metadata.
Is this NDAA Section 889 compliant?
No. Hikvision is not NDAA Section 889 compliant. For NDAA-required projects (typically US federally-funded), we stock alternative brands — contact our team. For Australian residential, commercial, council, school, retail, hospitality, body-corporate and most state-government projects without an NDAA contractual requirement, this camera is freely usable.
Downloads & Resources
Order the Hikvision iDS-2CD7146G2-IZS from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision DeepinView Series. The iDS-2CD7146G2-IZS (2.8-12 mm) is the enterprise-tier face-capture dome for Australian commercial, education, hospitality, council and body-corporate sites that need on-camera face recognition, high-frame-rate evidence capture and HEOP open-platform AI. Australian stock, 5-year Australian DeepinView warranty, fast Australia-wide dispatch, multi-camera project pricing, and pre-sales advice from our Sydney team. Designing a face-recognition project for an entry, transit station, hotel, school campus or council CBD? Request a free quote or contact our Australian team for camera-and-AI-NVR sizing — we'll spec the right number of DeepinView cameras and the right AcuSeek / DeepinMind NVR for your AI workload.
