Hikvision · 10.1" Touch · Indoor Main Station
The Indoor Command Centre for Your Intercom System

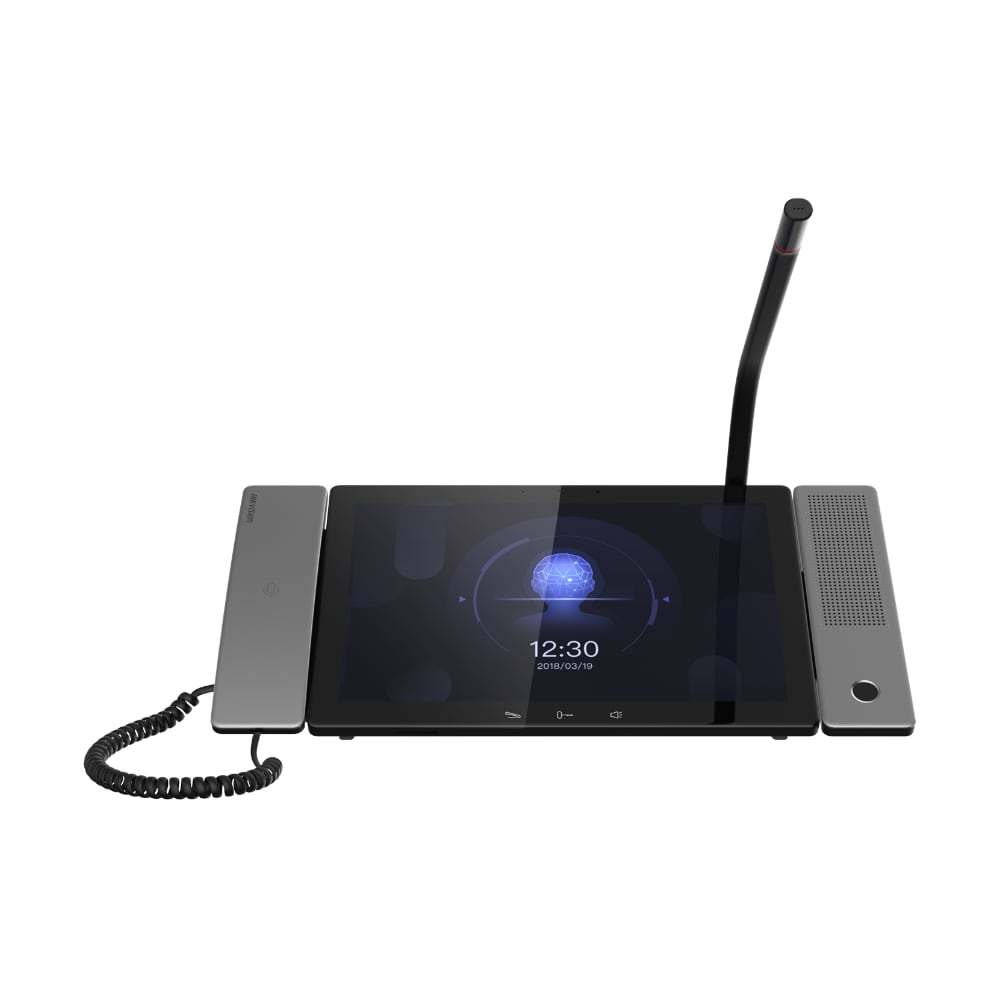

The Hikvision DS-KM9503 is an Ultra Series indoor IP video intercom main station that puts your entire entry system at your fingertips. A 10.1" IPS capacitive touch screen at 1280×800 runs Android 7.1 with 8GB ROM and 2GB RAM for a fast, responsive desk or wall-mounted control point.
With a built-in SIP private server it manages up to 10,000 intercom devices and up to 128 network cameras, supporting multi-party intercom, call forwarding, building cross-calls and one-touch door release. A built-in 2MP camera, HDMI output for an external monitor and PoE or 12V DC power make it a flexible hub for concierge desks, reception areas and large residential or commercial sites. This is an indoor unit.
SIP Server
Built-In Private
What's Included
DS-KM9503 Main Station
10.1" touch-screen indoor IP video intercom main station with built-in 2MP camera.
Desk & Wall Mounting
Hardware for tabletop or wall-mounted installation at a reception or concierge desk.
Wiring Terminals
PoE (LAN-1) or 12V DC power and network connections, plus HDMI output.
Why Choose DS-KM9503
Built-In SIP Server
Hosts a private SIP server for up to 10,000 intercom devices on one system.
Massive Camera Capacity
Monitor up to 128 network cameras directly from the main station.
Full Intercom Control
Multi-party intercom, call forwarding, building cross-calls and one-touch door release.
HDMI Output
Mirror the interface to an external monitor for larger viewing.
Recommended For
Concierge & Reception Desks
A desk-mounted control hub for staffed lobbies and front desks.
Apartment & Building Complexes
Manages large device counts and building cross-calls.
Commercial Sites
Indoor master station for offices and mixed-use developments.
Technical Specifications
| Model |
DS-KM9503 |
| Type |
Indoor IP Video Intercom Main Station |
| Display |
10.1" IPS capacitive touch, 1280×800 |
| OS / Memory |
Android 7.1, 8GB ROM, 2GB RAM |
| Camera |
Built-in 2MP (64.1°H × 48.1°V) |
| SIP Server |
Built-in private SIP server |
| Device Capacity |
Up to 10,000 intercom devices |
| Camera Capacity |
Up to 128 network cameras |
| Features |
Multi-party intercom, call forwarding, building cross-calls, one-touch door release |
| Video Output |
HDMI output for external monitor |
| Protocols |
TCP/IP, SIP, RTSP |
| Power |
PoE (LAN-1) or 12V DC, ≤12W |

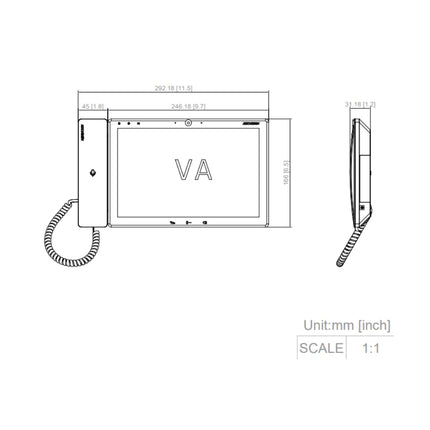

| Dimensions |
292 × 166 × 31 mm |
| Weight |
~1.285 kg |
| Mounting |
Table or wall mount (indoor) |
Downloads & Resources
Is this a door station?
No — it is an indoor main station, the control hub for your intercom system rather than an outdoor entry panel.
How big is the screen?
A 10.1" IPS capacitive touch screen at 1280×800 resolution.
How many devices can it manage?
Its built-in SIP private server supports up to 10,000 intercom devices.
How many cameras can it view?
Up to 128 network cameras.
Does it have its own camera?
Yes, a built-in 2MP camera with a 64.1° horizontal field of view.
How is it powered?
By PoE on LAN-1 or 12V DC, drawing 12W or less.
Can I connect an external monitor?
Yes, it has an HDMI output for a larger display.
How is it mounted?
On a desk or wall as an indoor unit.
What intercom features does it support?
Multi-party intercom, call forwarding, building cross-calls and one-touch door release.
