8MP 4K · 2.8 mm Wide Angle · 30 m EXIR · 130 dB WDR

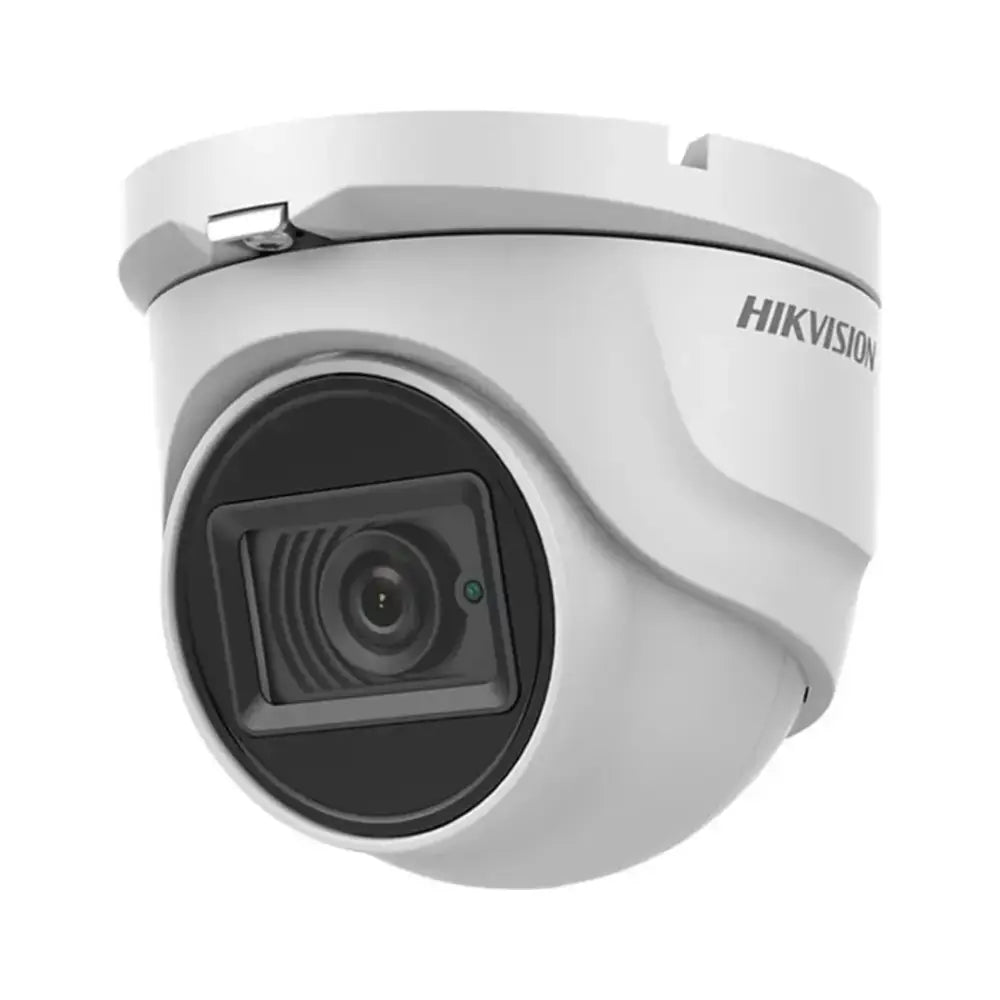

Hikvision DS-2CE76U7T-ITMF — 4K detail for compatible coaxial systems
The Hikvision DS-2CE76U7T-ITMF upgrades a compatible coaxial CCTV system to 8MP 4K. Its ultra-low-light sensor, 30 m EXIR illumination and 130 dB true WDR suit entrances, shops, garages and general outdoor surveillance where a visible white spotlight is not wanted.
The supplied 2.8 mm fixed lens provides an official 102° horizontal field of view.
Why choose this camera?
-
8MP 4K output: up to 3840 × 2160
-
Ultra-low light: rated to 0.003 lux before infrared is required
-
30 m EXIR 2.0: infrared night coverage without a visible white spotlight
-
Backlight control: 130 dB true WDR
-
4-in-1 output: switchable TVI, AHD, CVI and CVBS
-
Outdoor protection: IP67 metal housing
Important compatibility information
This is not an IP or PoE camera. It requires a compatible DVR, coaxial video cabling and separate 12 V DC power. Confirm 8MP signal and frame-rate support before ordering.
At full 8MP resolution it records up to 12.5 fps in PAL or 15 fps in NTSC. Higher frame rates are available at lower resolutions.
Key specifications
| Feature |
Specification |
| Official stocked model |
DS-2CE76U7T-ITMF, 2.8 mm lens |
| Resolution |
8MP, 3840 × 2160 |
| Frame rate |
8MP at 12.5/15 fps |
| Lens |
2.8 mm fixed; 102° horizontal field of view |
| Minimum illumination |
0.003 lux at F1.2; 0 lux with infrared |
| Infrared range |
Up to 30 m, EXIR 2.0 |
| WDR |
≥130 dB true WDR |
| Video output |
Switchable TVI / AHD / CVI / CVBS |
| Power |
12 V DC ±25%; maximum 4.2 W |
| Protection |
IP67; metal body |
| Dimensions / weight |
90 × 79.37 mm; approximately 310 g |
Frequently asked questions
Is this an IP camera?
No. It is a Turbo HD analogue camera for coaxial cabling and a compatible DVR.
Does it provide 4K at 25 or 30 fps?
No. Full 8MP output is up to 12.5 fps in PAL or 15 fps in NTSC.
How wide is the 2.8 mm view?
The official horizontal field of view is 102°, suited to broad coverage of relatively short scenes.
Does it have ColorVu or white light?
No. This model uses ultra-low-light imaging plus infrared illumination.
Can it work with an older DVR?
Possibly at a supported lower format, but 8MP recording requires a DVR input rated for the camera’s resolution and signal.
Official resource
Download the official Hikvision datasheet (PDF)
