8MP 4K · ColorVu · Smart Hybrid Light · Built-in Microphone

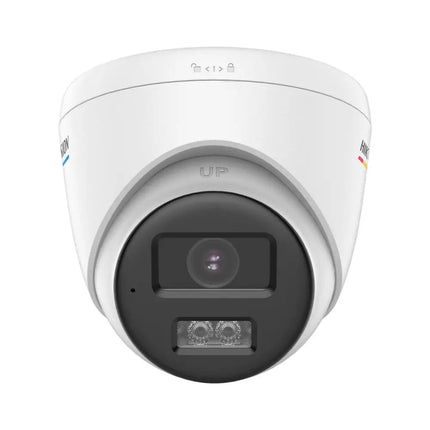

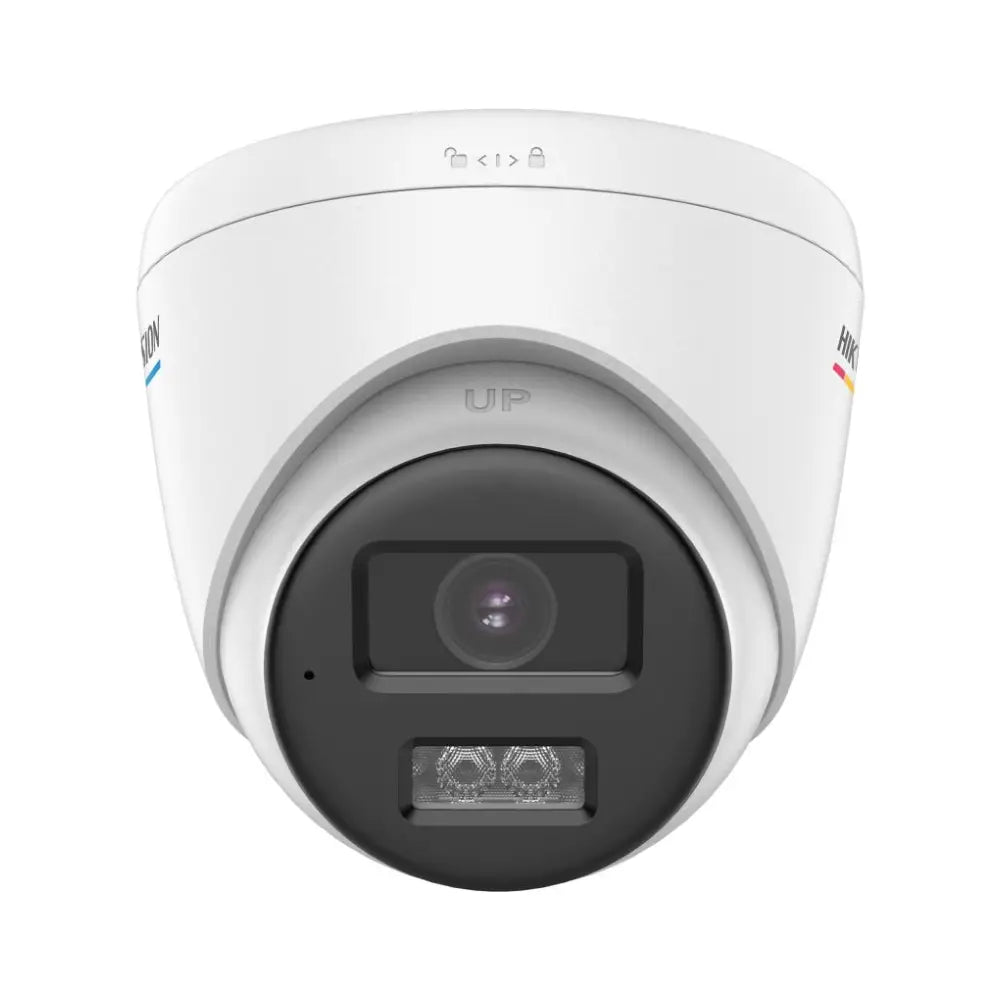

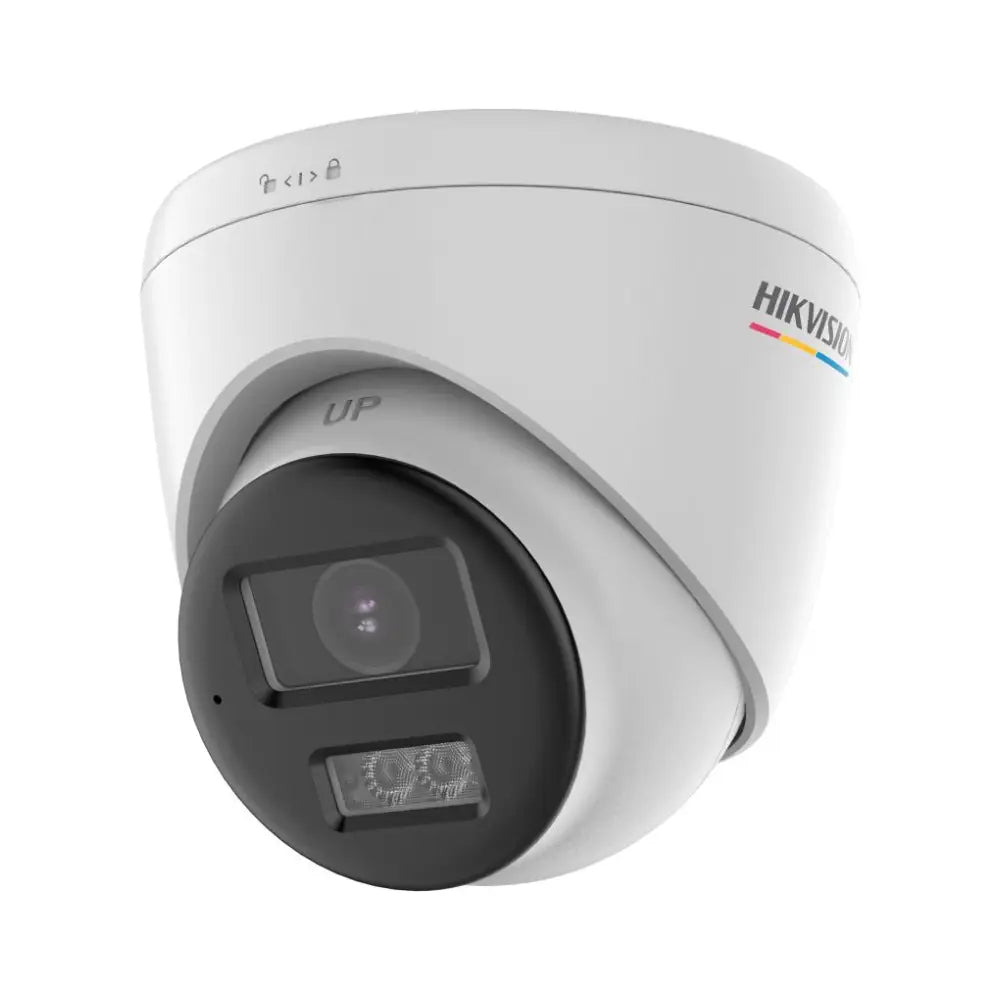

Hikvision DS-2CE72UF3T-LS — 4K colour video over coax
The Hikvision DS-2CE72UF3T-LS upgrades a compatible coaxial CCTV system to 8MP 4K. Its F1.0 ColorVu optics, infrared and white supplementary lights provide flexible night coverage, while the built-in microphone sends audio through the coaxial cable to a compatible Hikvision DVR.
The supplied 2.8 mm fixed lens gives a wide 105° horizontal field of view, suited to entrances, driveways, shopfronts, reception areas and other broad, relatively short scenes.
Why choose this camera?
-
4K detail: up to 3840 × 2160 for clearer review of people, vehicles and activity
-
Smart Hybrid Light: infrared, white-light and Smart operation, with each light rated up to 40 m
-
Low-light colour: F1.0 optics rated to 0.0005 lux; white light supports completely dark scenes
-
Audio over coax: a built-in microphone works through the video cable with a compatible DVR
-
Backlight control: 130 dB true WDR helps at doors, windows and bright entrances
-
Outdoor protection: IP67 housing and a -40°C to 60°C operating range
Important compatibility information
This is not an IP or PoE camera. It requires a compatible HD-TVI DVR, coaxial video cabling and separate 12 V DC power. Confirm 8MP input, audio-over-coax and Smart Hybrid Light support before ordering.
At full 4K resolution, the official maximum frame rate is 12.5 fps in PAL or 15 fps in NTSC. Higher frame rates are available at lower resolutions.
Key specifications
| Feature |
Specification |
| Official stocked model |
DS-2CE72UF3T-LS(2.8mm) |
| Resolution |
8MP, 3840 × 2160 |
| Lens |
2.8 mm fixed; 105° horizontal field of view |
| Minimum illumination |
0.0005 lux at F1.0; 0 lux with white light |
| Supplementary light |
Smart / infrared / white light; up to 40 m each |
| Audio |
1 built-in microphone; audio over coax |
| WDR |
≥130 dB true WDR |
| Video output |
1 HD analogue output |
| Power |
12 V DC ±25%; maximum 5.4 W |
| Protection |
IP67 |
| Dimensions / weight |
Ø110 × 93 mm; approximately 395 g |
See Smart Hybrid Light in action
Watch this official Hikvision Australia & New Zealand overview to see how infrared, white-light and Smart modes respond to night-time events.
Frequently asked questions
Is this an IP or PoE camera?
No. It is an HD-TVI analogue camera for coaxial cabling and requires separate 12 V DC power plus a compatible DVR.
Why is 2.8 mm not in the display title?
The cleaner title uses the base model. The supplied lens remains identified here and in the official stocked model code: DS-2CE72UF3T-LS(2.8mm).
Does it record 4K at 25 or 30 fps?
No. Full 4K is up to 12.5 fps in PAL or 15 fps in NTSC. Higher frame rates are available at lower resolutions.
Can it record sound?
Yes, when audio over coax is supported and enabled on the connected DVR.
What DVR should I use?
Use a compatible Hikvision Turbo HD DVR supporting 8MP input, audio over coax and the required lighting controls.
Official resource
Download the official Hikvision datasheet (PDF)
