3K · ColorVu · Smart Hybrid Light · Built-in Microphone

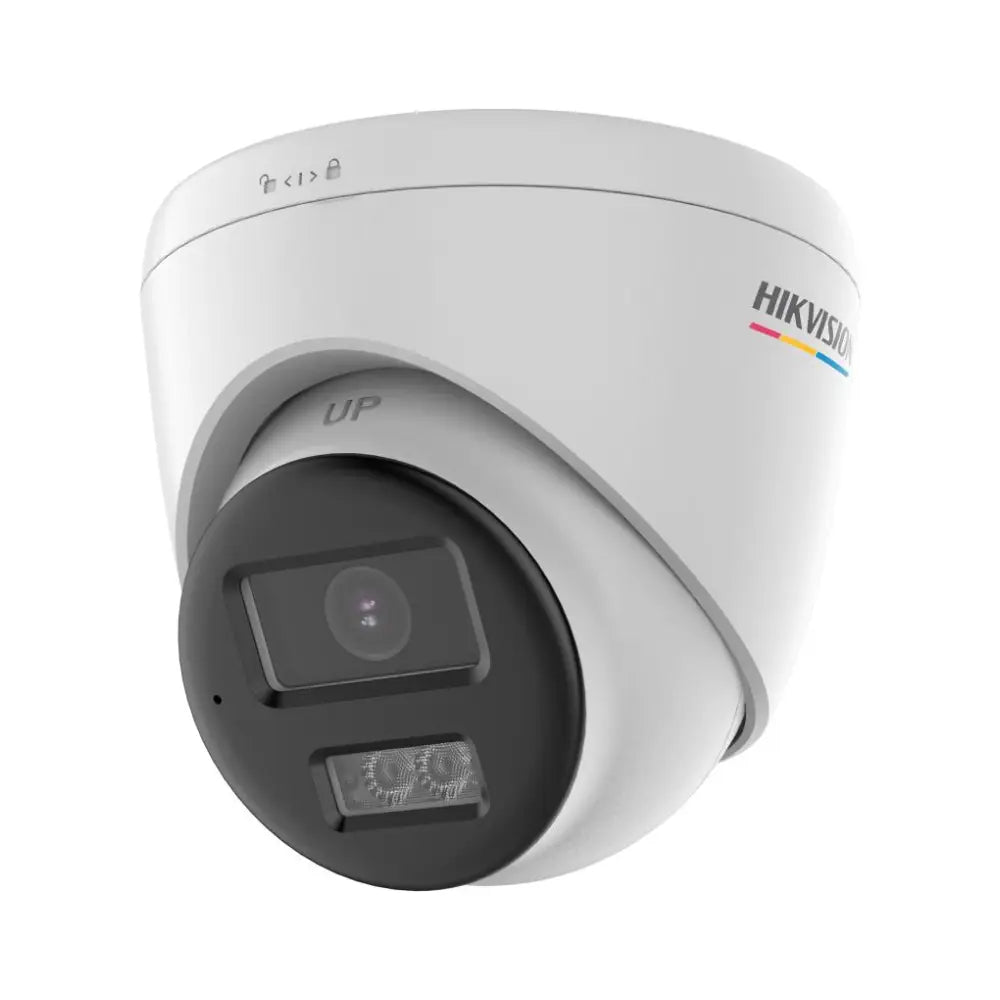

Hikvision DS-2CE72KF3T-LS — clear 3K colour surveillance over coax
The Hikvision DS-2CE72KF3T-LS is a 3K HD-TVI turret camera for homes and small businesses upgrading an existing coaxial system. It combines an F1.0 ColorVu lens, Smart Hybrid Light, 130 dB true WDR and a built-in microphone without requiring a network connection at the camera.
The supplied 2.8 mm fixed lens provides a wide 112° horizontal view, making it practical for entries, garages, retail floors, reception areas and short driveways.
Why choose this camera?
-
3K resolution: up to 2960 × 1665 at 20/25 fps
-
Low-light colour: F1.0 optics rated to 0.0005 lux
-
Smart Hybrid Light: infrared and white light are each rated up to 40 m
-
Audio over coax: the built-in microphone can send sound through the video cable
-
Backlight control: 130 dB true WDR helps manage bright entrances
-
Weather protection: IP67 housing for indoor and outdoor installations
Important compatibility information
This is not an IP or PoE camera. It needs a compatible HD-TVI DVR, coaxial video cabling and separate 12 V DC power. Confirm 3K input, audio-over-coax and Smart Hybrid Light support on the intended recorder.
Key specifications
| Feature |
Specification |
| Official stocked model |
DS-2CE72KF3T-LS(2.8mm) |
| Resolution |
3K, 2960 × 1665 |
| Frame rate |
3K at 20/25 fps; up to 25/30 fps at 4MP or 1080p |
| Lens |
2.8 mm fixed; 112° horizontal field of view |
| Minimum illumination |
0.0005 lux at F1.0; 0 lux with white light |
| Supplementary light |
Smart / infrared / white light; up to 40 m each |
| Audio |
1 built-in microphone; audio over coax |
| WDR |
≥130 dB true WDR |
| Power |
12 V DC ±25%; maximum 5.7 W |
| Protection |
IP67 |
| Dimensions / weight |
Ø110 × 102.7 mm; approximately 370 g |
See Smart Hybrid Light in action
Watch this official Hikvision Australia & New Zealand overview to see how infrared, white-light and Smart modes respond to night-time events.
Frequently asked questions
Is this camera IP or PoE?
No. It is a coaxial HD-TVI camera and requires a compatible DVR plus separate 12 V DC power.
What area does the 2.8 mm lens cover?
Its official horizontal field of view is 112°, suited to wide, relatively short scenes.
What does 3K mean?
The maximum image is 2960 × 1665, offering more detail than 4MP or 1080p while generally using less storage than 8MP 4K.
Does Smart Hybrid Light work with every DVR?
No. Lighting configuration and audio features depend on the DVR model and firmware.
Can it record audio?
Yes. The built-in microphone supports audio over coax with a compatible DVR.
Official resource
Download the official Hikvision datasheet (PDF)
