Hikvision DS-2CD3686G2HT-LIZSY 8MP Smart Hybrid Light DarkFighter S Motorised Varifocal Bullet Camera

Description

Hikvision Ultra Series · 8MP · Smart Hybrid Light · DarkFighter S

Detailed 4K Coverage with Flexible Motorised Zoom

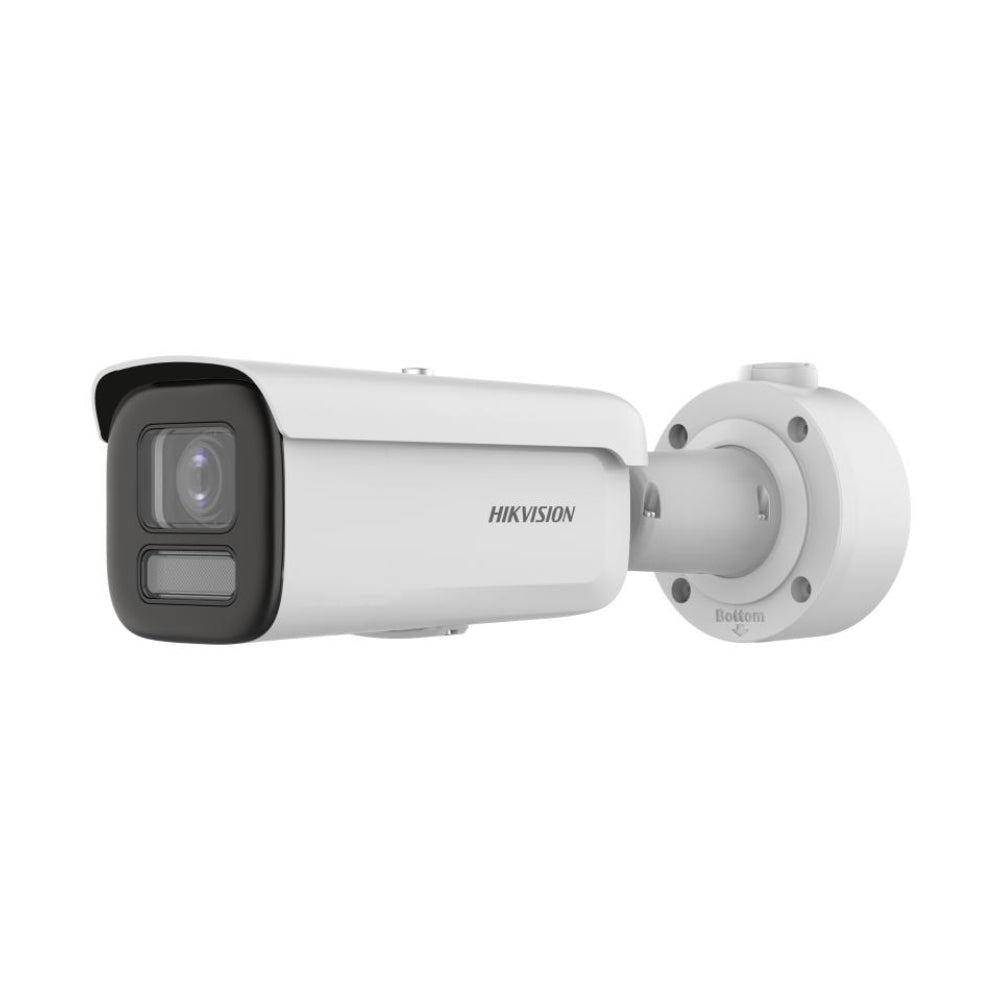

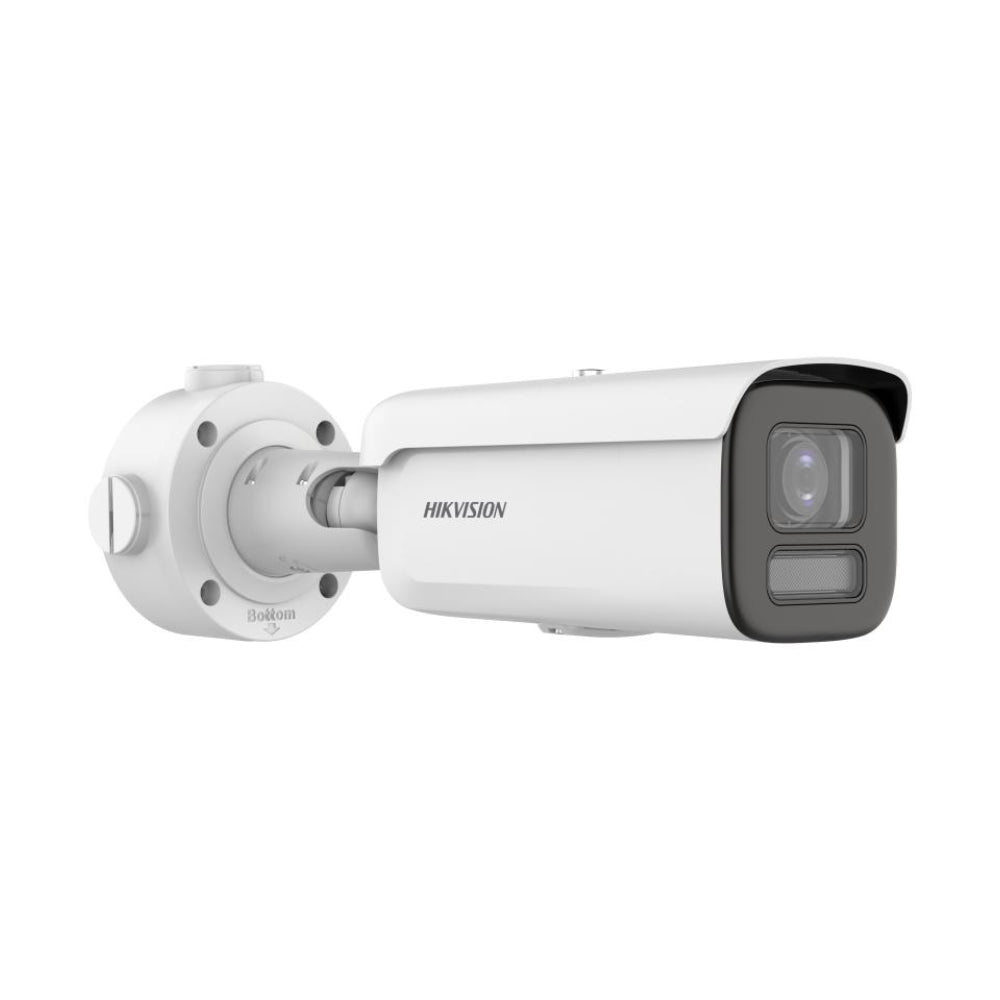

The Hikvision DS-2CD3686G2HT-LIZSY is an 8MP motorised varifocal bullet camera for entrances, driveways, car parks, warehouses and perimeter areas where both a wide overview and closer subject detail may be required. Its 2.7–13.5 mm lens can be adjusted remotely during setup, while DarkFighter S imaging and Smart Hybrid Light help retain useful detail as lighting changes.

Resolution
8MP (3840 × 2160)
Lens
2.7–13.5 mm motorised varifocal
Night Lighting
IR + white light, up to 60 m
Protection
IP67 · IK10 · NEMA 4X (-Y)

What This Camera Does for You

Choose the View During Installation

Start wide to cover a larger area, then zoom in remotely to concentrate detail on a gate, doorway, lane or other priority zone. Autofocus makes final setup easier.

More Useful Alerts

Deep-learning analytics can classify humans and vehicles for supported motion and perimeter rules, helping reduce nuisance alerts from unrelated movement.

Adaptive Night Coverage

Smart Hybrid Light combines infrared and white supplementary lighting. You can favour discreet IR monitoring, colour detail with white light, or event-driven lighting to suit the site.

Built for Exposed Locations

The metal housing is weather resistant and vandal resistant. The -Y version also carries NEMA 4X anti-corrosion protection for sites with moderate corrosion demands.

Key Specifications
Official model DS-2CD3686G2HT-LIZSY (2.7–13.5 mm)
Image sensor 1/1.8-inch progressive scan CMOS
Maximum resolution 3840 × 2160 (8MP)
Lens and field of view Motorised 2.7–13.5 mm; 112.3° to 41.2° horizontal
Minimum illumination Colour: 0.0028 lux at F1.2; 0 lux with supplementary light
Supplementary light Infrared and white light, up to 60 m
Wide dynamic range 130 dB WDR
Analytics Human and vehicle classification; perimeter protection; face capture; people counting
Audio 1 line input and 1 line output; external microphone/speaker required
Alarm interfaces 2 inputs and 2 outputs
Local storage microSD/microSDHC/microSDXC, up to 512 GB
Power 12 VDC or PoE+ (IEEE 802.3at)
Protection IP67 weather resistance, IK10 impact resistance, NEMA 4X anti-corrosion (-Y)

Frequently Asked Questions

What is the benefit of the 2.7–13.5 mm lens?

It lets the installer choose between a wide scene and a tighter, more detailed view without physically changing the lens. This is useful when the exact viewing angle cannot be confirmed until the camera is mounted.

How does Smart Hybrid Light work?

The camera combines infrared and white light. Depending on the selected mode, it can monitor discreetly in IR, provide colour detail with white light, or switch lighting behaviour when a configured event occurs.

Does it have a built-in microphone or speaker?

No. This model provides line-level audio input and output for compatible external audio equipment. Choose a model with a built-in microphone or speaker if you need audio without extra hardware.

What does the Y suffix mean?

The Y version adds NEMA 4X anti-corrosion protection. Hikvision classifies it for environments with moderate anti-corrosion requirements; site conditions and mounting hardware should still be assessed for demanding coastal or industrial installations.

See Smart Hybrid Light in Action

Watch this official Hikvision Australia & New Zealand overview to understand how infrared, white-light and Smart modes behave at night.

Downloads & Resources

Technical Datasheet User Manual
Official Hikvision Stock
Australian Warranty Support
Australia-Wide Delivery

Hikvision DS-2CD3686G2HT-LIZSY 8MP Smart Hybrid Light DarkFighter S Motorised Varifocal Bullet Camera

Product form

SKU: DS-2CD3686G2HT-LIZSY(2.7-13.5mm)

$789.00 Incl. GST
