Official Hikvision Accessory · 130 mm Camera Wall Mount
Hikvision DS-220AZJ-130 Wall Mount Bracket — White or Black
The DS-220AZJ-130 is a Hikvision wall-mount bracket for compatible dome and turret cameras in the 130 mm mounting group. It moves the camera away from the wall, provides a cleaner cable route and gives installers access to the connections at the mounting point.
Select DS-220AZJ-130-WA for the white finish or DS-220AZJ-130-BA for black. The two variants serve the same mounting purpose but are matched to different camera finishes.
Why an end user would choose it
-
Neater wall installation: routes camera cabling through the bracket instead of leaving pigtails exposed.
-
Correct camera orientation: positions a compatible dome or turret for wall-mounted coverage.
-
Finish options: choose white (WA) or black (BA) to match the camera and site.
-
Official accessory: appears in Hikvision installation diagrams for supported camera families.
Choose the correct variant
| Variant |
Finish |
Use |

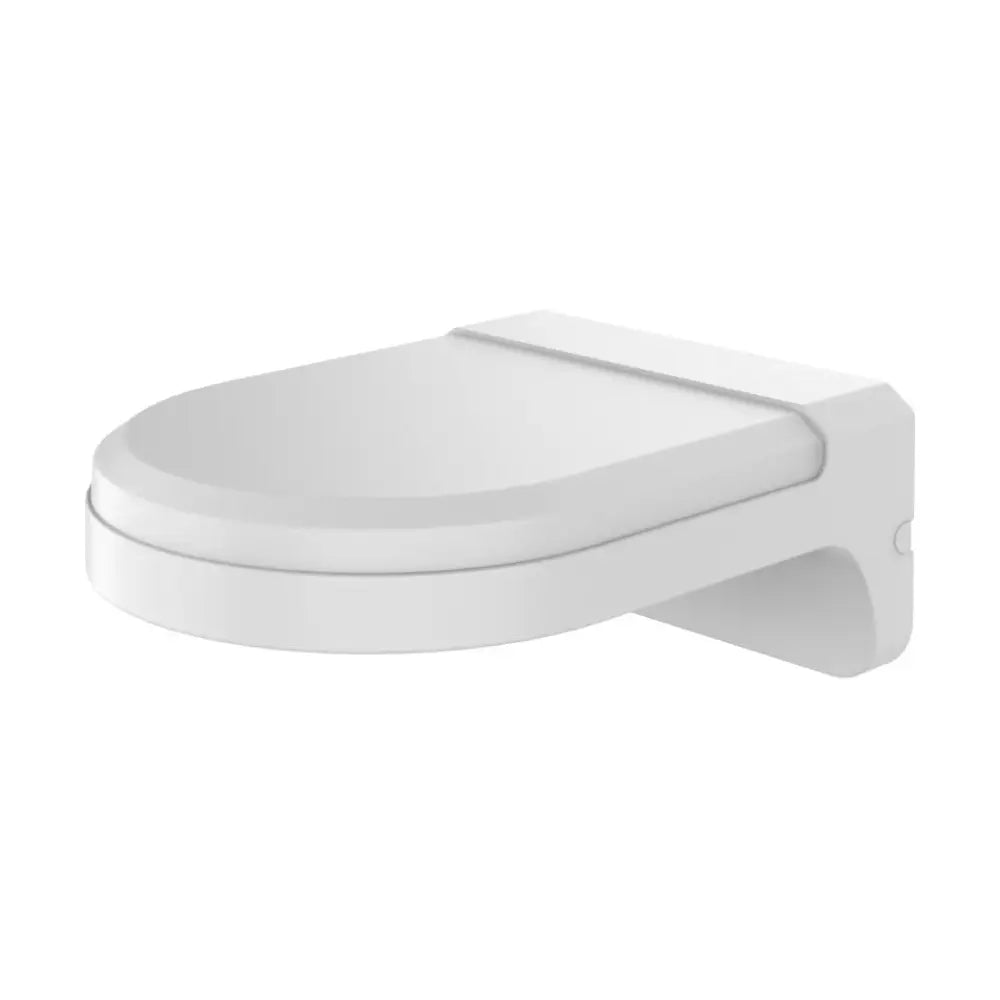

| DS-220AZJ-130-WA |
Hikvision white |
Compatible white 130 mm dome/turret camera models |

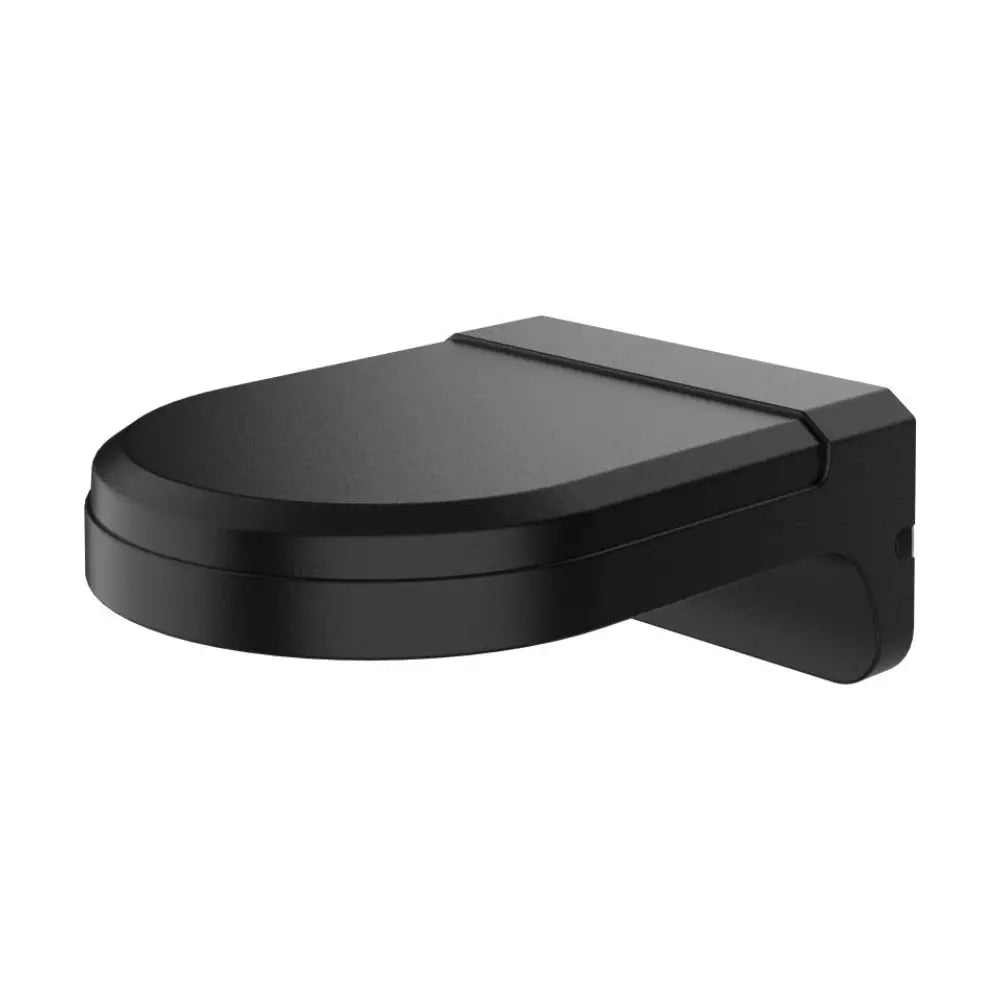

| DS-220AZJ-130-BA |
Black |
Compatible black 130 mm dome/turret camera models |
Important before you buy
- This is not a universal camera bracket. Match the exact camera model to Hikvision’s accessory/installation list.
- A similar camera diameter does not guarantee the fixing holes and cable path will align.
- The bracket itself does not make cable connections waterproof. Outdoor installations still require correctly sealed cable and conduit entries.
- Use fixings suitable for the wall material and total installed load.
Frequently asked questions
What is the difference between WA and BA?
WA is the white version and BA is the black version. Choose the finish that matches your compatible camera.
Will it fit any Hikvision dome or turret camera?
No. It is intended for supported models in the 130 mm mounting group. Confirm compatibility by exact camera model before ordering.
Does it contain space for cable connections?
It is designed to route and conceal the camera cable at the wall-mounting point. The available space and connector fit depend on the camera and installation method.
Can it be used outdoors?
It is used in compatible outdoor camera installations, but the complete cable entry and mounting system must be sealed correctly. Do not treat the bracket alone as a waterproof enclosure.
Compatibility reference
Hikvision lists the DS-220AZJ-130-WA and DS-220AZJ-130-BA in camera installation diagrams. Please match your exact camera model or contact CCTV Guru before ordering.
