Official Hikvision Accessory · 4-inch PTZ Junction Box
Hikvision DS-1280ZJ-SD11 — Junction Box for Compatible 4-inch PTZ Cameras

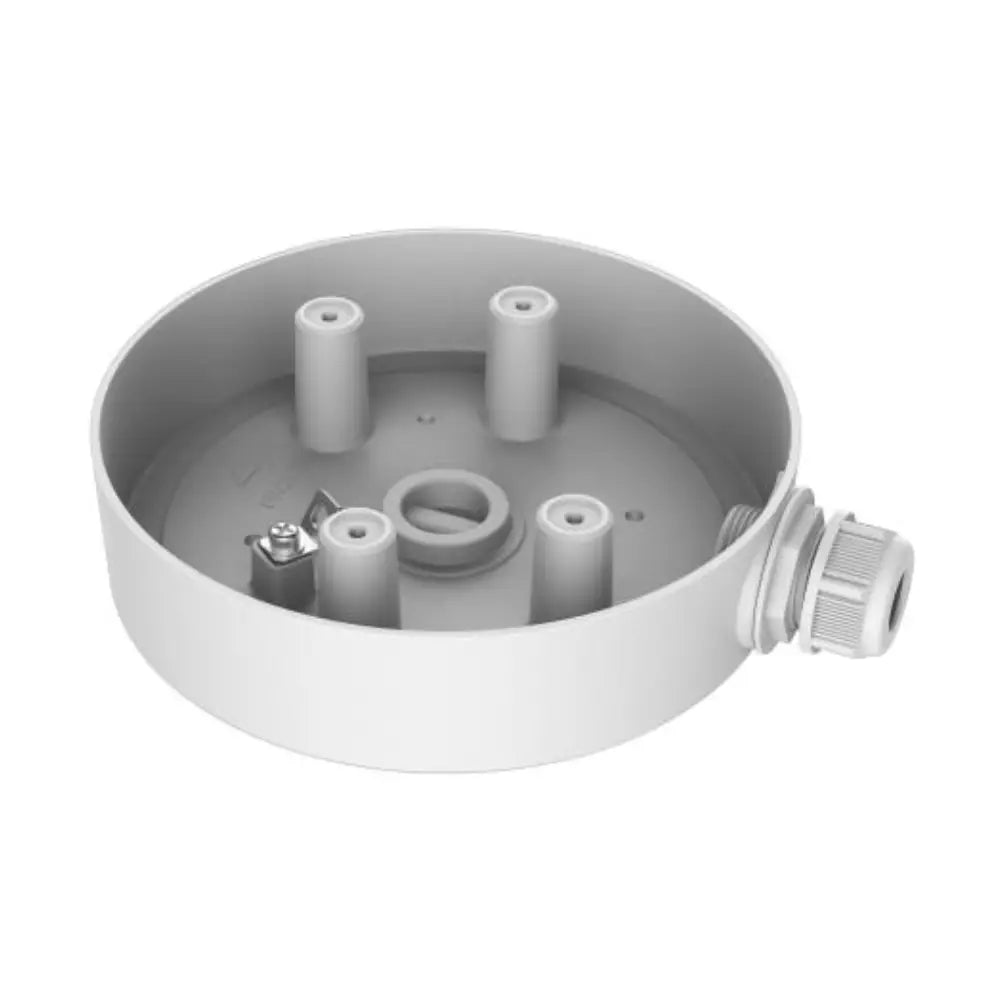

The DS-1280ZJ-SD11 is an official Hikvision aluminium-alloy junction box for compatible 4-inch PTZ cameras. It provides space to route and protect camera connections at the mounting point and gives the installation a cleaner, serviceable finish.
This is a model-specific accessory—not a universal dome-camera bracket. Confirm your exact PTZ model in Hikvision’s accessory list before ordering.
Key details
-
Application: junction box for compatible 4-inch Hikvision PTZ cameras
-
Material: aluminium alloy
-
Finish: Hikvision white
-
Dimensions: 185.2 × 157.7 × 39.7 mm
-
Weight: approximately 400 g
Why use it?
- Keeps cable joins and camera pigtails organised at the mounting point.
- Provides a purpose-designed interface for supported Hikvision 4-inch PTZ cameras.
- Allows easier future access to connections than placing joins loose behind the camera.
- Matches the standard Hikvision white camera finish.
Important before you buy
- Check compatibility by exact camera model. Similar-looking 4-inch PTZ cameras can use different brackets.
- The official specification describes the material, dimensions, weight and application; it does not publish a standalone IP weatherproof rating for this junction box.
- Outdoor weather resistance depends on the complete installation, including cable glands, conduit entries, sealing and mounting surface.
- Use fixings appropriate for the wall or ceiling material and the total installed load.
Frequently asked questions
Is the DS-1280ZJ-SD11 for fixed dome cameras?
No. Hikvision specifies it as a junction box for compatible 4-inch PTZ cameras.
What are the dimensions?
It measures 185.2 × 157.7 × 39.7 mm and weighs approximately 400 g.
Is it waterproof by itself?
Hikvision does not publish a standalone IP rating for this junction box. Any outdoor installation must be correctly sealed at cable and conduit entries.
How do I confirm compatibility?
Match the exact camera model against Hikvision’s accessory list or ask CCTV Guru before ordering.
Official Hikvision reference
View the official DS-1280ZJ-SD11 product specification
