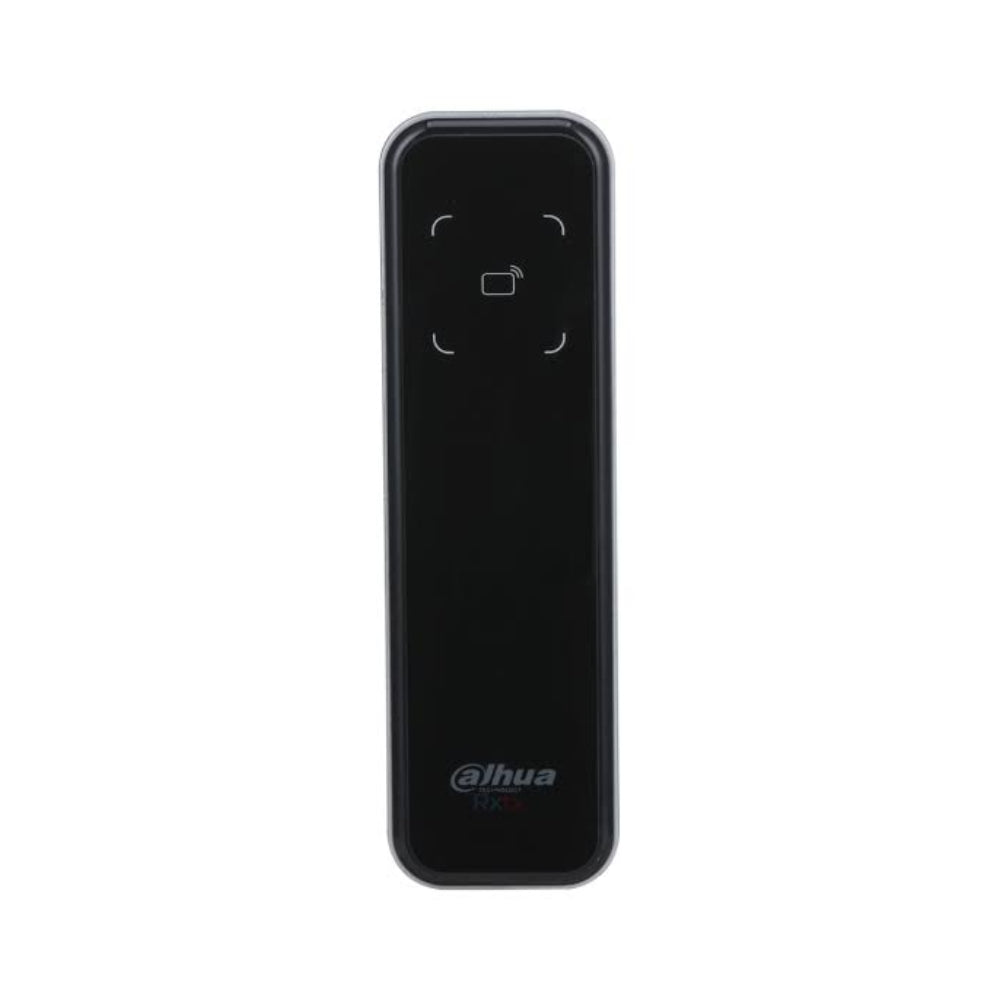

The Dahua DHI-ASR2200A is a rugged IP66-rated Mifare card reader for indoor and outdoor access control. A tempered-glass panel over a PC housing stands up to weather and tampering, while contactless IC (Mifare) card reading drives reliable card-unlock entry. It speaks both RS-485 and Wiegand, so it slots into virtually any Dahua or third-party controller setup.
Built for the Outdoors

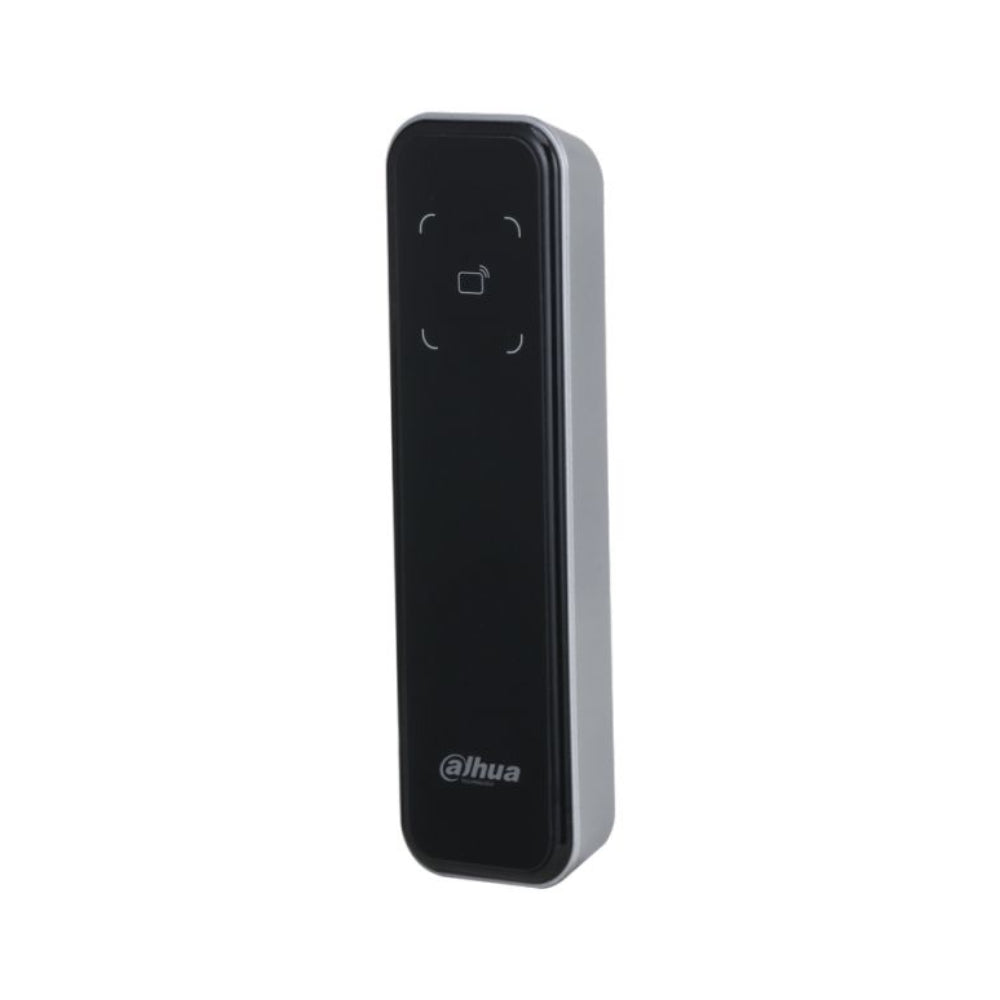

An IP66 rating, PC body and tempered-glass panel let the ASR2200A handle rain, dust and rough handling at exterior gates, carparks and loading docks, as well as indoor doors.
Mifare Card Reading
Contactless recognition of IC (Mifare) cards delivers quick, reliable card-unlock entry for staff and visitors, with buzzer and indicator feedback on every tap.
Universal Wiring
Support for both RS-485 and Wiegand communication makes the reader easy to integrate with Dahua controllers and most third-party access control panels.
Protected & Self-Monitoring
An anti-tamper alarm guards against removal, a built-in watchdog recovers from abnormal states, and every port has overcurrent and overvoltage protection for long-term reliability.
Can the ASR2200A be installed outdoors?
Yes. Its IP66 rating, PC housing and tempered-glass panel make it suitable for both indoor and outdoor installation.
What cards does it read?
It reads contactless IC (Mifare) cards for card-unlock entry, with buzzer and indicator prompts.
How does it connect to a controller?
The reader supports both RS-485 and Wiegand, so it works with Dahua controllers and most third-party access panels.
Is this NDAA compliant?
No. Dahua products are not NDAA Section 889 compliant. If you need NDAA-compliant equipment for US federal or critical-infrastructure projects, contact our team about Uniview, Hanwha or Axis options.
