Dahua · DH-CS4010-8GT-110-V2 · 8 PoE · 110W
8-PoE Gigabit Switch

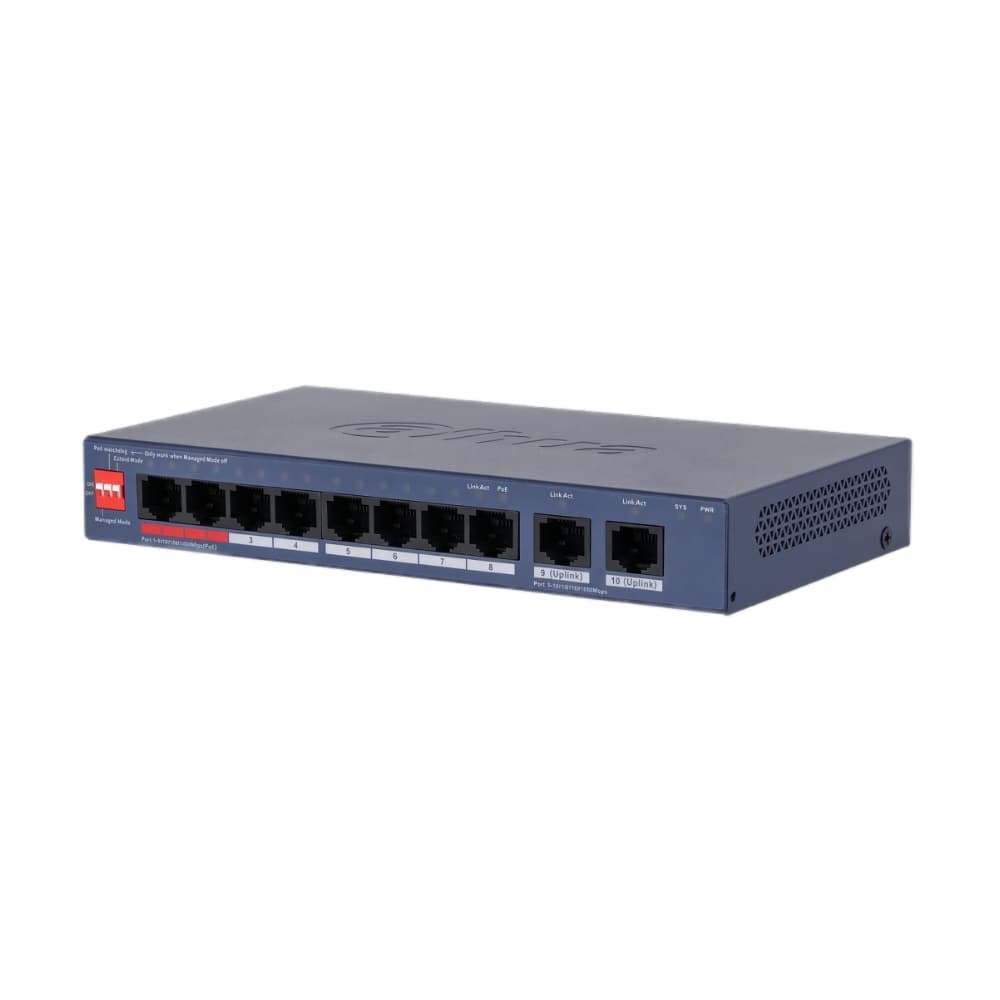

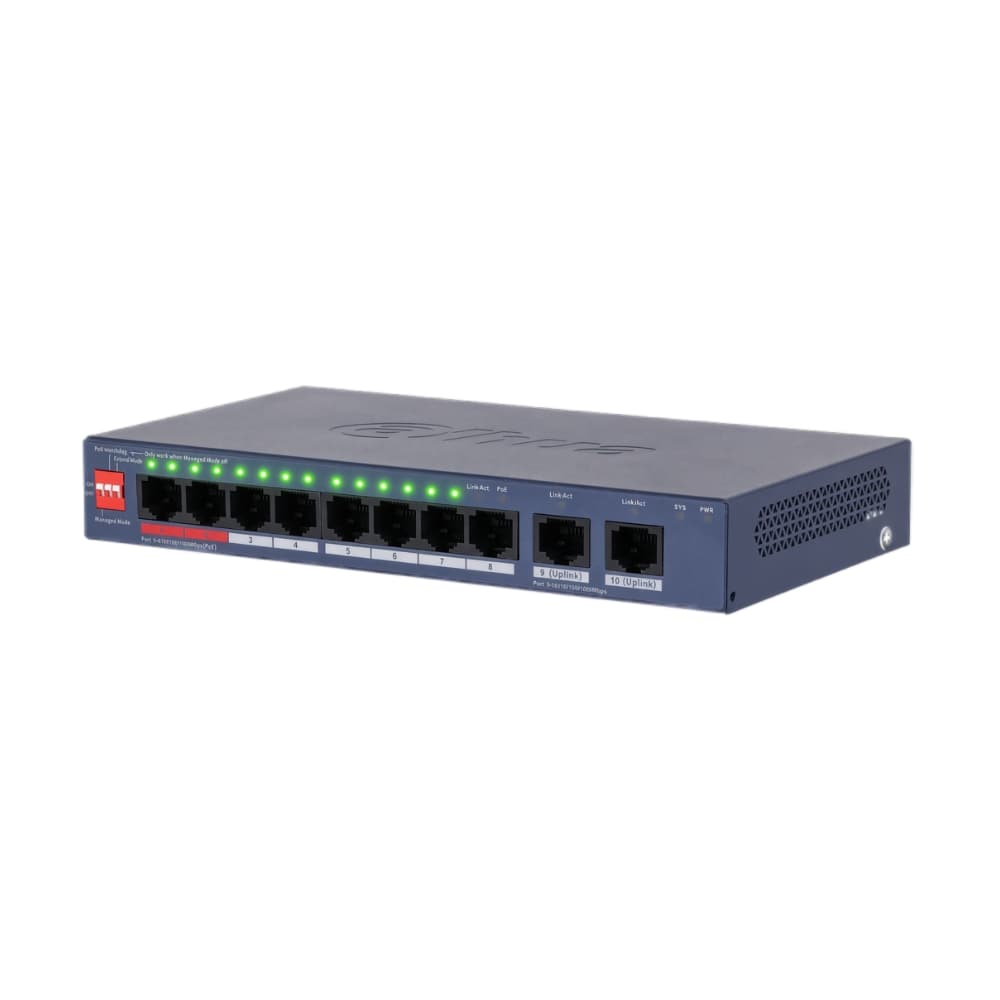

Dahua DH-CS4010-8GT-110-V2 Cloud Managed Gigabit PoE Switch
The Dahua DH-CS4010-8GT-110-V2 is a compact Layer 2 switch for security and small-business networks. It combines 8 Gigabit PoE ports, 2 Gigabit RJ45 uplinks and a shared 110W PoE budget. Manage the network locally in a web browser or through Dahua DoLynk cloud management, with topology visibility, alarms and port monitoring.
PoE ports
8 × Gigabit PoE
Power eight PoE devices
Eight 10/100/1000 Mbps PoE ports power compatible IP cameras and network devices from one shared 110W budget.
High-power red ports
Ports 1 and 2 support up to 90W per port, subject to the 110W shared budget, for compatible high-power PoE or Hi-PoE devices.
Flexible managed or unmanaged use
A DIP switch selects cloud-managed mode, PoE Watchdog or long-distance PoE mode. In managed mode, configure locally or through DoLynk.
Long-distance PoE
Extend mode supports PoE transmission to 250m at 10 Mbps. Actual performance depends on cable condition and connected-device power draw.
Specifications — DH-CS4010-8GT-110-V2
| Model / SKU |
DH-CS4010-8GT-110-V2 |
| Ports |
8 × RJ45 10/100/1000 Mbps PoE + 2 × RJ45 10/100/1000 Mbps uplink |
| PoE standards |
IEEE 802.3af / 802.3at / 802.3bt and Hi-PoE |
| PoE power |
110W total; ports 1–2 up to 90W each, ports 3–8 up to 30W each, subject to the shared budget |
| Switching capacity |
20 Gbps |
| Forwarding rate |
14.88 Mpps |
| Management |
Local web management and DoLynk cloud management |
| Network features |
VLAN, STP / RSTP, static link aggregation, LLDP, port isolation and port mirroring |
| Long-distance PoE |
Up to 250m at 10 Mbps in Extend mode |
| Power supply |
External 54V, 2.22A adapter |
| Operating temperature |
-10°C to +55°C |
| Dimensions |
184.6 × 103.3 × 27 mm |
| Mounting |
Desktop or wall mount |
Downloads & Resources
Can it power eight cameras?
Yes, provided the total PoE demand stays within 110W. Calculate the combined operating power of every connected device before installation.
Are the uplink ports PoE ports?
No. Ports 9 and 10 are Gigabit RJ45 uplinks for connection to the router, NVR or wider network.
What does the PoE Watchdog do?
When the switch is in the applicable DIP-switch mode, it monitors PoE ports and restarts a port when traffic is not detected for two minutes.
