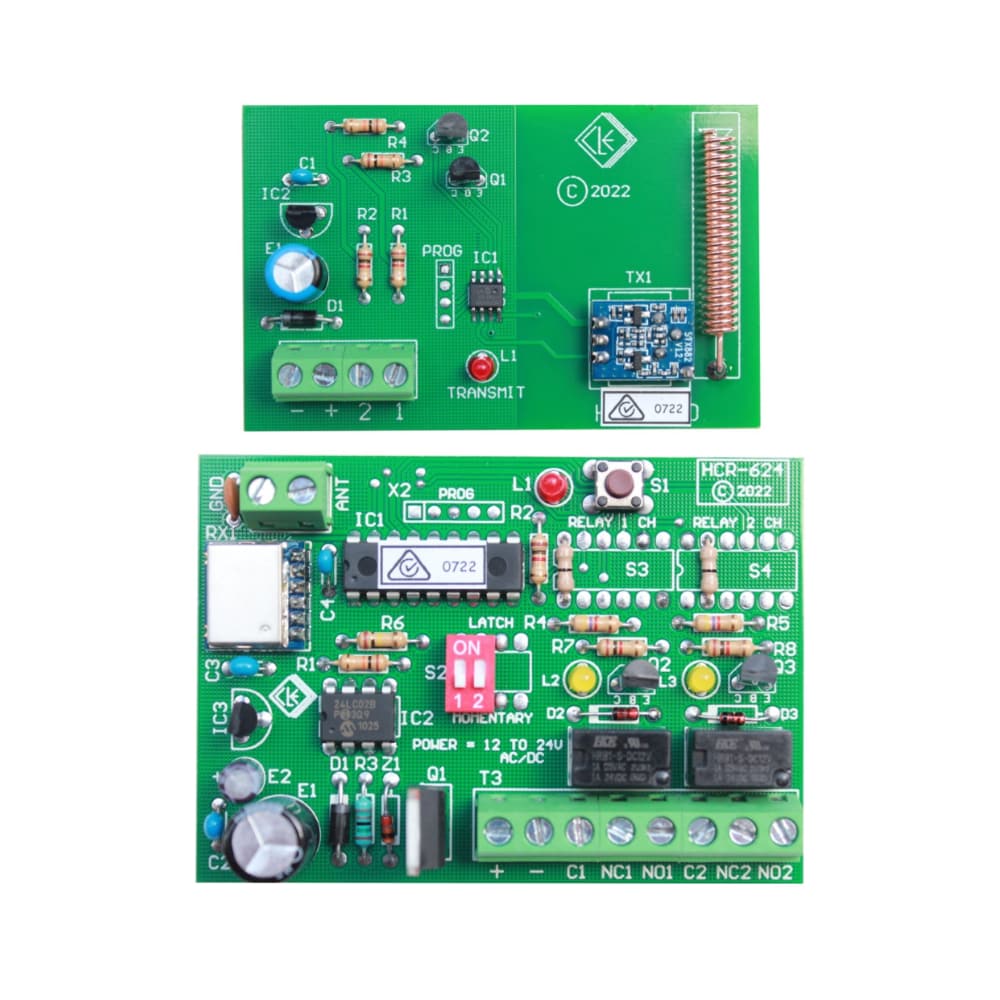

Circuit Level · 2-Channel Wireless Link · Made in AustraliaCircuit Level PTP-TX/RXTrigger Gates & Doors Wirelessly from Your Alarm Panel
The Circuit Level PTP-TX/RX is a 2-channel general-purpose wireless link, designed to suit the programmable outputs of alarm panels. Trigger the transmitter with a momentary switch, relay or panel output, and its receiver's two relay outputs control remote gates, doors or other devices — no cabling run required. Australian-made with secure Keeloq code-hopping RF.
Why You'll Love It
-
Two SPDT relay outputs — control two devices at up to 1A, set momentary or latching via DIP switch.
-
Suits alarm panel outputs — ideal for triggering remote gates or doors from panels like Bosch Solution.
-
Secure Keeloq RF — 433.92MHz code hopping with 4.2 billion combinations.
-
Australian made — includes a 12VDC 0.5A plugpack to power the receiver or transmitter.
Specifications
| Model |
PTP-TX/RX |
| Category |
2-Channel Wireless Link Kit |
| RF Signal |
Keeloq Code Hopping, 433.92 MHz (4.2 billion combinations) |
| Relay Outputs |
2 × SPDT, 1 Amp max @ 24VDC |
| Transmitter Power |
9 – 14 VDC |
| Receiver Power |
12 – 24 V AC or DC |
| Enclosure |
90 × 70 × 34 mm |
| Included |
12VDC 0.5A switchmode plugpack |
| Origin |
Made in Australia |
| Warranty |
2 Years (AU) |
Frequently Asked Questions
What's it used for?
Wirelessly triggering remote devices — such as gates or doors — from a momentary switch, relay or the programmable outputs of an alarm panel.
How are the outputs configured?
The two SPDT relays are momentary by default; move DIP switch 1 or 2 to ON to latch either output.
Can the relays switch mains power?
No — do not switch 240VAC mains with the relays. They're rated 1A max at 24VDC for low-voltage control.
Does it work alongside other 433MHz gear?
It operates on 433.92MHz, so avoid using it where other 433.92MHz equipment may transmit at the same time.
