Description

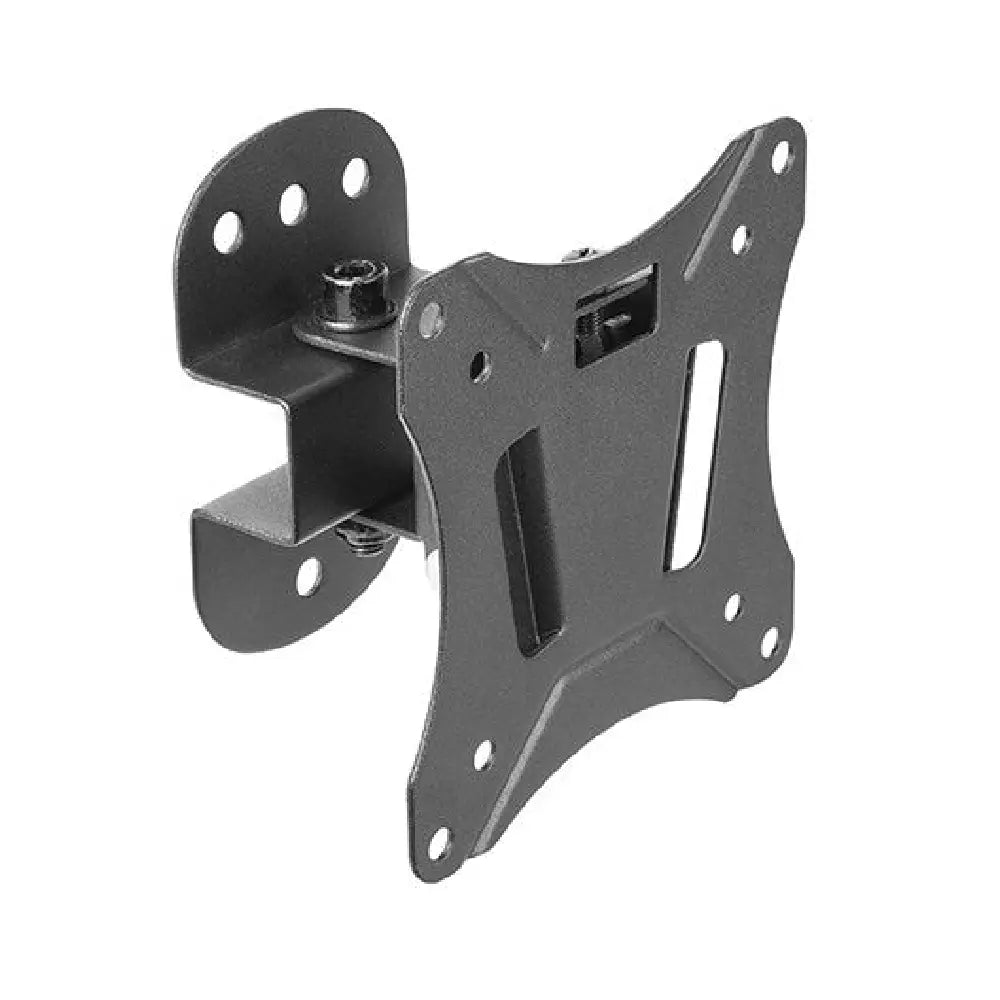

The new model KMA21-110 is an ideal solution for most 13'-27' flat panel TVs up to 25kgs/55lbs. The convenient swivel & tilt adjustments at the joint allows you to adjust the TV angle to get the optimum viewing angle: whether it's avoiding glare or positioning it towards the sofa for the perfect view, from anywhere in the room. VESA compatible with 75x75, 100x100.
FEATURES
- Easy-Grip Knobs: for quick tilt and lock
- Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
- Easy Assembly: Installation is as easy as 1-2-3
SPECIFICATIONS
- Product Category: Pivot TV Wall Mount
- Rank: Standard
- Material: Steel
- Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet (Wall Plate THK=0.079' cold-rolled sheet,VESA Panel THK=0.059' cold-rolled sheet)
- Surface Finish: Powder Coating
- Color: Fine Texture Black
- Dimensions: 115x115x76mm (4.5'x4.5'x3')
- Fit Screen Size: 13'-27'
- Fit Curved TV: No
- Mounting Hole Pattern : VESA Only
- VESA Compatible: 75x75,100x100
- Max. VESA: 100x100
- Weight Capacity: 25kg (55lbs)
- Strength Tested: 2 Times Approved
- Profile: 76mm (3')
- Tilt Range: ＋7.5°～-7.5°
- Swivel Range: +25°~-25°
- Screen Freely Tilting: No
- Installation: Solid Wall,Single Stud
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Cable Management: No
- Anti-theft: No
- Bubble Level: No
- Accessory Kit Package: Compartment Polybag
