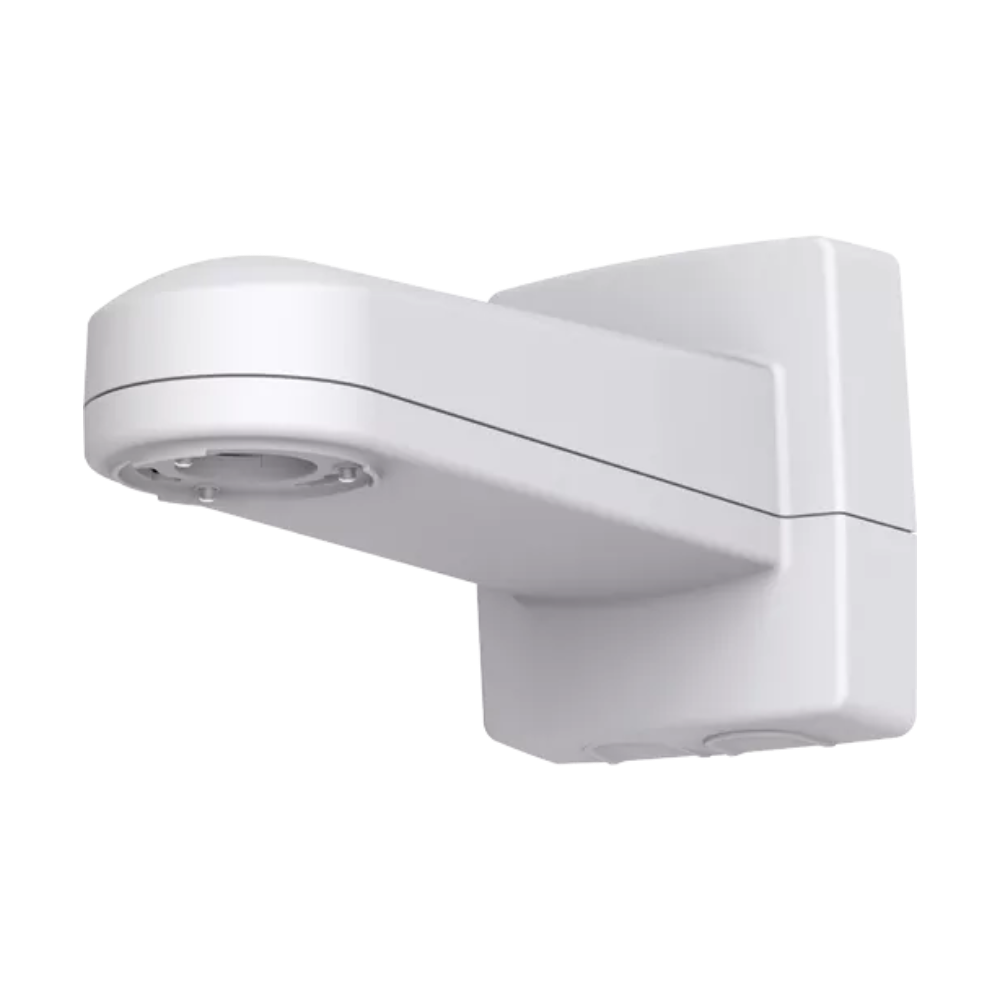

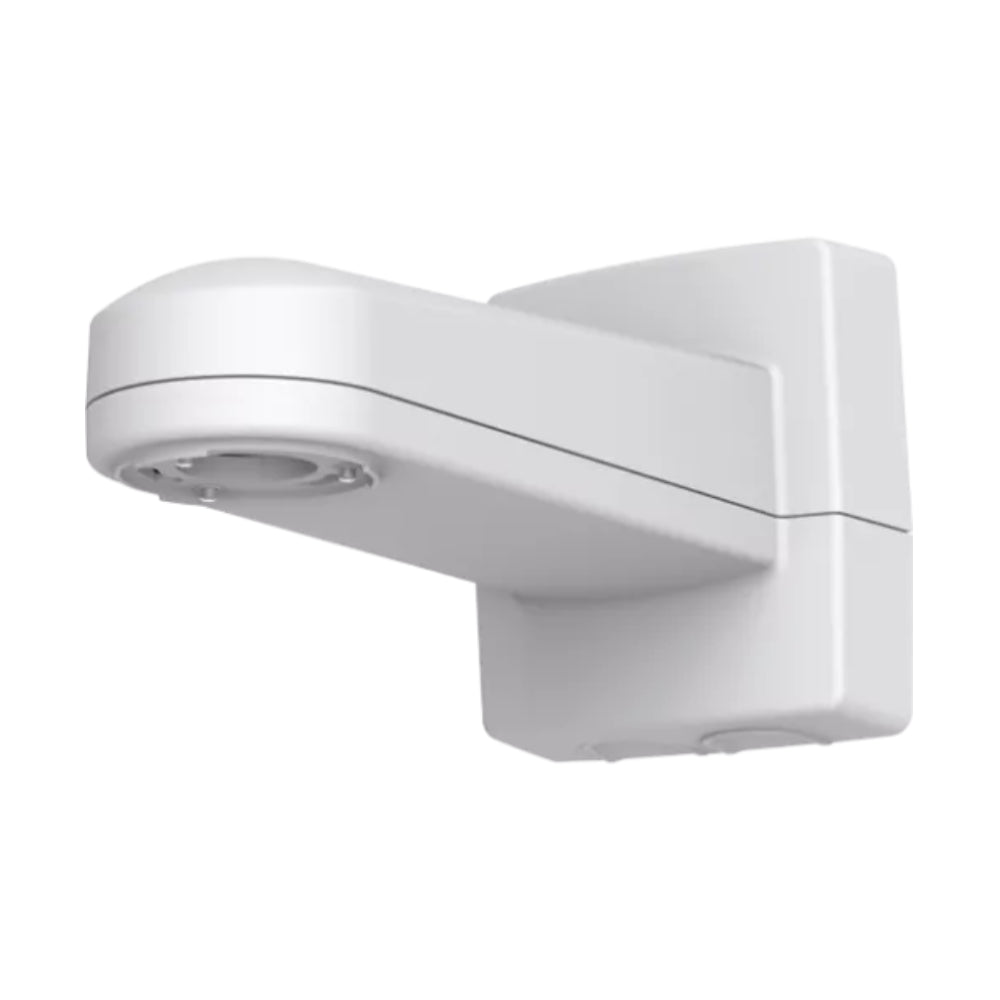

The AXIS T91G61 Wall Mount (5506-951) is a professional-grade mounting solution specifically designed for Axis PTZ and multi-sensor network cameras. It stands out by featuring a spacious internal compartment that safely houses connectivity devices, midspans, and service loops, protecting them from water ingress and environmental damage. With its pre-mounted Ethernet cable and IP66-rated connector, it significantly simplifies and speeds up your installation.
Key Features
-
Internal Accessory Compartment: Provides ample room to accommodate midspans, media converters, and cable loops safely inside the mount.
-
Pre-Mounted IP66 RJ45 Connector: Includes a high-quality Ethernet cable with a waterproof gasketed connector for fast, reliable power and data hookups.
-
Elite Durability: Constructed from powder-coated aluminum with IK10 impact resistance and IP66/NEMA 4X weather ratings for harsh outdoor use.
-
Retrofit Friendly: Features a standardized hole pattern that matches both standard Axis PTZ mounts and Pelco PTZ mounts, allowing for easy upgrades without new drilling.
-
Versatile Mounting Options: Can be used on walls directly or combined with optional accessories for pole (AXIS T91B57) or corner (AXIS T91A64) installations.
-
Flexible Cable Routing: Supports internal routing through the back cable hole or external routing via 3/4" conduit entrances at the bottom.
Technical Specifications
| SKU / Part Number |
5506-951 (White) / 01444-001 (Grey) |
| Max Load |
30 kg (66 lb) |
| Material |
Powder-coated Aluminum |
| Ratings |
IP66, NEMA 4X, IK10 |
| Dimensions |
185 x 214 x 404 mm (7.28 x 8.43 x 15.9 in) |
| Weight |
3.5 kg (7.7 lb) |
Compatibility
The AXIS T91G61 is recommended for use with the following series:
- AXIS Q60, Q61, and Q63 Series PTZ Cameras
- AXIS P56 Series PTZ Cameras
- AXIS Q37 and Q38 Series Panoramic Cameras
- AXIS M55 Series PTZ Cameras
