AXIS P-SERIES · NDAA & TAA COMPLIANT
Long-Range Precision Surveillance Powered by Next-Gen ARTPEC-9

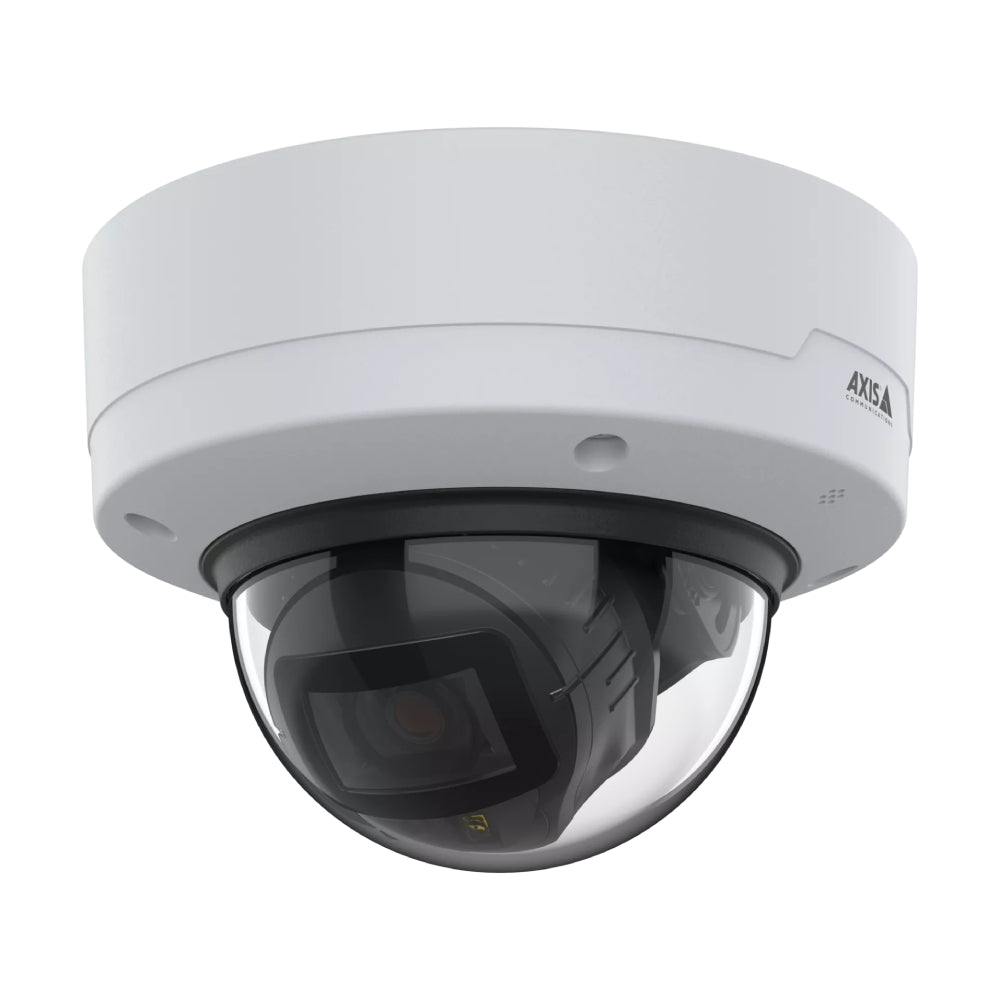

The AXIS P3285-LVE 29 mm delivers exceptional detail over extended distances, making it the perfect solution for critical perimeter security, long corridors, and high-security outdoor environments. Powered by the groundbreaking ARTPEC-9 system-on-chip, this model features a highly adaptive 10.8–28.2 mm telephoto varifocal lens designed for distant subject identification. Perfect for monitoring expansive fence lines, vehicle entry points, and high-risk commercial yards, it combines extreme optical reach with cutting-edge edge processing to ensure absolute security clarity.
Resolution
2MP (1080p) @ 60fps
Night Vision
OptimizedIR (40m)
Protection
IP66 / IK10 Weather
Acoustic Event Intelligence & Next-Generation Compression
Equipped with a specialized deep learning processing unit, the AXIS P3285-LVE 29 mm natively processes AXIS Object Analytics to classify humans, cars, and distinct vehicle types directly on the edge. Beyond advanced optical surveillance, this camera features an acoustic sensor driving AXIS Audio Analytics, allowing it to actively detect off-screen sound threats like breaking windows, screaming, or verbal aggression. Combined with state-of-the-art AV1 and H.265 video encoding via Axis Zipstream, video data is compressed intelligently, preserving precious network storage without losing raw forensic value.
Lightfinder 2.0 & Forensic WDR
Integrating Axis Lightfinder 2.0 with up to 120 dB of Forensic WDR, this camera ensures crisp color imaging in near-complete darkness and balances high-contrast daylight scenes seamlessly. Moving targets passing through deep structural shadows remain perfectly readable for swift, reliable investigations.
Hardware-Rooted Cybersecurity Baseline
Axis Edge Vault provides a secure cryptographic foundation (CC EAL6+ and FIPS 140-3 Level 3 certified). It shields the camera network with signed firmware, secure boot controls, and tamper-proof device identity keys to intercept unauthorized system access attempts.
Technical Specification Matrix
| Camera Model |
AXIS P3285-LVE 29 mm |
| System on Chip (SoC) |
ARTPEC-9 with integrated Deep Learning Processing Unit (DLPU) |
| Image Sensor |
1/2.8" Progressive Scan RGB CMOS |
| Resolution & Framerate |
1920x1080 (2MP) at up to 50/60 fps |

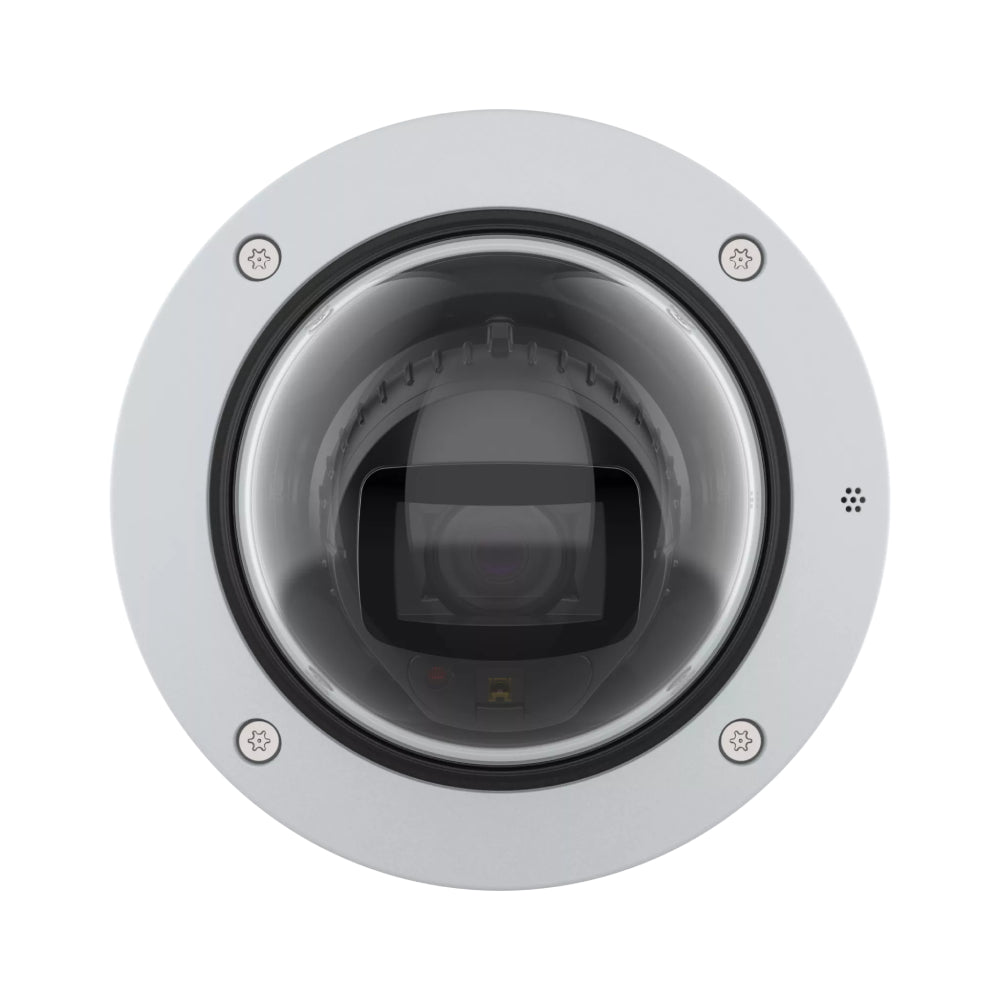

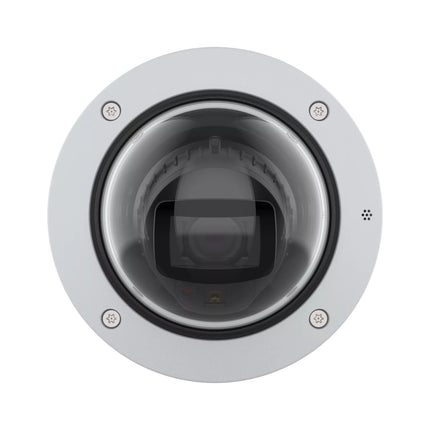

| Lens Configuration |
10.8–28.2 mm Varifocal, Remote Focus & Zoom, P-Iris |
| Field of View (Tele Option) |
Horizontal: 36°–12° / Vertical: 20°–7° |
| Infrared Technology |
OptimizedIR up to 40 meters (130 feet) range |
| Environmental Ratings |
IP66, IP67 weatherproof, NEMA 4X, and IK10 vandal-resistant |
How does the 29 mm varifocal configuration differ from the standard model?
This 29 mm variant features a telephoto 10.8–28.2 mm focal range, producing a narrower horizontal field of view down to 12°. It is specifically built for capturing long-range perimeter targets, distant gates, and corridors rather than wide-angle context.
What advantages does the AV1 codec bring to this camera deployment?
The next-gen AV1 codec supported by the ARTPEC-9 chip delivers superior video compression efficiency over standard H.264 formats. It drastically decreases storage consumption and minimizes network bitrates without reducing forensic image quality.
Does the integrated acoustic sensor require additional microphones?
No. The acoustic sensor is built directly into the weather-sealed chassis, empowering the unit to parse environmental sound profiles and trigger edge alarms completely out of the box.
Is the camera fully protected against vandalism and physical tampering?
Yes. Encased inside an IK10 impact-rated dome shell, the unit withstands physical strikes and vandalism. It also includes electronic tampering alarms that alert systems immediately if the viewpoint is blocked or obscured.
