AXIS M31 SERIES · NDAA & TAA COMPLIANT
Next-Generation 4K Surveillance with Edge-Based AI Analytics

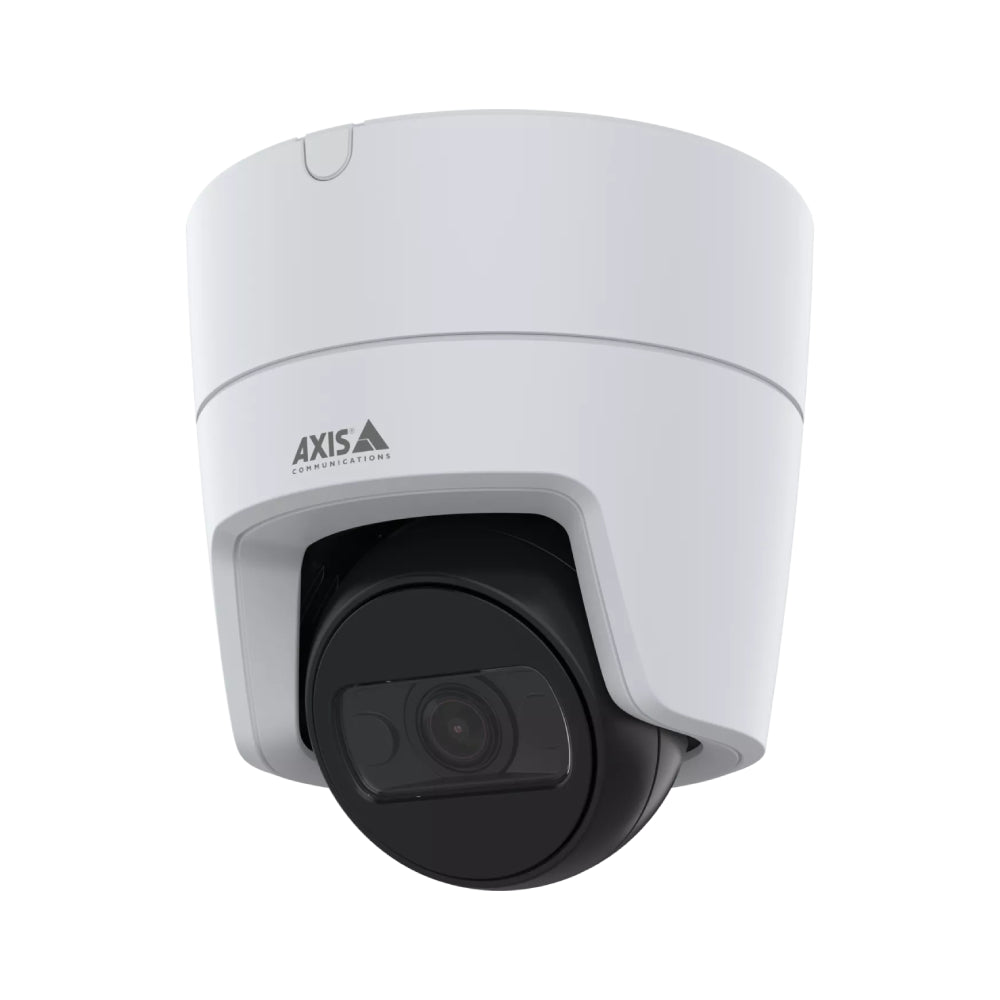

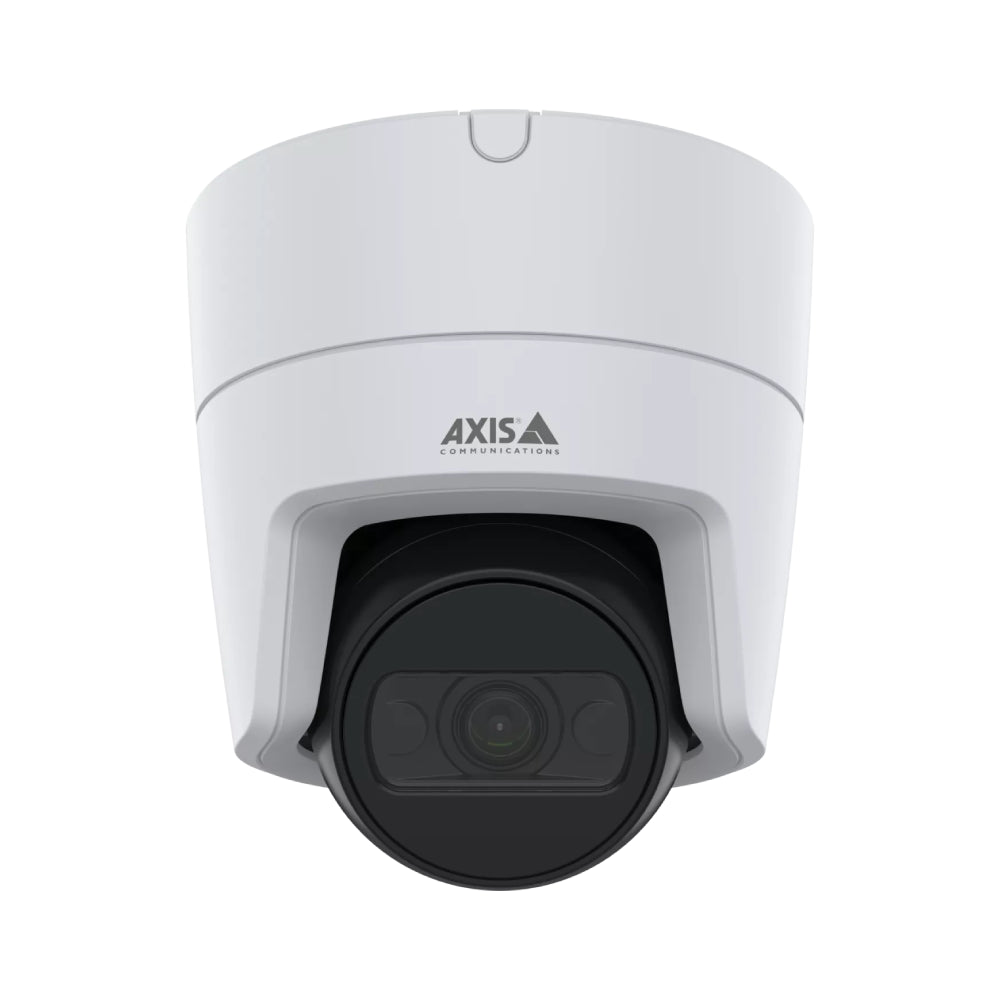

The AXIS M3128-LVE is a high-performance, outdoor-ready turret-style network camera engineered to deliver exceptional 8MP 4K UHD image clarity across commercial, retail, and critical infrastructure environments. Featuring a compact, flat-faced design that effectively suppresses light and infrared reflections, this robust surveillance solution is ideal for high-density pedestrian zones, perimeter boundaries, and facility entrances requiring precise object classification and around-the-clock environmental resilience.
Optics
2.9mm Fixed / 110° FOV
Night Vision
OptimizedIR 20m (65ft)
Protection
IP66 / IK08 Rated
Advanced Hardware Intelligence and Cybersecurity Compliance
Built upon an advanced System on Chip (SoC), the AXIS M3128-LVE incorporates a dedicated Deep Learning Processing Unit (DLPU) that drives sophisticated edge analytics without sacrificing processing bandwidth. Intelligent functionalities like AXIS Object Analytics classify humans and vehicle types in real time, dramatically mitigating false-positive triggers. To defend vital network architecture, the integrated Axis Edge Vault platform implements hardware-based cryptographic operations including FIPS 140-3 Level 3 certified secure key storage, secure boot sequences, and signed firmware protocols.
Edge-Based Deep Learning Analytics
By running AI models natively on the edge via its DLPU, the camera processes data instantly to distinguish between humans, cars, trucks, and cyclists. This reduces dependence on centralized server infrastructure while speeding up forensic search workflows within your Video Management Software (VMS).
OptimizedIR and Forensic WDR Integration
AXIS Forensic WDR balances intense, high-contrast lighting to reveal details in both extreme highlight and deep shadow regions simultaneously. When ambient light drops to zero, the power-efficient 850nm OptimizedIR illumination floods the scene up to 20 meters seamlessly without creating blinding hotspot reflections.
Technical Specification Matrix
| Camera Model |
AXIS M3128-LVE |
| Image Sensor |
1/2.8" Progressive Scan RGB CMOS |
| Maximum Resolution |
3840 x 2160 (8 Megapixel / 4K Ultra HD) |
| Frame Rate |
Up to 12.5/15 fps with H.264, H.265, and Motion JPEG |
| Lens Properties |
2.9 mm, F2.0 Fixed Iris, M12 Mount, IR Corrected |
| Field of View |
Horizontal: 110°, Vertical: 60° |
| Video Compression |
H.264 (Main and High), H.265 (HEVC), Axis Zipstream Technology |
| Cybersecurity |
Axis Edge Vault, Secure Boot, Signed OS, FIPS 140-3 Level 3 Keystore |
| Environmental Ratings |
IP66 Weatherproof, IK08 Vandal-Resistant, NEMA 4X |
| Power over Ethernet |
PoE IEEE 802.3af/at Type 1 Class 3 (Max 10.5W with Heater Active) |
Frequently Asked Questions
Does the AXIS M3128-LVE require an external server for AI object analytics?
No. Thanks to its integrated Deep Learning Processing Unit (DLPU), all classification, tracking, and object analytics are completed on-board the edge hardware, saving considerable server infrastructure cost and reducing network bandwidth overhead.
Is this model fully compliant with national security purchasing requirements?
Yes. The AXIS M3128-LVE is both NDAA and TAA compliant, making it structurally qualified for installation within government contracts, defense frameworks, and highly regulated institutional network environments.
Can the dome housing be repainted to match local building aesthetics?
Yes. The physical chassis of this turret camera is specifically engineered for repainting. This allows installers to safely match interior layout trims or exterior architectural colors without compromising the technical integrity of the underlying hardware mechanisms.
How does Axis Zipstream technology optimize storage configurations?
Axis Zipstream examines the video matrix in real time to isolate moving parts, faces, and critical details. It applies high compression exclusively to static background areas, reducing total network storage and system bandwidth needs by 50% or more without degrading essential forensic clarity.
