Description

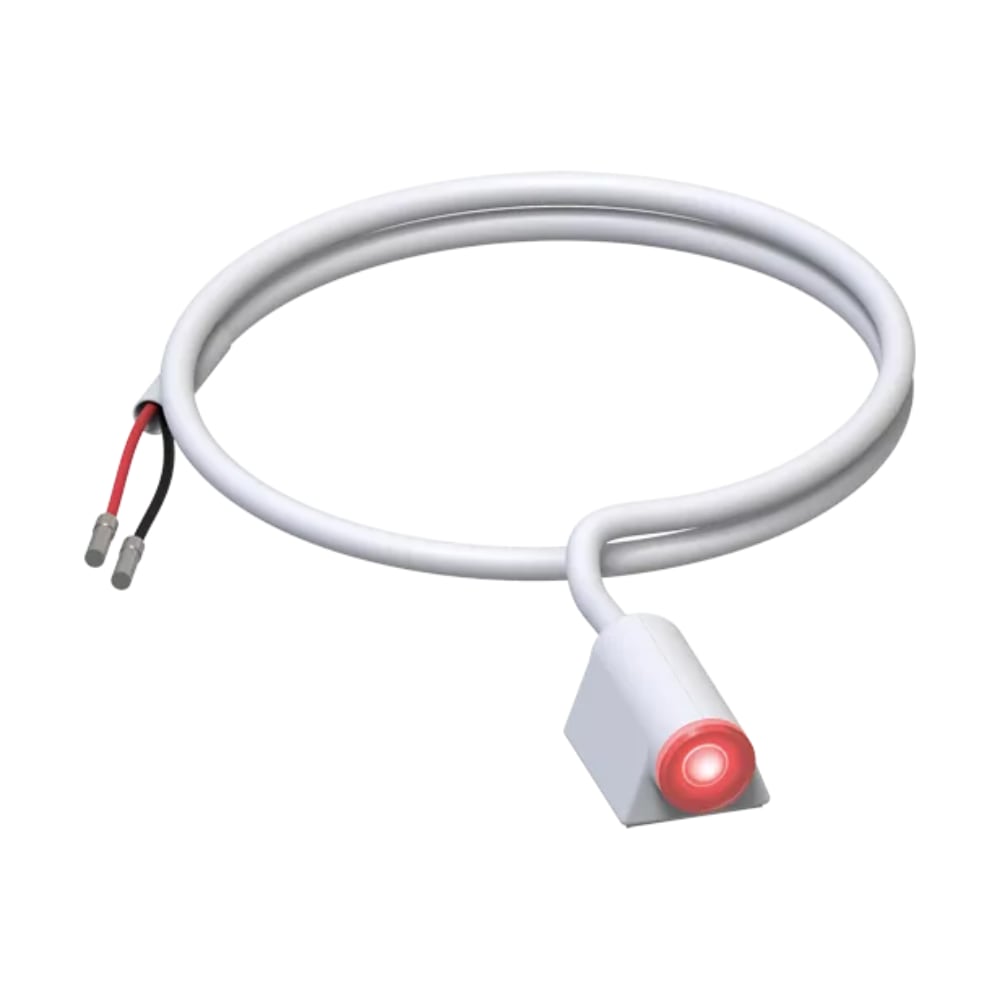

AXIS I/O Indication LED – 12 V Camera Status & Recording Indicator Accessory (4-Pack)
The AXIS I/O Indication LED (SKU 01765‑001) is a compact 12 V LED accessory designed to clearly indicate camera activity—such as recording or motion‑triggered events. Simple to install and highly visible, it provides visual reassurance that surveillance is active and operational. Ideal for retail, healthcare, transportation, and office environments where transparency and deterrence are essential.
Key Features
-
Visual status indicator – lights up during active recording or when triggered by motion or sound.
-
Plug‑and‑play installation – connects directly to the camera’s 12 V I/O port; no extra power supply required.
-
Compact & discreet design – minimal footprint; blends neatly into most environments.
-
Flexible mounting – can be mounted on walls, ceilings, or directly adjacent to cameras.
-
Durable build – lightweight ABS plastic with white finish (NCS S 1002‑B).
-
Compatible with Axis cameras – works seamlessly with Axis models featuring I/O ports.
Technical Specifications
| Specification |
Details |
| Model |
AXIS I/O Indication LED |
| SKU / MPN |
01765‑001 |
| Power Input |
12 V DC via I/O port |
| Current Draw |
~ 10 mA |
| LED Colour |
Red (indicates recording / triggered state) |
| Connection |
2‑wire connection to Axis camera I/O port |
| Housing Material |
ABS plastic, white (NCS S 1002‑B) |
| Operating Temperature |
‑30 °C to +55 °C (‑22 °F to 131 °F) |
| Dimensions |
Φ 26 × 21 mm (1.0 × 0.8 in) |
| Weight |
Approx. 18 g (0.04 lb) |
| Compatibility |
All Axis network cameras with 12 V I/O port |
| Compliance |
CE, RoHS |
Typical Use Cases
- Retail – show active recording to deter theft or tampering.
- Healthcare – visually indicate monitored areas while respecting privacy rules.
- Transportation – display live recording status in buses, trains, or stations.
- Office / Commercial – inform occupants of active surveillance.
Why Choose the AXIS I/O Indication LED?
This simple yet powerful accessory increases transparency and trust in your security system. With straightforward 12 V I/O integration, the AXIS I/O Indication LED adds clear visual signalling to your Axis camera setup—an ideal choice for Australian businesses seeking professional, standards‑compliant surveillance solutions.
