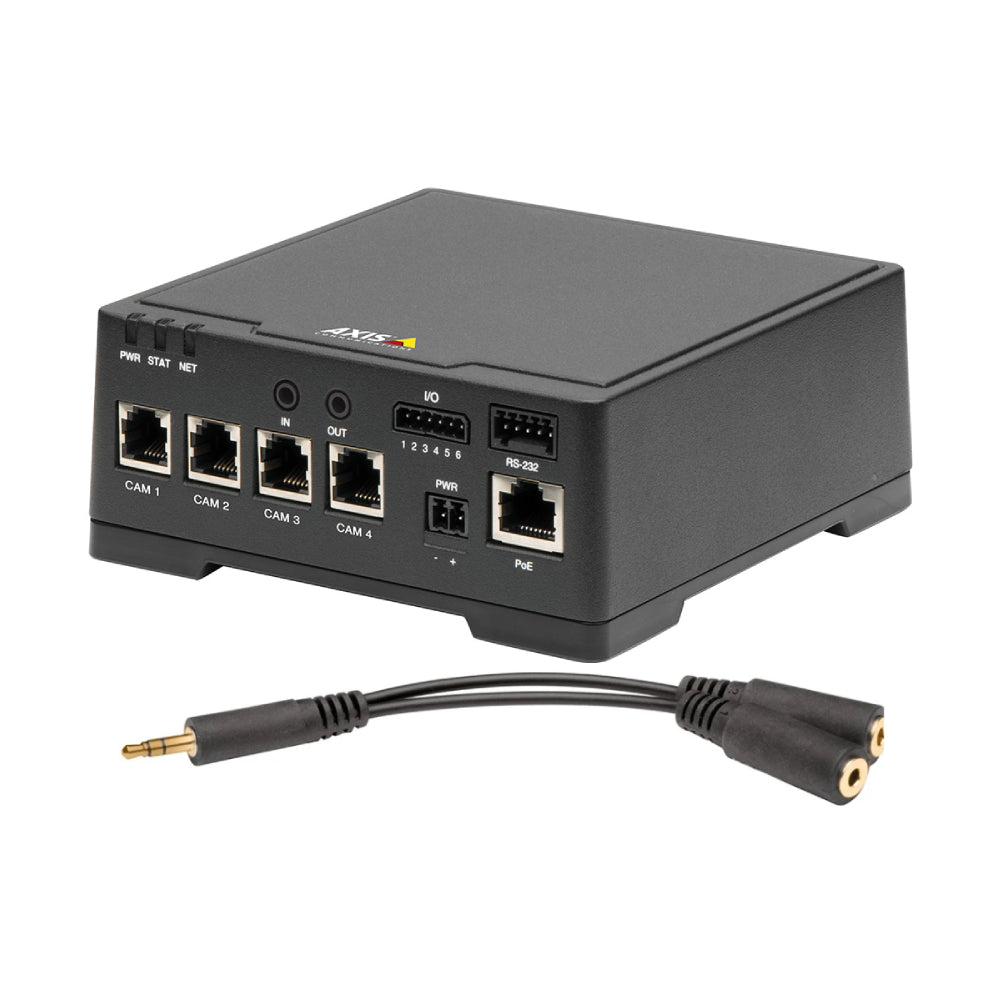

Designed for flexible, discreet installations, the F44 separates the processing unit from the camera optics. Connect up to four AXIS F sensor units — bullet, pinhole and standard styles — and stream them simultaneously, including a quad view, over one network cable. With two-way audio, four configurable I/O ports and dual SD card slots for edge recording, it consolidates a multi-camera deployment into a single rugged device. Sensor units are purchased separately to suit each viewing point.
Up to Four Sensor Units
A single F44 drives up to four AXIS F sensor units over one Ethernet connection, streaming all channels at once and supporting a combined quad view.
Two-Way Audio
Mic/line input and line output let you add audio capture and announcement to a modular installation, with AAC, G.711 and G.726 encoding.
Dual SD Edge Storage
Two SD/SDHC/SDXC slots with SD card encryption provide redundant local recording, with network-attached storage also supported.
ONVIF & NDAA
ONVIF Profile S and G support ensures broad VMS compatibility, and as an Axis device it is NDAA 889 and TAA compliant.
Is the AXIS F44 a complete camera?No. The F44 is a main unit only. You also need one or more compatible AXIS F-series sensor units, which are purchased separately, to capture video.
How many cameras can one F44 run?A single F44 connects up to four AXIS F sensor units and streams all of them simultaneously, including a combined quad view.
Which sensor units are compatible?AXIS F-series sensor units including the F1004, F1005-E, F1015, F1025, F1035-E, F4005 and F4005-E. Check the Axis F44 support page for the full current list.
Does it support audio?Yes. The F44 has two-way audio with a 3.5 mm mic/line input and line output, using AAC, G.711 or G.726 encoding.
How is the F44 powered?Via PoE (IEEE 802.3af/at Class 3, max 12.95 W) or 8-28 V DC, so it suits both network and local power installations.
Does it record locally?Yes. It has two SD/SDHC/SDXC card slots with encryption support, and can also record to network-attached storage.
Is the F44 NDAA compliant?Yes. As an Axis device it is NDAA Section 889 and TAA compliant, suitable for government and enterprise projects.
What VMS systems does it work with?The F44 supports ONVIF Profile S and Profile G for broad compatibility with third-party video management systems.
What warranty does it include?This main unit includes a 5-Year Australian warranty when purchased from CCTV Guru, backed by local tech support.
