NDAA Compliant • 5MP F-Series Sensor
Discreet 5MP rugged sensor unit

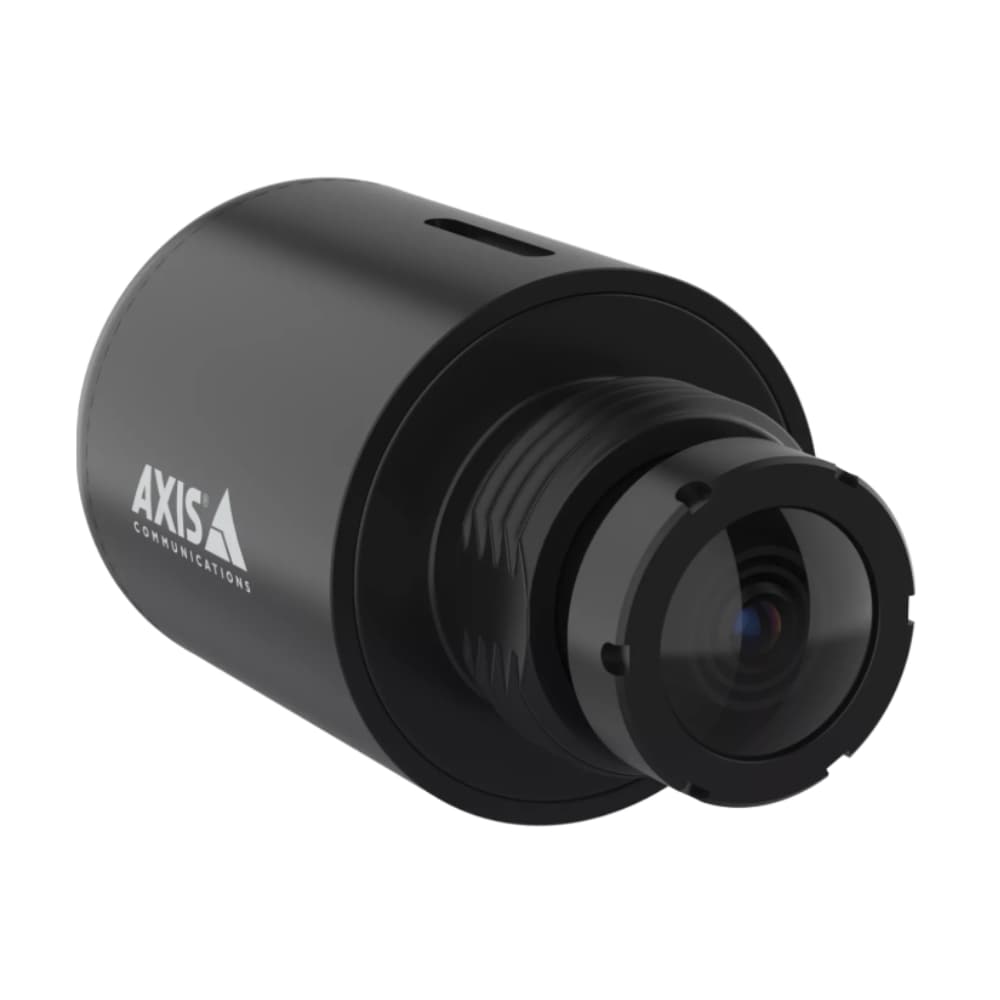

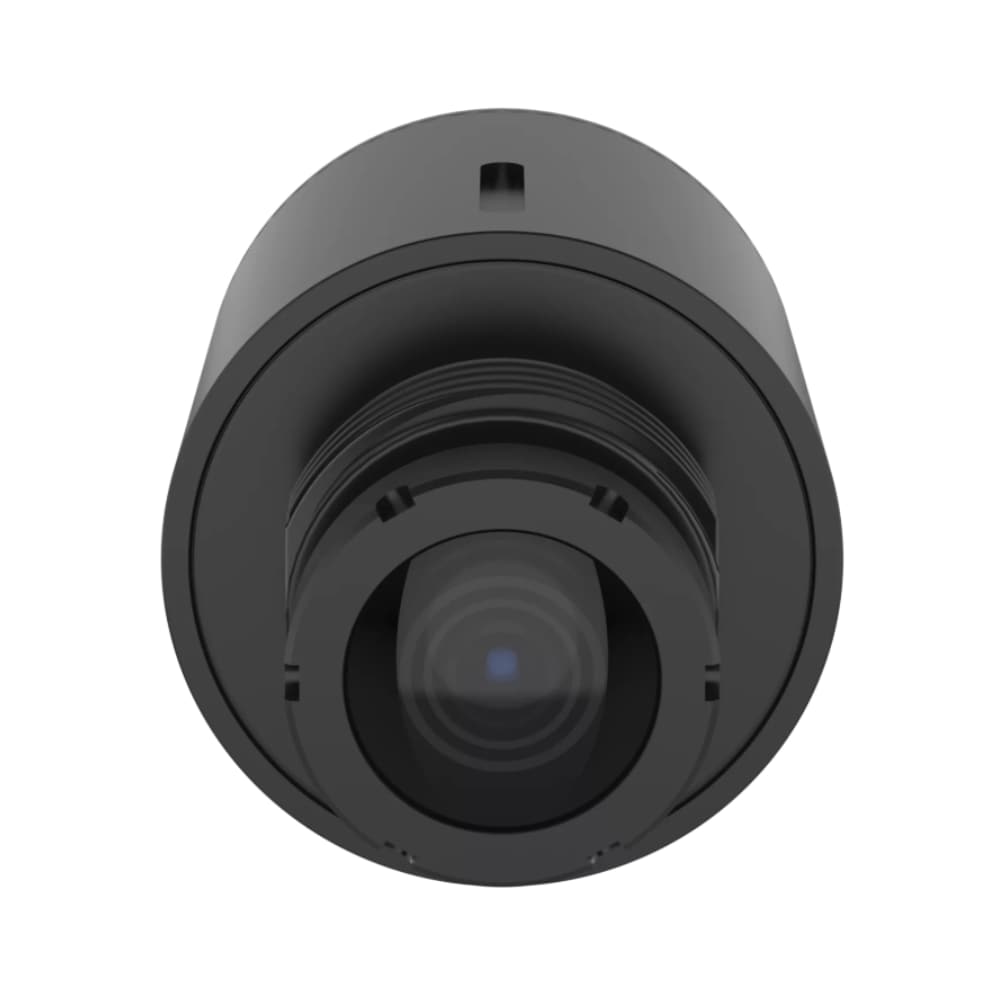

The Axis F2107-RE Standard Sensor is a compact, ruggedised 5 MP sensor unit from the modular AXIS F Series. Its small cylinder-shaped body and rear SMA connector allow discreet, flexible installation in tight or demanding spaces — ATMs, vehicles, industrial machinery and data-centre racks. With a wide 110° field of view, barrel-distortion correction and an IP66 / IP67 / IP6K9K rating from -40°C to 60°C, it pairs with an AXIS F91 main unit to deliver high-quality video where standard cameras won't fit.
Please note: this is a sensor unit only. It requires a separately purchased AXIS F91-series main unit (such as the F9111-R Mk II or F9114-B Mk II) and an AXIS F-Series sensor cable to operate.
See it in action
5MP Sensor Units for AXIS F Series — Official Overview
High image quality
The F2107-RE delivers high-quality 5 MP video (2592 × 1944) at up to 60 fps, even in challenging, low-light conditions. Its 110° horizontal field of view suits wide-area coverage indoors and out, and barrel-distortion correction keeps the image geometry accurate for reliable visual data. When paired with an AXIS F91 main unit it supports Forensic WDR for clarity in scenes with both bright and dark areas, while Lightfinder captures sharp, colour images in low light.
Flexible & discreet
The small cylinder form factor mounts away from the main unit, making it ideal for ATMs, industrial machines and other tight spaces where a full camera won't fit.
Up to four sensors per main unit
Designed for AXIS F91 main units, it can be combined with up to three other sensor units, and shares accessories with other AXIS F21 sensors to simplify procurement.
Built to take a beating
IP66/IP67/IP6K9K rated with an aluminium casing, it withstands shock and vibration from -40°C to 60°C — suited to vehicles and industrial machinery.
Service without re-cabling
The rugged SMA / SMA-FAKRA connector lets you leave the cable in place — simply remove the sensor unit to update or replace it when needed.
Technical Specifications
Camera & Image
| Image sensor |
CMOS |
| Resolution |
5 MP — 2592 × 1944 |
| Max frame rate |
50/60 fps |
| Light sensitivity |
0.25 lux colour |
| Wide dynamic range |
WDR (Forensic WDR with AXIS F91 main unit) |
| Low light |
Lightfinder (with AXIS F91 main unit) |
Lens
| Focal length |
2.8 mm fixed |
| Horizontal field of view |
110° |
| Vertical field of view |
80° |
| Lens mount |
M12 |
| Distortion correction |
Barrel distortion correction |
Build & Environment
| Casing material |
Aluminium |
| Cable entry |
Rear SMA connector (SMA-FAKRA cable) |
| Ingress protection |
IP66, IP67, IP6K9K |
| Operating temperature |
-40°C to 60°C |
| Outdoor ready |
Yes |
| Resilience |
Shock and vibration resistant |
System & Ordering
| Product type |
Modular sensor unit (AXIS F Series) |
| Compatible main units |
AXIS F9104-B Mk II, F9111-R Mk II, F9114-B Mk II, F9114-R Mk II |
| Sensors per main unit |
Up to 4 |
| Compliance |
NDAA & TAA compliant |
| Part number (AU) |
02868-001 (single) • 02868-021 (8-pack) |
Downloads
Frequently Asked Questions
Does the F2107-RE work on its own?No. It is a sensor unit that connects to a separately purchased AXIS F91-series main unit via an AXIS F-Series sensor cable. The main unit handles processing, network and power.
Which main units is it compatible with?It works with AXIS F91 main units, including the F9104-B Mk II, F9111-R Mk II, F9114-B Mk II and F9114-R Mk II.
How many sensors can one main unit run?Depending on the main unit, you can combine up to four sensor units, mixing the F2107-RE with other AXIS F21 sensors as needed.
Is the Axis F2107-RE NDAA compliant?Yes. Like the wider Axis range, it is NDAA (Section 889) and TAA compliant, suiting government and enterprise projects.
What resolution and field of view does it offer?It captures 5 MP (2592 × 1944) video at up to 60 fps with a wide 110° horizontal field of view and barrel-distortion correction.
Where is it typically installed?Its discreet cylinder shape and rugged build make it ideal for ATMs, vehicles, industrial machinery, server racks and other tight or harsh locations.
How rugged is it?It is IP66/IP67/IP6K9K rated with an aluminium casing, withstands shock and vibration, and operates from -40°C to 60°C.
Can I service it without rewiring?Yes. The SMA / SMA-FAKRA connector lets you leave the cable in place and simply remove the sensor unit to upgrade or replace it.
What warranty applies in Australia?It is backed by a 5-year Axis warranty, supported locally by CCTV Guru with Australia-wide shipping and tech support.
