Axis C8110 Network Audio Bridge (02370-001)

Description

NDAA Compliant • Hybrid IP & Analog Audio Hub

AXIS C8110 Network Audio Bridge (02370-001) — Australian Stock & 5-Year Warranty

The AXIS C8110 Network Audio Bridge is the missing link between legacy analog audio and modern IP audio. It is a compact, standalone hub that lets you feed analog sources into Axis network speakers, or push network audio out to an existing analog amplifier and speaker line — or run both at once as a hybrid system. With mic-in, line-in and line-out, SIP/VoIP support, two supervised I/Os for buttons and relays, and the full AXIS Audio Manager Edge application built in, one bridge can bring zone management, scheduling and content prioritisation to an audio estate you have already paid for. It runs on PoE Class 2 (max 4 W) or 8–28 V DC, and weighs just 107 g.

FUNCTION
Analog ↔ IP Bridge
AUDIO I/O
Mic-in, Line-in, Line-out
FREQUENCY RESPONSE
20 Hz – 20 kHz
POWER
PoE 802.3af Class 2
AXIS C8110 Network Audio Bridge — official Axis overview

Keep the speakers, gain the network

Ripping out a working analog PA system is expensive and disruptive. The C8110 lets you avoid it. Connect its line-out to your existing analog amplifier and the whole legacy speaker line suddenly inherits IP features: scheduled bell tones and music, event-triggered announcements from your surveillance cameras, SIP callouts from the phone system, and zoning. Run it the other way and any analog source — an intercom, a mixing desk, a music streaming box, a 2N SIP Mic — becomes an input to your Axis network speakers. A single bridge serves hundreds of speakers, which makes it one of the most cost-effective devices in the Axis audio range.

Works both directions

Analog in to network speakers, network audio out to analog amplifiers, or a hybrid of both. Mic-in, line-in and line-out on 3.5 mm and RCA connectors cover almost any legacy interface.

SIP and VoIP callouts

Register the bridge to a PBX peer-to-peer or via SIP/PBX. Tested with Cisco, Bria and Grandstream clients and Cisco and Asterisk PBXs, with SRTP, SIPS, SIP TLS and NAT traversal supported.

I/Os for buttons and relays

A 4-pin terminal block provides two supervised configurable I/Os — wire up a mute button, a panic trigger, a door contact or an external relay to drive announcements and actions.

AXIS Audio Manager Edge built in

Zone management for up to 200 speakers across 20 zones, content scheduling, prioritisation, health monitoring and user management — no server, no licence. AXIS Audio Manager Center adds free multi-site control.

Technical Specifications

Audio Hardware
Function Bridges and combines analog and network (IP) audio systems
Frequency response 20 Hz – 20 kHz
Input / output Mic-in, line-in, line-out
Audio connectors 3-pole 3.5 mm; RCA line out
Digital signal processing Built-in and pre-configured
Audio Software & Management
Encoding AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, Opus 8/16/48 kHz, MP3 64–320 kbps
Sampling rate 8 kHz up to 48 kHz
Audio management AXIS Audio Manager Edge built in — up to 200 speakers in 20 zones, scheduling, content prioritisation, health and user management
Also supported AXIS Audio Manager Pro (sold separately); AXIS Audio Manager Center cloud multi-site service
SIP / VoIP & Integration
VoIP SIP for VoIP integration, peer-to-peer or via SIP/PBX
SIP features Secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC 2976 / RFC 2833), NAT (ICE, STUN, TURN)
SIP codecs PCMU, PCMA, Opus, L16/16000, L16/8000, speex/8000, speex/16000, G.726-32
Tested SIP clients Cisco, Bria, Grandstream
Tested PBX Cisco, Asterisk
APIs VAPIX®, AXIS Camera Application Platform (ACAP), One-click cloud connection
VMS compatibility AXIS Camera Station Edge / Pro / 5 and Axis partner VMS platforms
Event triggers Call, virtual inputs, external input, ACAP
Event actions Play audio clip, send SNMP trap, status LED, external output activation, file upload (HTTP / network share / email), notification (email, HTTP, HTTPS, TCP)
Network & Cybersecurity
Key protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS DiffServ, SNMP v1/v2c/v3, RTSP, RTP, IGMPv1/v2/v3, DHCP, secure syslog, SIP
Network security IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, NTS, X.509 PKI, host-based firewall, IP address filtering
Edge security Axis Edge Vault, secure element (CC EAL 6+), Axis device ID, secure keystore, secure boot, signed OS, FIPS 140-2 Level 1 crypto module, AES-XTS 256-bit SD card encryption
Power, Connectors & Hardware
Power over Ethernet PoE IEEE 802.3af Type 1 Class 2 (max 4 W)
DC power 8–28 V DC, max 4 W, typical 1.85 W
Network connector RJ45 10BASE-T/100BASE-TX PoE
I/O connector 4-pin 2.5 mm terminal block, 2x supervised configurable I/Os
Power connector 2-pin 5.0 mm terminal block DC input
Edge storage microSD / microSDHC / microSDXC, max 1 TB (card not included)
System on chip i.MX 6SoloX
Memory 512 MB RAM, 512 MB Flash
LED indicators Status LED
Environmental & General
Casing IP20-rated plastic and metal casing, black NCS S 9000-N
Dimensions (H x D x W) 24 x 56 x 128 mm
Weight 107 g
Operating temperature -20 °C to 50 °C
Operating humidity 10–85% RH (condensing)
Storage temperature -40 °C to 65 °C
Reliability Designed for 24/7 operation
Included accessories Installation guide, AVHS authentication key, power connector, I/O connector, hook-and-loop fastener
Approvals & Compliance
Australia / NZ EMC RCM AS/NZS CISPR 32 Class B
Other EMC CISPR 35, CISPR 32 Class B, EN 55035, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-3(B), VCCI Class B
Safety UL 62368-1
Environment IEC/EN 60529 IP20
Cybersecurity standards ETSI EN 303 645, BSI IT Security Label, FIPS-140
Part number 02370-001
Warranty 5-year Axis warranty

Downloads

Axis C8110 DatasheetAxis Audio Bridge Installation GuideAxis Audio Bridge User Manual

Frequently Asked Questions

What does the AXIS C8110 actually do?

It bridges analog and network audio in both directions. Analog sources can be injected into Axis network speakers, and network audio can be sent out to an existing analog amplifier and speaker line. You can also run a hybrid of both simultaneously.

What audio connections does it have?

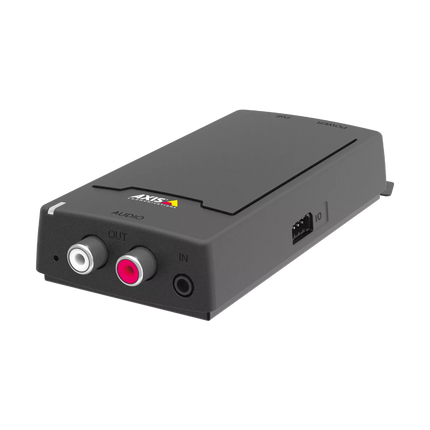

Mic-in, line-in and line-out. Physically that is a 3-pole 3.5 mm connector plus an RCA line output, so it interfaces with most legacy mixers, amplifiers, intercoms and streaming boxes.

Can I keep my existing analog PA speakers?

Yes — that is the main use case. Feed the C8110 line-out into your current analog amplifier and the existing speaker line gains IP scheduling, zoning, event-triggered announcements and SIP callouts without replacing any speakers.

How is it powered?

Either PoE IEEE 802.3af Type 1 Class 2 (max 4 W) from a standard switch, or 8–28 V DC via the 2-pin terminal block. Typical consumption is only 1.85 W.

Does it support phone system integration?

Yes. SIP is supported peer-to-peer or through a SIP/PBX, with SRTP, SIPS, SIP TLS and NAT traversal. Axis has tested it with Cisco, Bria and Grandstream clients and Cisco and Asterisk PBX platforms.

How many speakers can one bridge handle?

The built-in AXIS Audio Manager Edge supports up to 200 speakers divided into 20 zones, so a single C8110 is enough for a substantial site. AXIS Audio Manager Center coordinates multiple sites free of charge.

Can I connect a microphone?

Yes, via the mic-in. For a weatherproof network microphone with edge analytics such as aggression, glass break and gunshot detection, Axis recommends pairing the C8110 with the AXIS TU1002-VE Microphone Kit.

Can it be installed outdoors?

No. The casing is IP20-rated only and the operating range is -20 °C to 50 °C at 10–85% RH. Mount it indoors in a comms cabinet, rack or equipment room — it is only 24 x 56 x 128 mm and includes a hook-and-loop fastener.

Does it take an SD card?

Yes. It supports microSD, microSDHC and microSDXC cards up to 1 TB with AES-XTS 256-bit encryption. A card is not included in the box.
