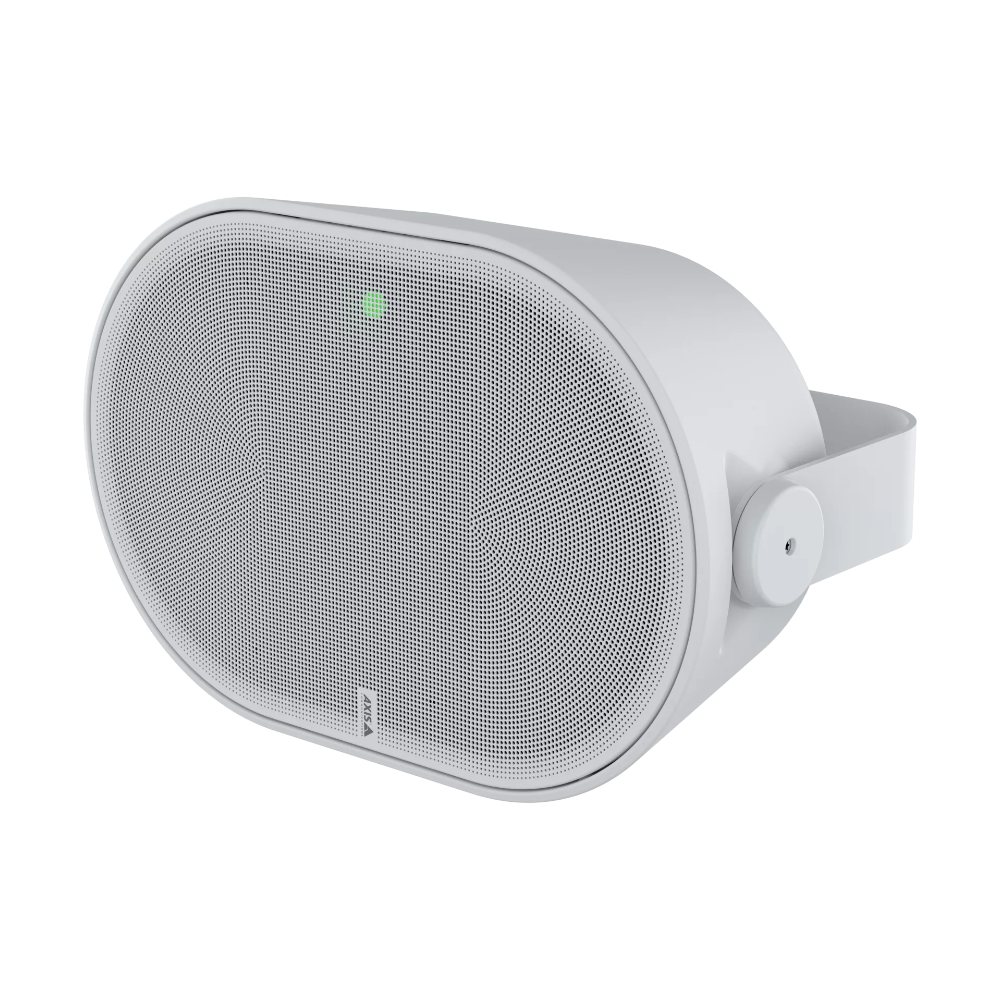

The AXIS C1110-E is a stylish, all-in-one network cabinet speaker designed to provide outstanding audio for both background music and live or pre-recorded voice messages. Built on an open platform, this "smart" speaker eliminates the need for external amplifiers or bulky audio cabling by integrating hardware and software into a single, PoE-powered unit.
Professional Sound Quality: Features a 4-inch dynamic cone woofer and a 1.25-inch dome tweeter with built-in DSP (Digital Signal Processing), ensuring rich bass and high-clarity speech right out of the box.
Key Performance Features
-
All-In-One Solution: A complete audio system in a single box—amplifier, mixer, speaker, and streaming software included.
-
Audio Manager Edge: Pre-installed software allows you to manage up to 200 speakers, 20 zones, and complex schedules from any web browser.
-
Two-Way Communication: The built-in microphone allows for remote health testing (ensuring the speaker is working) and 2-way audio with echo cancellation.
-
Smart Integration: Supports SIP for VoIP telephony, VAPIX for Axis ecosystem integration, and event-triggering from network cameras.
-

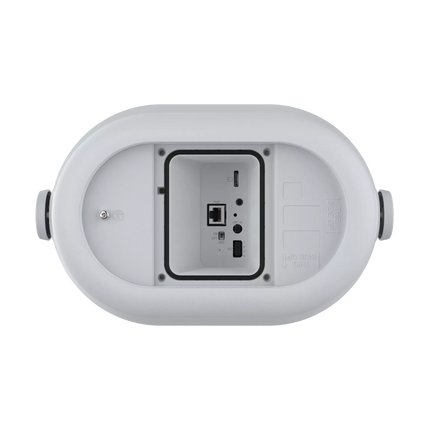

Versatile Mounting: Includes a click-in mounting bracket suitable for walls, ceilings, and poles, both indoors and in semi-protected outdoor areas (IP44).
Full Technical Specifications
| Feature |
AXIS C1110-E Specification |
| Speaker Type |
Two-way bass-reflex cabinet |
| Drivers |
4" Dynamic Cone, 1.25" Dome Tweeter |
| Max SPL |
96 dB |
| Frequency Range |
60 Hz to 20 kHz |
| Power over Ethernet |
PoE (802.3af) or PoE+ (802.3at) |
| Ingress Protection |
IP44 (Semi-protected outdoor use) |
| Audio Streaming |
AAC LC, G.711, G.726, MP3, WAV, Opus |
| Storage |
MicroSD/SDHC/SDXC slot (Up to 1TB) |
More Information
Frequently Asked Questions
Can I use this speaker outdoors?
Yes, the C1110-E is IP44 rated, making it suitable for semi-protected outdoor areas like under eaves or in covered walkways.
How many speakers can I manage at once?
The built-in AXIS Audio Manager Edge software can handle up to 200 speakers and 20 different audio zones directly from a single interface.
