Ubiquiti UniFi Network · NDAA COMPLIANT

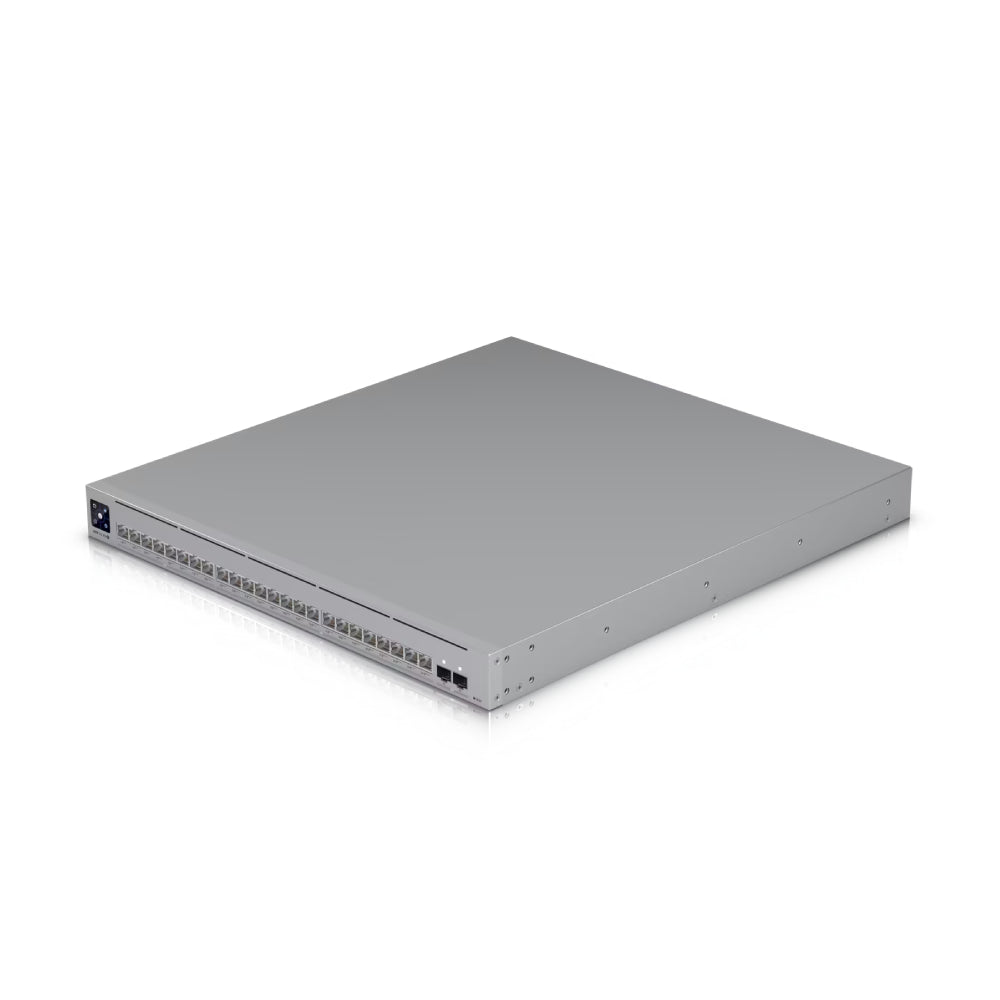

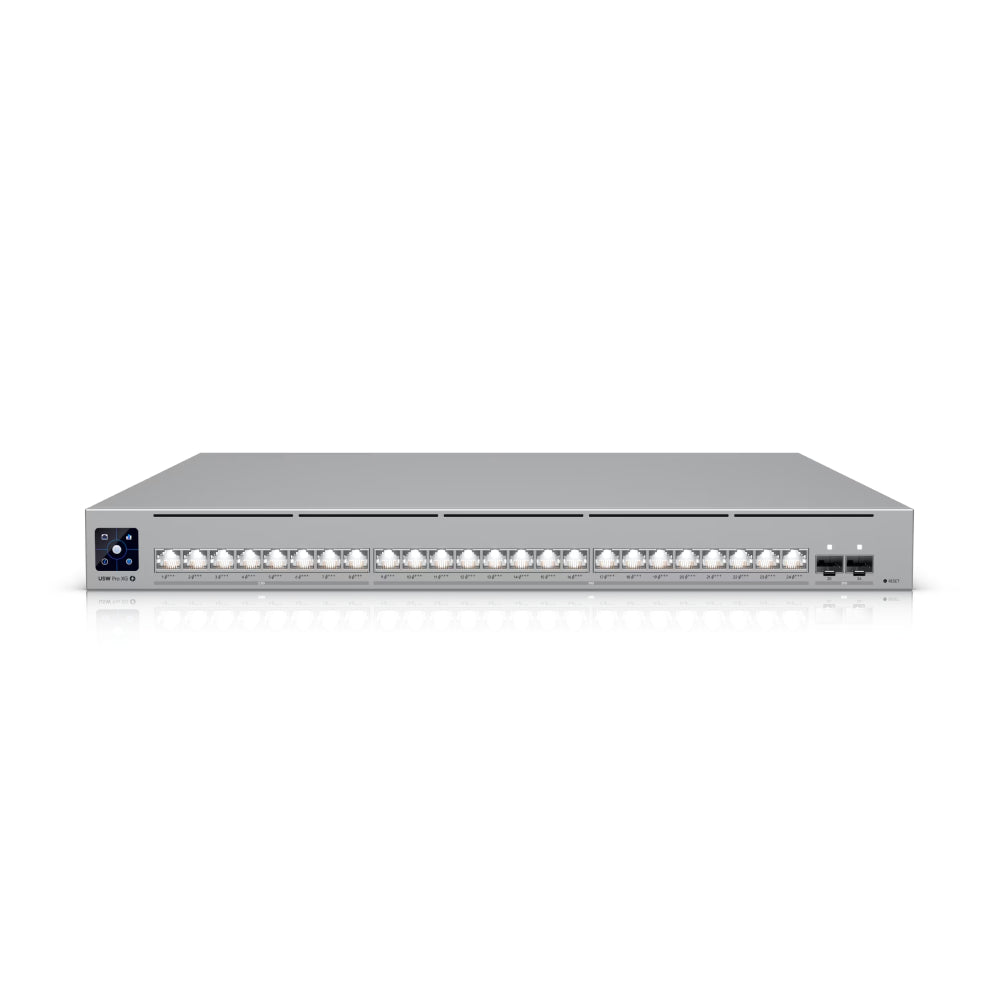

High-Density 24-Port 10GbE Layer 3 PoE++ Enterprise Switch
Designed to serve as a high-capacity core or aggregation switch for data-intensive networks, the Ubiquiti USW-Pro-XG-24-PoE is a fully managed Layer 3 multi-gigabit switch. Featuring 24 10GbE RJ45 ports with high-power 802.3bt PoE++ output and ultra-fast 25G SFP28 optical uplinks, this switch provides massive switching throughput, ultra-low latency, and advanced traffic routing managed centrally through the UniFi Network platform.
Multi-Gigabit Density
24x 10GbE RJ45 Ports
Power Delivery
802.3bt PoE++ Output
High-Speed Uplinks
25G SFP28 Ports
Compliance
NDAA Compliant
Advanced Layer 3 Routing & Redundant Power Protection
The USW-Pro-XG-24-PoE delivers robust 802.3bt PoE++ capabilities across its 10GbE copper interfaces, capable of powering high-capacity WiFi 7 access points, enterprise PTZ cameras, and desktop workstations. Equipped with comprehensive Layer 3 management capabilities—including inter-VLAN routing, static routing, and DHCP server support—it offloads routing overhead from primary firewalls. To guarantee continuous uptime, it includes a UniFi Smart Power RPS (USP-RPS) port for seamless DC power backup.
Auto-Sensing 10GbE Multi-Gigabit Performance
Supports 100M/1G/2.5G/5G/10G speed auto-negotiation across all 24 RJ45 ports to eliminate bandwidth bottlenecks for multi-gigabit devices.
1.3" Color LCM Touchscreen Display
Features an integrated touchscreen supporting UniFi AR overlay for visual port inspection, real-time power distribution tracking, and quick system status updates.
Technical Specification Matrix
| Model |
USW-Pro-XG-24-PoE |
| Networking Interfaces |
(24) 10GbE RJ45 Ports, (2) 25G SFP28 Uplink Ports |
| PoE Capability |
(24) 802.3at/bt PoE+ / PoE++ Output Ports |
| Layer Features |
Layer 3 Managed Switching Features |
| Power Input |
Universal AC Input / USP-RPS DC Backup Input Port |
| Display Screen |
1.3" LCM Color Touchscreen Screen |
| Form Factor |
1U Rackmountable (Mounting Hardware Included) |
| Management Software |
UniFi Network Controller Application |
| Compliance |
NDAA Compliant |
Do all 24 RJ45 ports support 10GbE speeds and PoE++?
Yes, all 24 ports feature multi-gigabit speeds up to 10GbE with 802.3bt PoE++ power delivery support.
Are the SFP28 uplink ports backwards compatible with 10G SFP+ modules?
Yes, the 25G SFP28 slots are backwards compatible with standard 10G SFP+ and 1G SFP transceivers or DAC cables.
Is the Ubiquiti USW-Pro-XG-24-PoE NDAA compliant?
Yes, the USW-Pro-XG-24-PoE is fully NDAA compliant, making it suitable for enterprise, government, and institutional infrastructure.
Can I connect this switch to a redundant power system?
Yes, it features a USP-RPS port that pairs with a UniFi Smart Power RPS to provide instant failover protection if primary AC power is lost.
