Ubiquiti UniFi Network · NDAA COMPLIANT
Next-Gen Etherlighting™ Multi-Gigabit Layer 3 Switching Platform

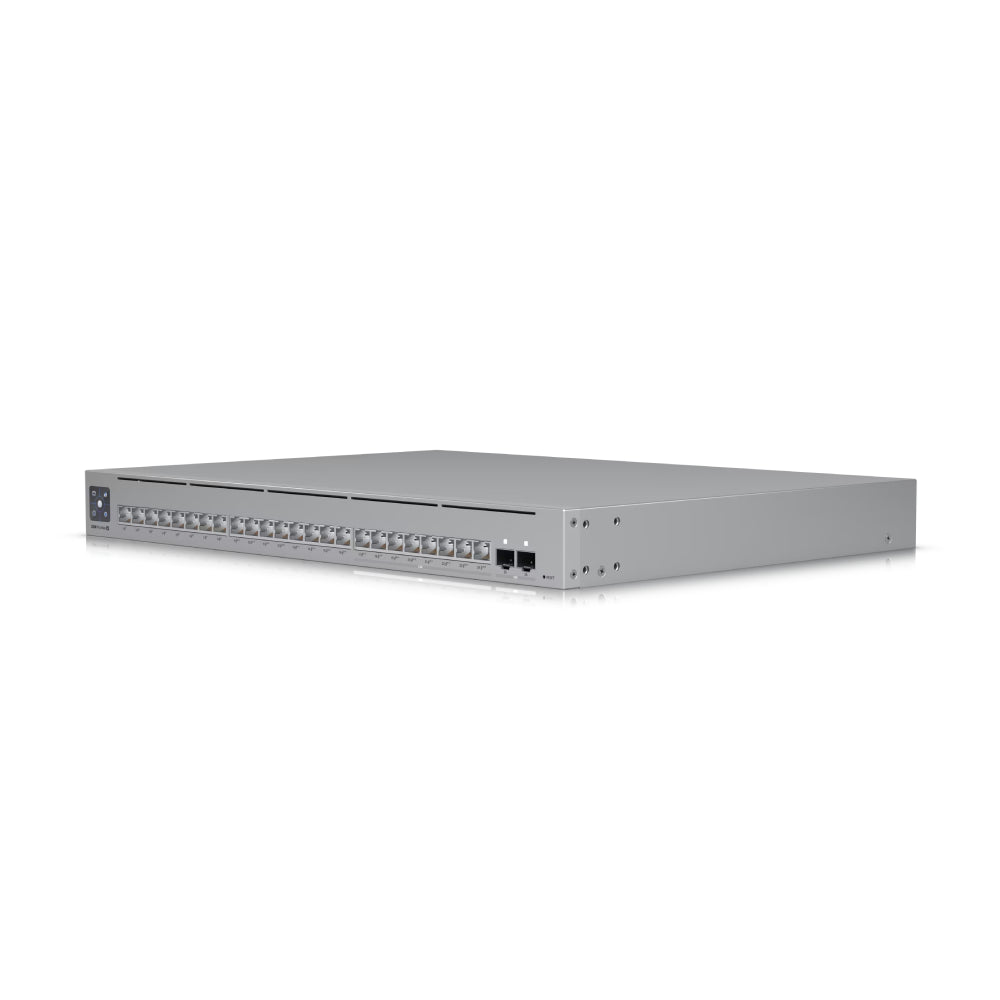

Engineered to power modern high-density enterprise networks, the Ubiquiti USW-Pro-Max-24-PoE is a high-performance Layer 3 Etherlighting™ switch built for demanding WiFi 6/7 and multi-gigabit deployments. Equipped with 2.5GbE ports, PoE++ capability, and 10G SFP+ uplinks, this 24-port managed switch combines advanced network traffic management with real-time port location and speed visual indicators directly on the RJ45 jacks for streamlined cabinet maintenance.
Port Configuration
16x 1GbE / 8x 2.5GbE
PoE Budget / Uplinks
400W / 2x 10G SFP+
Visual Port Tech
Etherlighting™ Ports
Compliance
NDAA Compliant
High-Power PoE Flexibility & Enterprise Redundancy
The USW-Pro-Max-24-PoE incorporates a massive 400-Watt PoE supply distributed across 16x 802.3at PoE+ ports and 8x 60W 802.3bt PoE++ ports. Designed to drive demanding devices like UniFi WiFi 7 APs, PTZ cameras, and IP access control hubs, it features dual 10G SFP+ uplink ports to eliminate backhaul bottlenecks. Built-in Layer 3 switching capabilities like inter-VLAN routing, static routing, and DHCP server functions handle local traffic routing efficiently, while USP-RPS DC input compatibility ensures continuous power failover protection.

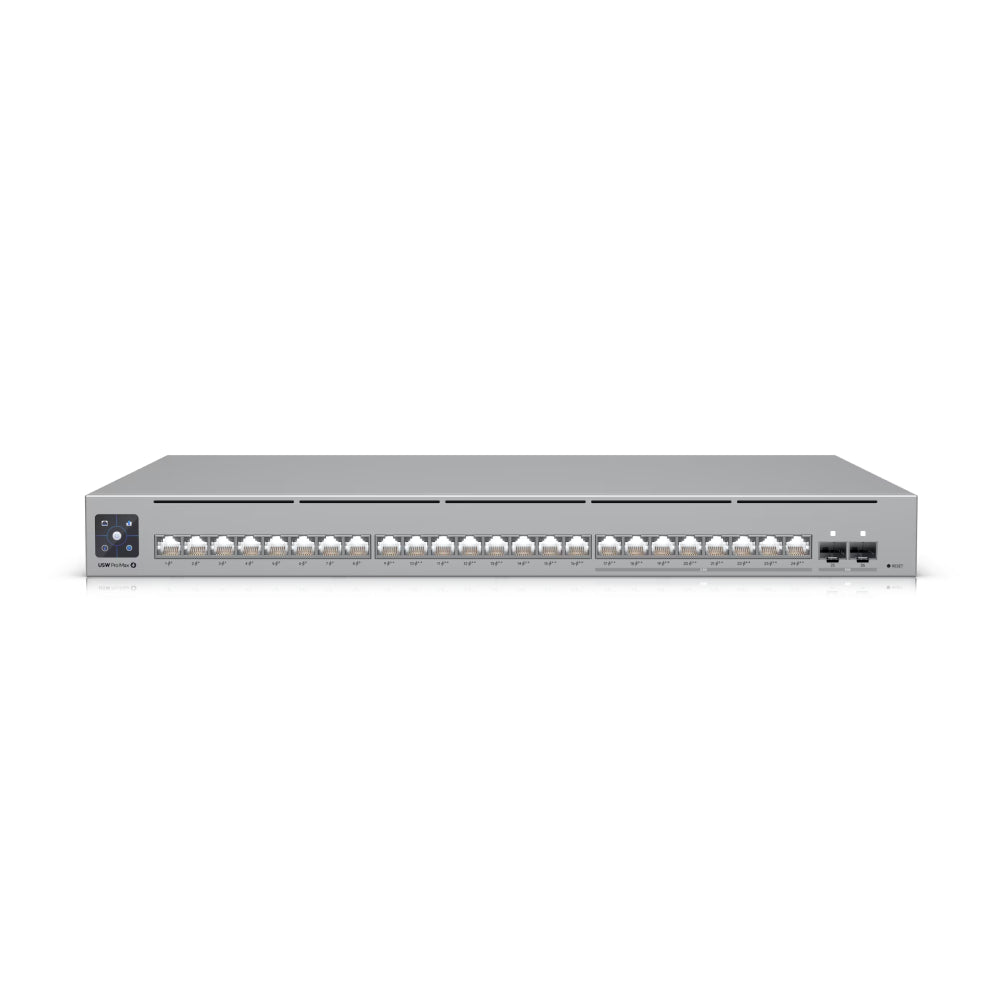

Etherlighting™ Port Illumination
Patented illuminated RJ45 ports visually indicate port speed, VLAN tags, connection status, and cable placement directly on the patch panel using customizable color illumination.
Multi-Gigabit & High-Power PoE++
Features 8 dedicated 2.5GbE ports providing high bandwidth to next-generation APs, paired with up to 60W per-port PoE++ outputs for power-hungry network appliances.
Technical Specification Matrix
| Model |
USW-Pro-Max-24-PoE |
| Networking Interfaces |
(16) 10/100/1000 MbE RJ45 Ports, (8) 100/1000/2500 MbE RJ45 Ports |
| Uplink Interfaces |
(2) 1/10G SFP+ Ports |
| PoE Interfaces |
(16) PoE+ 802.3af/at, (8) 60W PoE++ 802.3af/at/bt |
| Total Available PoE Budget |
400W |
| Switching Capacity |
112 Gbps Total Non-Blocking Throughput |
| Power Method |
100-240V AC Universal Input / USP-RPS DC Input |
| Display & Management |
1.3" LCM Color Touchscreen, UniFi Network Controller |
| Form Factor & Rackmount |
1U Rackmountable (Mounting Brackets Included) |
| Compliance |
NDAA Compliant |
What is Ubiquiti Etherlighting™ and how does it help network admins?
Etherlighting™ uses RGB LEDs embedded in each RJ45 port to display speed, VLAN assignment, or locator pulses visually, making cable tracing and troubleshooting effortless.
How many multi-gigabit (2.5GbE) ports are on the USW-Pro-Max-24-PoE?
It includes 8 dedicated 2.5GbE RJ45 ports designed to support multi-gigabit client devices like WiFi 6E/7 access points and high-speed NAS units without bottlenecks.
Is the USW-Pro-Max-24-PoE NDAA compliant?
Yes, the USW-Pro-Max-24-PoE is fully NDAA compliant and meets compliance standards required for deployment in corporate, public sector, and government environments.

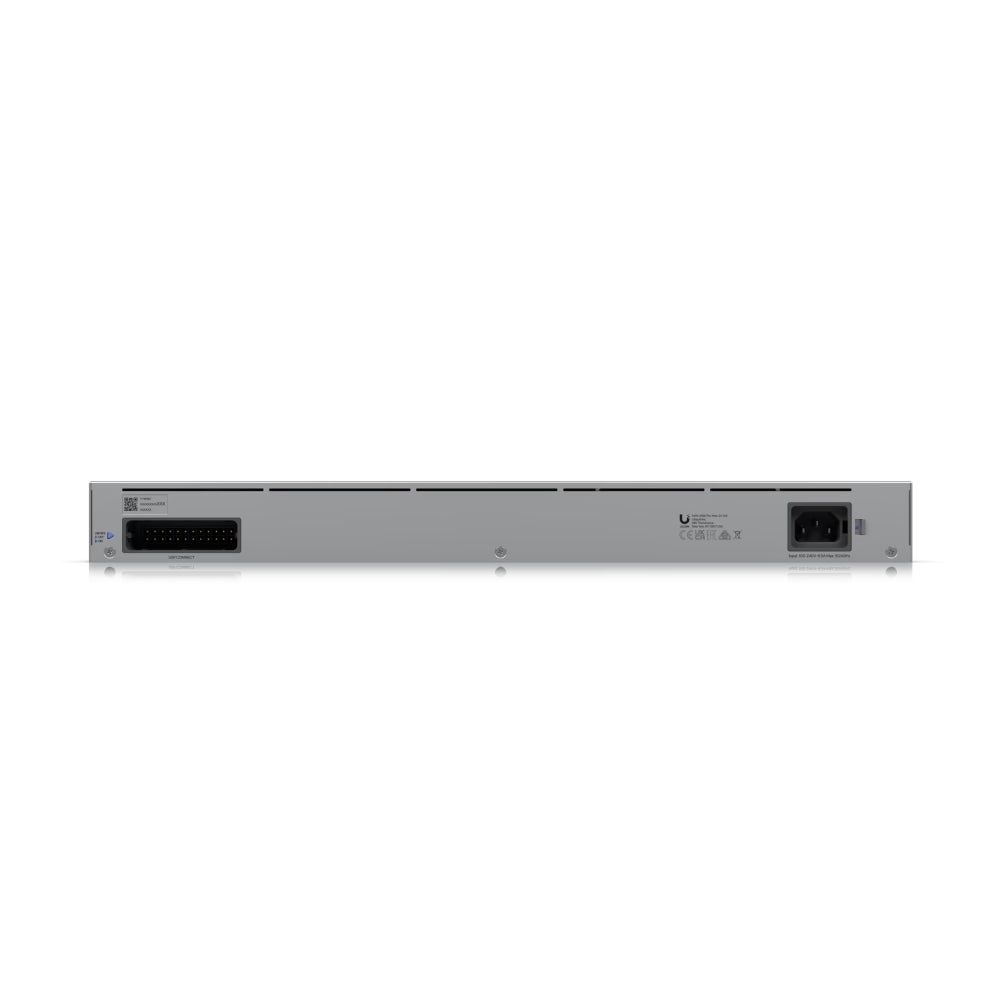

Does this switch support redundant power supplies?
Yes, it features a rear USP-RPS DC input port that connects to a Smart Power Redundant Power System to maintain continuous operation if the internal AC power source fails.
