Ubiquiti UISP Series · NDAA COMPLIANT
Uninterruptible Power Architecture for High-Density WISP Deployments

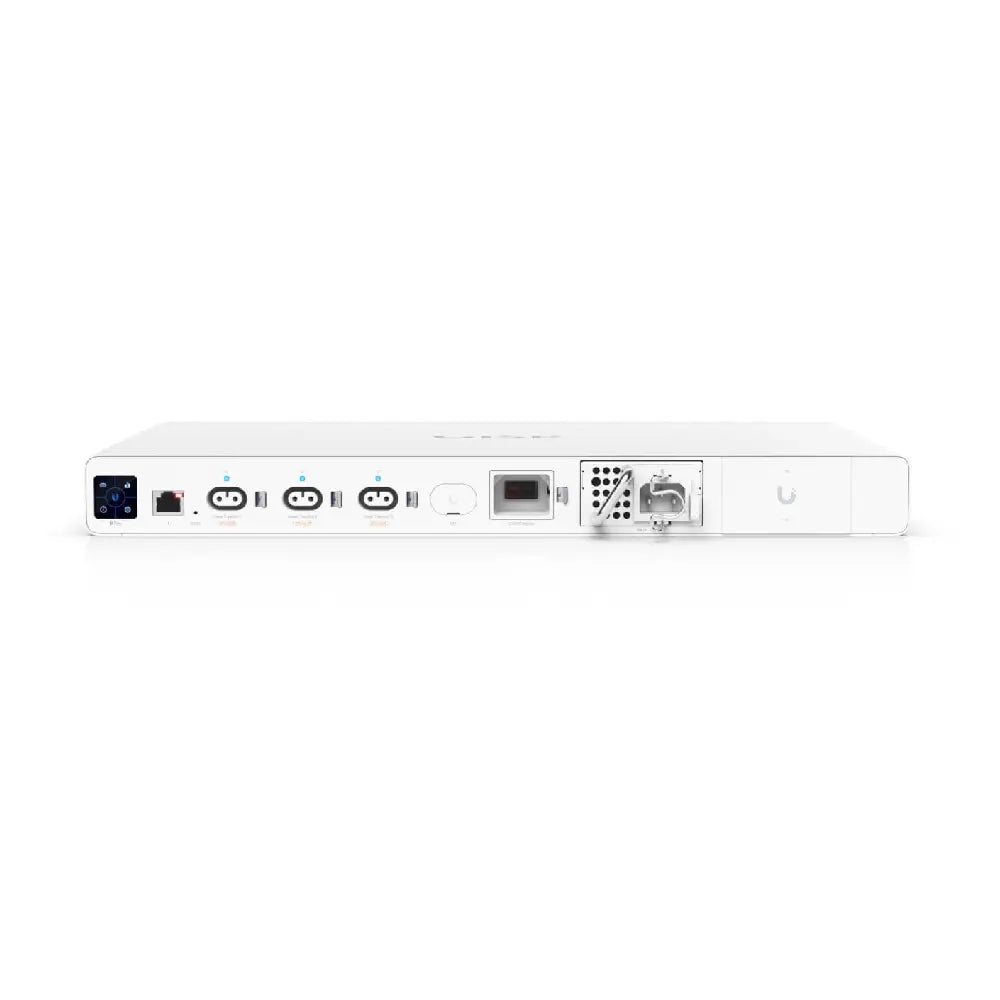

Engineered to eliminate single points of failure at critical network junctions, the Ubiquiti UISP-P-Pro delivers robust, scalable power management designed specifically for high-capacity WISP and commercial infrastructure sites. Featuring redundant power supply capabilities and advanced environmental telemetry, this professional-grade system ensures uninterrupted uptime for your core networking hardware.
Power Output
Up to 480W DC
Redundant Bays
Dual PSU Slots
Cellular Alerts
SMS-over-LTE Cat M1
Enclosure Class
SGCC Steel Frame
Advanced Redundancy and Remote Telemetry Management
The UISP-P-Pro integrates natively with the comprehensive UISP software application, giving operators deep visibility into load tracking, battery health, and real-time power metrics. Equipped with three dedicated Power TransPort outputs and support for external 24V lead-acid battery backup configurations, it guarantees seamless survival through extended grid outages. Stay connected and informed across remote deployments using built-in SMS-over-LTE notification protocols managed via an intuitive 1.3-inch touchscreen display.
Flexible Power Architecture
Features dual power supply unit bays capable of delivering a combined 480W of stable 27V DC output power across three isolated Power TransPort channels, effortlessly sustaining multiple heavy-load routing and switching nodes.
Intelligent Site Survivability
Seamlessly transitions to an external 24V lead-acid battery backup configuration during grid failures, maintaining complete operation while sending instant event alerts via Cat M1 cellular modules.
Technical Specification Matrix
| Model |
UISP-P-Pro |
| Dimensions |
442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7") |
| Weight |
4.16 kg (9.2 lb) |
| Enclosure Materials |
SGCC steel, polycarbonate/ABS |
| Networking Interface |
(1) 10/100 MbE RJ45 LAN port |
| Power TransPort Interface |
(3) Ports [up to 250W (27V DC) output each] |
| Total Power Output |
240W with 1 PSU / 480W with 2 PSUs |
| Operating Temperature |
-10 to 50° C (14 to 122° F) |
What backup battery types are supported by the UISP-P-Pro?
The unit features an input terminal designed specifically to connect with an external 24V lead-acid battery bank. Using non-compatible battery classes can create operational hazards and is strictly discouraged.
How many power supply units are included out of the box?
The system ships with one 250W AC/DC power supply module pre-installed in the primary bay. An additional secondary PSU module can be added independently to achieve the maximum 480W aggregate output capacity.
What software application is required to manage the device?
The UISP-P-Pro integrates seamlessly with the UISP ecosystem management software, requiring version 1.4.8 or newer for complete provisioning, monitoring, and telemetry collection.
Is cellular notification supported for remote sites?
Yes, the unit includes an integrated Cat M1 LTE modem and external antenna port, enabling SMS-based alert notifications when paired with an active nano-SIM card from a supported provider.
NDAA Compliant & Certified
