Ubiquiti UISP · NDAA COMPLIANT
Engineered for High-Capacity ISP Networks: Ubiquiti UISP-R-Pro Gateway
The Ubiquiti UISP-R-Pro is a carrier-grade 10 GbE router built specifically to address the demanding performance requirements of modern Internet Service Providers. Designed for dense, high-throughput commercial and WISP infrastructure deployments, it combines robust Layer 3 routing capabilities with high-density physical interfaces, ensuring exceptional reliability, low latency, and centralized remote management across growing network topologies.
Interface Density
9x GbE & 4x 10G SFP+
Core Processing
Quad-Core 1.7 GHz
Throughput / Layer
9,500 Mbps NAT
System Redundancy
Dual AC / DC Power
Equipped with advanced OS routing protocols including OSPF, dynamic firewall policies, and granular traffic shaping, the UISP-R-Pro empowers operators with automated customer suspension tools and policy enforcement directly from the centralized UISP application framework. Featuring a 1.3-inch LCM touchscreen for instant diagnostic reviews, Bluetooth setup capabilities, and integrated Layer 2 switching capabilities across ports 1 through 8, it streamlines deployment routines for professional network architects.
Carrier-Grade High-Speed Uplinks

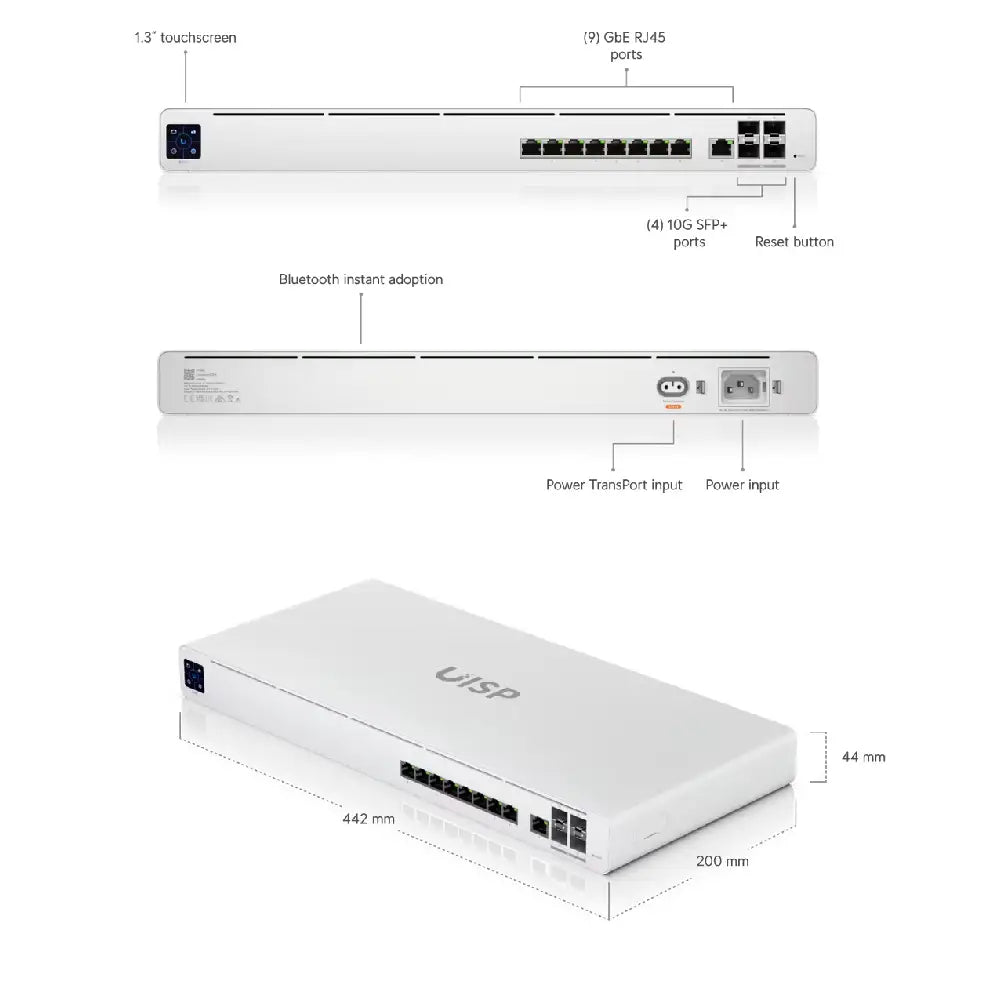

Leverage four dedicated 1/10G SFP+ optical ports alongside nine Gigabit copper interfaces to build highly resilient fiber aggregation rings and minimize upstream bottlenecks across heavily loaded data distribution nodes.
Reliable Power Redundancy Options
Ensure continuous operational uptime in mission-critical environments utilizing both the universal internal 100-240V AC supply and an auxiliary Power TransPort 27V DC input configuration for fail-safe site reliability.
Technical Specification Matrix
| Model |
UISP-R-Pro |
| Processor |
Quad-core ARM Cortex-A57 @ 1.7 GHz |
| System Memory |
4 GB DDR4 |
| Networking Interfaces |
(8) GbE RJ45 LAN ports, (1) GbE RJ45 WAN port, (4) 1/10G SFP+ ports |
| Max. NAT Throughput |
9,500 Mbps |
| Power Method |
Universal AC input (100–240V AC) / Power TransPort DC input (27V DC) |
| Enclosure Material |
SGCC steel, polycarbonate/ABS |
| Compliance & Certifications |
NDAA Compliant, CE, FCC, IC |
Is the Ubiquiti UISP-R-Pro fully NDAA compliant?
Yes, the UISP-R-Pro adheres strictly to NDAA compliance standards, making it fully approved for government, enterprise, and federally funded telecommunications infrastructure projects.
What software platform is used to manage this router?
This unit is natively managed via the UISP software application (version 1.4.5 and later), offering centralized oversight, statistics tracking, and device configurations.
Does the device support redundant power configurations?
Yes, it features dual power support via a standard internal AC power supply and an external Power TransPort DC input interface for reliable failover protection.
What rack form-factor does the hardware utilize?
The UISP-R-Pro is built into a standard 1U high, rack-mountable form factor constructed from robust SGCC steel.
