IDIS 4K UHD VARIFOCAL SERIES · NDAA & TAA COMPLIANT
Ultra HD 4K Forensic Clarity Shielded by Advanced Cold-Climate Environmental Armor

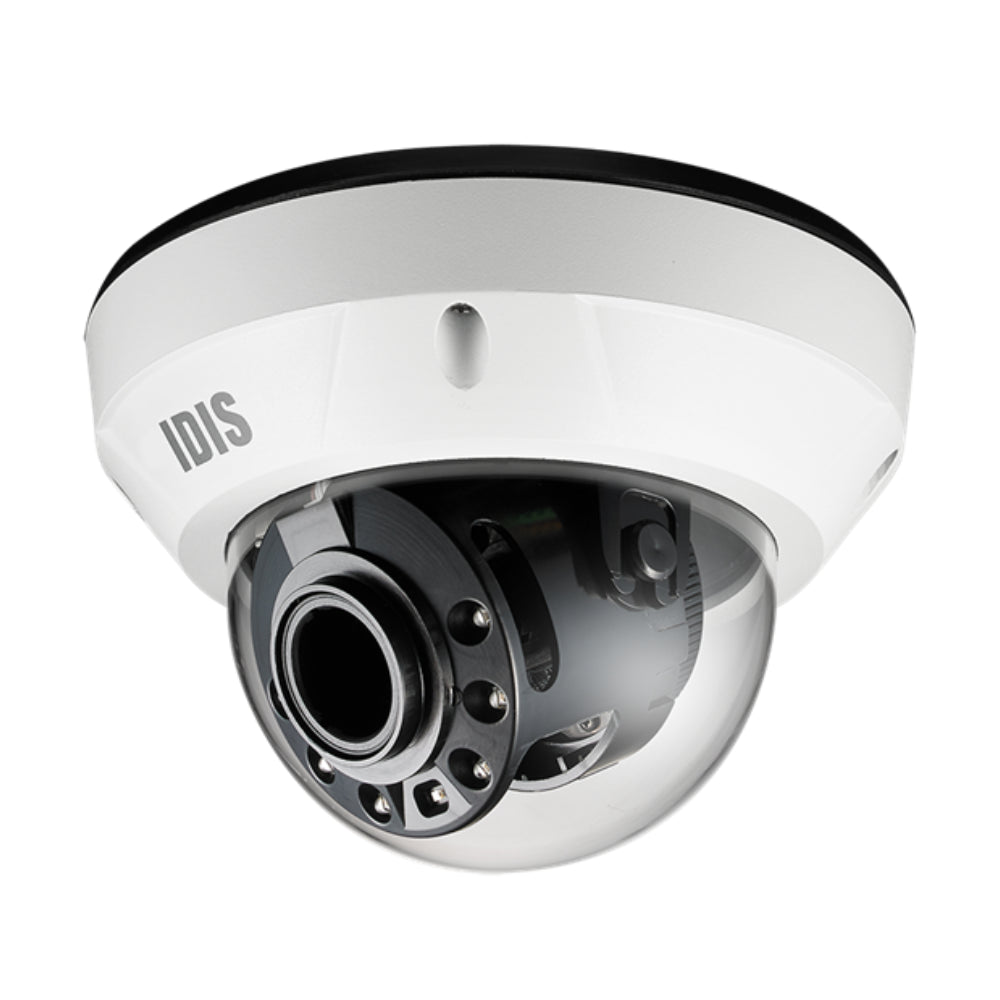

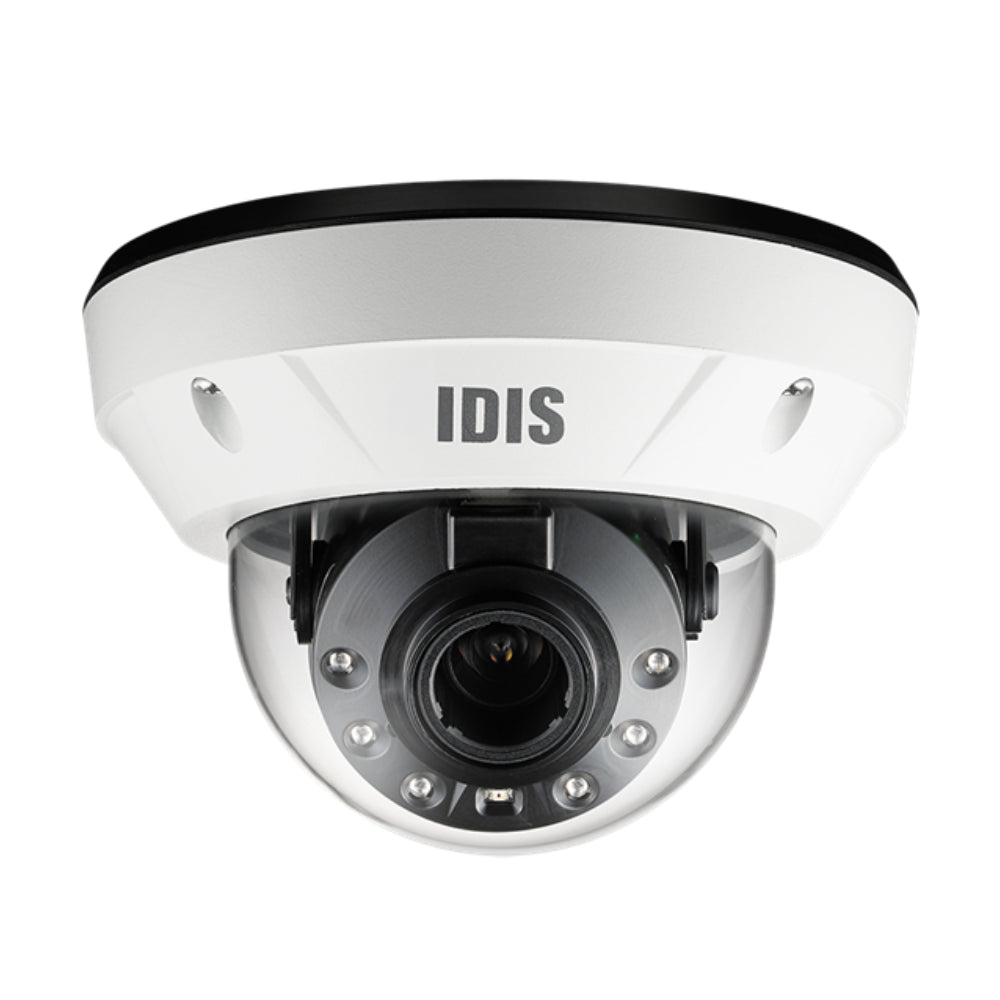

The IDIS DC-D4831HRX delivers exceptional 8MP Ultra High Definition (4K UHD) structural surveillance, providing system managers with an incredibly dense pixel matrix engineered for seamless forensic zoom tracking. Outfitted with an integrated internal climate control heater system, this professional network dome actively thaws external ice accumulation and prevents internal condensation during sudden thermal drops. Vetted under rigorous global security parameters, its NDAA and TAA compliant design satisfies federal data security audits and delivers an uncompromising, cyber-hardened perimeter shield for transit hubs, industrial zones, and financial centers.
Resolution
8MP 4K UHD Core
Lens Type
Motorized Varifocal
Night Vision
40m Smart Adaptive IR
Climate Class
IP67, IK10 & Heater
Remote Optical Focusing & High-Efficiency Bandwidth Architecture
Featuring a smooth motorized varifocal lens matrix, the DC-D4831HRX allows technicians to adjust fields of view and execute sharp autofocus tuning remotely from the control center, eliminating the manual labor of ladder adjustments. Integrated 120dB True Wide Dynamic Range (WDR) processing stabilizes images by neutralizing harsh shadows and overexposed background glare, ensuring clear capture along open loading bays and entry thresholds. Utilizing high-efficiency H.265 compression coupled with proprietary IDIS Intelligent Codec logic, data streams drop by up to 90%, preserving server storage bandwidth without diminishing crucial forensic quality. To structure a completely integrated security system, pair this camera with our compliant IDIS hardware network.
True DirectIP Plug-and-Play Setup
Operating over the specialized IDIS DirectIP network standard, this 4K varifocal camera achieves instantaneous field initialization. Management systems automatically configure and authorize the camera without tedious manual port-forwarding steps, significantly reducing setup time while closing cyber-vulnerabilities.
Smart Edge Failover Protection
Protect vital corporate and investigative timelines from unexpected connection failures or physical link drops. In the event of a transmission loss, the camera redirects recording pipelines onto its integrated internal MicroSD card slot. Once the primary link is restored, the buffered video seamlessly reconciles with the central recorder.
Technical Specification Matrix
| Camera Model |
DC-D4831HRX |
| Optics Core |
Ultra HD 4K Motorized Varifocal Performance Core |
| Image Sensor |
1/2.5" Progressive Scan CMOS Sensor |
| Max. Resolution |
3840 x 2160 (8MP @ 30ips / 15ips with WDR Engaged) |
| Lens Configuration |
Motorized Varifocal (f=2.7mm to 13.5mm) / F1.4 to F2.8 |
| Angular Field of View |
110.6° ~ 32.6° (Horizontal) / 58.7° ~ 18.4° (Vertical) / 132.8° ~ 37.4° (Diagonal) |
| Smart IR Array |
Up to 40 Meters (131.2 Feet) with Adaptive Intensity LEDs |
| Wide Dynamic Range |
True WDR Processing Core (120dB) |
| Audio & Alarm I/O |
Two-Way Audio Support (1 In / 1 Out) | Alarm (1 In / 1 Out) |
| Environmental Armor |
IP67 Weatherproof Shield / IK10 Vandal-Proof Casing / Internal Heater Shell |
| Streaming Profiles |
H.265, H.264 (Main Profile), M-JPEG Quadruple Stream |
| Power Architecture |
PoE IEEE 802.3af (Class 3), Max. 11.2W / 12V DC Adapter Support |
How does the integrated internal heater improve cold weather reliability?
Standard cameras often experience blind spots when frost or condensation builds up on the transparent dome bubble during freezing conditions. The DC-D4831HRX features a specialized, automated internal heating unit that stabilizes internal temperatures, keeping the camera operational from -40°C up to +55°C.
What focal depth advantages does the 2.7mm to 13.5mm zoom range provide?
This wide-to-telephoto range offers exceptional flexibility. At 2.7mm, the camera captures a broad 110.6-degree overview for wide courtyards or parking decks. Zoomed into 13.5mm, it tightens down to a 32.6-degree field of view to focus on narrow access pathways, capturing highly concentrated 4K pixel arrays.
Is the DC-D4831HRX certified for government and critical defense operations?
Yes. This hardware endpoint is fully NDAA and TAA compliant. It contains no microprocessors or software architecture developed by restricted or blacklisted tech firms, making it fully approved for high-compliance military, federal, and enterprise facilities.
What level of physical impact protection does the IK10 rating ensure?
An IK10 physical armor rating guarantees that the camera's heavy cast-aluminum housing and impact-absorbing dome bubble can withstand direct kinetic impacts up to 20 joules. This provides reliable defense against blunt force, vandalism, and deliberate tampering attempts.
