IDIS CONTERAIP SERIES · NDAA & TAA COMPLIANT
Next-Generation Multi-Directional Security Coverage

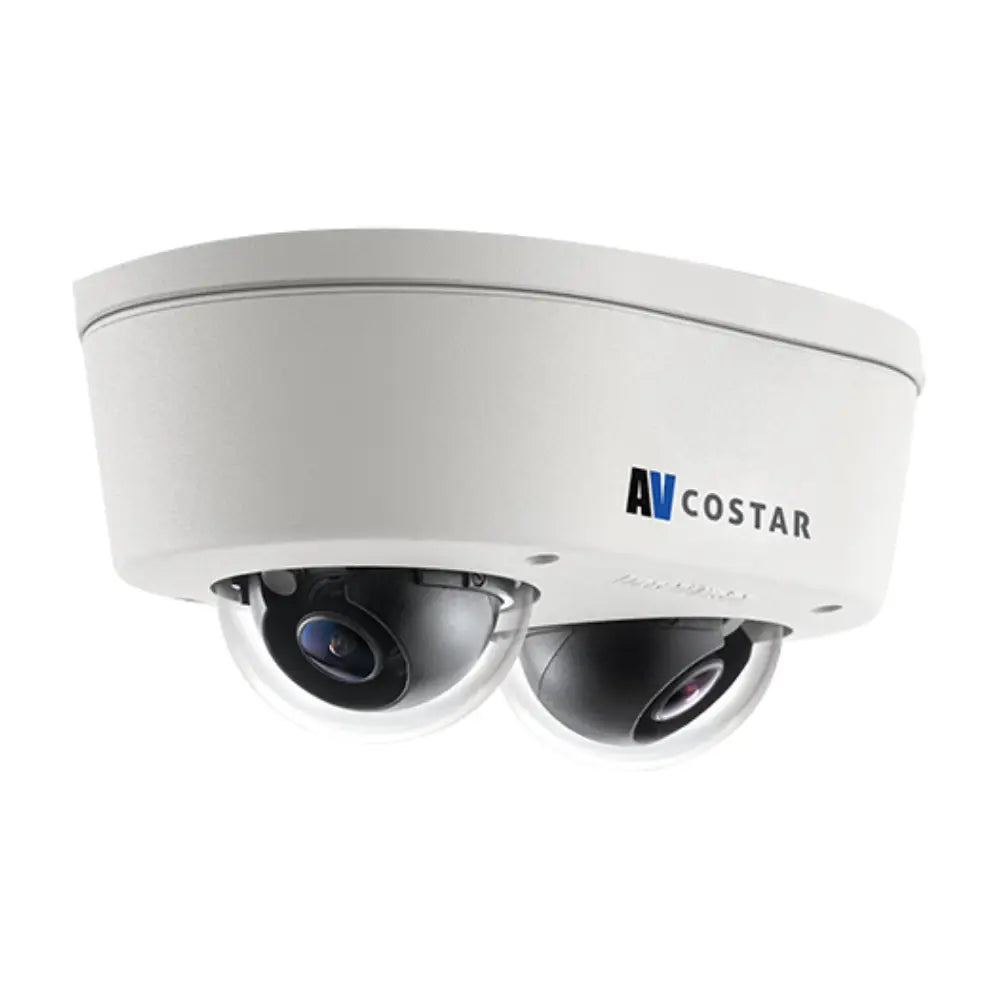

The IDIS AV4956DN-28 MicroDome Duo delivers high-density, multi-angle surveillance in a single compact, low-profile housing. Equipped with two independent 2MP image sensors, this advanced system generates a total of 4MP resolution (3840 x 1080) across dual vantage points. Engineered specifically for high-traffic commercial environments, hallways, retail corridors, and structural corners, it seamlessly replaces multiple traditional single-sensor endpoints. By utilizing a single network drop and PoE connection, enterprise facilities dramatically lower installation infrastructure costs without sacrificing wide-area visual situational awareness.
Resolution
4MP (2x 1080p)
Night Vision
NightView Low Light
Protection
IP66 / IK10 Rated
Advanced Bandwidth Management and Image Optimization
The integration of proprietary SNAPstream+™ (Smart Noise Adaptation and Processing) technology ensures that the AV4956DN-28 radically lowers network strain. It intelligently auto-adjusts compression parameters based on real-time motion detection across 1024 distinct zones, conserving network bandwidth and reducing VMS storage footprints without compromising forensic image quality. Furthermore, the system incorporates high-performance true True Wide Dynamic Range (WDR up to 100dB) alongside specialized NightView™ technology, empowering security operators with pristine color retention and clear structural contrast under extremely turbulent or minimal lighting conditions.
Dual-Sensor Omni-Directional Flexbility
Equipped with an easily adjustable 3-axis gimbal assembly supporting 360° pan, 90° tilt, and 360° z-axis rotation. Security integration layouts can orient the dual sensors independently down split hallways or opposing structural planes, consolidating two deployment footprints into one single POE interface drop.
Industrial Weatherproof & Vandal Armor
Encased in a robust die-cast aluminum chassis combined with a heavy-duty polycarbonate optical bubble. Carrying certified IP66 weatherproofing and IK10 physical impact ratings, this system operates reliably down to -40°C (-40°F), making it impervious to severe seasonal shifts or deliberate vandalism attempts.
Technical Specification Matrix
| Camera Model |
AV4956DN-28 |
| Total Operational Resolution |
4 Megapixels (Dual 1920 H x 1080 V Sensors) |
| Optical System / Lenses |
2x 2.8mm Fixed Focal Lenses, M12 Mount, F2.0 Aperture |
| Horizontal Field of View |
106.7° Per Sensor Segment |
| Minimum Illumination |
Color Mode: 0.04 Lux | Black & White Night Mode: 0.004 Lux |
| Video Compression Encoding |
H.265, H.264 (MPEG-4 Part 10), MJPEG with SNAPstream+™ |
| Maximum Frame Rate |
30 Frames Per Second at Max Resolution (WDR Active or Inactive) |
| Dynamic Range Optimization |
True Wide Dynamic Range (WDR) up to 100dB |
| On-Board Edge Storage |
MicroSDXC Slot supporting up to 1TB expansion capacity |
| Power Input Requirements |
PoE IEEE 802.3af Class 3, 12V-48V DC, or 24V AC (Max 10.5W) |
Can the two internal lenses be adjusted completely independently?
Yes. The camera architecture includes an independent, user-configurable 3-axis mechanical gimbal structure for each of the dual sensors. This allows technicians to point the lenses in entirely different directions, such as looking down both intersecting pathways of an L-shaped corridor simultaneously.
Does the AV4956DN-28 require two software licenses on a VMS network?
The multi-sensor configuration runs efficiently through a single physical RJ45 Ethernet link using one IP address. However, VMS system channel allocations depend on your software provider; many modern platforms register this unit as either a single multi-stream asset or two independent camera licenses.
What specific network compliance protocols does this model support?
The unit features full native compliance with ONVIF Profile S, Profile G, and Profile T guidelines. This wide compatibility ensures reliable integration with IDIS DirectIP solutions as well as third-party network video recorders and enterprise management software utilities.
Is this model fully certified for strict government installations?
Absolutely. The AV4956DN-28 is fully NDAA (National Defense Authorization Act) and TAA compliant. It contains no restricted core chipsets or components from prohibited supply-chain vendors, making it authorized for high-security federal, defense, and strictly regulated enterprise projects.
