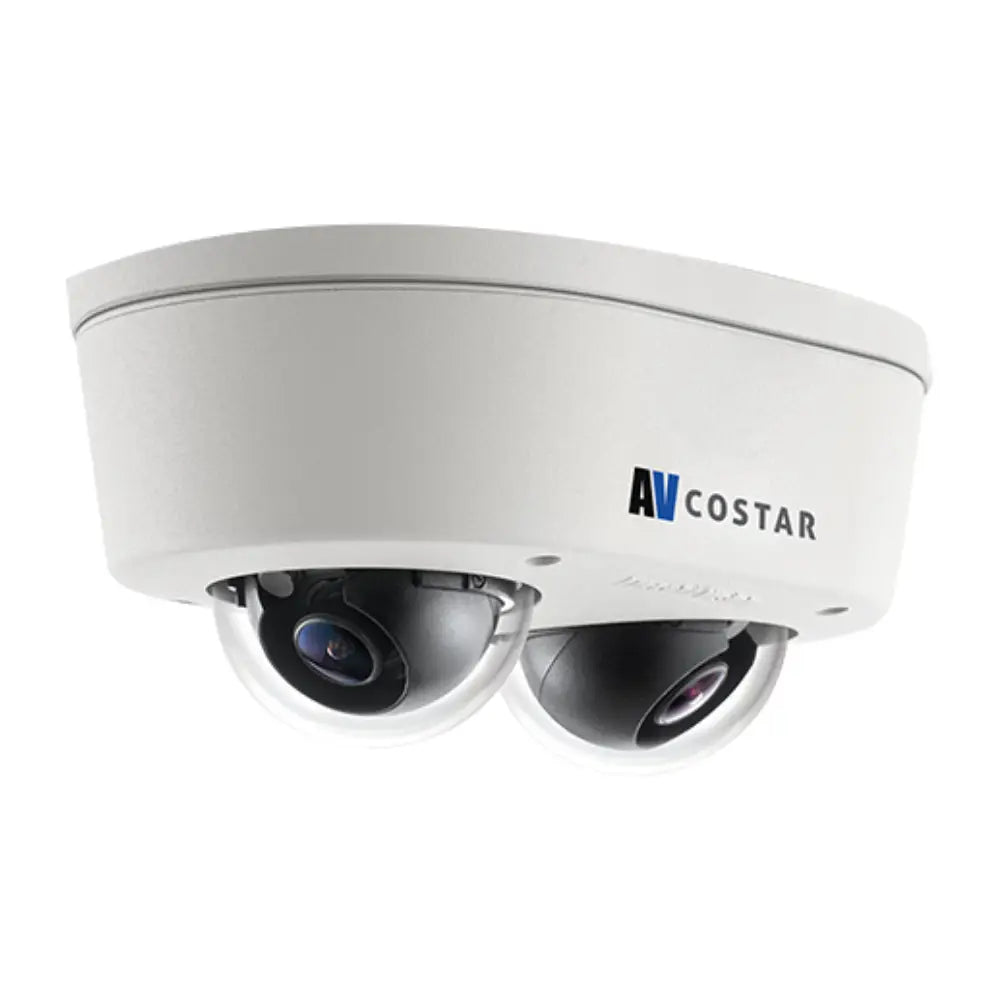

IDIS AV16956DN-28 16MP (2x8MP) MicroDome Duo IP Camera

Description

IDIS MICRODOME DUO SERIES · NDAA & TAA COMPLIANT

Advanced Multi-Sensor Surveillance for High-Density Commercial Environments

The IDIS AV16956DN-28 is a premier 16 Megapixel multi-sensor dome network camera engineered to deliver high-density visual coverage with minimal architectural footprint. Perfectly tailored for demanding commercial spaces, logistics corridors, corporate lobbies, and transit hubs, this system leverages two independent 8MP continuous-scanning visual modules in a single low-profile housing. By capturing dual directions simultaneously, it effectively replaces multiple standard fixed nodes, significantly streamlining installation overhead, network cabling infrastructure, and VMS licensing costs without compromising on raw corporate security clarity.

Resolution
16MP (2 x 8MP Ultra HD)
Optics
Dual 2.8mm Fixed Lenses
Night Vision
NightView Low-Light Tech
Protection
IP66 Weather / IK10 Vandal

Uncompromising Multi-Stream Bandwidth Optimization & Dynamic Focus Control

Built from the ground up for critical federal and commercial architectures, the IDIS AV16956DN-28 integrates proprietary SNAPstream+ (Smart Noise Adaptation and Processing) technology. This advanced algorithm works alongside H.265 compression methods to vastly decrease high-resolution network bandwidth and storage constraints by up to 50% without dropping core forensic fidelity. With integrated True Wide Dynamic Range (WDR up to 100dB), an easily adjustable 3-axis gimbal setting, and real-time internal motion detection zones, this network powerhouse addresses volatile lighting variances effortlessly. This makes it an ideal option for global enterprises seeking compliant, unified, and long-term situational perimeter defense assets.

Dual-Sensor 180° Seamless Target Customization

By blending two independent ultra-high-definition imaging blocks within a singular form factor, security teams can position both modules back-to-back, side-by-side, or along split interior intersection angles. This ensures total target visibility across vast perimeters without blind spots, removing standard hardware mounting vulnerabilities.

Enterprise-Class Edge Durability & Audio Streams

Protected within a heavy-duty, IP66 weatherproof and IK10 structural impact-resistant die-cast aluminum core, this platform runs smoothly under extreme operational climates from -40°C to +50°C. Two-way physical audio channels and onboard MicroSDXC expansion up to 1TB enable resilient standalone operations or auxiliary safety networks.

Technical Specification Matrix
Camera Model AV16956DN-28
Image Sensor 16MP Total (8MP x 2) Progressive Scan CMOS Modules
Optical Resolution Full FOV Total: 7680 (H) x 2160 (V) (3840 x 2160 Per Sensor Element)
Lens Configuration Dual 2.8mm Fixed Optics, F1.6 Lens Architecture (H-FOV = 106.7°)
Minimum Illumination Color Mode: 0.18 Lux | Black & White Night Mode: 0.018 Lux
Wide Dynamic Range True WDR Up to 100dB with Mechanical IR Cut Filters
Compression & Framing H.265 / H.264 / M-JPEG with SNAPstream+ Smart Compression at 15fps
Network Interfaces 10/100/1000Mbps Gigabit RJ45 Port, ONVIF Profile S, G, and T Compliant
Environmental Housing IP66 Weather-Proof & IK10 Vandal-Resistant Die-Cast Aluminum Body
Power Input & Limits PoE IEEE 802.3af Class 3, 12V-48V DC, Auxiliary 24V AC (Max 10.5W)
Edge Storage Capabilities Integrated MicroSDXC Storage Slot (Supports Expansion Up to 1TB)
Is the IDIS AV16956DN-28 compliant for US Federal Government projects?

Yes, absolutely. The AV16956DN-28 is fully NDAA (National Defense Authorization Act) and TAA compliant, satisfying strict cyber-defense protocols required for integration on US defense contracts, municipal arrays, and high-tier banking infrastructures.

How does a multi-sensor system decrease long-term licensing overhead?

Because the unit pipes two continuous ultra-HD video matrices down a single hardware IP node stream, most modern enterprise VMS systems (such as IDIS Solution Suite) count the device as one corporate address, cutting software platform costs in half.

Does the camera include an integrated illumination package?

The AV16956DN-28 relies on advanced NightView electronic low-light processing technology. Rather than utilizing standard active IR bulbs which draw power and attract local insects, it maintains crisp forensic color feeds at 0.18 Lux and clear monochromatic views at 0.018 Lux.

Can each optical sensor element be individually adjusted during staging?

Yes. The specialized interior design features a flexible 3-axis mounting gimbal (360° pan, 90° tilt, and 360° z-axis rotation), giving systems engineers complete control over positioning lenses in opposing orientations or focused corridor views.

Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
Official IDIS Stock
NDAA & TAA Certified
Aust-Wide Delivery

IDIS AV16956DN-28 16MP (2x8MP) MicroDome Duo IP Camera
