Hikvision DS-K1T344MBWX-E1 — 4.5" Face Recognition Access Control Terminal

Description

Face Recognition Terminal

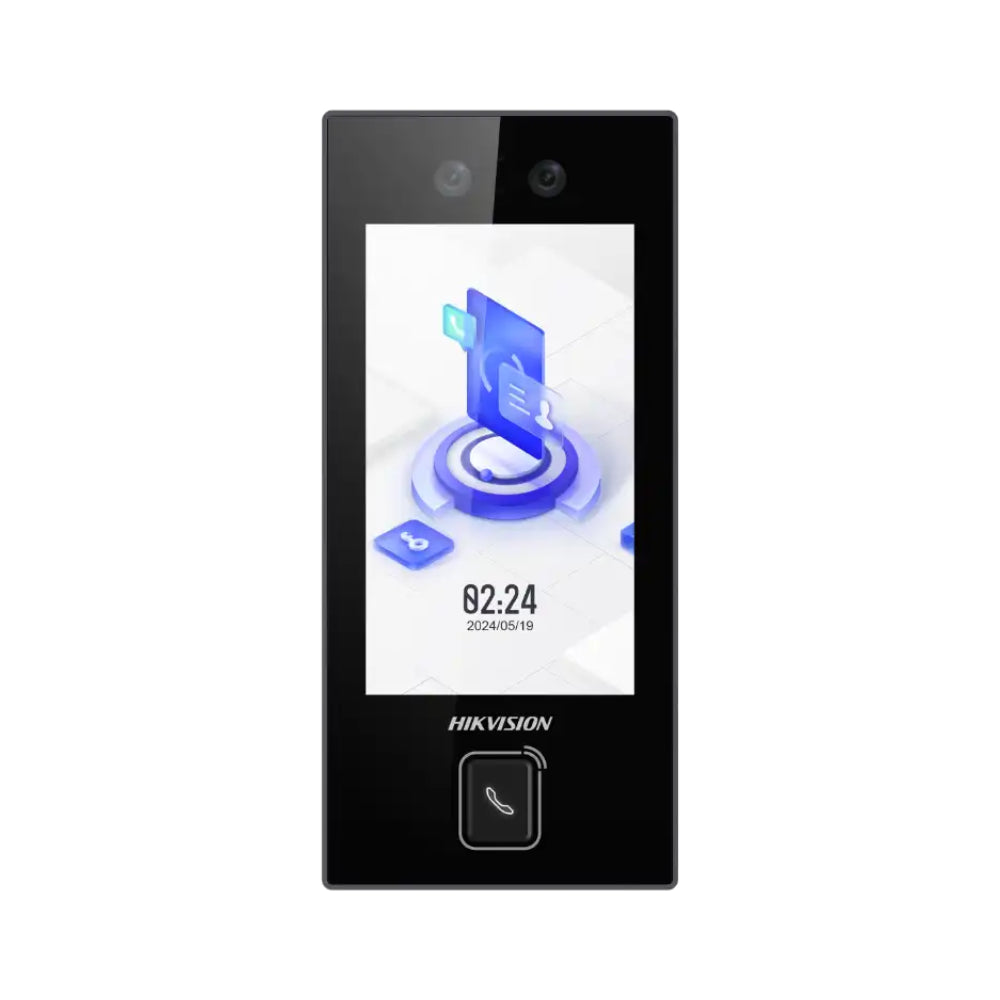

Hikvision DS-K1T344MBWX-E1 — 4.5" Face Recognition Access Terminal

The Hikvision DS-K1T344MBWX-E1 is a high-performance face recognition access terminal with a 4.5-inch touch LCD and dual 2MP wide-angle cameras. It recognises users in 0.2 seconds or less with 99%+ accuracy and supports face, M1 card and PIN authentication.

With capacity for 3,000 faces and 3,000 cards, two-way audio, PoE or 12VDC power, plus WiFi and Bluetooth, it is a flexible IP65-rated terminal for indoor or outdoor doors.

4.5" Touch & Dual Camera

4.5-inch touch LCD with dual 2MP wide-angle cameras for reliable face capture.

Fast Recognition

Recognition at 0.3–1.5 m in under 0.2 s per user with 99%+ accuracy.

Face, Card & PIN

Stores 3,000 faces and 3,000 M1 cards with multi-factor authentication.

PoE, WiFi & Bluetooth

PoE 802.3at or 12VDC power, plus WiFi and Bluetooth connectivity; IP65 housing.

Specifications
Model DS-K1T344MBWX-E1
Display 4.5" LCD touchscreen, 480 × 854
Cameras Dual 2MP wide-angle
Recognition 0.3–1.5 m, ≤ 0.2 s per user
Capacity 3,000 faces & 3,000 cards
Authentication Face, M1 card, PIN
Audio Two-way audio
Network Ethernet 10/100, WiFi, Bluetooth
Power PoE 802.3at or 12VDC
Interfaces RS-485, Wiegand, alarm I/O, USB
Protection IP65
Download DS-K1T344MBWX-E1 Datasheet (PDF) Download Quick Start Guide (PDF)
What authentication does it support?

It supports face recognition, M1 card and PIN code, storing up to 3,000 faces and 3,000 cards.

How is it powered?

It runs on PoE (IEEE 802.3at) or 12VDC, and can power a door lock.

Can it be installed outdoors?

Yes. The IP65-rated housing suits indoor and outdoor doors.

3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Deploy fast, accurate face entry control with the Hikvision DS-K1T344MBWX-E1 terminal, backed by a 3-year Australian warranty and local tech support.

Hikvision DS-K1T344MBWX-E1 — 4.5" Face Recognition Access Control Terminal

Product form

SKU: DS-K1T344MBWX-E1

Face Recognition Terminal Hikvision DS-K1T344MBWX-E1 — 4.5" Face Recognition Access Terminal The Hikvision DS-K1T344MBWX-E1 is a high-performance face recognition access... Read more

$419.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Face Recognition Terminal

    Hikvision DS-K1T344MBWX-E1 — 4.5" Face Recognition Access Terminal

    The Hikvision DS-K1T344MBWX-E1 is a high-performance face recognition access terminal with a 4.5-inch touch LCD and dual 2MP wide-angle cameras. It recognises users in 0.2 seconds or less with 99%+ accuracy and supports face, M1 card and PIN authentication.

    With capacity for 3,000 faces and 3,000 cards, two-way audio, PoE or 12VDC power, plus WiFi and Bluetooth, it is a flexible IP65-rated terminal for indoor or outdoor doors.

    4.5" Touch & Dual Camera

    4.5-inch touch LCD with dual 2MP wide-angle cameras for reliable face capture.

    Fast Recognition

    Recognition at 0.3–1.5 m in under 0.2 s per user with 99%+ accuracy.

    Face, Card & PIN

    Stores 3,000 faces and 3,000 M1 cards with multi-factor authentication.

    PoE, WiFi & Bluetooth

    PoE 802.3at or 12VDC power, plus WiFi and Bluetooth connectivity; IP65 housing.

    Specifications
    Model DS-K1T344MBWX-E1
    Display 4.5" LCD touchscreen, 480 × 854
    Cameras Dual 2MP wide-angle
    Recognition 0.3–1.5 m, ≤ 0.2 s per user
    Capacity 3,000 faces & 3,000 cards
    Authentication Face, M1 card, PIN
    Audio Two-way audio
    Network Ethernet 10/100, WiFi, Bluetooth
    Power PoE 802.3at or 12VDC
    Interfaces RS-485, Wiegand, alarm I/O, USB
    Protection IP65
    Download DS-K1T344MBWX-E1 Datasheet (PDF) Download Quick Start Guide (PDF)
    What authentication does it support?

    It supports face recognition, M1 card and PIN code, storing up to 3,000 faces and 3,000 cards.

    How is it powered?

    It runs on PoE (IEEE 802.3at) or 12VDC, and can power a door lock.

    Can it be installed outdoors?

    Yes. The IP65-rated housing suits indoor and outdoor doors.

    3-Year AU Warranty
    Fast AU-Wide Shipping
    AU Tech Support

    Deploy fast, accurate face entry control with the Hikvision DS-K1T344MBWX-E1 terminal, backed by a 3-year Australian warranty and local tech support.
