Pro Series Card Reader

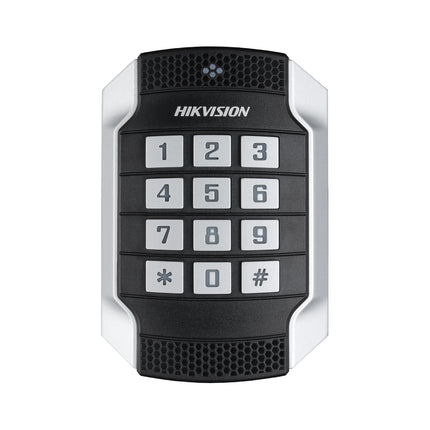

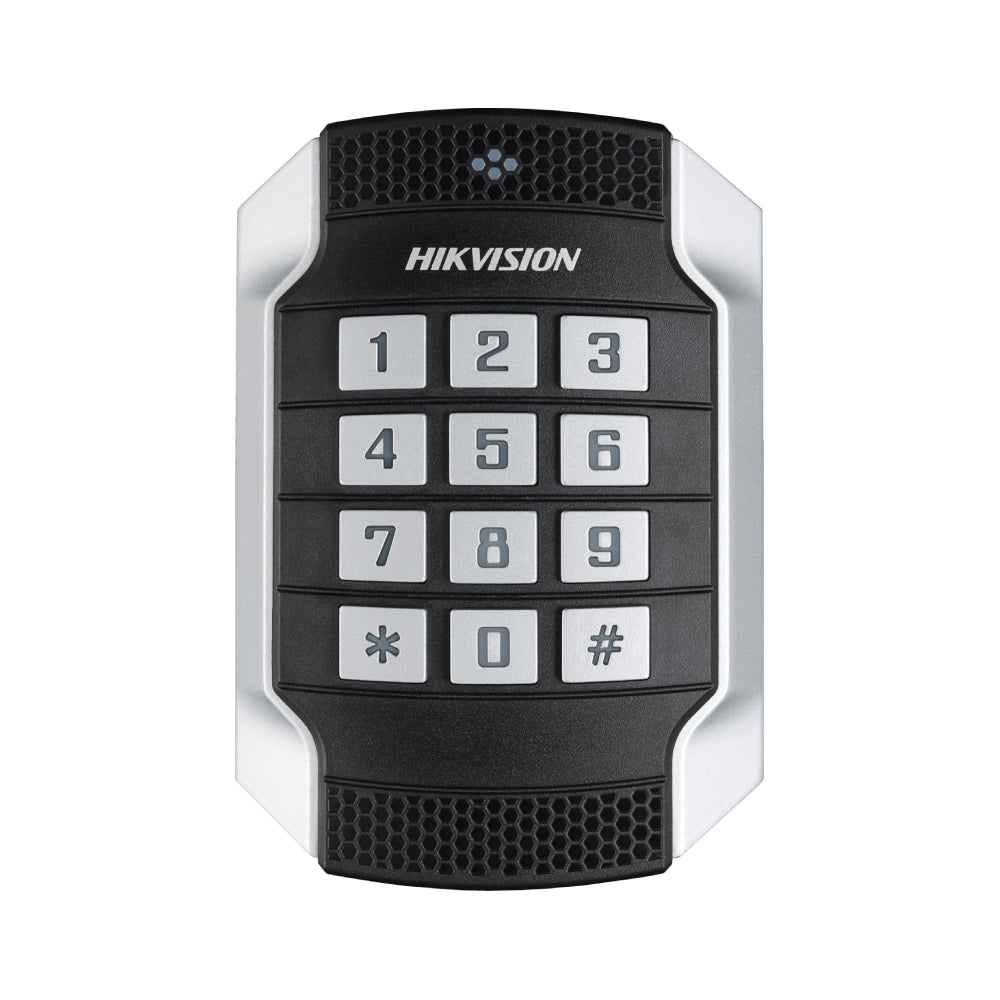

Hikvision DS-K1104MK — Vandal-Resistant Mifare PIN & Card Reader
The Hikvision DS-K1104MK (AXS-K1104MK) is a rugged Pro Series Mifare card reader with an integrated PIN keypad, built for secure access control in exposed and high-traffic environments. Its zinc-alloy metal shell carries IK10 vandal and IP65 weather ratings, making it ideal for external doors, gates and car parks.
Dual Wiegand and RS-485 interfaces let it pair with virtually any Hikvision Pro Series door controller, while the built-in audible beeper gives clear feedback on every read.
Mifare 1 + Keypad
Reads 13.56MHz Mifare 1 cards and fobs with a built-in PIN keypad for two-factor entry.
IK10 & IP65 Metal Shell
Zinc-alloy vandal-proof housing rated for outdoor and harsh-environment installs.
Wiegand & RS-485
Dual interfaces for flexible wiring to Hikvision Pro Series access controllers.
Audible Feedback
Built-in beeper confirms each successful card or PIN read.
Specifications
| Model |
DS-K1104MK (AXS-K1104MK) |
| Card Type |
Mifare 1, 13.56MHz |
| Keypad |
Yes, PIN entry |
| Interface |
Wiegand & RS-485 |
| Material |
Zinc-alloy metal shell |
| Protection |
IK10 vandal, IP65 weather |
| Feedback |
Built-in audible beeper |
Which controllers does it work with?It connects via Wiegand or RS-485 to Hikvision Pro Series door controllers such as the DS-K2601, DS-K2602 and DS-K2604.
Can it be used outdoors?Yes. The IK10 and IP65 rated zinc-alloy housing is suitable for external doors, gates and car parks.
Does it support PIN as well as cards?Yes. The built-in keypad allows PIN entry on its own or combined with a card for two-factor access.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Add the Hikvision DS-K1104MK to your access control project for a durable, weatherproof card-and-PIN reader backed by a 3-year Australian warranty and local tech support.
