Pro Series Controller

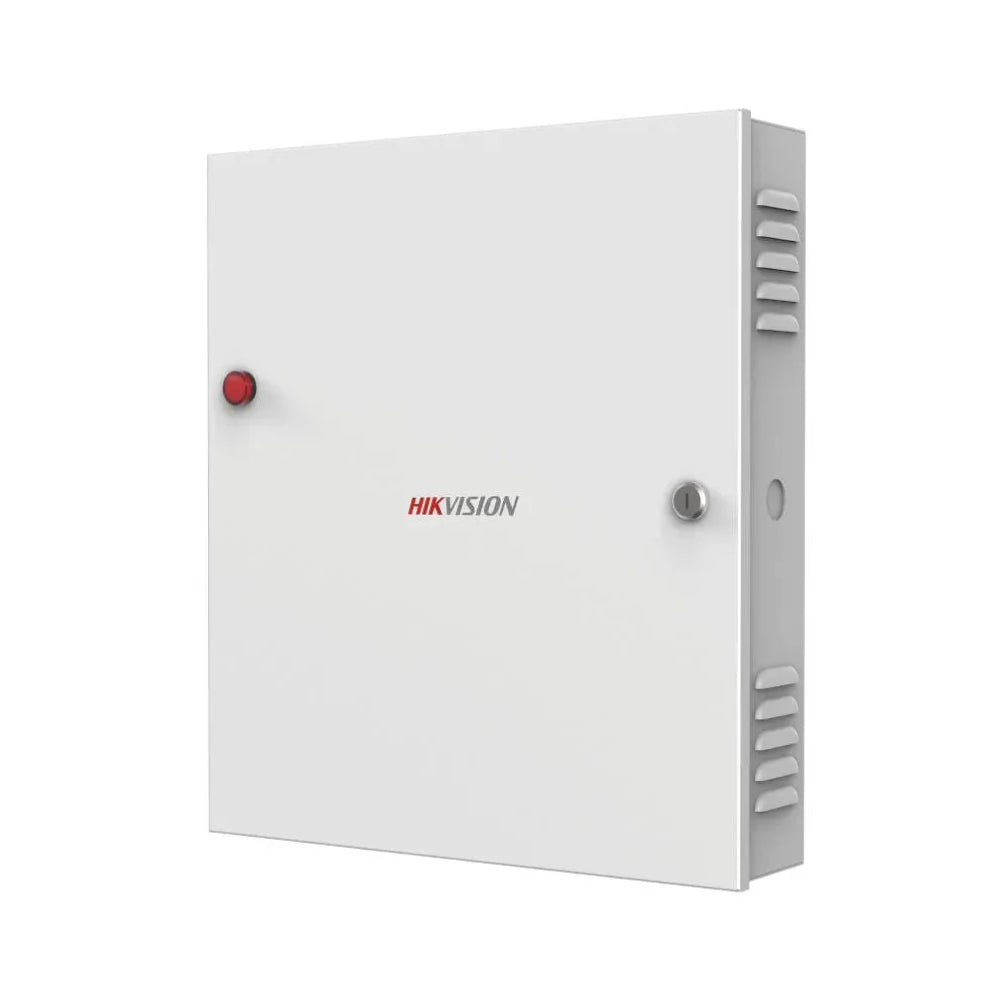

Hikvision AXS-K2604-G — 4-Door TCP/IP Access Controller
The Hikvision AXS-K2604-G is a Pro Series four-door access controller for larger or multi-entrance sites. It stores up to 100,000 cards and 300,000 events and communicates over TCP/IP, ISUP 5.0 and RS-485, with ISAPI and OSDP support for flexible integration.
Wiegand and RS-485 reader interfaces, alarm input/output and UL294 qualification make it a dependable backbone for commercial access control.
4-Door Control
Manages access for four doors with full reader, lock and alarm wiring.
100,000 Cards
Stores up to 100,000 cards and 300,000 event records on board.
TCP/IP & OSDP
Communicates via TCP/IP, ISUP 5.0 and RS-485 with ISAPI and OSDP support.
UL294 Qualified
Meets the UL294 access control standard with alarm I/O and battery backup support.
Specifications
| Model |
AXS-K2604-G (DS-K2604-G) |
| Doors |
4 |
| Storage |
100,000 cards / 300,000 events |
| Communication |
TCP/IP, ISUP 5.0, RS-485 |
| Protocols |
ISAPI, OSDP |
| Reader Interface |
RS-485 & Wiegand |
| Alarm |
Input/output with event upload |
| Standard |
UL294 qualified |
How many doors does it control?The AXS-K2604-G controls four doors, with Wiegand and RS-485 interfaces for connecting readers.
How does it connect to the network?It communicates over TCP/IP, ISUP 5.0 and RS-485, with ISAPI and OSDP support for integration.
Does it support battery backup?Yes. It supports battery access to keep the system running during power interruptions.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Scale up your access control with the four-door Hikvision AXS-K2604-G controller, backed by a 3-year Australian warranty and local tech support.
