Hikvision 16-Camera 8MP ColorVu 3.0 CCTV Kit — 16 × Active Deterrence Turrets + 16CH 8K NVR & 4TB

Description

Hikvision ColorVu 3.0 · 16 × 8MP Live-Guard · 16CH 8K NVR · 4TB Included 16 × 8MP ColorVu Kit

Hikvision 16 × 8MP ColorVu 3.0 Active Deterrence CCTV Kit with 16-Channel 8K NVR & 4TB

The Hikvision 16-Camera 8MP ColorVu 3.0 Kit is a ready-to-install active-deterrence bundle for larger Australian homes, estates, retail, warehouses and multi-building sites. It pairs sixteen DS-2CD2387G3-LIS2UY/SL 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard turrets with a DS-7616NI-M2/16P 16-channel 8K NVR and a pre-installed 4TB surveillance HDD. On AcuSense human/vehicle detection every camera can fire a white-light strobe, 110 dB siren and live two-way audio — stopping intruders instead of just recording them — while delivering true 24/7 colour to 0.0005 lux. All 16 PoE ports power each camera over a single Cat6 run.

Cameras
16 × 8MP ColorVu
Recorder
16CH 8K NVR · 16 PoE
Active Deterrence
Strobe + 110dB Siren
Colour Night
24/7 ColorVu · 0.0005 lux
Audio
2-Way · Mic + Speaker
Storage
4TB HDD Included

ColorVu 3.0 — True 24/7 Colour

A 1/1.8" sensor and F1.0 super-aperture deliver full-colour images down to 0.0005 lux. Smart Hybrid Light adds white light or IR (up to 30 m) so you capture clothing and number-plate colour all night, not grey IR.

Live-Guard Active Deterrence

On AcuSense human/vehicle detection each camera flashes a white strobe, sounds a 110 dB warning and lets you talk down live via Hik-Connect — turning intruders away before they reach the door.

16-Port PoE — Plug & Play

One Cat6 cable per camera carries power and video to the NVR's 16 built-in PoE ports — no separate power supplies, no extra switch, commissioning in minutes.

4TB Included + Room to Grow

Ships with a pre-installed 4TB surveillance HDD and a second free SATA bay (up to 32 TB total) for longer retention across all sixteen 4K channels.

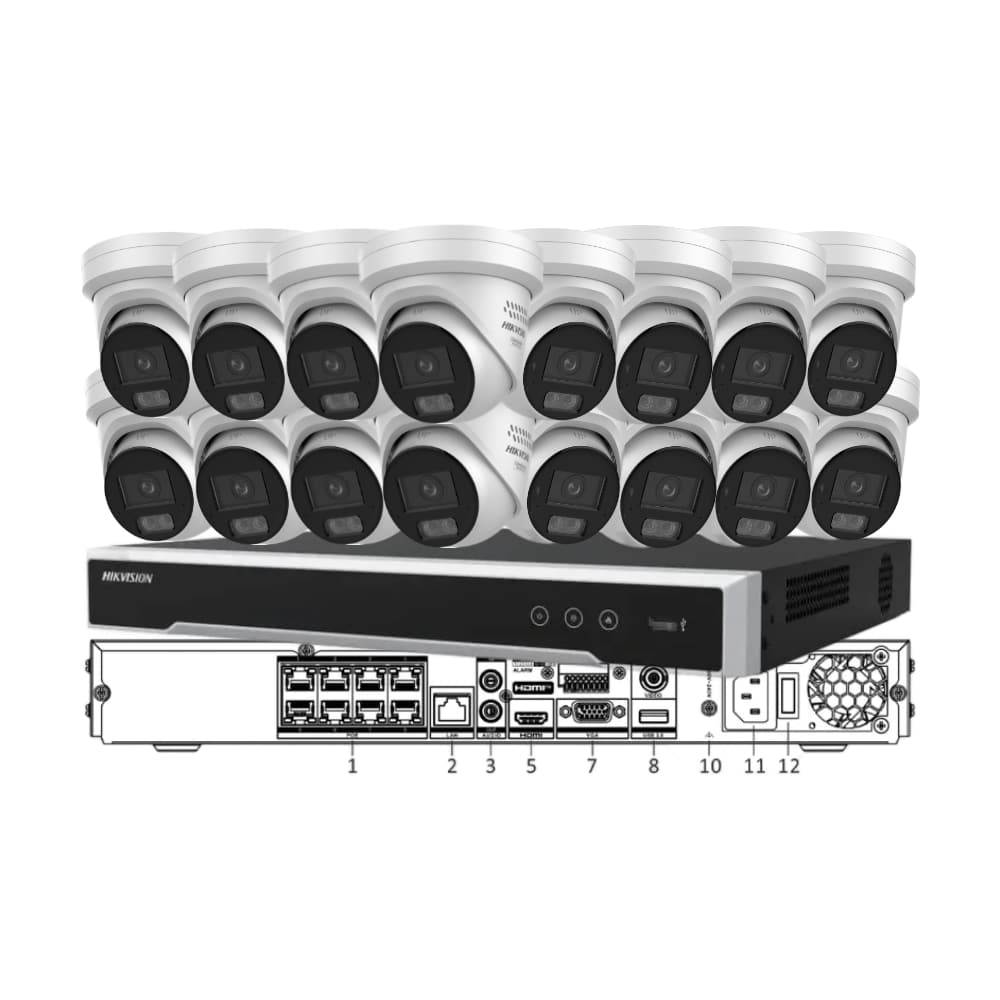

What's Included
16 × Cameras DS-2CD2387G3-LIS2UY/SL — 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard turret, 2.8 mm (108.8° FOV), white strobe + 110 dB speaker + two-way audio, F1.0 24/7 colour, AcuSense, IP67 + NEMA 4X. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder DS-7616NI-M2/16P — 16-channel 8K M-Series NVR with 16 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). Prefer to supply your own? Select the "Barebone — No HDD" option and add a drive to suit (up to 16 TB per bay).
Power 16 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty 3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Large homes & estates
Driveways, gates, fence lines and yards with active deterrence on every approach.
Retail & hospitality
Shopfloor, entries, car parks and rear lanes — strobe & siren after hours, talk-down by day.
Warehouses & yards
Docks, racking aisles, perimeters and equipment yards with full-colour plate capture.
Dealerships & car yards
Deter after-hours theft across open lots with visible strobe and audible warnings.
Schools & childcare
Entries, playgrounds and car parks with privacy masking, HTTPS access and live talk-down.
Body corporate & strata
Lobbies, basements, bin areas and perimeters across multiple buildings on one recorder.
Camera Specifications — DS-2CD2387G3-LIS2UY/SL
Camera Type 8MP 4K ColorVu 3.0 Smart Hybrid Light AcuSense Live-Guard Fixed Turret
Image Sensor 1/1.8" Progressive Scan CMOS · ColorVu 3.0
Max. Resolution 8MP · 3840 × 2160
Min. Illumination Colour 0.0005 lux @ F1.0 · 0 lux with white light
Lens Fixed 2.8 mm · F1.0 · 108.8° horizontal FOV
Supplement Light Smart Hybrid Light (white + IR) · up to 30 m · 3 modes
WDR 130 dB scene-adaptive
AI Functions AcuSense · human & vehicle classification · perimeter protection
Active Deterrence White-light strobe · built-in 110 dB speaker · two-way audio
Audio Built-in arrayed dual microphone + speaker
Compression H.265+ / H.265 / H.264+ / H.264
Power 12 VDC / PoE (IEEE 802.3at) · max 17 W
Ingress Protection IP67 · NEMA 4X anti-corrosion
Warranty (Australia) 3 years · CCTV Guru Australia
Recorder Specifications — DS-7616NI-M2/16P
Channels 16 IP channels · up to 32 MP input
Incoming Bandwidth 160 Mbps
PoE 16 × PoE ports (IEEE 802.3 af/at)
Storage 2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB pre-installed
Video Output 1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression H.265+ / H.265 / H.264+ / H.264
Remote / App Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
  • ›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
  • ›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
  • ›Deterrence zones: set AcuSense detection zones on the highest-risk approaches so the strobe and siren trigger on real human/vehicle events only.

Setup & Demo Videos — Hikvision

Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection

Downloads & Resources

DS-2CD2387G3-LIS2UY/SL Datasheet DS-7616NI-M2/16P Datasheet Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?
Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "Barebone — No HDD" if you'd rather supply your own drive.
What is Live-Guard active deterrence?
On AcuSense human/vehicle detection each camera flashes a white-light strobe, sounds a 110 dB warning and lets you open live two-way audio via Hik-Connect — actively turning intruders away.
Do these really see colour at night?
Yes — ColorVu 3.0 with an F1.0 super-aperture delivers full-colour images down to 0.0005 lux, with Smart Hybrid Light adding white light or IR as needed.
How are the cameras powered?
Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Can I fit a larger hard drive later?
Yes — the NVR has two SATA bays and supports up to 16 TB per bay (32 TB total) for longer retention across sixteen 4K channels.
Is this kit NDAA compliant?
No. Hikvision is not NDAA Section 889 compliant. If you need NDAA-compliant cameras for US federal or critical-infrastructure projects, contact our team about alternative brands.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
