Series 2 · NVR NEXT · WizSense + AcuPick · 32-Channel · 16 HP-PoE · 4-HDD · 1.5U

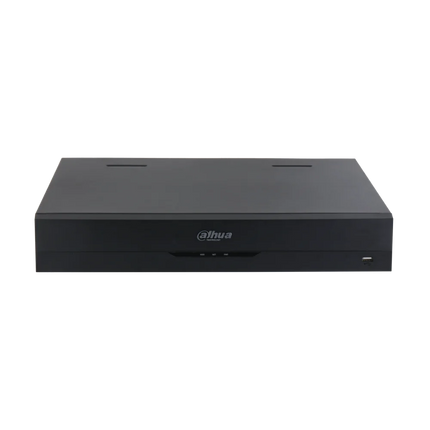

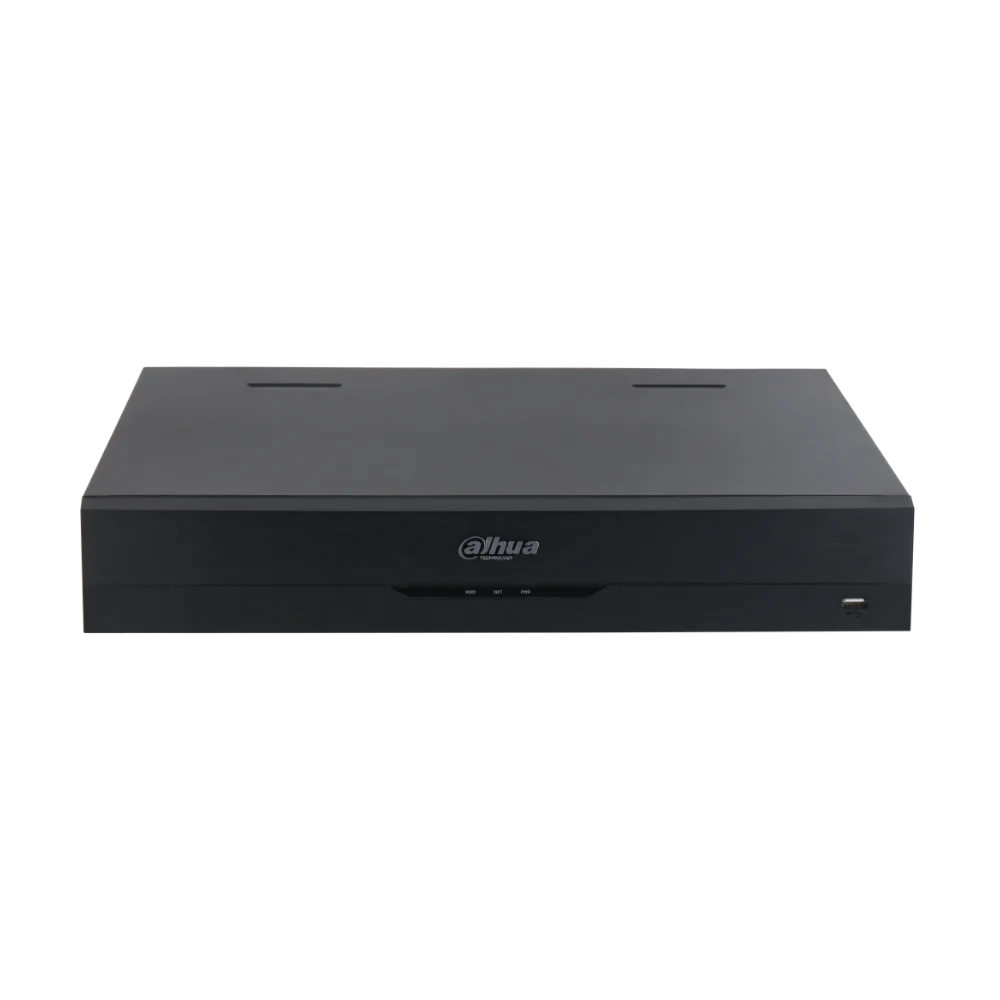

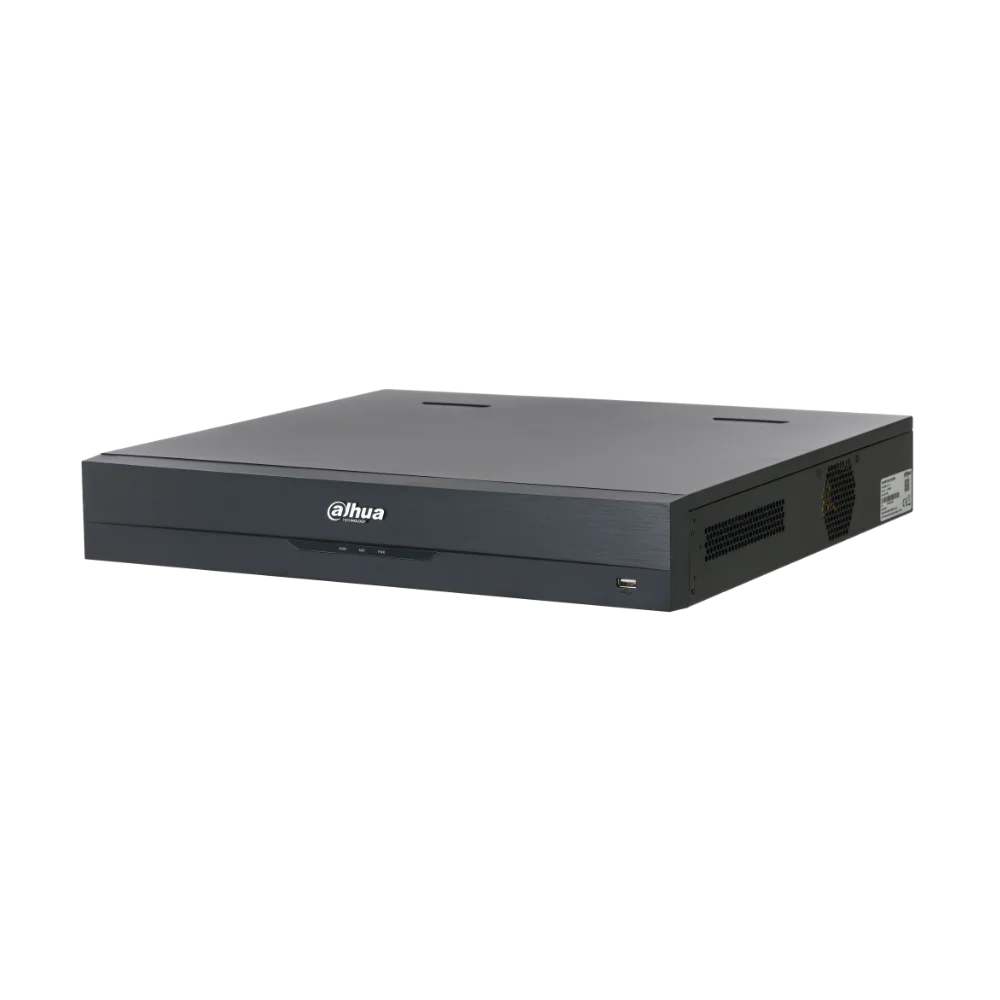

The Dahua DHI-NVR5432-16HP-AI/ANZ-S2 is a 32-channel, 1.5U WizSense network video recorder built for professional Australian IP CCTV systems. It combines the NVR NEXT interface, AcuPick search, 32 MP camera support, 448 Mbps incoming/recording/outgoing bandwidth with AI disabled, four SATA bays and 8K HDMI output.
Sixteen integrated IEEE 802.3af/at PoE ports provide a 200 W total PoE budget, with up to 25.5 W available per port; ports 1–8 also support Dahua ePoE. The remaining 16 IP channels can be connected through the network using an external PoE switch. This is the official Australia/New Zealand AI/ANZ-S2 model, supplied with Australian stock, local support and CCTV Guru's 3-year warranty.
NVR NEXT — the redesigned Dahua NVR interface
Interface
NVR NEXT modular GUI
AcuPick
Native · 4-ch by NVR + all-camera
NVR NEXT modular GUI
Dahua's NVR NEXT interface uses a modular design to simplify navigation and streamline live view, playback, search and AI workflows for small and medium-sized business installations.
AcuPick native from day one
No firmware upgrade required — AcuPick ships as a baseline feature on the S2 platform. Click any person or vehicle in recorded video and the NVR scans up to 4 channels of NVR-side AcuPick + all-channel camera-side AcuPick for matches.
ONVIF 25.06 with Profile M
Latest ONVIF version support including Profile M — the new metadata profile that lets third-party VMS platforms consume AI events (people-count, ANPR, perimeter triggers) natively without proprietary integration work.
16 High-Power PoE+ ports + 4-HDD storage
PoE
16 × HP · 200 W · 1–8 ePoE 800 m
Storage
4 SATA · up to 80 TB on-board
200 W High-Power PoE budget
The "HP" in the model name — 33% more PoE headroom than the older 5432-16P's 150 W. 25.5 W per port maximum, which comfortably runs 16 IR-heavy bullets, active-deterrence turrets or mini PTZs without the usual per-port derating.
ePoE support on ports 1–8
Ports 1–8 support Dahua ePoE for compatible long-distance camera links. Actual cable distance and data rate depend on the camera, cable quality and installation conditions; ports 9–16 support standard IEEE 802.3af/at PoE.
4 SATA bays · up to 80 TB
Four SATA interfaces support up to 20 TB per drive, for up to 80 TB of installed capacity. Retention varies with camera resolution, frame rate, bitrate, compression, scene activity and recording schedule; ask CCTV Guru for a project-specific storage calculation.
iSCSI + eSATA expansion
Native iSCSI for network-attached storage plus one eSATA port for the optional Dahua ESS1504C 4-bay eSATA extension cabinet. Scale storage well beyond 80 TB without rebuilding the recorder.
AcuPick + face recognition — one-click investigation
Face Database
20 DBs · 30,000 images · 3.75 GB
Face Recognition
24 ch @ 24 fps image stream
Face Recognition at scale
24 channels of camera-side face detection feeding NVR-side recognition at 24 face snapshots/sec (up from 16 fps on the older 5-Series), or 4 channels of full FD+FR by the recorder at 24 fps. Twenty face databases hold up to 30,000 images (50% larger than the previous 5-Series).
Perimeter Protection (8 ch by NVR)
8 NVR-side channels of tripwire and intrusion analytics — double the older 5-Series capacity — with 10 IVS rules per channel and human/vehicle secondary filtering. Every camera adds all-channel perimeter via camera-side processing.
SMD Plus on 16 channels by NVR
Smart Motion Detection Plus runs a deep-learning second pass on 16 NVR-side channels — half the entire licence — classifying targets as person or vehicle so only real events make it to your phone or VMS.
Video Metadata by NVR (4 ch · 22 attributes)
NVR-side metadata extraction is available on four channels, with 22 searchable human and vehicle attributes including clothing colour, hat, bag, age, gender, vehicle model, colour and licence-plate details.
ANPR by camera (all 32 channels)
Pair with Dahua ANPR cameras for full 32-channel licence-plate recognition feeding a 20,000-plate database with blocklist / allowlist control. Ideal for carparks, fleet yards, gate management and multi-site ANPR.
AcuPick + attribute search
AcuPick helps locate matching people or vehicles in recorded video, while metadata and face/plate databases support more structured investigations. Available channels depend on whether analytics run on the recorder or compatible cameras.
PPE Detection + Smart Object & Sound — safety-compliance AI
PPE Detection (camera-side)
Detect safety attributes — helmets, safety vests, face masks, glasses, top/bottom colour — and trigger compliance or non-compliance alarms based on the site's requirements. Essential for construction, mining, warehousing, food-processing and any site with mandated PPE rules.
Smart Object Detection
Supports compatible Dahua cameras with smart object detection. Available object rules and alarm actions depend on the connected camera model and its firmware.
Smart Sound Detection
Supports smart sound detection from compatible Dahua cameras. Supported sound events and alarm actions depend on the camera model, microphone and firmware.
Stereo analysis + crowd distribution
Pair with stereo cameras to detect people falling, climbing fences or walking into restricted zones. Crowd distribution maps footfall density in real time — useful for shopping-centre queue management and event venues.
People counting + heat map
Camera-side people counting for retail and site occupancy; heat map visualises dwell zones as colour overlays. Export data for BI dashboards or Dahua DSS Pro reporting.
Vehicle density
Real-time vehicle-density metrics for carpark utilisation, gate throughput and traffic flow. Combine with ANPR for full carpark automation with entry/exit LPR + occupancy monitoring.
See AcuPick in action — Dahua Australia & New Zealand official videos
Dahua 5-Series AI Recorder — AcuPick Function (Dahua ANZ official)
AcuPick — industry-leading video search (Dahua ANZ official)
32 MP recording · 448 Mbps bandwidth · 8K HDMI
Up to 32 MP per channel
True 8K-class camera input — records 32 MP, 24 MP, 16 MP, 12 MP, 8 MP (4K), 6 MP, 5 MP or 4 MP IP cameras from Dahua or any ONVIF brand. All 32 channels share the 448 Mbps recording bandwidth.
448 Mbps recording bandwidth
17% higher than the older 5432-16P (384 Mbps). Comfortable for 32 cameras at 6-8 MP each on H.265+, or a mix of 32 MP flagship cameras and 4 MP sub-stream feeds.
8K HDMI output
7680 × 4320 native output on HDMI — future-proof for 8K control-room monitors and video walls. Second HDMI + dual VGA drive independent secondary displays with heterogeneous or simultaneous routing.
40-channel 1080p decoding
Decode 40 × 1080p tiles simultaneously (up from 32 on the older 5432-16P) — extra headroom for spot monitors and secondary displays.
36-channel split on main monitor
Main monitor supports 1 / 4 / 8 / 9 / 16 / 25 / 36-split layouts (sub monitor up to 16). Drag-and-drop channel reorder with instant playback from thumbnail.
Smart H.265+ for half the storage
AI-tuned H.265+ encoding cuts bitrate on static background pixels while preserving detail on moving targets — roughly half the storage and bandwidth of standard H.264.
Setup overview for installers
1. Rack & power up
Fit rack ears (optional Dahua DHI-RailBracket60/LShaped) in a standard 19-inch cabinet, insert up to four surveillance HDDs, connect the kettle-cord power, gigabit uplink, and mouse/monitor via HDMI.
2. First-boot wizard
Use the first-boot wizard to create a secure administrator password and configure region, time zone, date/time, network settings and recording basics. Confirm Australian time zone and daylight-saving settings during commissioning.
3. Plug in cameras (PoE ports)
Connect up to 16 compatible cameras directly to the integrated PoE ports. Add further Dahua or supported third-party cameras through the network using ONVIF or the listed manufacturer protocols.
4. Enable SMD Plus + Perimeter
In the AI menu, enable SMD Plus on the channels you want deep-learning motion filtering. Draw tripwires or intrusion boxes for perimeter protection — 10 IVS rules per channel available.
5. Register faces + plates
Import face images and licence plates via USB or web GUI. Enable Face Recognition on 24 channels (image-stream) or 4 channels (video-stream), set alarm actions.
6. Connect DMSS mobile app
Install DMSS, sign in to an account, confirm P2P is enabled and online on the recorder, then scan the device QR code. From 15 January 2026, Dahua requires Account Mode for adding new devices through P2P.
Compare the closest Dahua 32-channel NVR siblings
Choose this 16HP S2 model when you want the newest 32-channel platform with 16 built-in PoE ports and a 200 W PoE budget. Choose the no-PoE S2 sibling when all cameras will connect through external switches, or the earlier 16P model where project pricing matters more than the S2 feature set.
Dahua 32-Channel NVR Comparison
| Model |
DHI-NVR5432-16HP-AI/ANZ-S2 |
DHI-NVR5432-AI/ANZ-S2 |
DHI-NVR5432-16P-AI/ANZ |
| Best for |
Current S2 system with direct PoE |
Externally switched network |
Previous-generation direct PoE |
| IP channels |
32 |
32 |
32 |
| Built-in PoE |
16 ports · 200 W |
None |
16 ports |
| HDD bays |
4 × SATA · up to 20 TB each |
4 × SATA · up to 20 TB each |
4 × SATA |
| Interface |
NVR NEXT |
NVR NEXT |
Classic Dahua interface |
| Shop sibling |
This model |
View no-PoE S2 |
View earlier 16P |
Full Specifications
| Model |
DHI-NVR5432-16HP-AI/ANZ-S2 |
| Series |
WizSense · NVR5000-AI/ANZ-S2 (Australia / NZ market · Series 2 · 2026) |
| Form factor |
1.5U · 4-HDD · rack or desktop · 16 built-in HP-PoE+ ports |
| IP channels |
32 · up to 32 MP per channel |
| Supported resolutions |
32 MP · 24 MP · 16 MP · 12 MP · 8 MP · 6 MP · 5 MP · 4 MP · 3 MP · 1080p · 960p · 720p · D1 · CIF · QCIF |
| Bandwidth (AI off) |
448 Mbps incoming / 448 Mbps record / 448 Mbps outgoing |
| Bandwidth (AI on) |
200 Mbps incoming / 200 Mbps record / 200 Mbps outgoing |
| Decoding (AI off) |
2 × 32 MP @ 25 fps · 5 × 16 MP @ 30 fps · 10 × 8 MP @ 30 fps · 20 × 4 MP @ 30 fps · 32 × 1080p @ 30 fps |
| Decoding (AI on) |
1 × 32 MP @ 25 fps · 4 × 16 MP @ 30 fps · 8 × 8 MP @ 30 fps · 16 × 4 MP @ 30 fps · 32 × 1080p @ 30 fps |
| Video compression |
Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG |
| AI engine |
WizSense S2 (industrial AI chip, deep-learning) · AcuPick native · NVR NEXT GUI |
| AcuPick |
4 channels by NVR · all channels by camera (32 targets/sec) |
| Face Detection (NVR) |
4 channels · up to 12 face snapshots/sec each |
| Face Recognition (NVR) |
24 ch FD-by-camera + FR-by-recorder @ 24 fps · or 4 ch FD+FR by recorder @ 24 fps |
| Face Database |
20 databases · 30,000 images · 3.75 GB |
| Perimeter Protection |
8 channels by NVR · all channels by camera · 10 IVS rules per channel |
| SMD Plus |
16 channels by NVR · all channels by camera (64 targets/sec) |
| Video Metadata |
4 channels by NVR (22 attributes) · all channels by camera |
| ANPR (by camera) |
All channels · 20,000-plate database · blocklist / allowlist |
| PPE Detection (by camera) |
Helmets · safety vests · face masks · glasses · compliance alarms |
| Smart Object / Sound Detection |
Camera-side · abandoned object · gunshot / glass-break / scream |

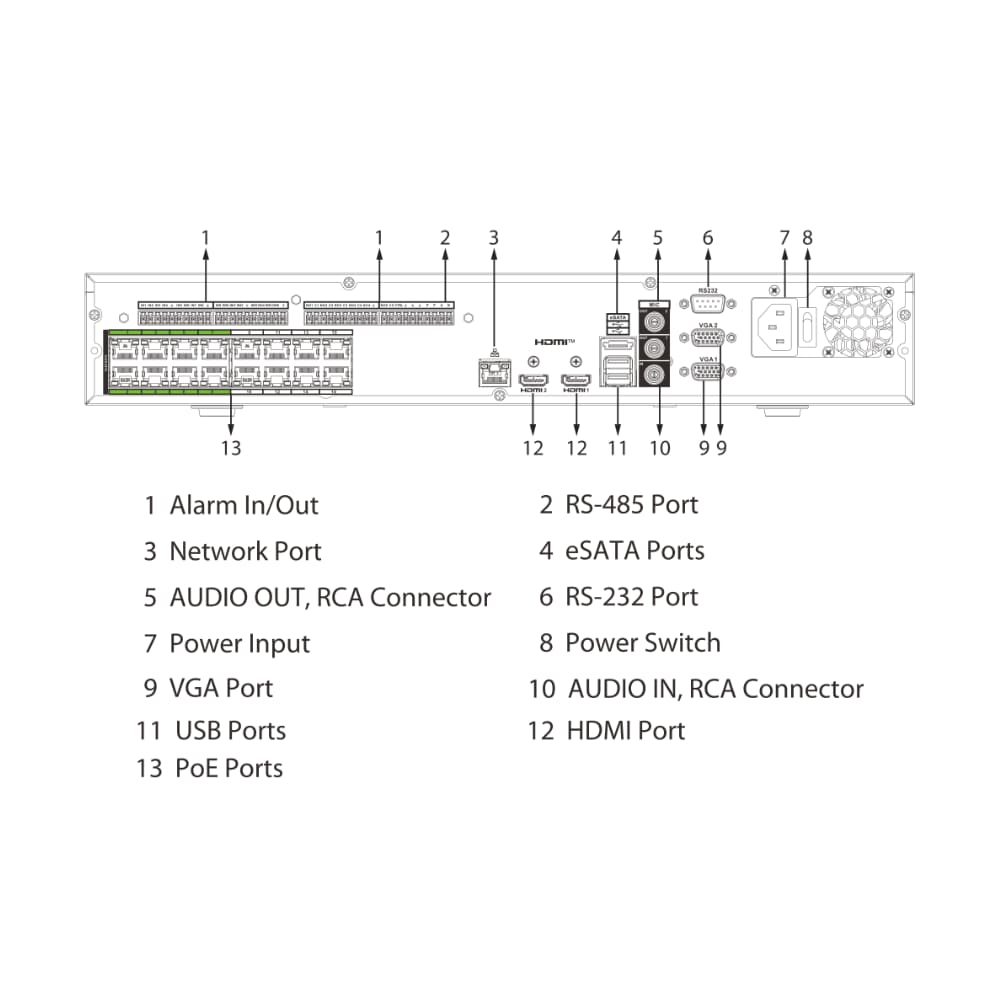

| N+M cluster · iSCSI · eSATA |
Yes / Yes / Yes |
| HDD bays |
4 × SATA · up to 20 TB per drive (~80 TB max) |

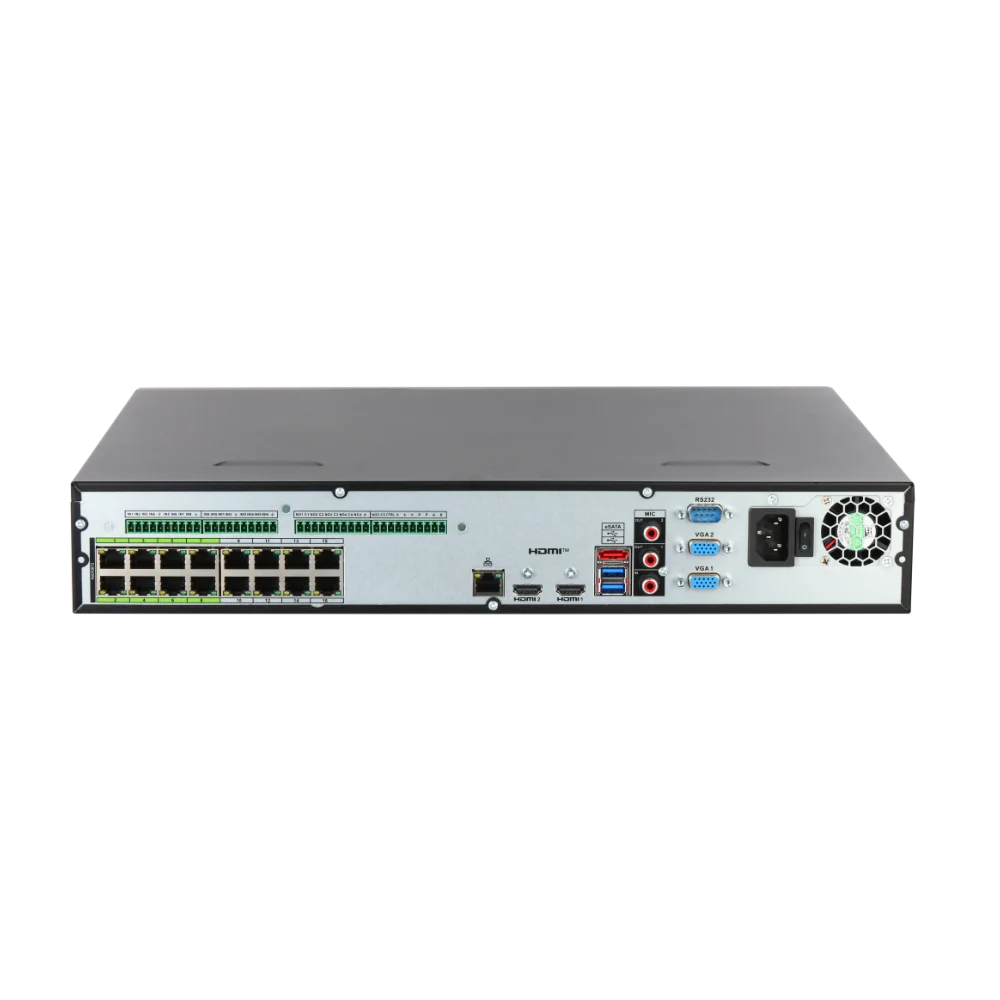

| Video output |
2 × HDMI + 2 × VGA · HDMI up to 8K (7680 × 4320) · VGA 1080p |
| Multi-screen display |
Main: 1/4/8/9/16/25/36 · Sub: 1/4/8/9/16 |
| Audio I/O |
1 × RCA in · 2 × RCA out |
| Alarm I/O |
16 × alarm in · 6 × alarm out (1 × 12 V 1 A power output) |
| USB |
3 ports: 1 × front USB 2.0 + 2 × rear USB 3.0 |
| Network port |
1 × RJ-45 Gigabit Ethernet (10 / 100 / 1000 Mbps) |
| PoE (HP — High Power) |
16 × ports · 10/100 Mbps · IEEE 802.3af/at · 200 W total · 25.5 W per port max · ports 1–8 support ePoE |
| RS-232 / RS-485 |
1 / 1 |
| ONVIF |
25.06 · Profile T · Profile S · Profile G · Profile M (metadata) · CGI · SDK |
| Third-party camera support |
ONVIF · Panasonic · Sony · Axis · Arecont · Pelco · Canon · Hanwha |
| Mobile app |
DMSS (iOS / Android) |
| Optional accessories |
DHI-RailBracket60/LShaped rack rails · ESS1504C 4-bay eSATA cabinet · DHI-ARB1606 alarm box |
| Power supply |
100 – 240 VAC · 50 / 60 Hz |
| Power consumption |
< 13 W NVR-side (without HDD) · PoE total 200 W |
| Operating temperature |
−10 °C to +55 °C |
| Dimensions |
440 × 415.6 × 76 mm (1.5U) |
| Net weight |
4.56 kg |
| Certifications |
CE-EMC · CE-LVD |
| Warranty |
3 years (CCTV Guru Australia) |
Downloads & official Dahua documentation
Official Dahua documents sourced from Dahua Technology and CCTV Guru's document library. All PDFs open in a new tab.
Frequently asked questions
How many cameras can the DHI-NVR5432-16HP-AI/ANZ-S2 record?
It supports 32 IP-camera channels. Sixteen cameras can connect directly to the built-in PoE ports; the remaining channels connect through the LAN using an external PoE switch.
What does 16HP mean?
It identifies the 16-port high-power PoE version. The recorder provides a 200 W total PoE budget, up to 25.5 W per port, with IEEE 802.3af/at support.
How much storage does it support?
Four SATA bays support up to 20 TB per drive, for up to 80 TB installed. Usable retention depends on bitrate, resolution, frame rate, scene activity and recording schedule.
Does it support AcuPick?
Yes. AcuPick is supported on four channels using recorder-side AI and on all channels when paired with compatible AcuPick cameras.
Can it display 8K video?
Yes. Its HDMI outputs support up to 7680 × 4320. The connected display, cable and selected output mode must also support 8K.
Can I use third-party IP cameras?
Yes. The datasheet lists ONVIF 25.06 Profiles T, S, G and M plus Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha support. Feature availability varies by camera.
How do I add it to DMSS?
Enable P2P on the NVR, confirm it shows online, sign in to DMSS Account Mode and scan the recorder's QR code. New P2P additions require a DMSS account from 15 January 2026.
Are HDDs included?
The base recorder is normally supplied without HDDs unless the selected product option states otherwise. Use surveillance-grade HDDs and ask for a storage calculation if retention is critical.
