Most door stations are chosen on looks. The IP Force is chosen because the site is hostile. Cast aluminium, security screws, an optional tamper switch and a temperature range that spans -40 °C to +60 °C mean it keeps working through Australian summers, coastal salt and freezer rooms alike — and it does it while streaming ONVIF video into your existing surveillance system.
Built for Punishment
Robust aluminium casting rated IP69K for high-pressure, high-temperature wash-down and IK10 against impact. Fit it where a plastic intercom would last a week.
Wide-Angle HD Camera with Night Vision
1280 x 960 HD sensor with a 124° horizontal by 90° vertical field of view and integrated infrared illumination, so faces are captured day or night, close to the panel or standing back.
Heard Over the Noise
Two built-in microphones and a 10 W speaker deliver 94 dB at one metre, with full-duplex echo cancellation and adaptive volume control for loud, open environments.
Open Standards, No Lock-In
SIP 2.0 signalling, ONVIF Profile S video, 802.1x, HTTPS and RTSP mean the IP Force drops into third-party PBX, VMS and access control systems without proprietary middleware.

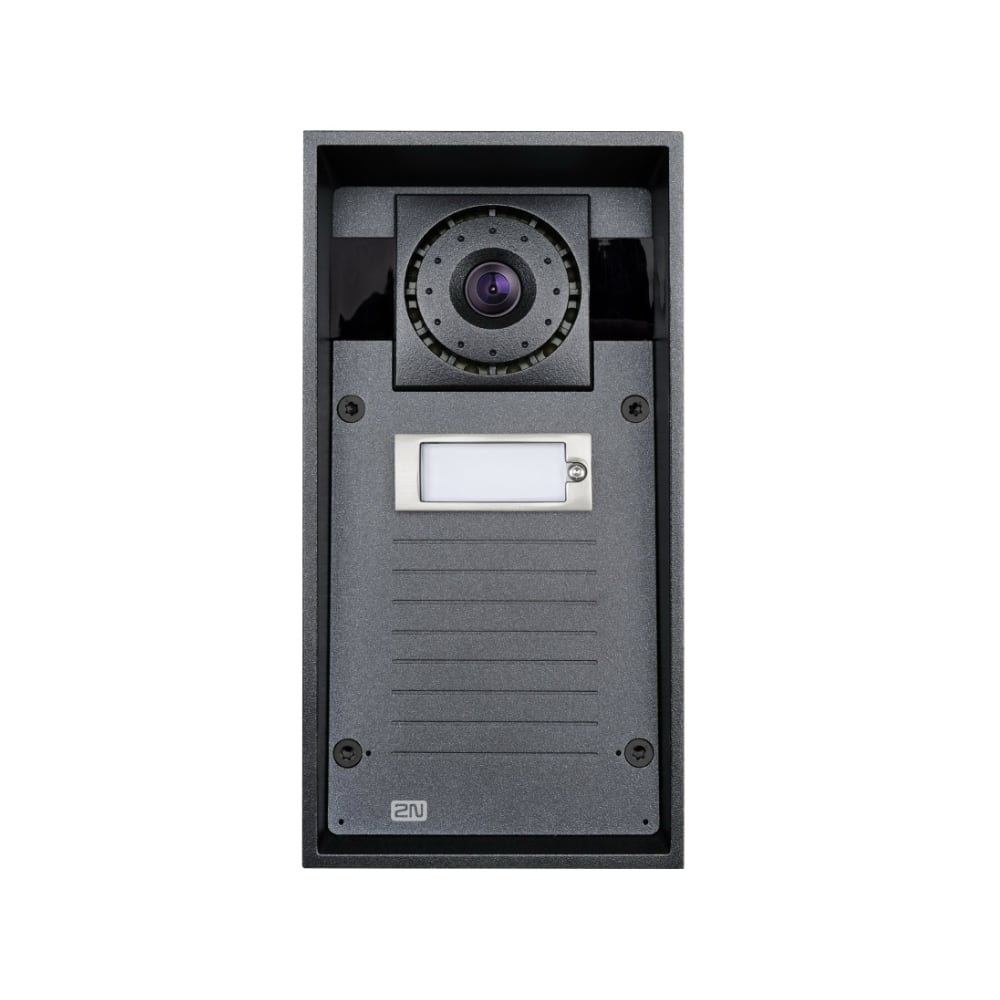

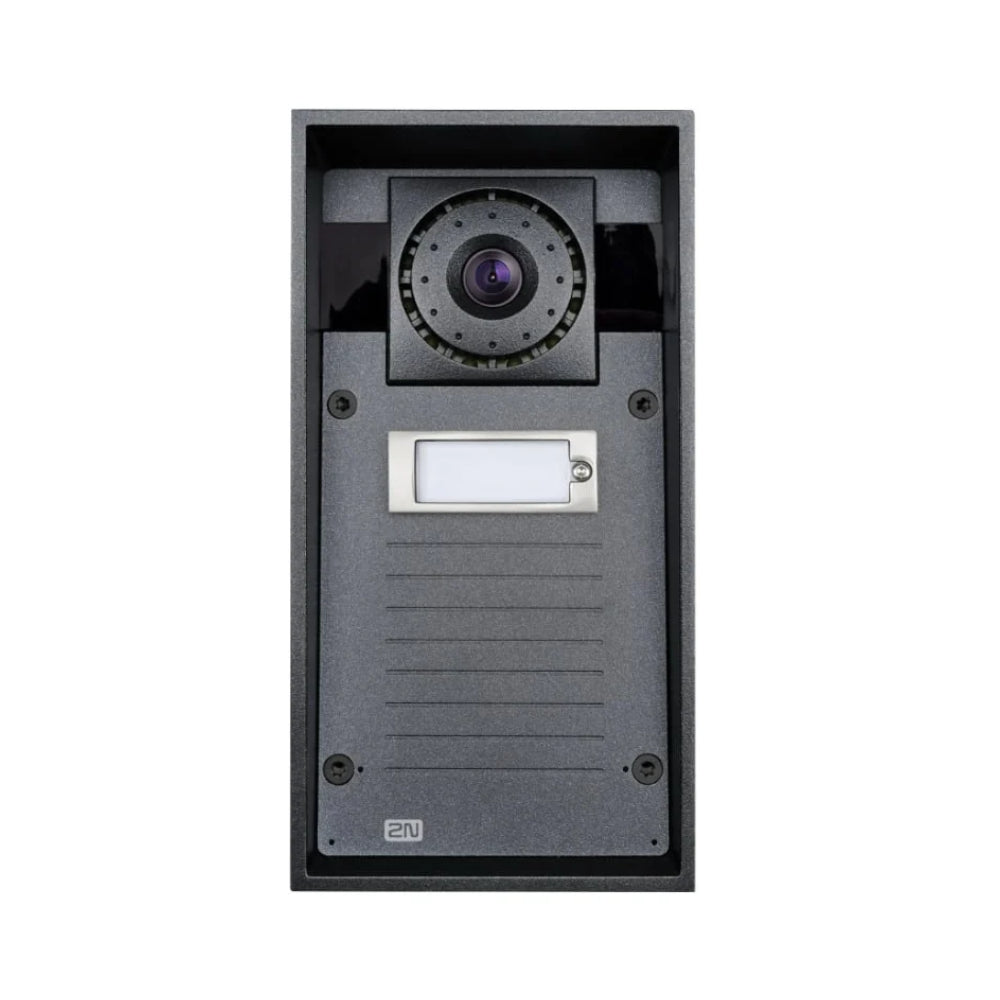

How many call buttons does 01337-001 have?One. This variant is the 1-button model with the HD camera fitted. 2N also builds the IP Force with 2 or 4 buttons, and with an optional numeric keypad, if you need more destinations.
Can I power it over a single network cable?Yes. The IP Force accepts IEEE 802.3af PoE (Class 0, up to 12.95 W), so one Cat-5e or better run carries both data and power. A 12 V DC / 2 A supply is the alternative if you have no PoE switch.
Will it work with my existing phone system?It speaks standard SIP 2.0 (RFC 3261), so it registers to virtually any IP PBX, hosted SIP service or 2N answering unit. It can also run peer-to-peer without a server for simple door-to-handset setups.
Can it release the door strike or gate?Yes. There is a passive relay output with NC/NO contacts rated to 30 V, plus an active switch output supplying 9 to 13 V DC at up to 700 mA for a lock or gate controller.
How tough is it really?The casting is rated IP69K — the highest ingress protection tier, covering high-pressure hot-water wash-down — and IK10 for impact. Security screws and an optional tamper switch are available for exposed installations.
Can I view the camera in my VMS?Yes. The IP Force supports ONVIF and RTSP streaming with H.264 and MJPEG, so the door camera can be recorded and viewed alongside your other cameras.
Does it see in the dark?Yes. Integrated infrared illumination provides night vision, and the 124° horizontal field of view captures visitors even when they stand off to the side of the panel.
Does this model include an RFID card reader?No. 01337-001 is the 1-button HD camera model. If you need card or fob entry, choose one of the “card reader ready” IP Force variants and add the matching reader module.
Can it call a mobile phone?Yes. With the 2N Mobile Video cloud service the IP Force can place video calls to smartphones and tablets, so the door can be answered from anywhere.
