Ubiquiti UniFi · NDAA & TAA COMPLIANT
High-Performance Multi-Gigabit Switching for Modern Infrastructure

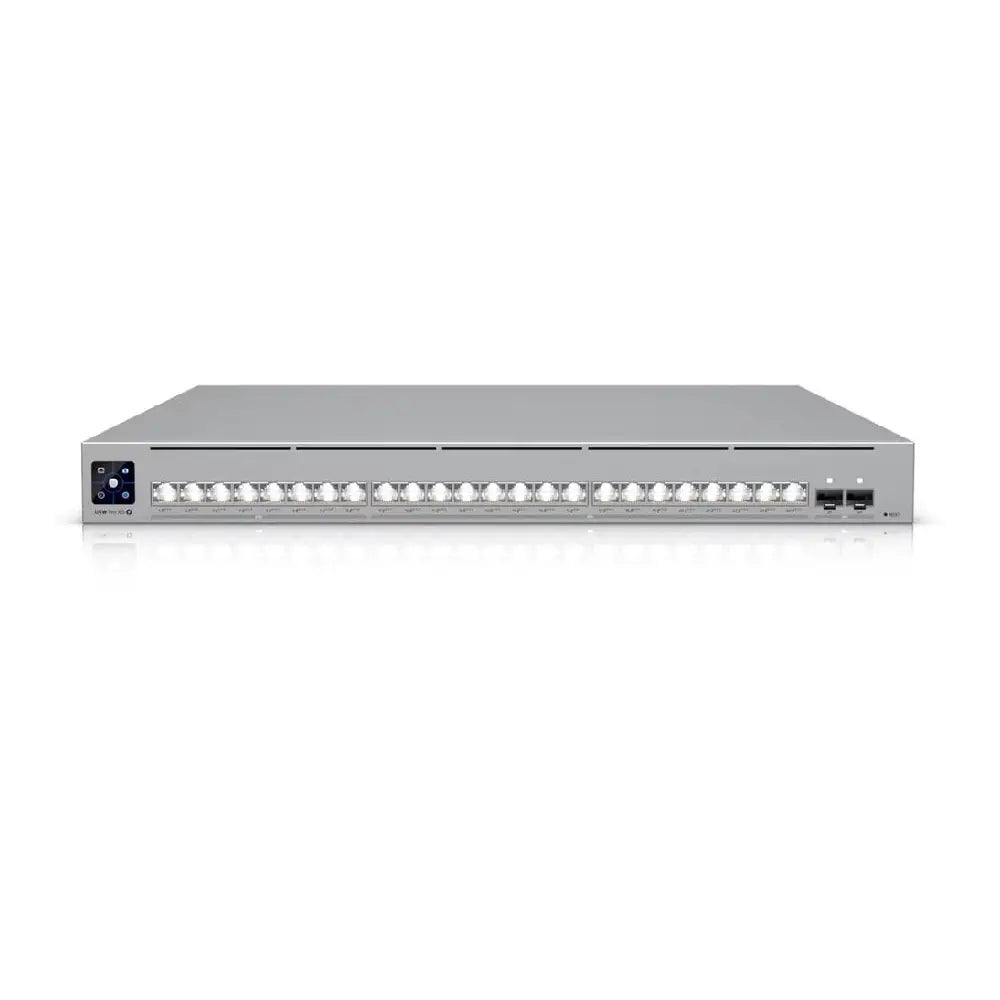

Introducing the Ubiquiti USW-Pro-XG-24, a professional-grade 24-port Layer 3 enterprise switch engineered to satisfy the rigorous demands of high-density data centers, modern campus environments, and high-throughput core networks. Delivering unmatched core routing performance, flexible high-speed connectivity, and intelligent port illumination, this platform provides the foundational stability and speed required by enterprise architectures.
Switching Capacity
460 Gbps Total
Port Density
16x 10GbE & 8x 2.5GbE
Uplink Capability
Dual 25G SFP28
Management
Layer 3 & Etherlighting
Advanced Core Routing & Intelligent Management
Engineered for seamless integration into the UniFi ecosystem, the USW-Pro-XG-24 integrates advanced Layer 3 routing protocols including static routing, inter-VLAN routing, and DHCP server/relay capabilities. Featuring innovative Etherlighting technology, ports dynamically illuminate to offer instant visual feedback on port locations, speed/link status, and native VLAN configurations directly from the UniFi Network controller interface.
Next-Gen Multi-Gigabit Connectivity
Equipped with 16 multi-speed 10 GbE RJ45 ports and 8 multi-speed 2.5 GbE ports, this switch eliminates network bottlenecks, allowing smooth connections for next-generation Wi-Fi 7 access points, local NAS storage arrays, and high-performance client workstations.
Carrier-Grade Reliability & Redundancy

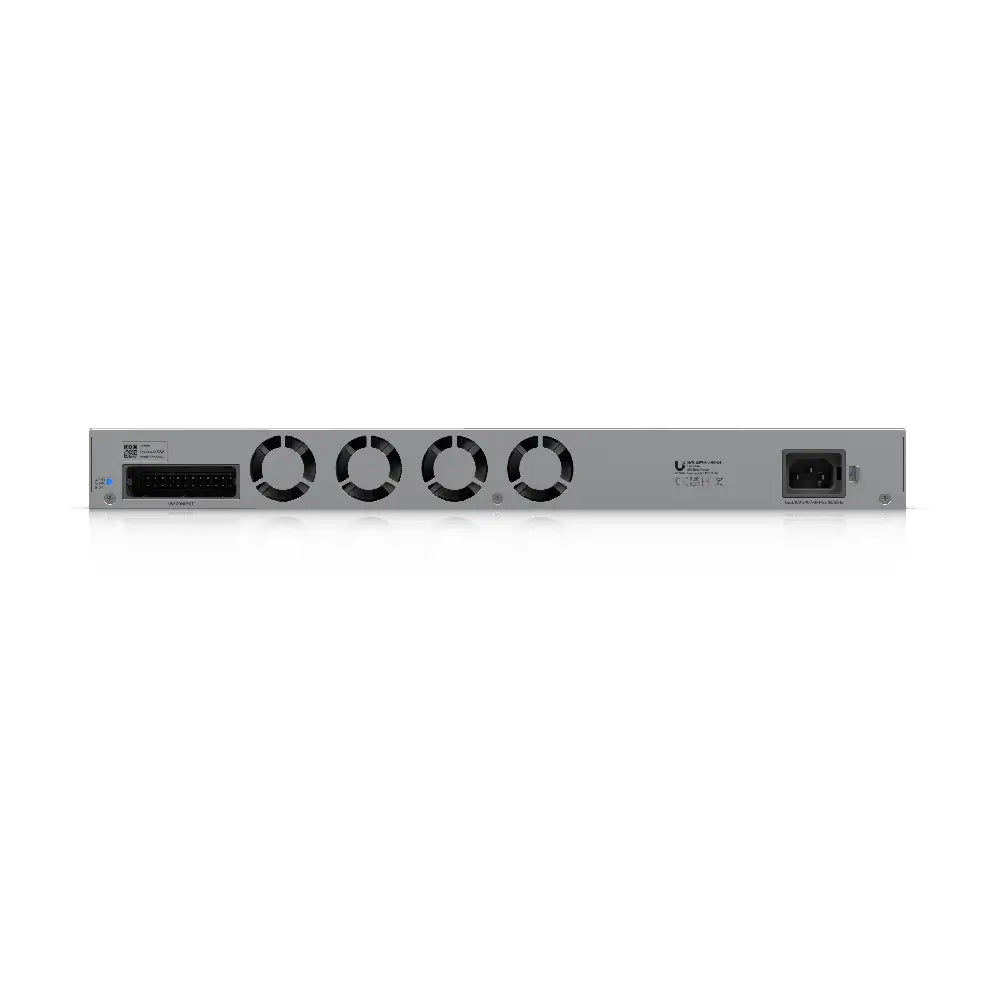

Designed with an internal robust power supply and support for USP RPS DC power backup integration, the unit ensures continuous uptime for mission-critical enterprise environments where network interruption is never an option.
Technical Specification Matrix
| Model |
USW-Pro-XG-24 |
| Switching Capacity |
460 Gbps |
| Non-Blocking Throughput |
230 Gbps |
| Total Ports |
26 (16x 10G RJ45, 8x 2.5G RJ45, 2x 25G SFP28) |
| Layer 3 Features |
Static Routing, Inter-VLAN Routing, DHCP Server/Relay |
| Enclosure Material |
SGCC Steel |
| Dimensions & Form Factor |
442 x 480 x 44 mm (1U Rackmount) |
| Compliance |
NDAA Compliant |
What management software does the USW-Pro-XG-24 require?
The switch is fully managed through the centralized UniFi Network controller platform, enabling remote configuration, traffic analysis, and effortless multi-site administration.
Does this switch support DC power redundancy?
Yes, the unit features a DC input port designed to connect seamlessly with the UniFi Redundant Power System (USP RPS) for advanced failover protection.

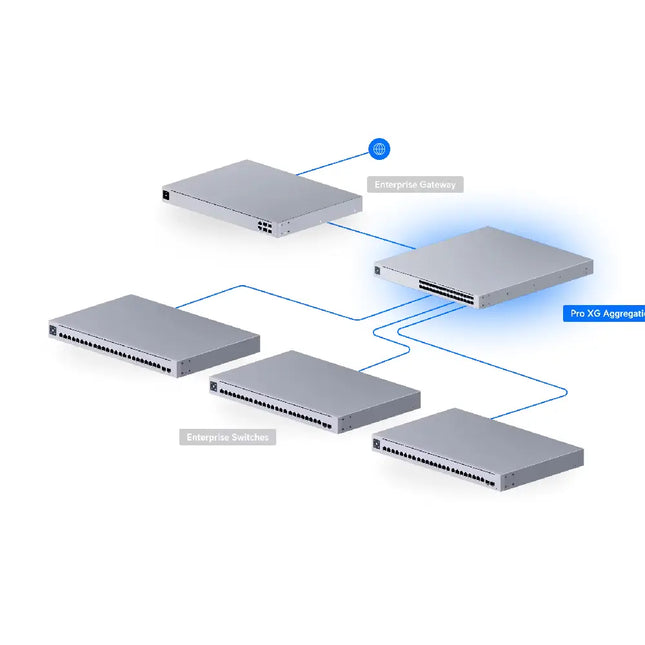

What are the primary use cases for 25G SFP28 uplinks?
The dual 25G SFP28 ports allow ultra-high-speed fiber uplinks to core network switches or data center core routers, drastically multiplying backbone bandwidth capabilities.
Is the USW-Pro-XG-24 compliant with government procurement regulations?
Yes, this model is fully NDAA compliant, making it suitable for federal, defense, and enterprise installations requiring strict regulatory adherence.
